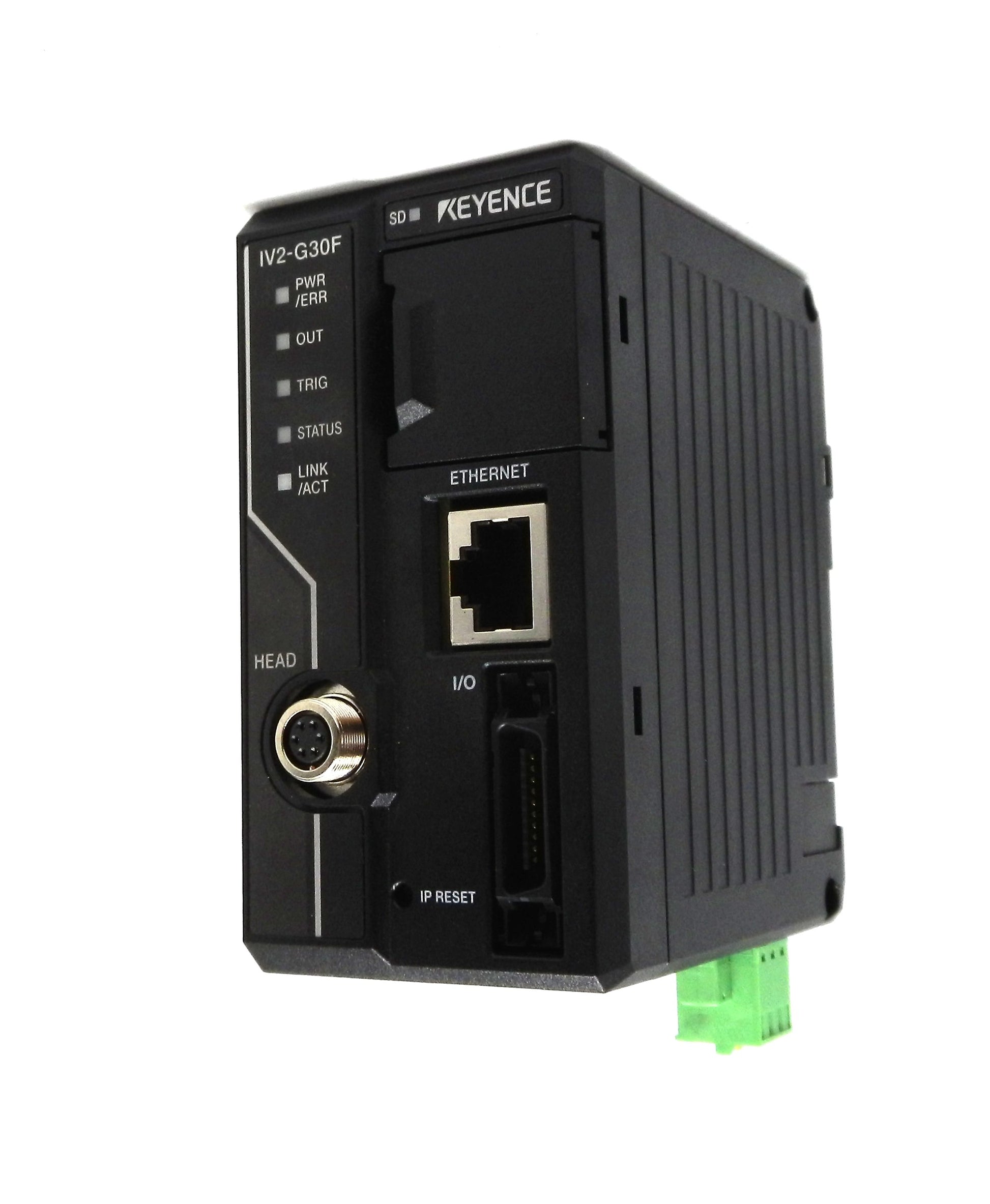

IV2-G30F KEYENCE IV2 Series AI Vision Sensor Amplifier Learning / Standard Mode 24VDC

Description:

• Genuine KEYENCE IV2 Series sensor amplifier for AI-enabled vision sensor applications
• Learning / Standard type supporting both Learning Mode and Standard Mode
• Designed for use with compatible KEYENCE IV2 Series vision sensor heads
• Provides up to 16 detection tools plus 1 position adjustment tool
• Inspection tools include outline, area, edge pixels, width, diameter, edge presence, pitch, OCR, position adjustment, and other vision inspection functions
• Supports up to 32 programs without an SD card or 128 programs with an SD card
• Internal image history can store up to 1,000 images
• Built-in Ethernet supports EtherNet/IP, PROFINET, and TCP/IP communications
• Features 8 configurable inputs and 8 configurable open-collector outputs
• NPN/PNP output operation is selectable for flexible integration with industrial control systems
• Supports SD/SDHC memory expansion and image transfer to an SD card or FTP server
• Ideal for automated inspection, presence/absence detection, OCR, positioning, measurement, quality control, and machine vision applications.

Specifications:

• Manufacturer: KEYENCE
• Part Number (MPN): IV2-G30F
• Series: IV2
• Product Type: Vision Sensor Amplifier / Controller
• Type: Learning / Standard
• Operating Modes:
  • Learning Mode
  • Standard Mode
• Detection Tools: 16
• Position Adjustment Tools: 1
• Programs:
  • 32 without SD card
  • 128 with SD card
• Internal Image Storage: Up to 1,000 images
• Inputs: 8
• Outputs: 8
• Output Type: Open Collector
• Output Configuration: NPN / PNP Selectable
• Maximum Output Rating: 26.4 V, 50 mA
• Ethernet: 10BASE-T / 100BASE-TX
• Ethernet Connector: RJ45 8-Pin
• Built-In Network Support:
  • EtherNet/IP
  • PROFINET
  • TCP/IP
• Network Functions:
  • FTP Client
  • SNTP Client
• Expansion Memory: SD / SDHC Card
• Power Supply: 24 VDC ±10%
• Current Consumption: 1.8 A Maximum
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Relative Humidity: 35–85% RH, Non-Condensing

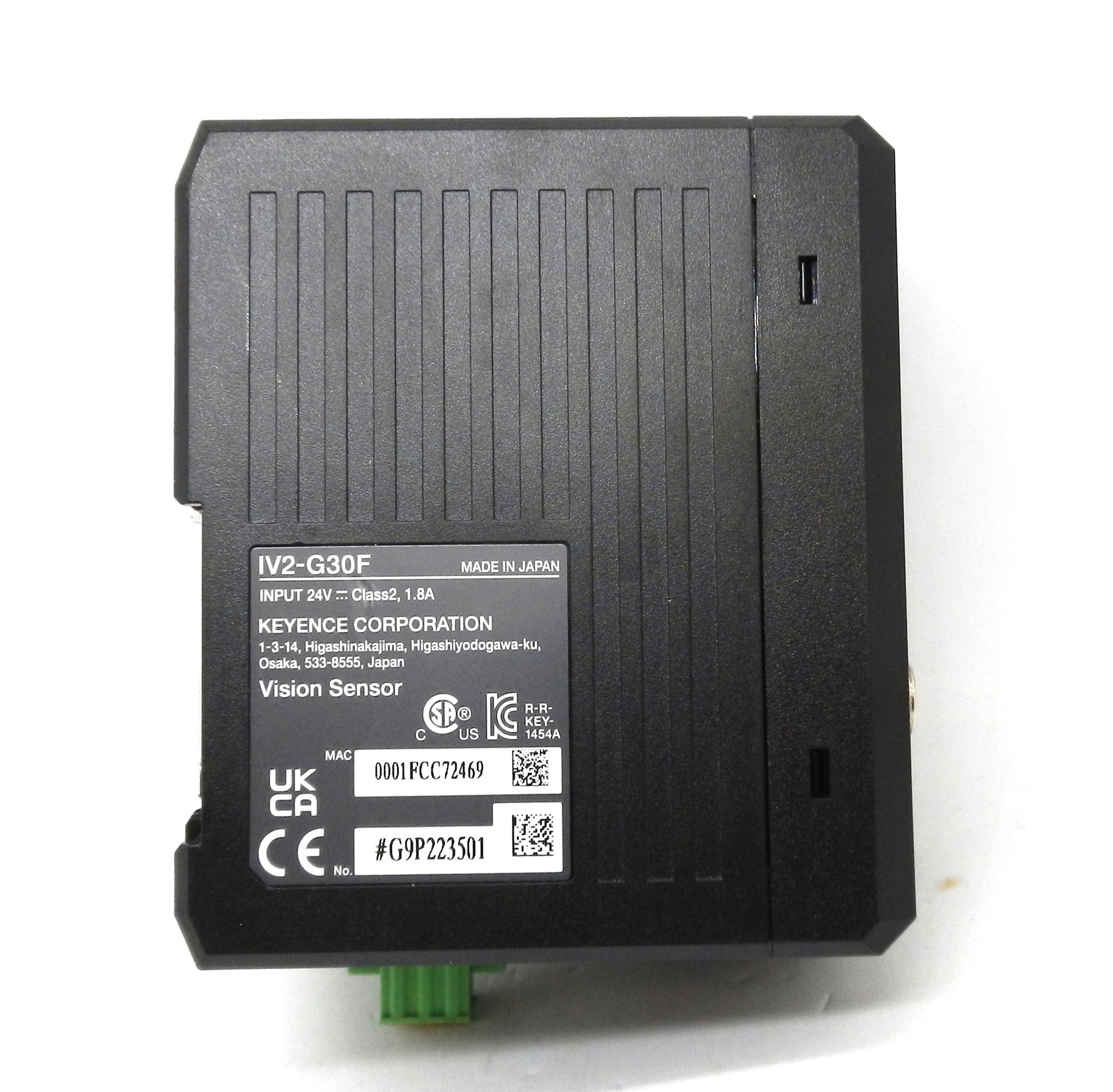

• Certifications: UL / CSA / CE

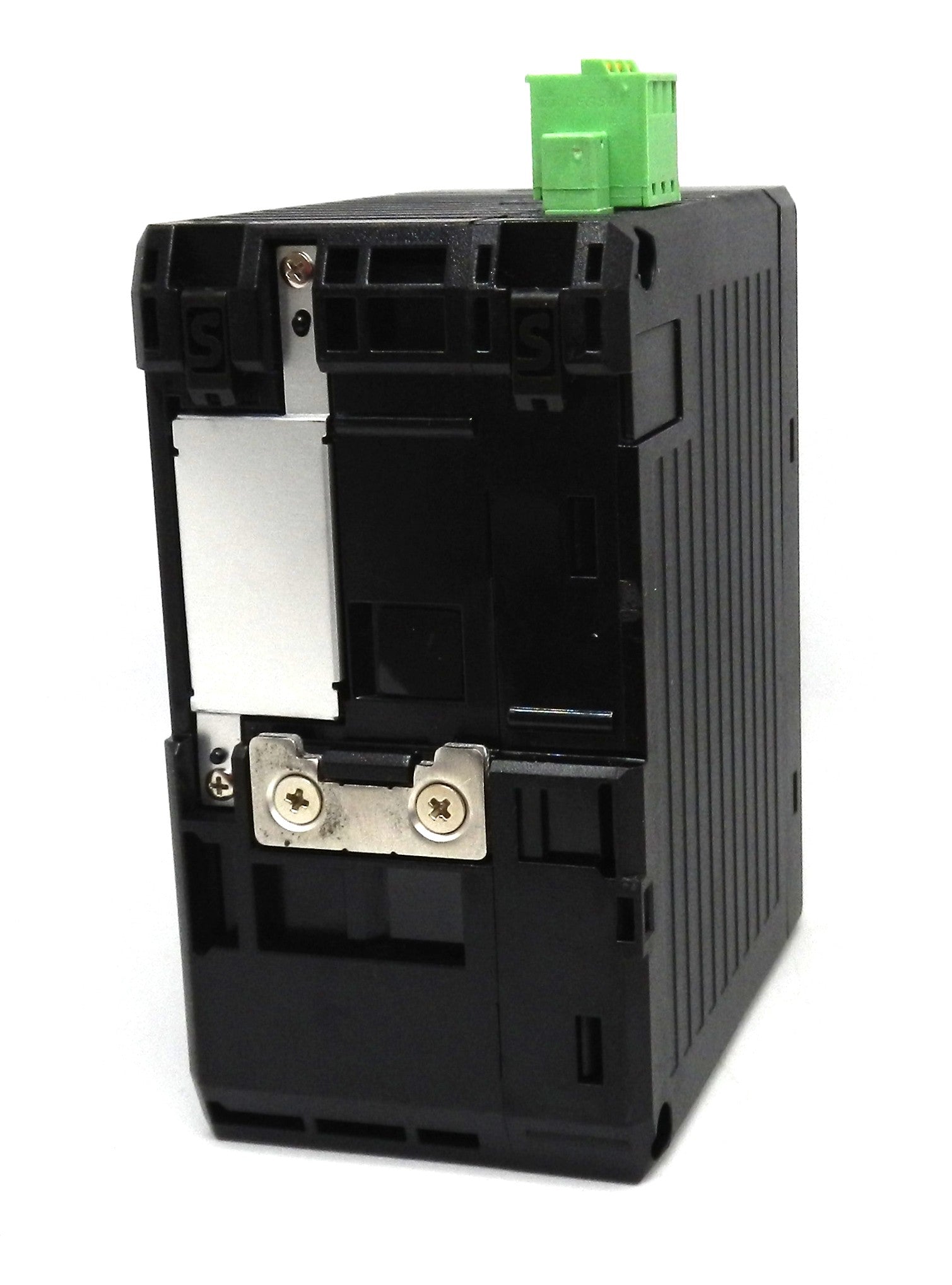

• Mounting: DIN Rail
• Applications:
  • Machine Vision
  • Automated Inspection
  • Quality Control
  • OCR Inspection
  • Position Detection
  • Presence / Absence Detection
  • Industrial Automation
  • Manufacturing Equipment

Dimensions:

• Compact DIN rail-mounted sensor amplifier
• Designed for installation in industrial control panels with compatible IV2 Series equipment

Weight:

• Approximate Weight: 330 g (0.73 lb)
