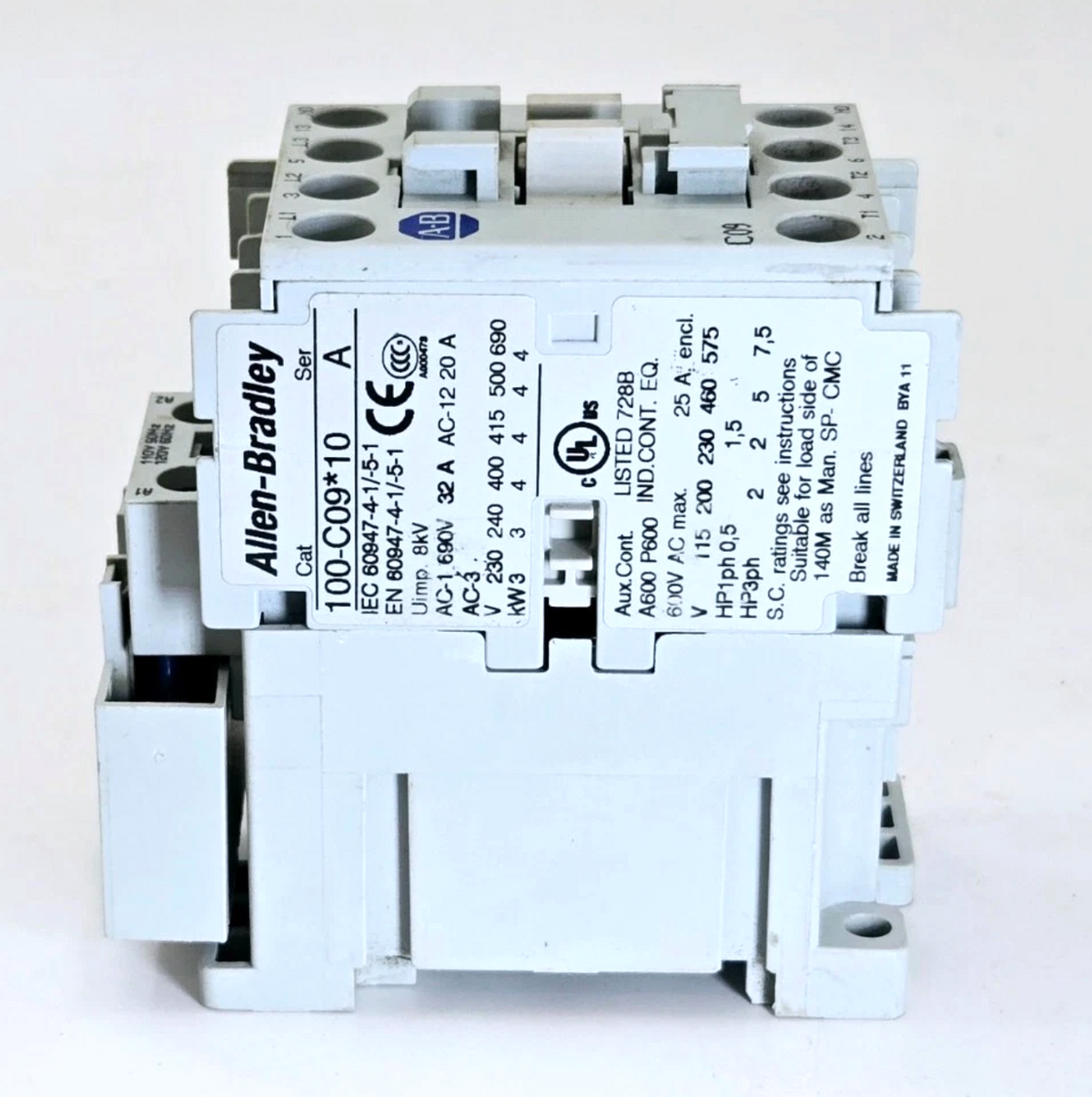

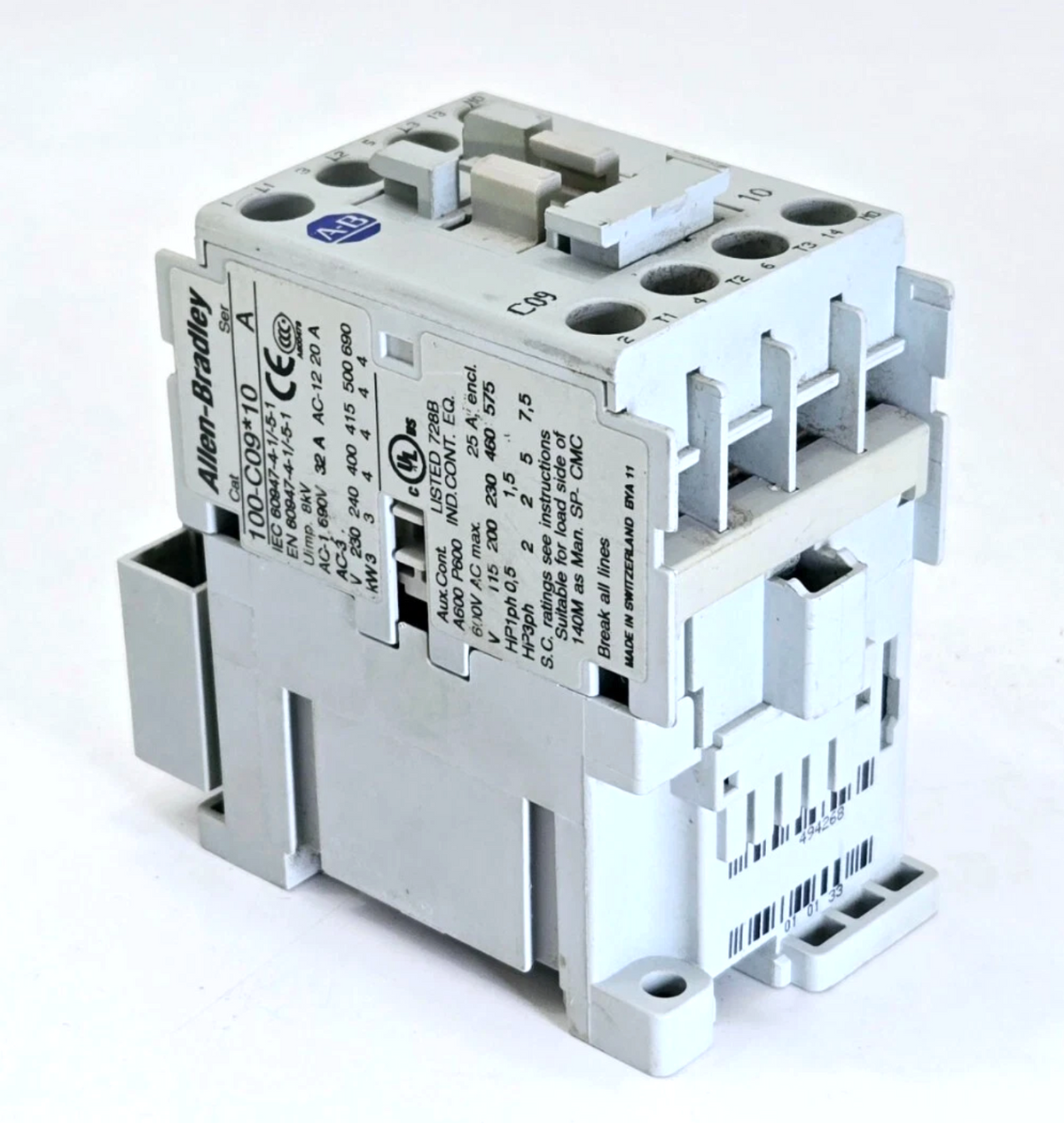

100-C09*10 Allen-Bradley 9A 3-Pole Contactor Series A

Description

• Allen-Bradley 100-C09*10 IEC industrial contactor.

• Part of the Bulletin 100-C contactor series.

• Three-pole contactor for motor control and industrial switching applications.

• Rated 9A for AC-3 motor duty at 400V AC.

• AC-1 operational current rating of 32A.

• Includes one normally open (1 NO) auxiliary contact.

• Rated for 5 HP three-phase motors at 460V.

• Suitable for industrial control panels, pumps, fans, conveyors, and manufacturing equipment.

• Compact design for DIN rail or panel mounting.

• Manufactured in Switzerland.

• Includes a 3-month warranty provided by Sam Electrical Store.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number Marked: 100-C09*10

• Series: A

• Product Series: Bulletin 100-C

• Product Type: IEC Contactor

• Number of Main Poles: 3

• Auxiliary Contacts: 1 NO

• AC-3 Rated Current: 9A at 400V AC

• AC-1 Rated Current: 32A

• Rated Operational Voltage: Up to 690V AC (IEC)

• UL Maximum Voltage: 600V AC

• Impulse Withstand Voltage: 8 kV

• Motor Rating at 230V: 2 HP, Three-Phase

• Motor Rating at 460V: 5 HP, Three-Phase

• Motor Rating at 575V: 7.5 HP, Three-Phase

• Short-Circuit Rating: 5 kA at 600V (as marked)

• Auxiliary Contact Rating: A600 / P600

• Mounting Type: DIN Rail / Panel Mount

• Country of Origin: Switzerland

• Warranty: 3-Month Warranty Provided by Sam Electrical Store

Dimensions

• Width: Approximately 45 mm

• Height: Approximately 81 mm

• Depth: Approximately 86 mm

Weight

• Approximate Weight: 0.32 kg

• Weight in Pounds: 0.71 lb
