140-MN-0160 Allen-Bradley Manual Motor Starter 1–1.6A

Description

• Allen-Bradley 140-MN-0160 manual motor starter and motor protector.

• Adjustable thermal overload protection from 1.0A to 1.6A.

• Three-pole motor protection device.

• Provides manual START and STOP/RESET operation.

• Thermal and magnetic trip protection for motor circuits.

• Adjustable current setting for motor overload protection.

• Designed for three-phase motor control applications.

• Compact design suitable for industrial electrical panels.

• DIN rail mounting for convenient installation.

• Suitable for pumps, fans, conveyors, compressors, and industrial machinery.

• Includes a 3-month warranty provided by Sam Electrical Store.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 140-MN-0160

• Product Series: Bulletin 140-MN

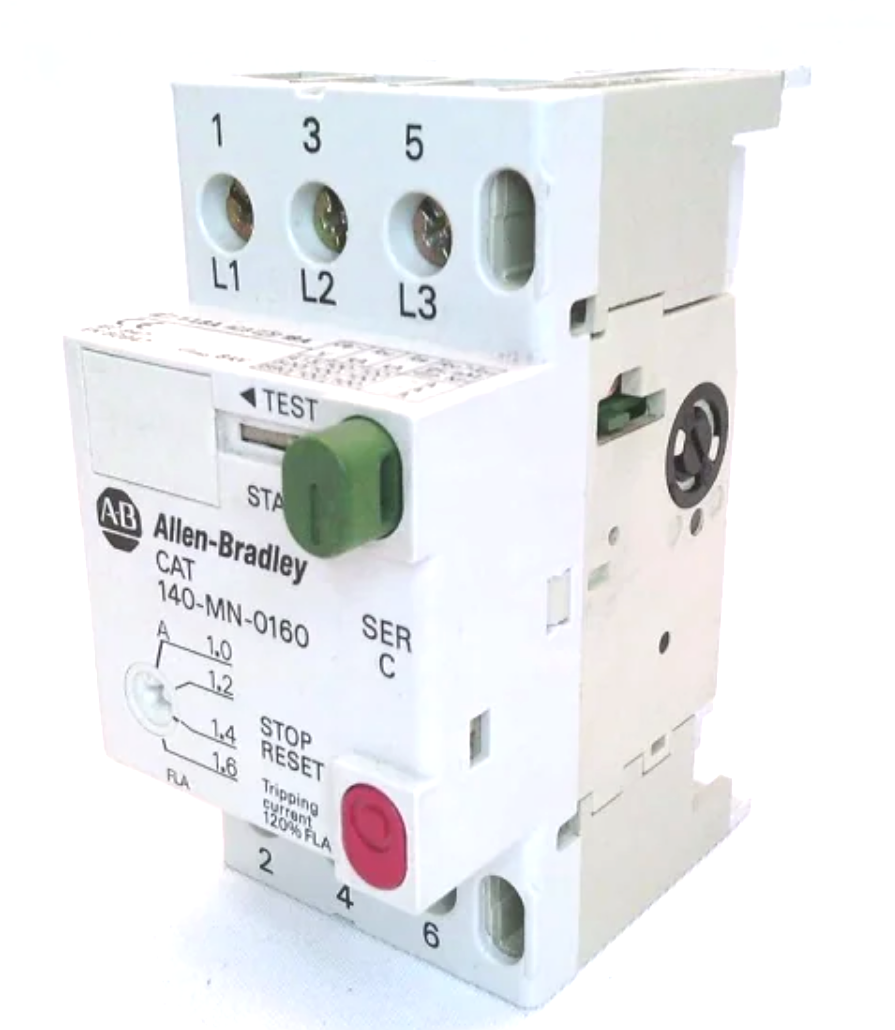

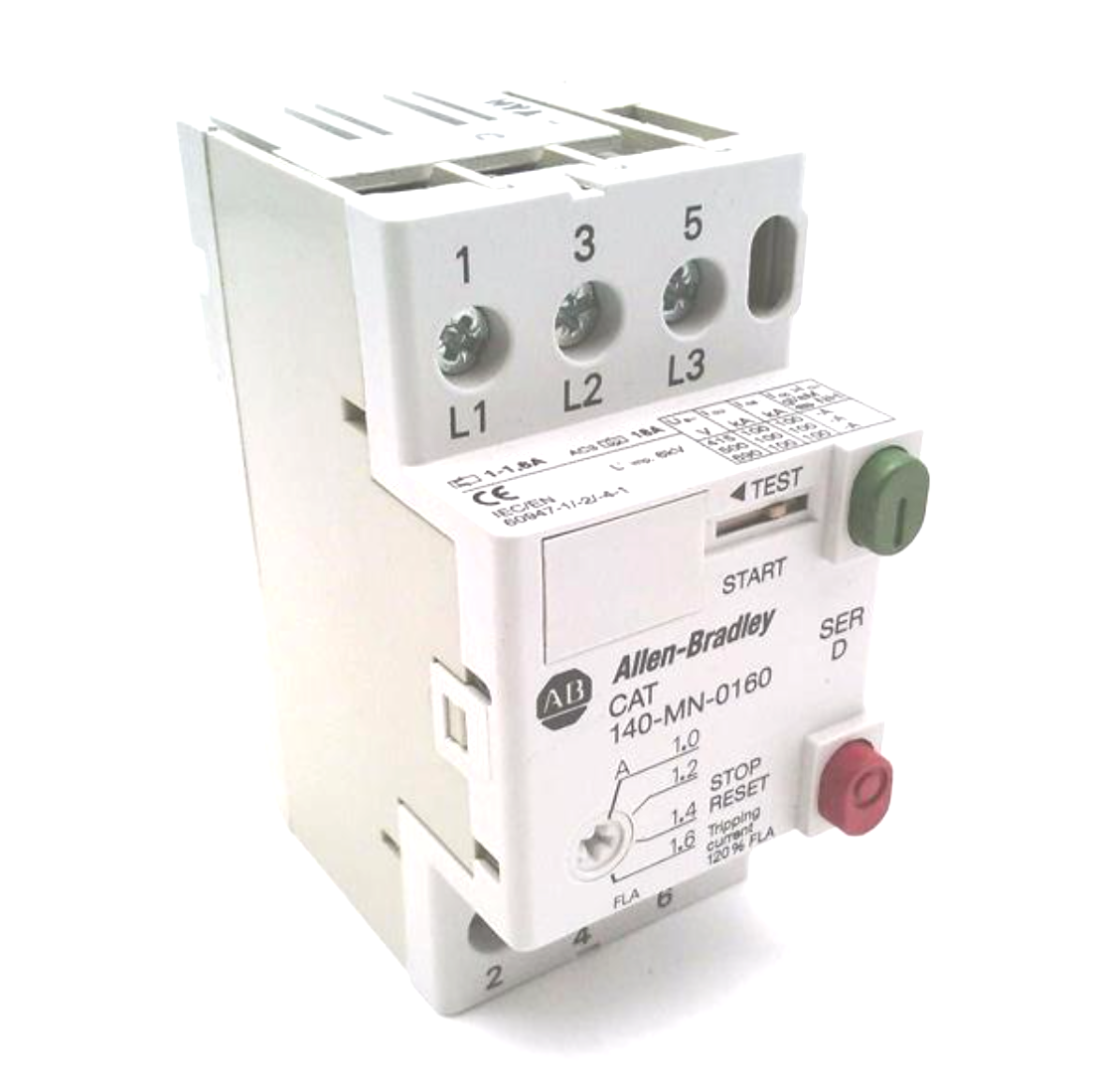

• Series Shown: C and D (two units pictured)

• Product Type: Manual Motor Starter / Motor Protection Circuit Breaker

• Adjustable Current Range: 1.0–1.6A

• Number of Poles: 3

• Motor Control: Manual START / STOP

• Protection Type: Thermal Overload and Magnetic Short-Circuit

• Magnetic Trip Setting: 1200% of FLA, as marked

• Rated Operational Voltage: Up to 690V AC (verify exact approval ratings)

• Frequency: 50/60 Hz

• Mounting Type: DIN Rail

• Application: Three-Phase Motor Protection

• Warranty: 3-Month Warranty Provided by Sam Electrical Store

Dimensions

• Width: Approximately 45 mm

• Height: Approximately 90 mm

• Depth: Approximately 75 mm

Weight

• Approximate Weight: 0.30 kg

• Weight in Pounds: 0.66 lb
