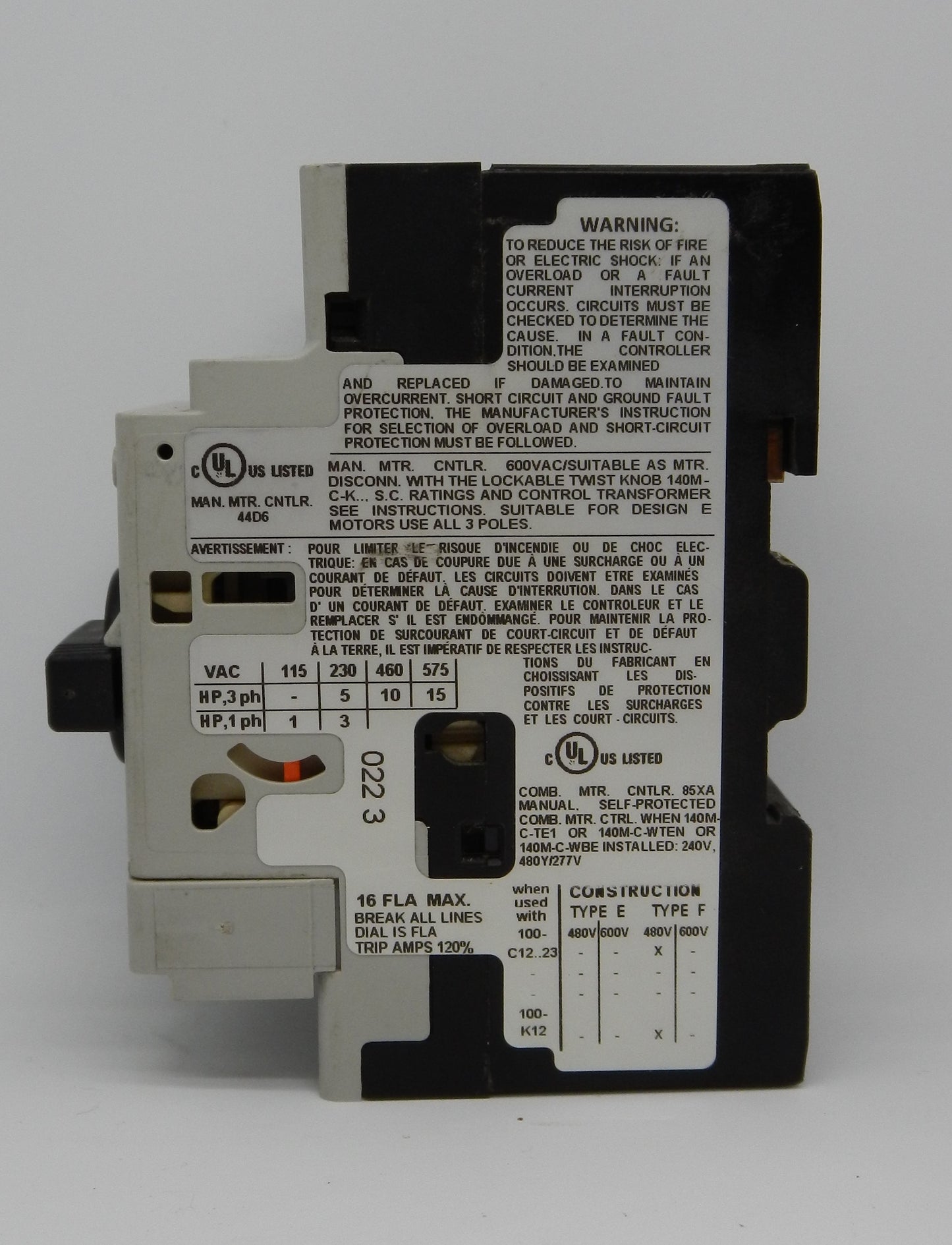

140M-C2E-C16 Allen-Bradley Motor Protection Circuit Breaker 10-16A 3-Pole MPCB Manual Motor Starter

Description:

• Genuine Allen-Bradley motor protection circuit breaker (MPCB) for industrial motor starting and protection applications
• Adjustable thermal overload setting from 10–16A for precise motor protection
• 3-pole thermomagnetic motor protection circuit breaker with fixed magnetic trip
• Protects motors against overload, phase loss, and short circuits in a single compact device
• Suitable for manual motor starting, motor disconnect, and branch motor protection applications
• Compact 45 mm wide design for panel space savings
• DIN rail or panel mounting for flexible installation
• Screw terminal connections provide secure and reliable field wiring
• Compatible with Allen-Bradley Bulletin 100-C and 100-K contactors for Type E and Type F motor starter combinations
• Ideal for industrial automation, conveyor systems, pumps, compressors, HVAC equipment, OEM machinery, and motor control panels
• Part of the Allen-Bradley Bulletin 140M Motor Protection Circuit Breaker family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 140M-C2E-C16
• Product Series: Bulletin 140M
• Product Type: Motor Protection Circuit Breaker (MPCB)
• Number of Poles: 3
• Adjustable Current Range: 10–16 A
• Rated Operational Current (Ie): 16 A
• Frame Size: C (32 A Frame)
• Protection Type:
  • Adjustable Thermal Overload
  • Fixed Magnetic Short-Circuit Protection
• Magnetic Trip Current: 208 A
• Rated Operational Voltage: Up to 690 VAC
• Rated Frequency: 50/60 Hz
• Rated Motor Power:
  • 4 kW @ 230 VAC (AC-3)
  • 7.5 kW @ 400/415 VAC (AC-3)
• Ultimate Breaking Capacity (Icu):
  • 65 kA @ 400/415 VAC
• Degree of Protection: IP2X
• Mounting:
  • DIN Rail
  • Panel Mount
• Terminal Type: Screw Terminals
• Mechanical Life: 100,000 Operations
• Operating Temperature: -25°C to +60°C
• Certifications:
  • UL
  • CSA
  • CE
  • IEC 60947-2
  • IEC 60947-4-1
• Country of Origin: Switzerland
• Applications:
  • Motor Protection
  • Manual Motor Starter
  • Industrial Automation
  • Motor Control Centers
  • HVAC Systems
  • Pumps
  • Compressors
  • OEM Machinery

Dimensions:

• Height: 90 mm (3.54 in)
• Width: 45 mm (1.77 in)
• Depth: 74.5 mm (2.93 in)

Weight:

• Approximate Weight: 0.32 kg (0.71 lb).
