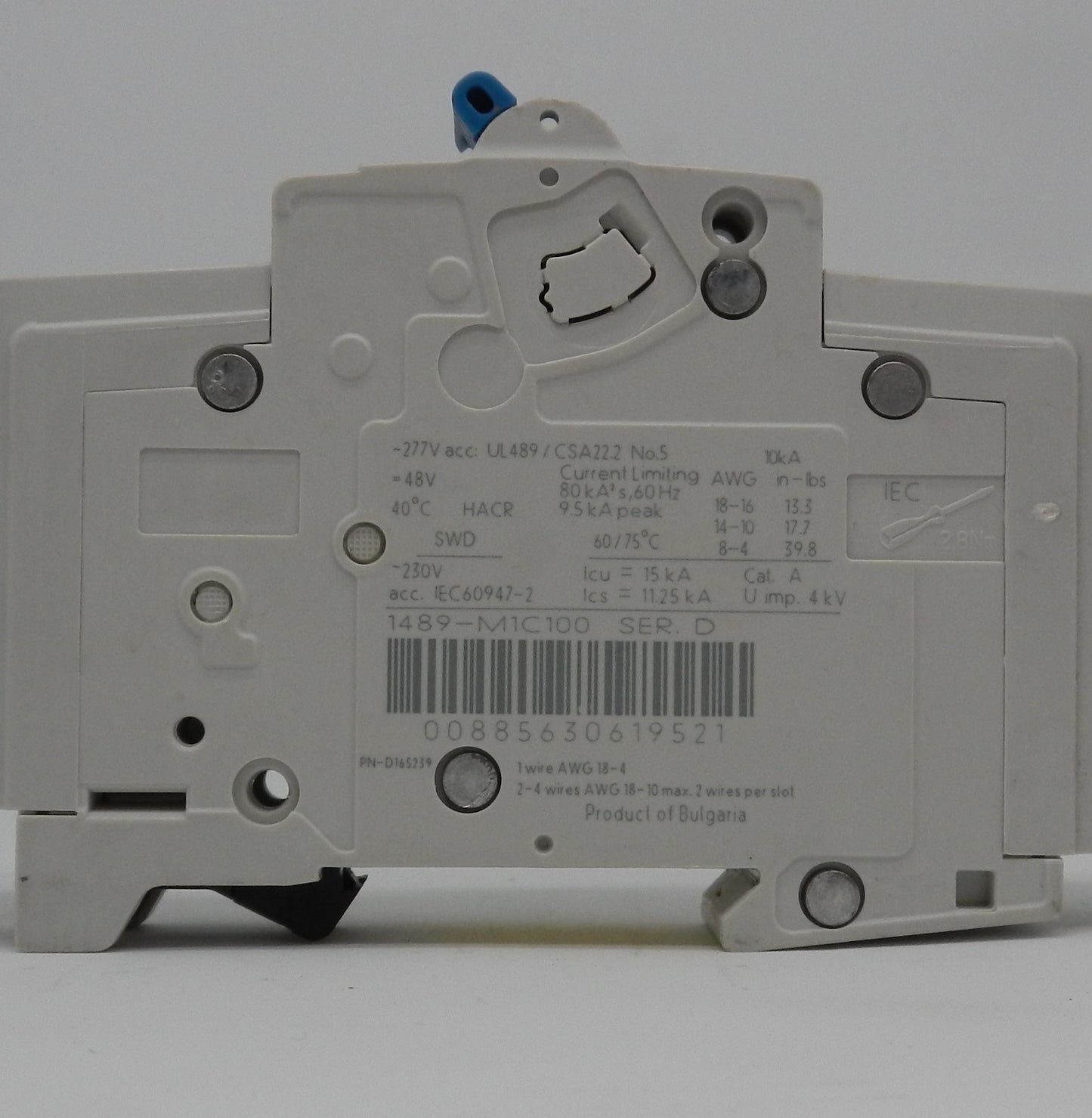

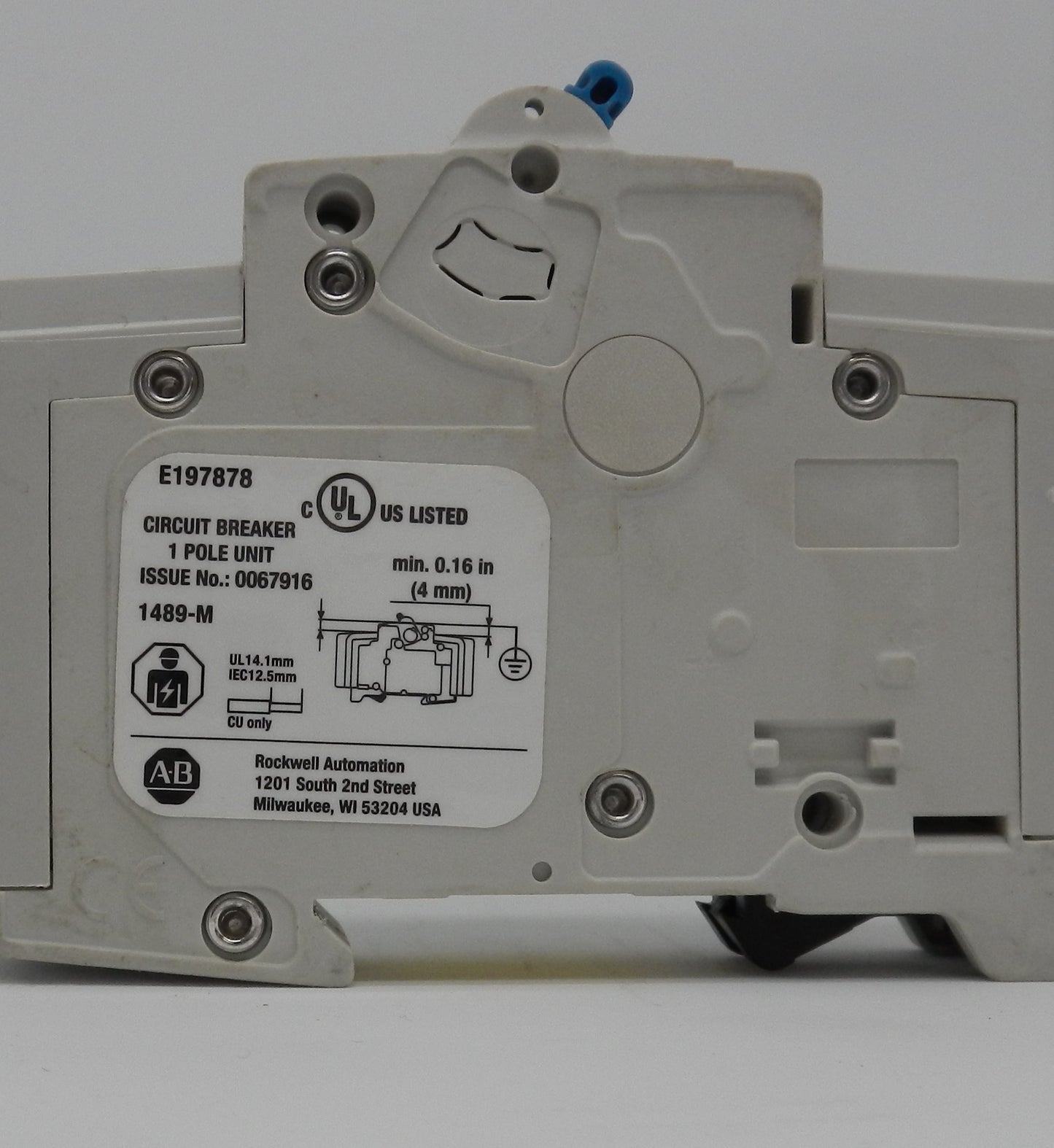

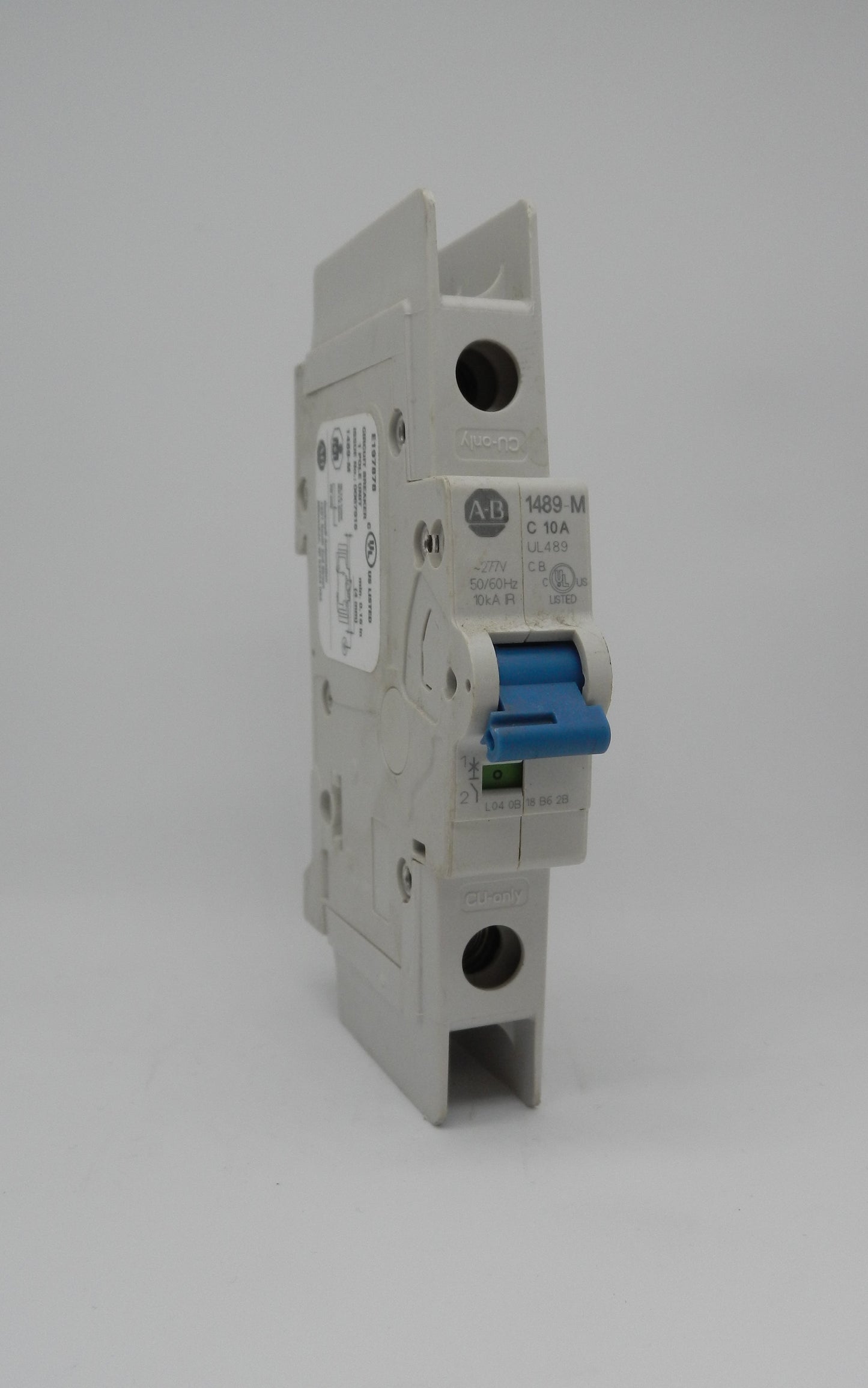

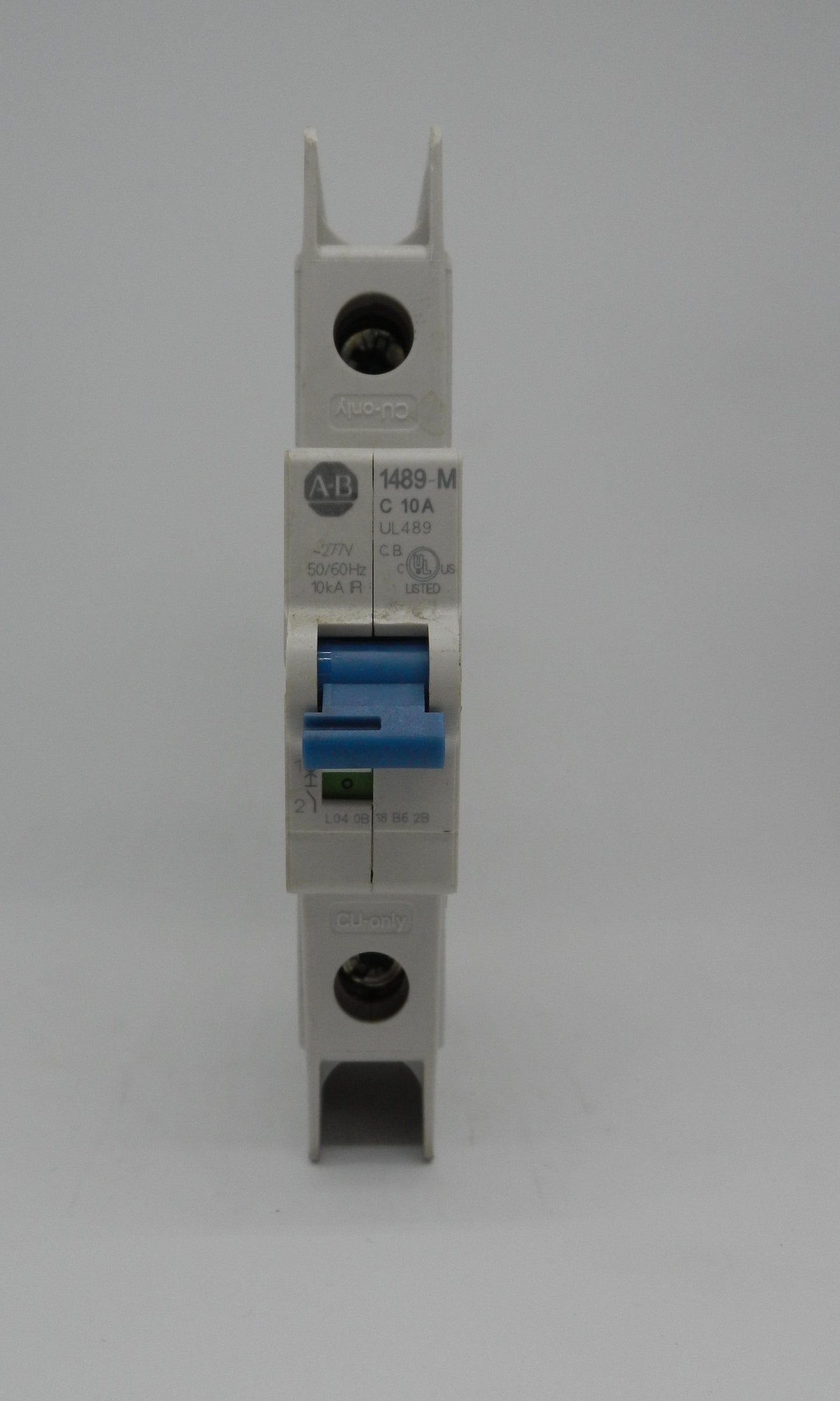

1489-M1C100 Allen-Bradley 10A 1-Pole Miniature Circuit Breaker C-Curve UL489 DIN Rail

Description:

• Genuine Allen-Bradley miniature circuit breaker designed for industrial branch circuit and control panel protection
• Provides 1-pole, 10 Amp overcurrent protection for AC and DC electrical systems
• C-Curve trip characteristic ideal for circuits with moderate inrush currents, including motors, transformers, control circuits, and general industrial loads
• Rated for 277 VAC (UL/CSA), 230 VAC (IEC/EN), and 48 VDC applications
• Thermal-magnetic trip mechanism provides dependable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for quick installation in industrial control panels
• UL 489 Listed branch circuit protector suitable for industrial and commercial electrical installations
• Compatible with Bulletin 1489-M accessories including auxiliary contacts, shunt trips, bus bars, and lockout devices
• Ideal for industrial automation, OEM machinery, manufacturing equipment, motor control panels, and electrical distribution systems
• Active product in the Rockwell Automation Bulletin 1489-M product family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1489-M1C100
• Product Series: Bulletin 1489-M
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 10 A
• Trip Curve: C
• Protection Type: Thermal-Magnetic
• Rated AC Voltage:
  • 277 VAC (UL/CSA)
  • 230 VAC (IEC/EN)
• Rated DC Voltage: 48 VDC
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 10 kA (UL 489)
  • 15 kA Icu @ IEC 60947-2
• Mounting Type: 35 mm DIN Rail
• Degree of Protection:
  • IP20 (Front)
  • IP40 (Installed in Enclosure)
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C to +70°C
• Mechanical Life: 20,000 Operations
• Electrical Life: 20,000 Operations
• Standards:
  • UL 489
  • CSA C22.2 No. 5.1
  • IEC 60947-2
  • CE
  • RoHS
• Country of Origin: Bulgaria
• Lifecycle Status: Active
• Applications:
  • Industrial Control Panels
  • Branch Circuit Protection
  • Motor Control
  • Industrial Automation
  • Manufacturing Equipment
  • OEM Machinery
  • Electrical Distribution

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 17.5 mm (0.69 in)
• Depth: 74 mm (2.91 in)

Weight:

• Approximate Weight: 0.125 kg (0.28 lb).
