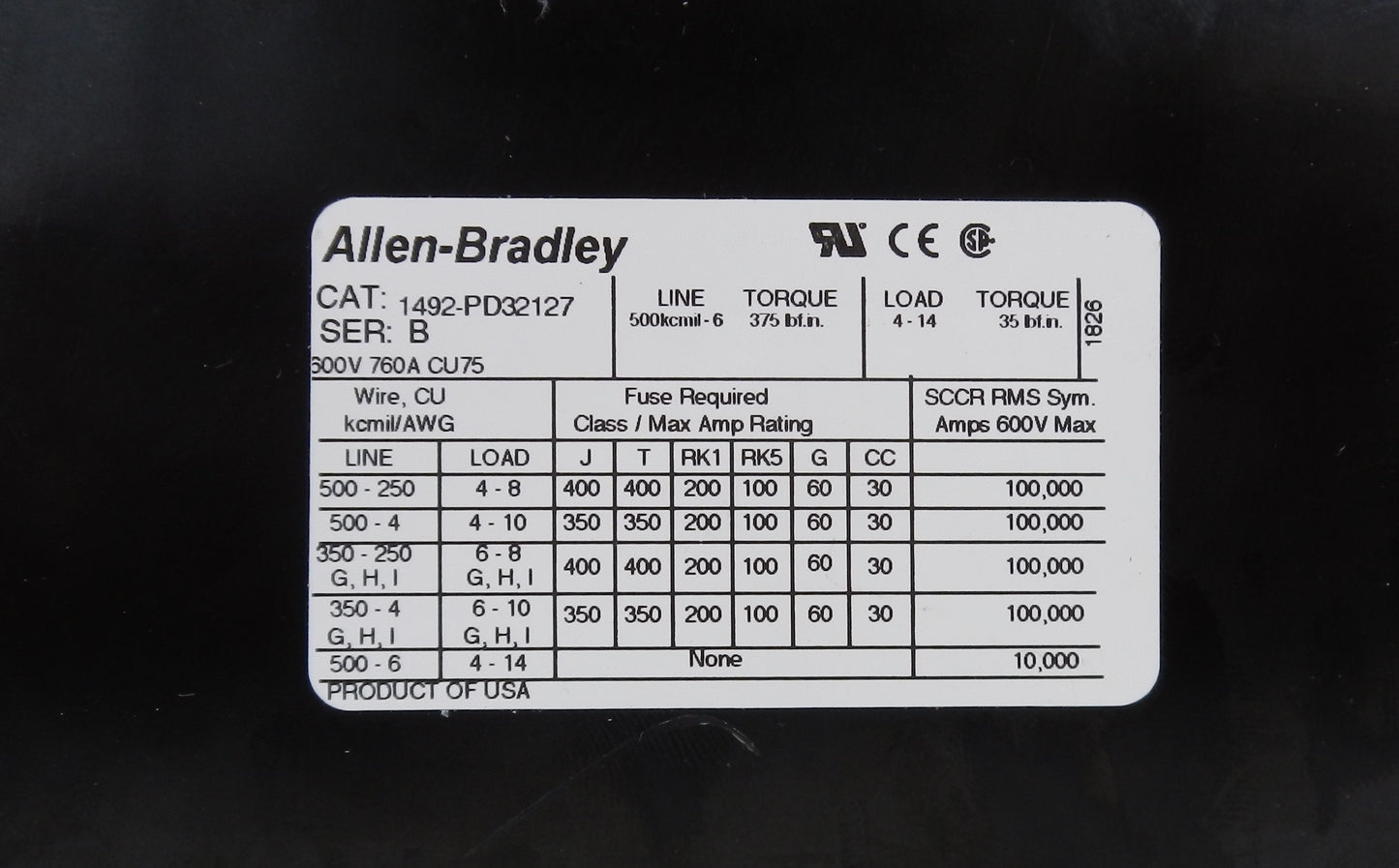

1492-PD32127 Allen-Bradley 760A 3-Pole Power Distribution Block 600VAC/DC Aluminum 2 Line 12 Load

Description:

• Genuine Allen-Bradley power distribution block for industrial control panels and power distribution applications
• Provides safe and efficient power distribution from a single input source to multiple output circuits
• Rated for 760 Amps and 600 VAC/DC
• 3-pole design with 2 line-side openings and 12 load-side openings per block
• Constructed with aluminum conductors for high-current industrial applications
• Open-style power distribution block designed for panel-mounted electrical systems
• Clearly marked wire ranges and tightening torque simplify installation and maintenance
• Ideal for industrial automation, motor control centers, switchgear, OEM machinery, distribution panels, and electrical control cabinets
• Active product in the Allen-Bradley Bulletin 1492 Power Distribution Block family

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1492-PD32127
• Product Series: Bulletin 1492
• Product Type: Power Distribution Block
• Number of Poles: 3
• Current Rating: 760 A
• Rated Voltage:
  • 600 VAC
  • 600 VDC
• Connector Material: Aluminum
• Line Side Openings: 2 per Pole
• Line Side Wire Range: #6 AWG to 500 kcmil Copper
• Load Side Openings: 12 per Pole
• Load Side Wire Range: #14 AWG to #2 AWG Copper
• Mounting Type: Panel Mount
• Marking Strip: Single White Identification Strip Included
• Country of Origin: United States
• Lifecycle Status: Active
• Standards & Certifications:
  • UL Listed
  • cULus
  • CE
  • UKCA
  • IEC 60947-1
  • IEC 60947-7-1
  • UL 1953
  • CSA C22.2 No. 158
• Applications:
  • Power Distribution Panels
  • Industrial Control Panels
  • Motor Control Centers
  • OEM Equipment
  • Machine Automation
  • Electrical Distribution Systems
  • Industrial Automation

Dimensions:

• Depth: 3.23 in (82 mm)
• Shipping Length: 12.24 in (311 mm)
• Shipping Width: 4.33 in (110 mm)
• Shipping Height: 5.98 in (152 mm)

Weight:

• Approximate Weight: 1.16 kg (2.55 lb).
