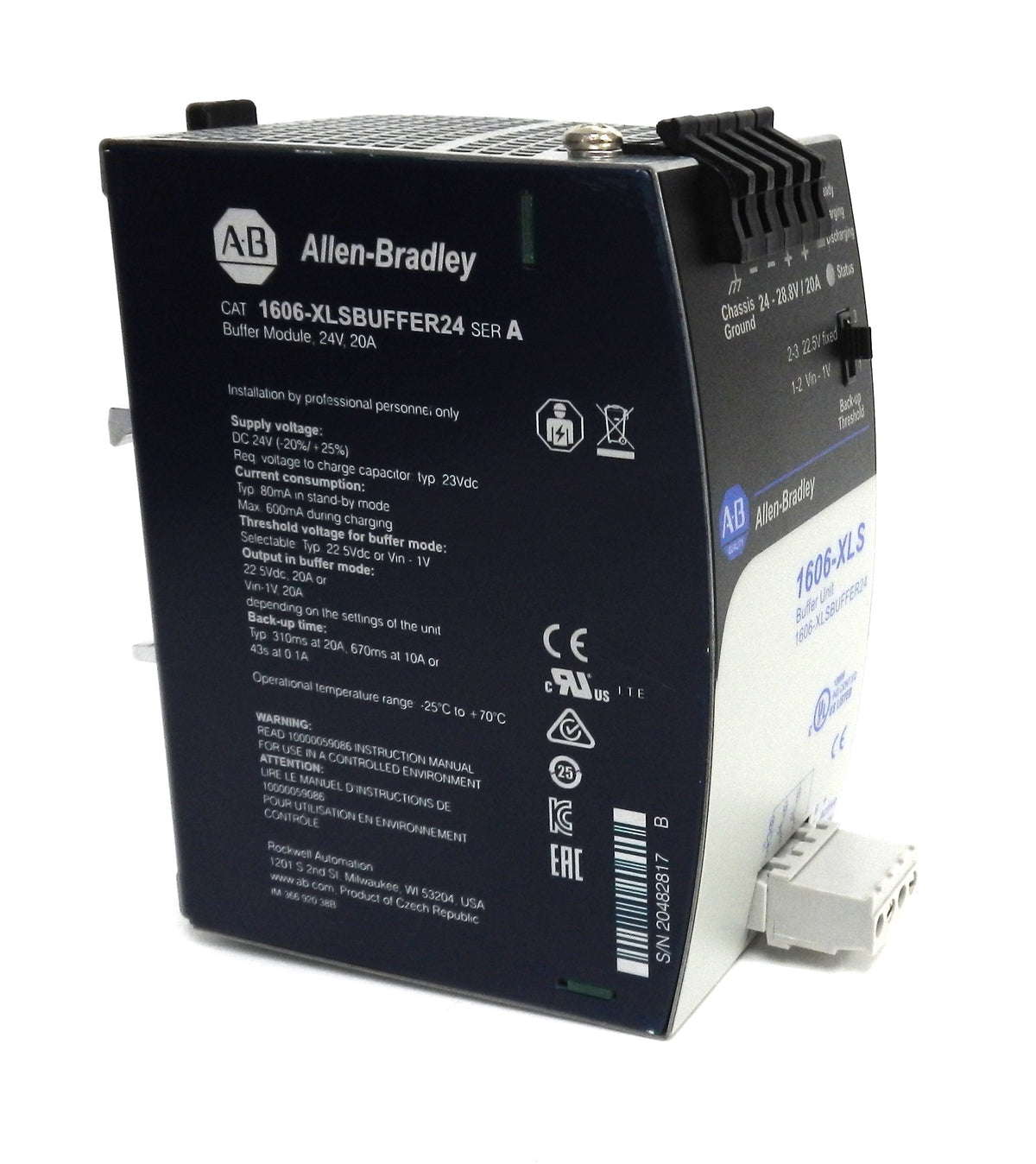

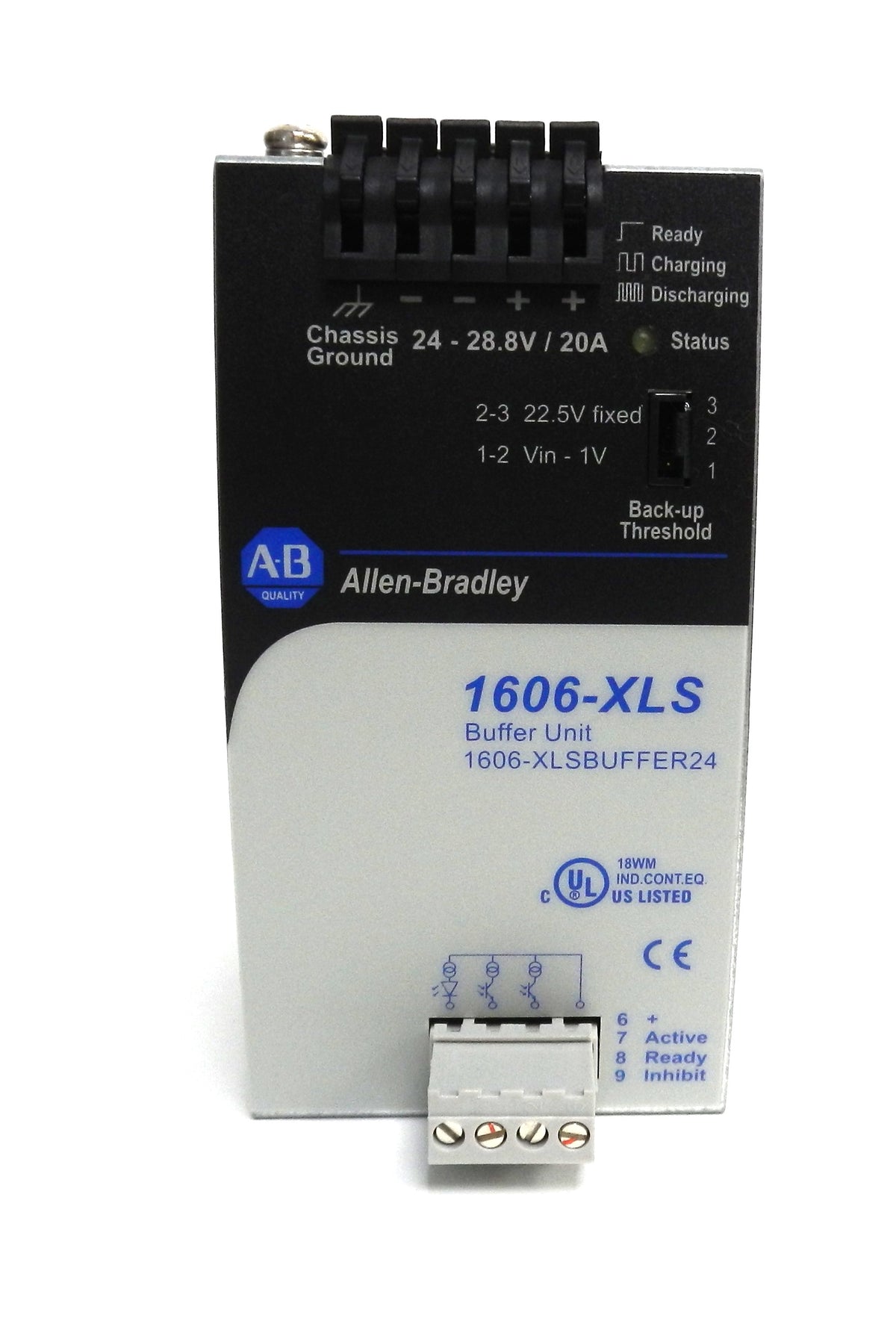

1606-XLSBUFFER24 Allen-Bradley 24V DC 20A Buffer Module Series A

Description

• Allen-Bradley 1606-XLSBUFFER24 industrial DC buffer module.

• Designed to provide temporary backup power during short interruptions or voltage drops in 24V DC power systems.

• Helps maintain continuous operation of industrial control equipment.

• Uses internal capacitor energy storage.

• Provides up to 20A output current during buffer operation.

• Adjustable buffer activation threshold.

• Suitable for industrial automation, PLC control panels, and power supply systems.

• DIN rail mounting design.

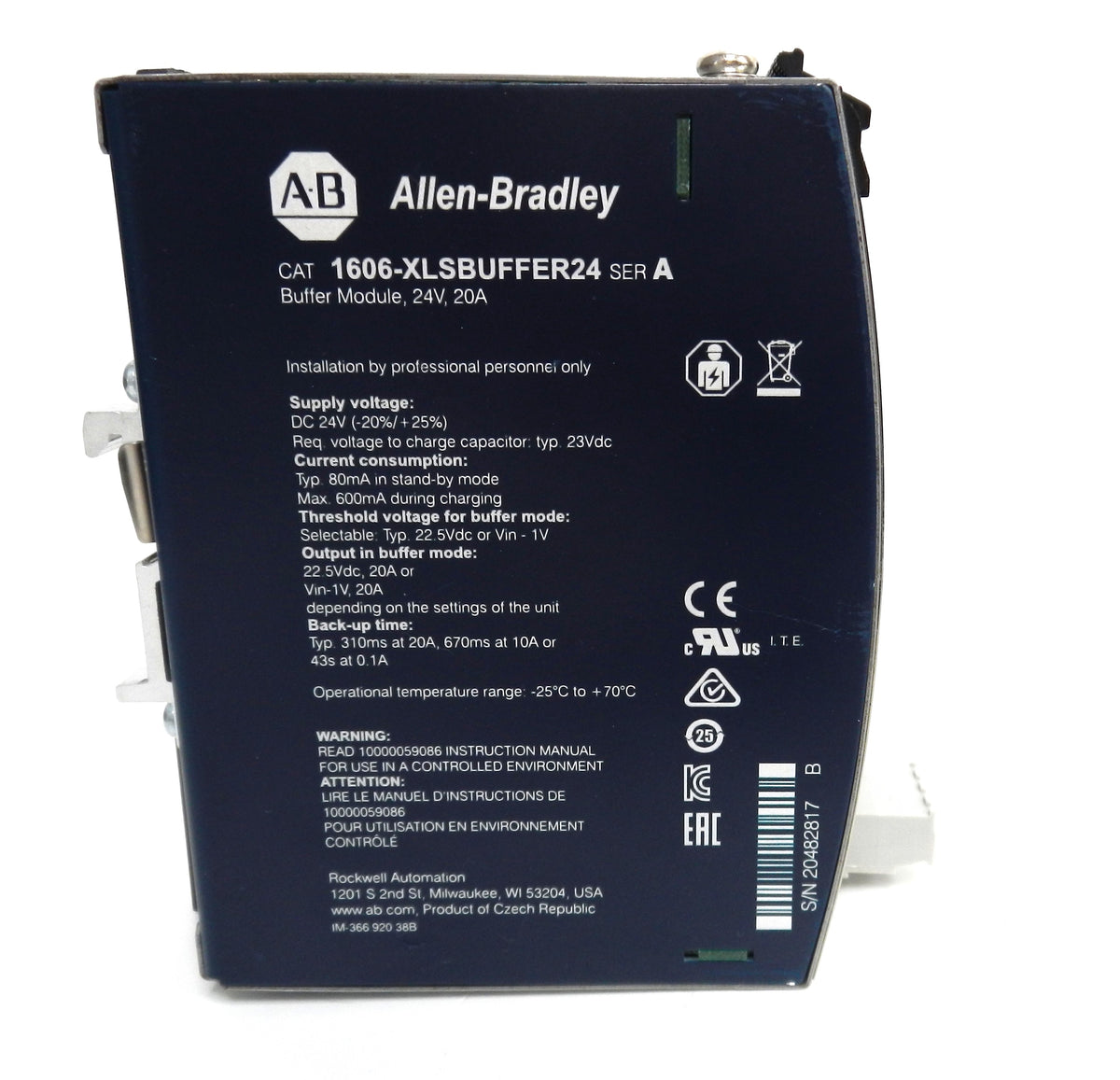

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1606-XLSBUFFER24

• Series: A

• Product Type: DC Buffer Module

• Nominal Input Voltage: 24V DC

• Input Voltage Range: 19.2–30V DC

• Maximum Output Current: 20A

• Typical Capacitor Charging Voltage: 23V DC

• Standby Current Consumption: 80mA

• Maximum Charging Current: 600mA

• Buffer Threshold: Selectable, typically 22.5V DC or input voltage minus 1V

• Buffer Output Voltage: 22.5V DC or input voltage minus 1V, depending on settings

• Typical Backup Time:

  • 310ms at 20A

  • 670ms at 10A

  • 43 seconds at 0.1A

• Operating Temperature: -25°C to +70°C

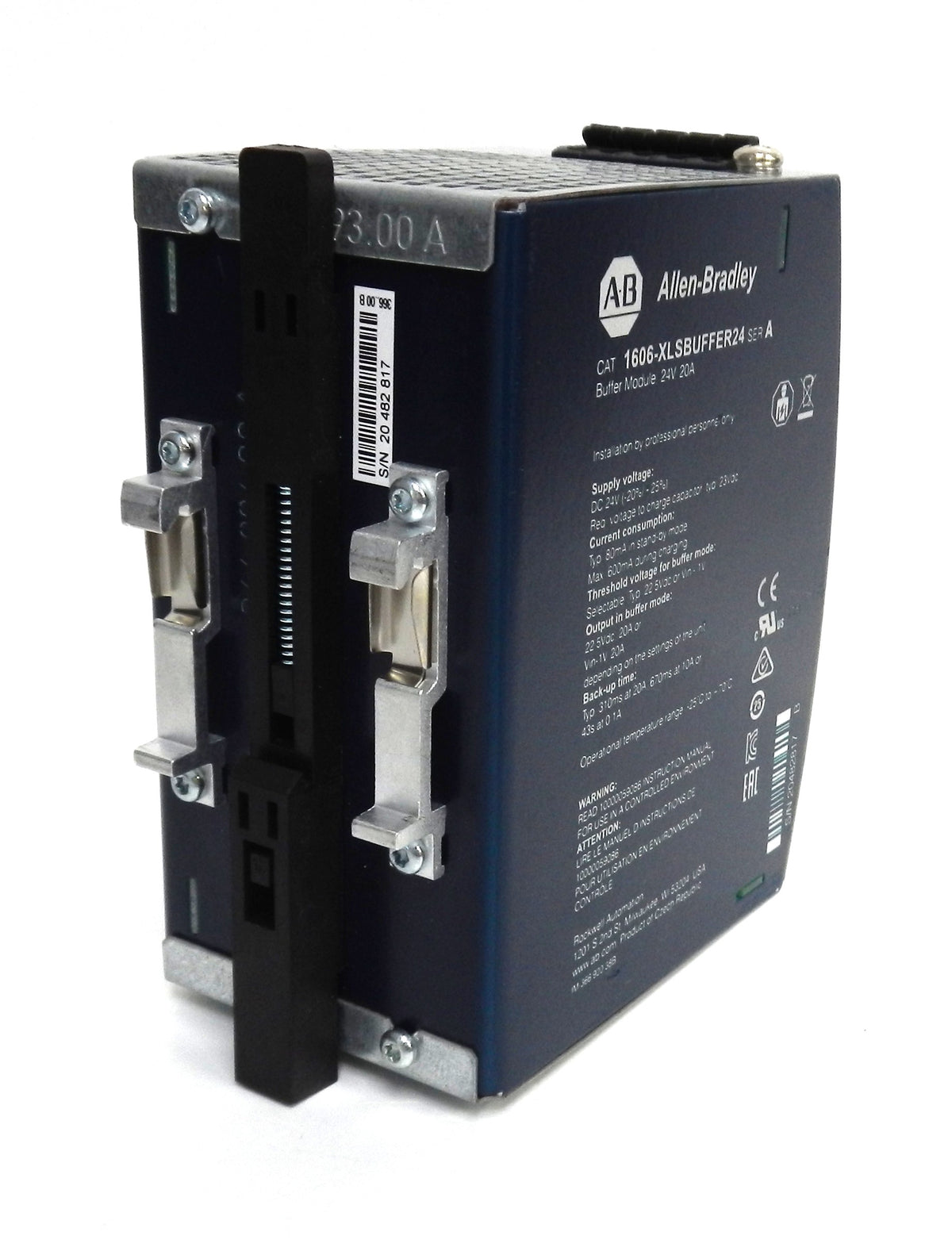

• Mounting Type: DIN Rail

• Country of Origin: Czech Republic

Dimensions

• Width: Approximately 64mm

• Height: Approximately 124mm

• Depth: Approximately 117mm

• Dimensions should be verified against the manufacturer's datasheet.

Weight

• Approximate Weight: 1.5 lb (0.68 kg)

• Weight requires verification
