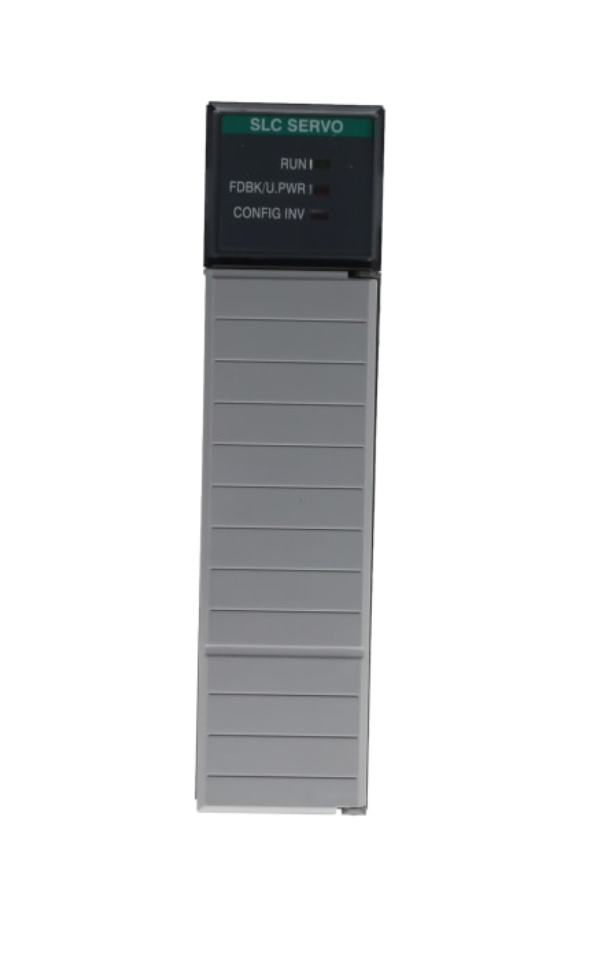

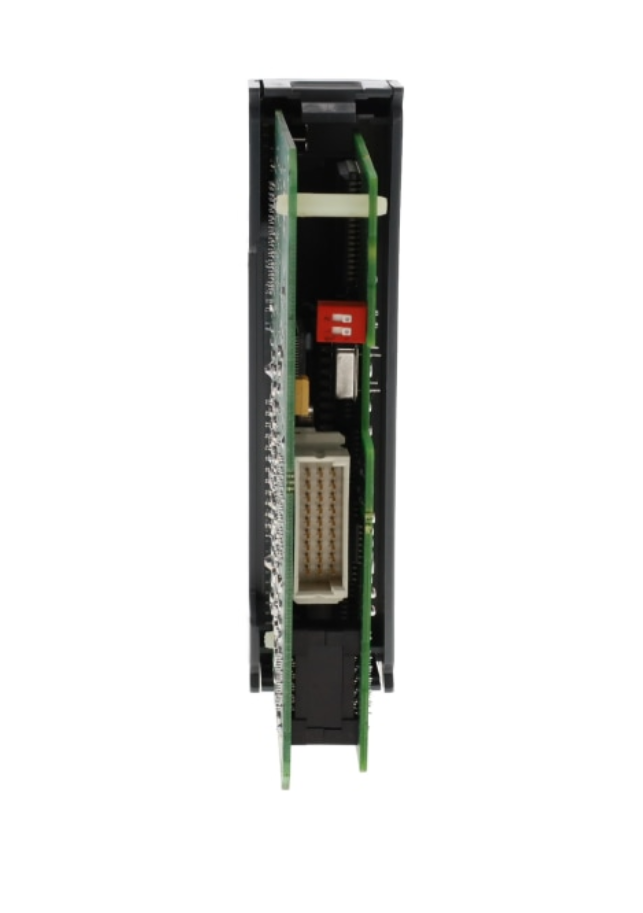

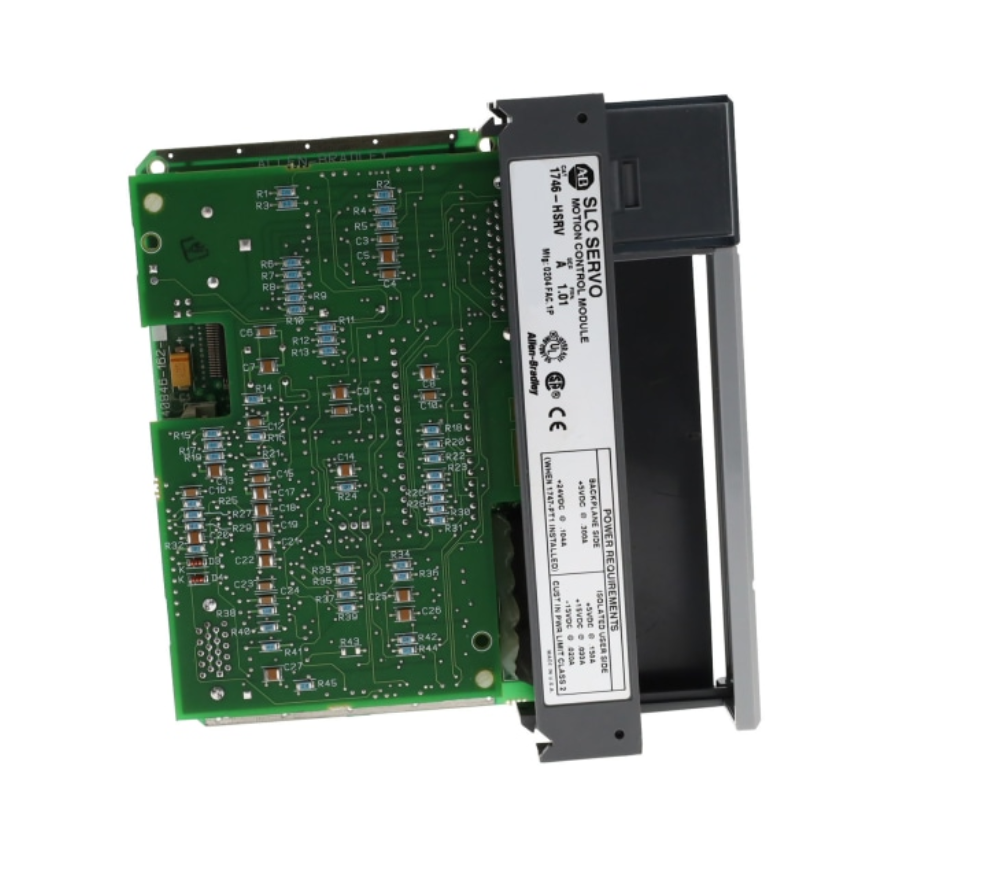

1746-HSRV Allen-Bradley SLC 500 High-Speed Servo Control Module

Description

• Allen-Bradley 1746-HSRV high-speed servo control module.

• Designed for SLC 500 programmable logic controller systems.

• Provides precise single-axis servo motor positioning and motion control.

• Compatible with SLC 5/03, SLC 5/04, and SLC 5/05 processors.

• Supports absolute, incremental, and speed motion commands.

• Provides 3 high-speed digital inputs and 1 digital output.

• Supports 24V DC input and output signals.

• Analog velocity command output with programmable limits up to ±10V DC.

• High-speed encoder feedback capability up to 300 kHz.

• Supports advanced motion profiles and positioning applications.

• Single-slot installation in an SLC 500 chassis.

• Suitable for industrial automation, manufacturing machinery, packaging equipment, and servo positioning systems.

• Discontinued by manufacturer.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1746-HSRV

• Product Series: SLC 500

• Product Type: High-Speed Servo Control Module

• Number of Controlled Axes: 1

• Compatible PLCs: SLC 5/03, SLC 5/04, SLC 5/05

• Digital Inputs: 3

• Digital Outputs: 1

• Digital I/O Voltage: 24V DC

• Analog Output Voltage: ±10V DC

• Analog Output Resolution: 12-bit

• Maximum Encoder Input Frequency: 300 kHz

• Module Update Time: 2 ms

• Backplane Current Consumption: 300mA at 5V DC

• Input Image Size: 12 Words

• Output Image Size: 12 Words

• Mounting Type: SLC 500 Chassis

• Slot Requirement: Single Slot

• Compatible Accessories: 1746-HT Termination Panel, 1746-HCA Cable

• Lifecycle Status: Discontinued

• Country of Origin: Verify on product label

Dimensions

• Height: Approximately 127 mm (5 inches)

• Width: Approximately 51 mm (2 inches)

• Depth: Approximately 152 mm (6 inches)

• Note: Dimensions are approximate and should be verified before publishing.

Weight

• Approximate Weight: 0.22 kg

• Weight in Pounds: 0.49 lb
