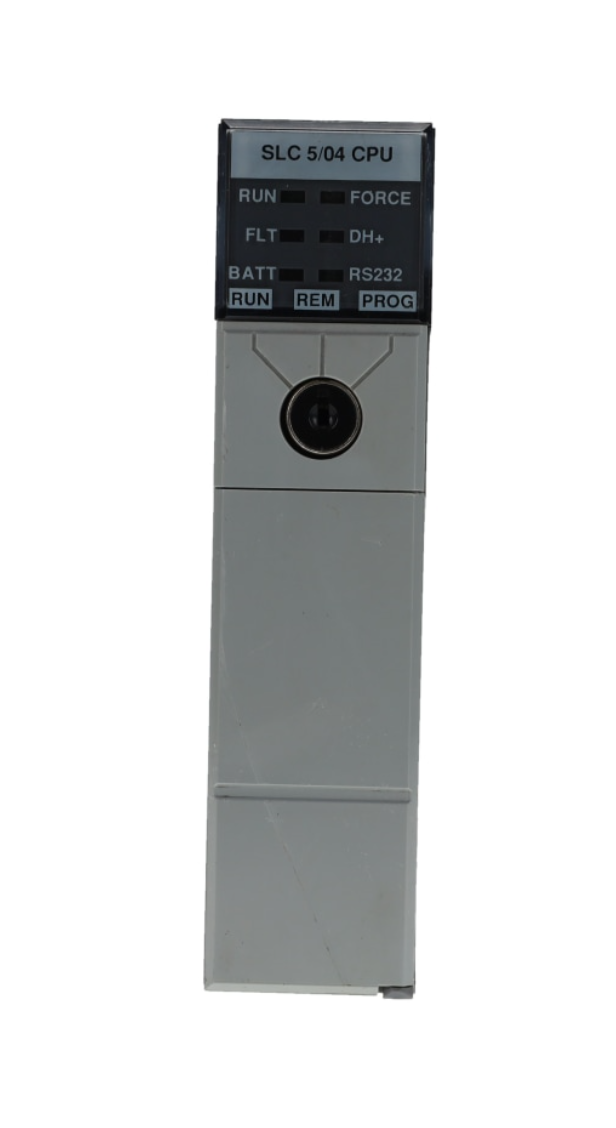

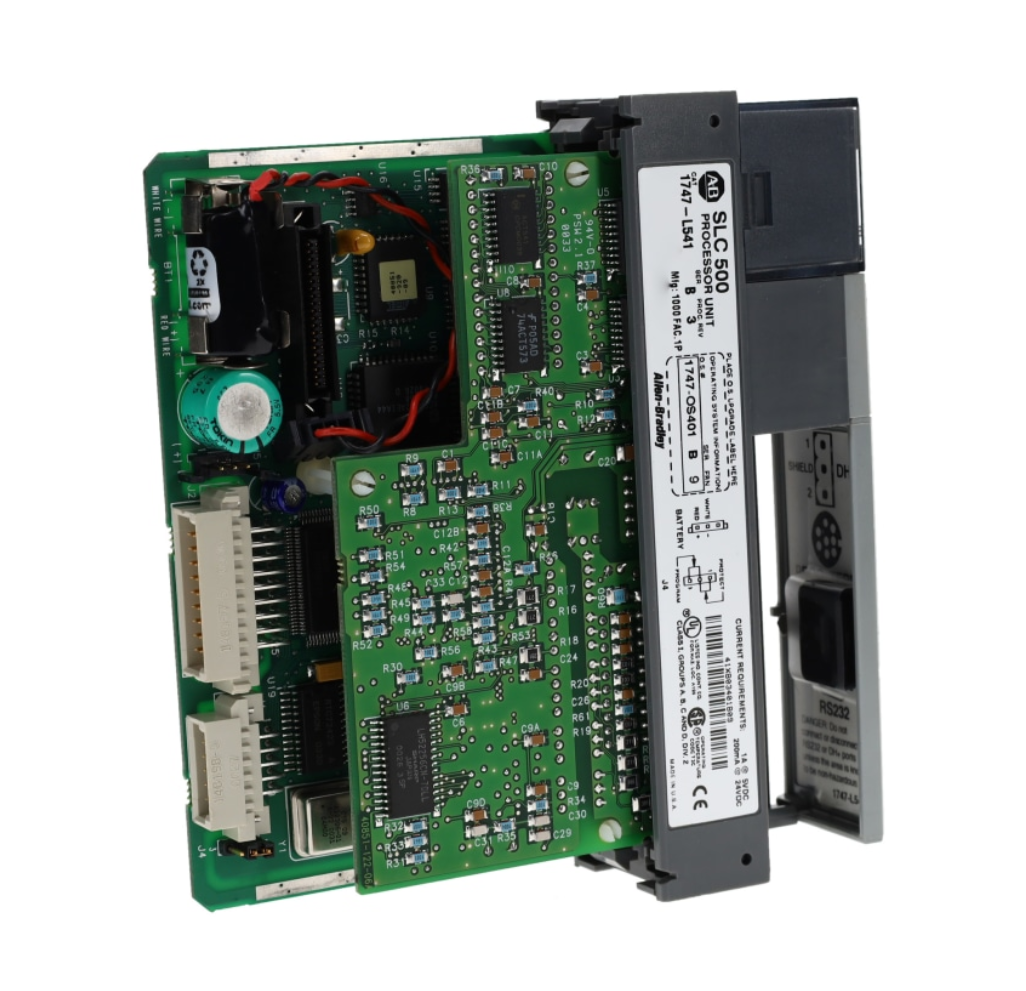

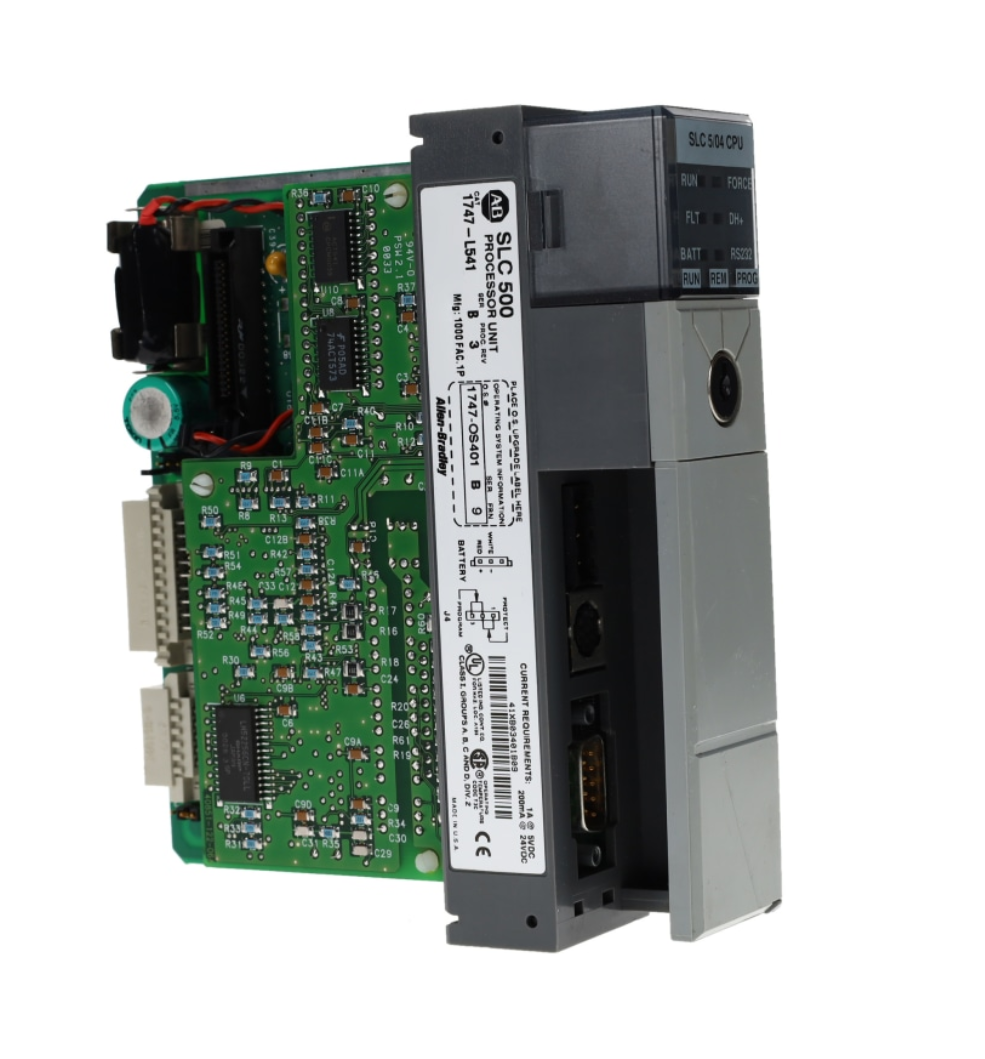

1747-L541 Allen-Bradley SLC 500 SLC 5/04 CPU Processor 16K Memory

Description

• Allen-Bradley 1747-L541 SLC 5/04 programmable logic controller processor.

• Part of the Rockwell Automation SLC 500 PLC family.

• Designed for industrial automation and machine control applications.

• Features 16K words of user memory for control programs and data storage.

• Supports DH+ (Data Highway Plus) communication.

• Includes an RS-232 serial communication port.

• Supports discrete and analog I/O modules within the SLC 500 platform.

• Provides high-speed processing for industrial control applications.

• Compatible with SLC 500 modular chassis and power supplies.

• Supports ladder logic programming using RSLogix 500 software.

• Suitable for manufacturing equipment, conveyor systems, packaging machinery, and industrial process control.

• Discontinued by manufacturer.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1747-L541

• Product Series: SLC 500

• Processor Type: SLC 5/04

• Product Type: PLC CPU Processor Module

• User Memory: 16K Words

• Communication Ports: DH+ and RS-232

• DH+ Communication Speed: 57.6, 115.2, and 230.4 kbps

• Serial Communication: RS-232 (DF1, ASCII and supported protocols)

• Programming Software: RSLogix 500

• Maximum Local I/O Capacity: 960 discrete I/O points

• Typical Bit Instruction Execution Time: 0.9 µs

• Typical Scan Time: Dependent on program size and configuration

• Backplane Current Consumption: Approximately 1A at 5V DC

• Battery Backup: Supported

• Mounting Type: SLC 500 Modular Chassis

• Operating Temperature: 0°C to +60°C

• Storage Temperature: -40°C to +85°C

• Lifecycle Status: Discontinued

• Country of Origin: Verify on product label

Dimensions

• Height: Approximately 145 mm (5.71 inches)

• Width: Approximately 35 mm (1.38 inches)

• Depth: Approximately 142 mm (5.59 inches)

• Note: Dimensions are approximate and should be verified.

Weight

• Approximate Weight: 0.45 kg

• Weight in Pounds: 0.99 lb
