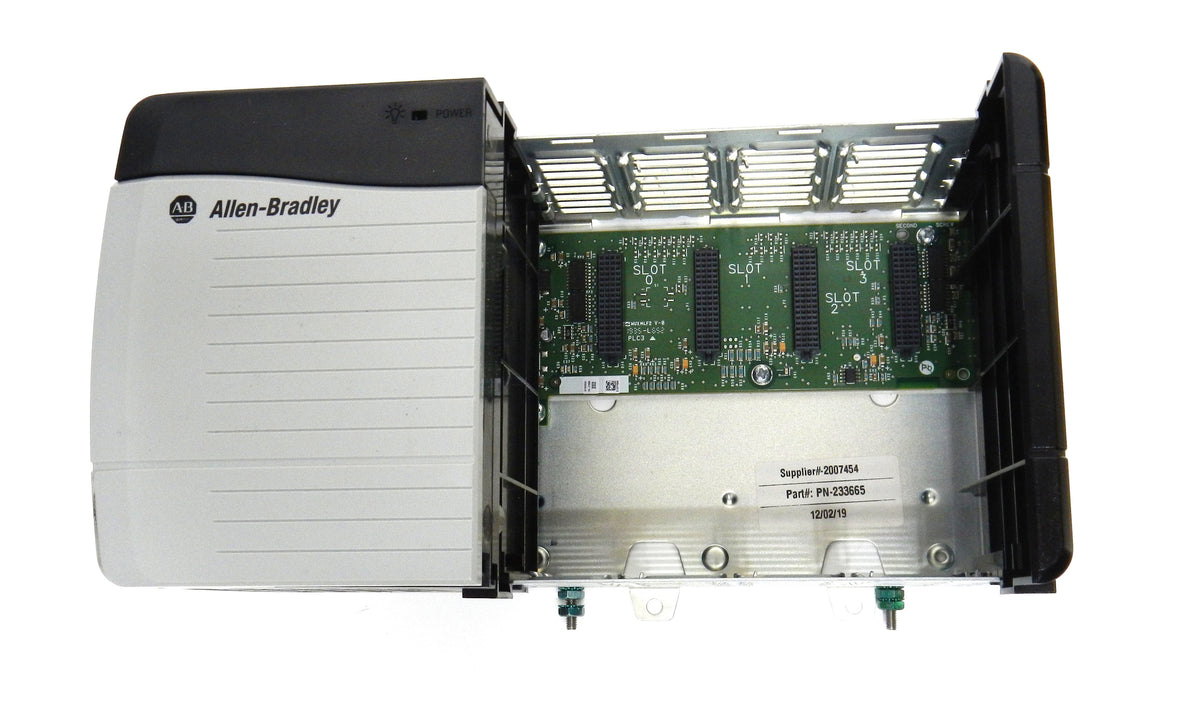

1756-PB72 Allen-Bradley ControlLogix 24V DC Power Supply Series C

Description

• Allen-Bradley 1756-PB72 ControlLogix DC power supply module.

• Designed to provide reliable power to ControlLogix chassis and installed modules.

• Operates with a nominal 24V DC input power supply.

• Supports an input voltage range of 18–32V DC.

• Provides regulated DC output power for ControlLogix systems.

• Designed for industrial automation and PLC control applications.

• Compatible with supported Allen-Bradley 1756 ControlLogix chassis.

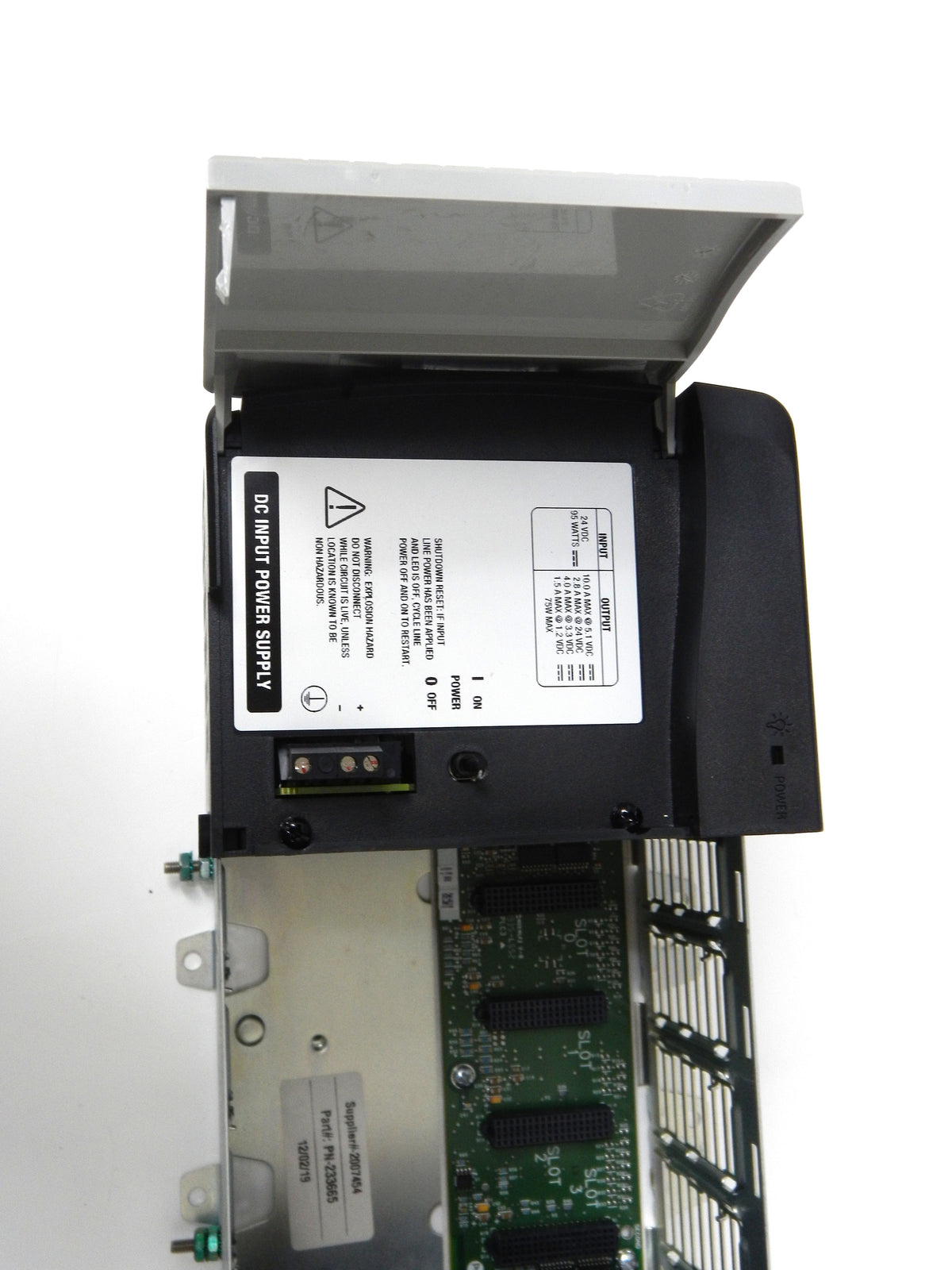

• Features integrated power status indication.

• Suitable for industrial machinery, manufacturing equipment, and automation control panels.

• Condition: Used – Factory Sealed not applicable.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1756-PB72

• Series: C

• Catalog Number: 1756-PB72

• Product Type: ControlLogix DC Power Supply

• Input Voltage: 24V DC Nominal

• Input Voltage Range: 18–32V DC

• Input Current: 10A Maximum at 18V DC

• Output Voltage: 5.1V DC, 3.3V DC, and 1.2V DC

• Output Current: 10A at 5.1V DC, 4A at 3.3V DC, 1.5A at 1.2V DC (subject to combined power limits)

• Mounting Type: ControlLogix Chassis Mount

• Compatible System: Allen-Bradley ControlLogix 1756

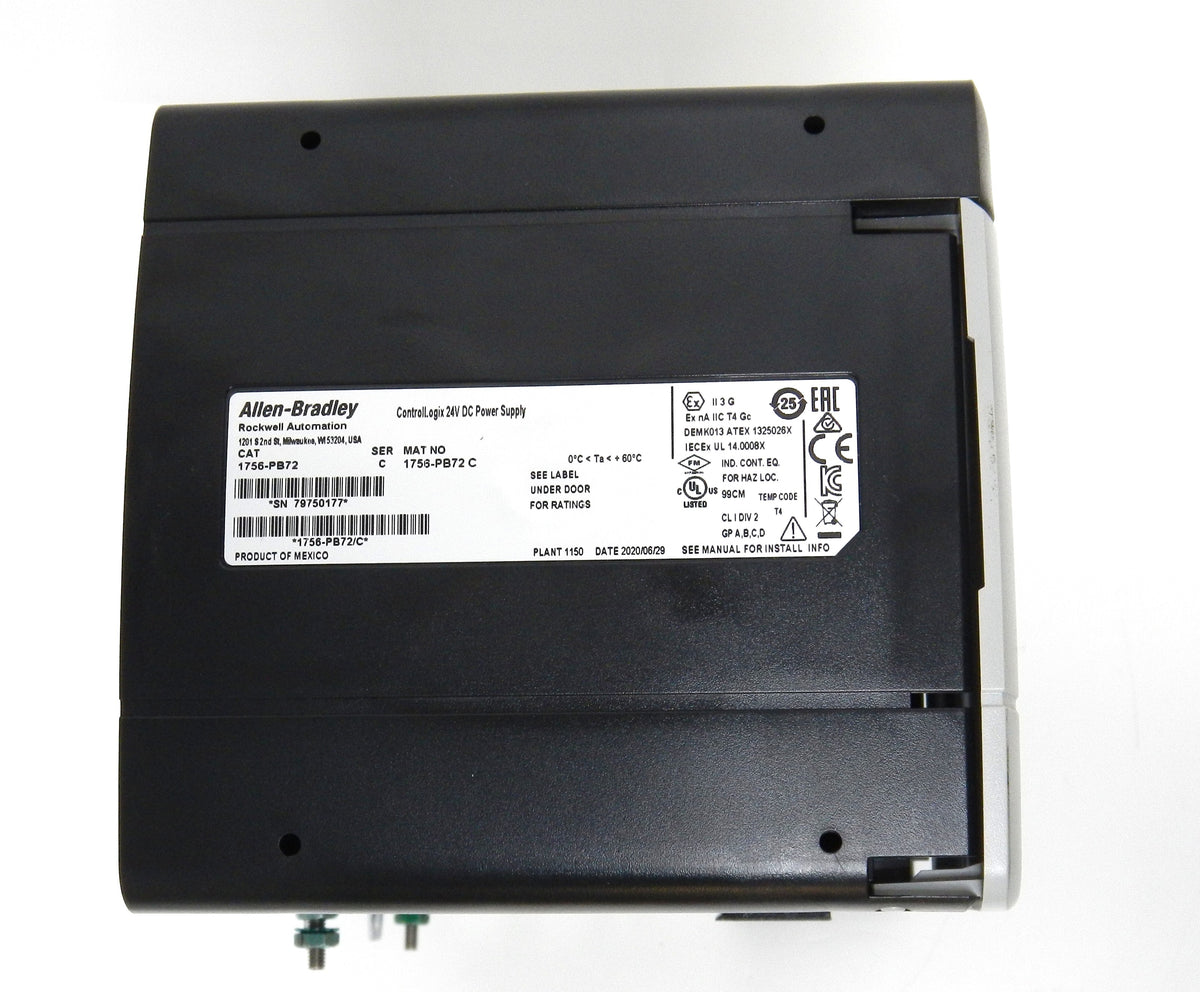

• Country of Origin: Mexico (as marked on product label)

• Manufacturing Date: June 29, 2020 (as marked on product label)

• Application: Industrial PLC and Automation Systems

Dimensions

• Height: Approximately 145 mm (5.71 in)

• Width: Approximately 140 mm (5.51 in)

• Depth: Approximately 112 mm (4.41 in)

Weight

• Approximate Weight: 0.95 kg

• Weight in Pounds: 2.09 lb
