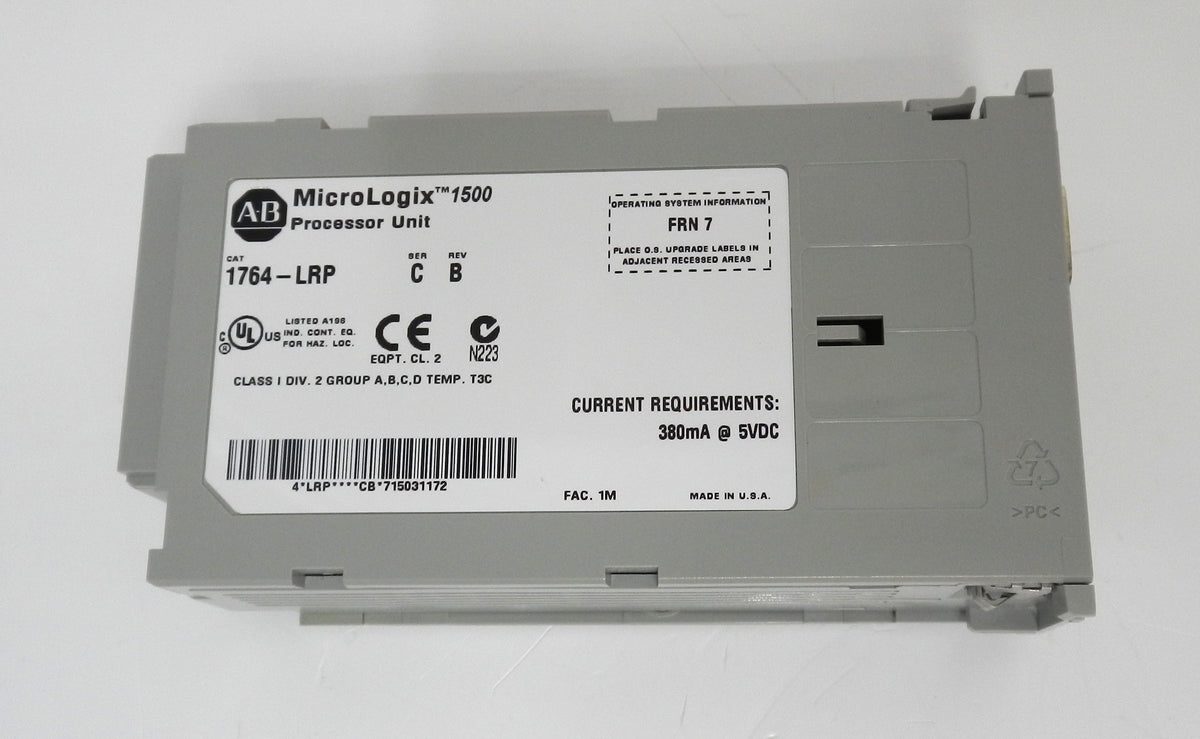

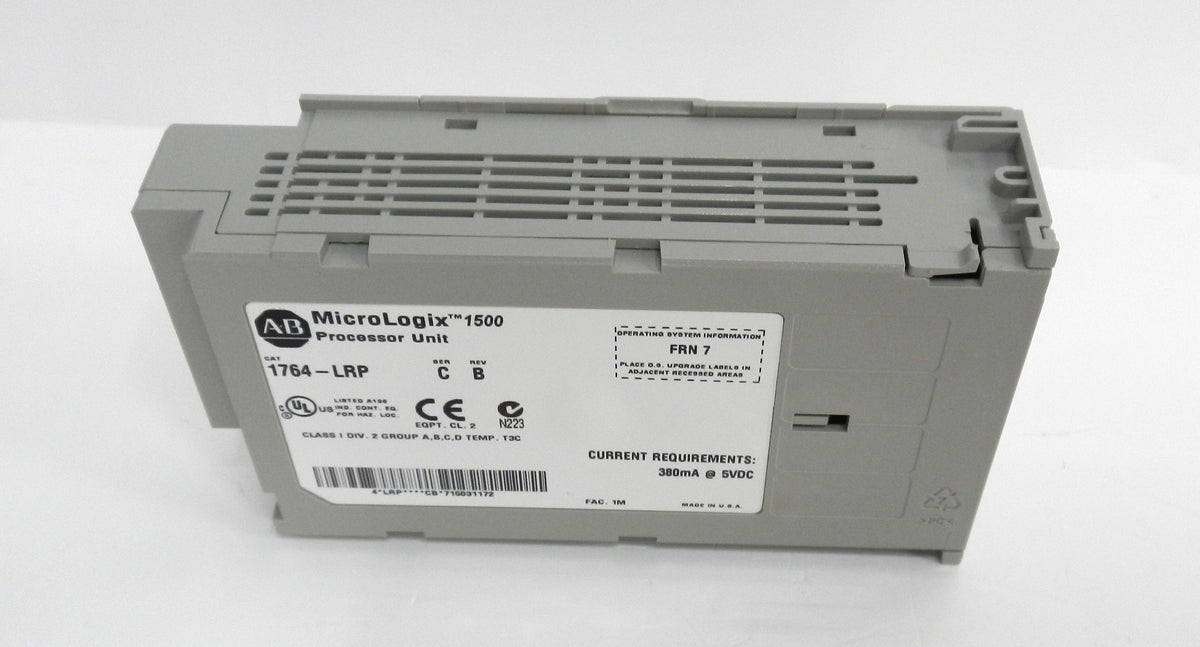

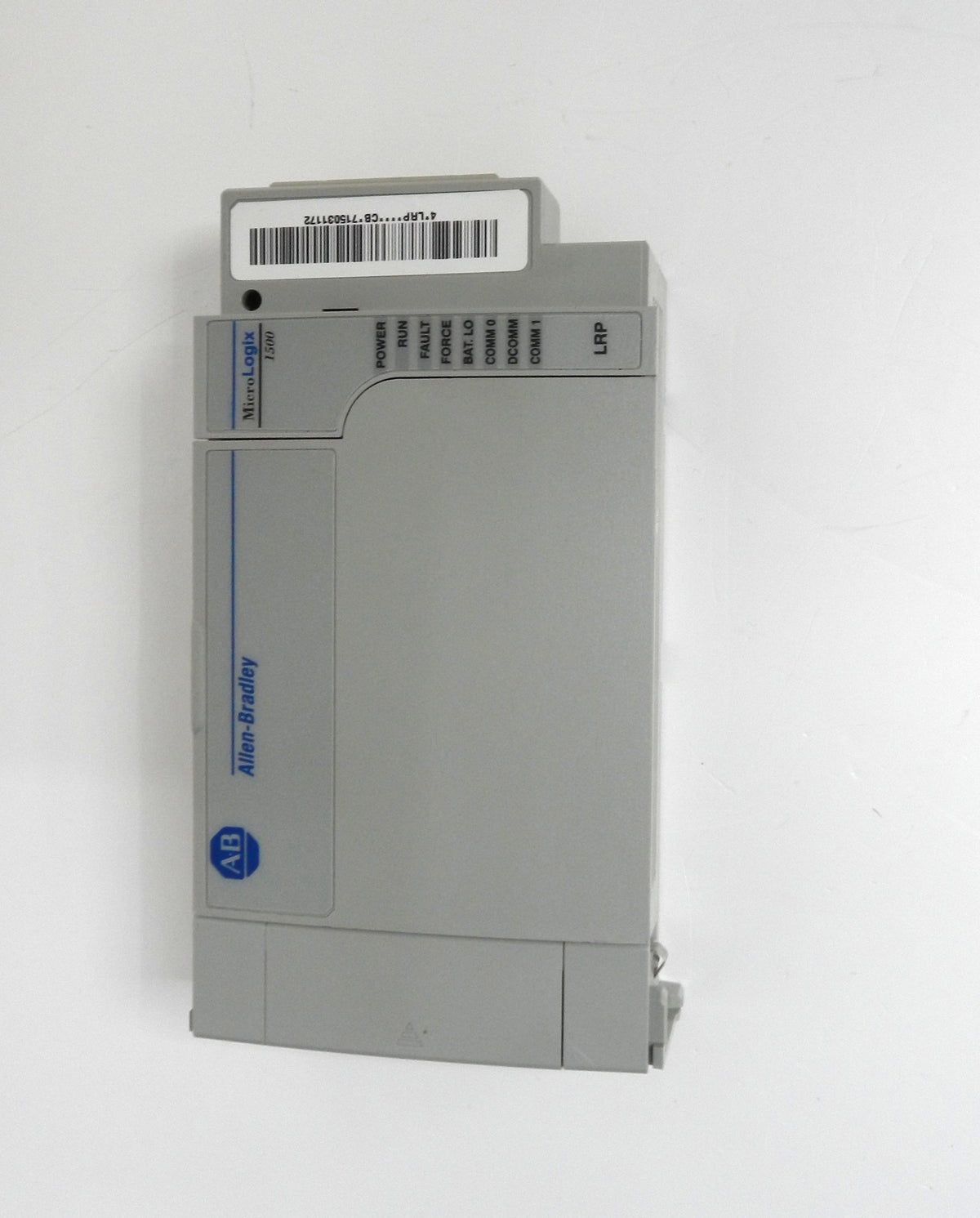

1764-LRP Allen-Bradley MicroLogix 1500 PLC Processor 14K Memory / 3-month warranty

Description

• Allen-Bradley 1764-LRP MicroLogix 1500 programmable logic controller processor.

• Designed for industrial automation and machine control applications.

• Part of the Allen-Bradley MicroLogix 1500 PLC family.

• Provides 14K words of user memory for program and data storage.

• Supports discrete and analog I/O expansion modules.

• Features two communication ports for programming and industrial networking.

• Supports RS-232 serial communication.

• Compatible with MicroLogix 1500 base units.

• Supports ladder logic programming using RSLogix 500 software.

• Suitable for conveyor systems, packaging equipment, manufacturing machinery, and industrial process control.

• Compact modular design for industrial control panels.

•  3-month warranty

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1764-LRP

• Product Series: MicroLogix 1500

• Product Type: PLC Processor Module

• Processor Type: MicroLogix 1500 LRP

• User Memory: 14K Words

• Program Memory: 10K Words

• Data Memory: 4K Words

• Communication Ports: 2

• Communication Interface: RS-232

• Supported Protocols: DF1, DH-485, Modbus RTU and ASCII (configuration dependent)

• Programming Software: RSLogix 500

• Maximum Expansion I/O Modules: 16 (subject to system configuration)

• Maximum I/O Capacity: 512 Points

• Compatible Base Units: 1764-24AWA, 1764-24BWA, 1764-28BXB

• Power Supply: Supplied through compatible MicroLogix 1500 base unit

• Memory Module Support: Yes

• Real-Time Clock Support: Yes

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -40°C to +85°C

• Mounting Type: MicroLogix 1500 Base Unit

• Lifecycle Status: Discontinued

• Country of Origin: Verify on product label

Dimensions

• Height: Approximately 87 mm (3.43 inches)

• Width: Approximately 110 mm (4.33 inches)

• Depth: Approximately 40 mm (1.57 inches)

• Note: Dimensions are approximate and should be verified against the manufacturer datasheet.

Weight

• Approximate Weight: 0.28 kg

• Weight in Pounds: 0.62 lb
