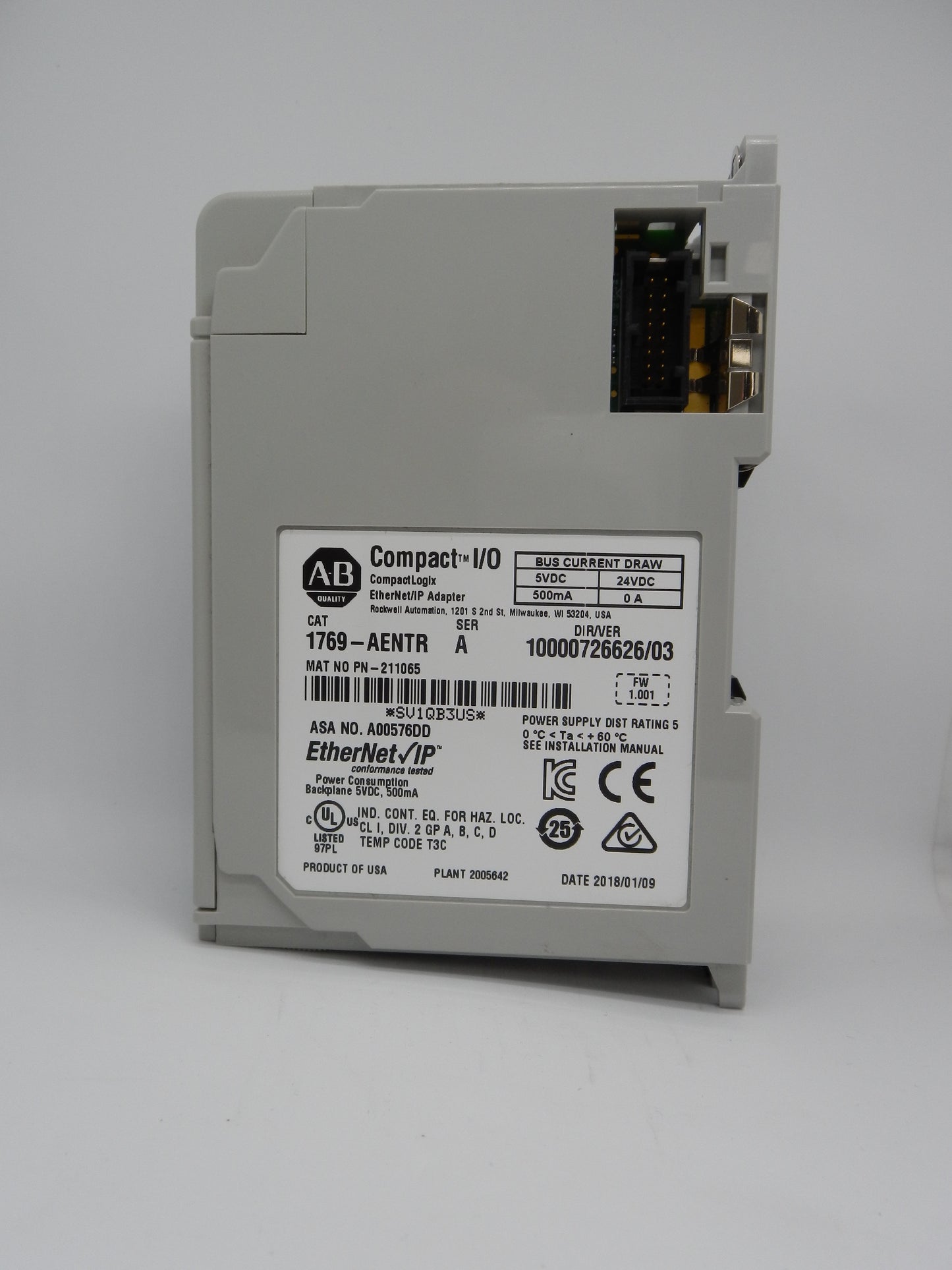

1769-AENTR Allen-Bradley Compact I/O Dual-Port EtherNet/IP Adapter Module

Description:

• Genuine Allen-Bradley Compact I/O EtherNet/IP communication adapter for distributed I/O systems
• Provides dual-port 10/100 Mbps EtherNet/IP connectivity for Compact I/O modules

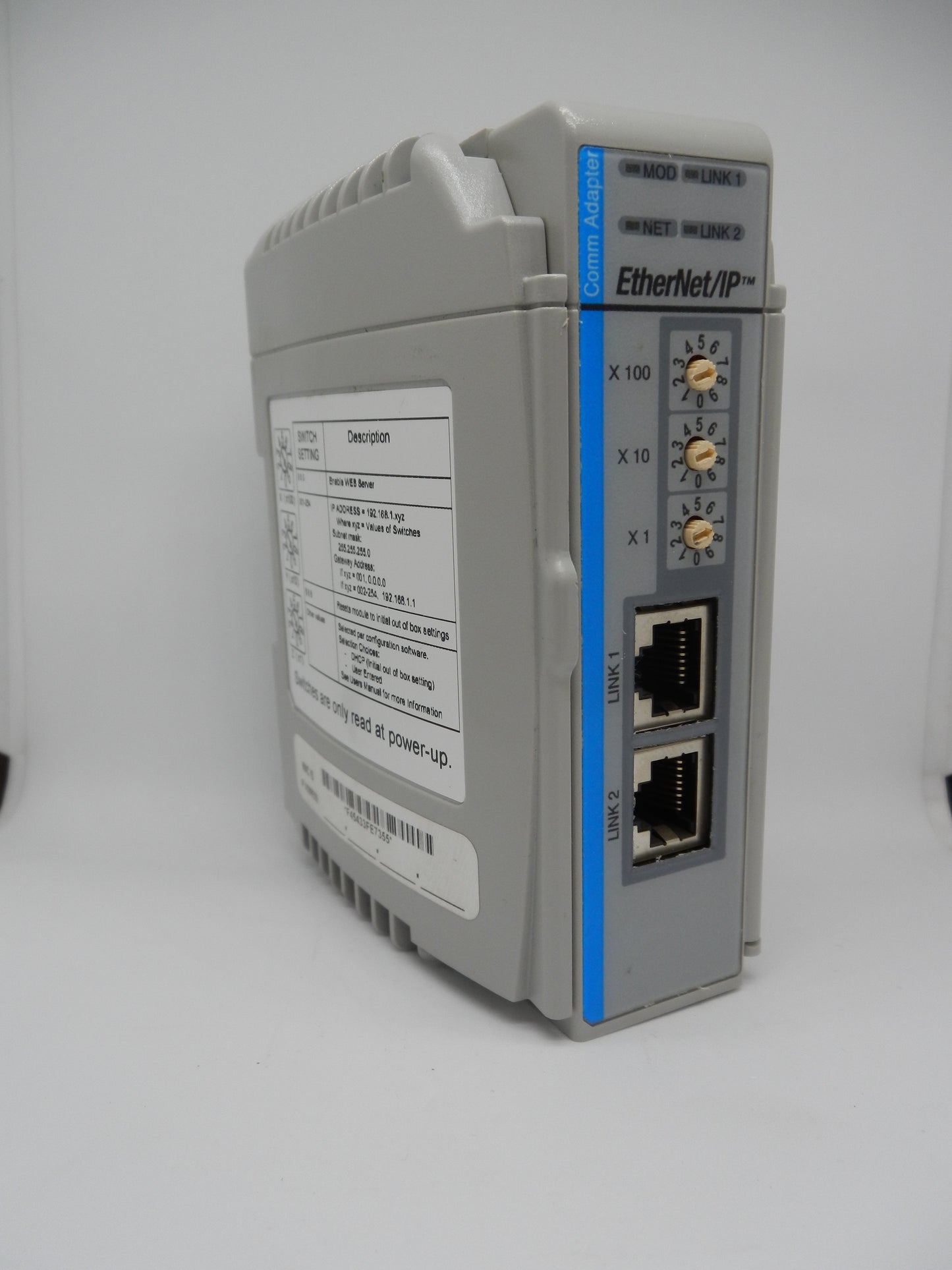

• Supports Linear and Device Level Ring (DLR) network topologies through two integrated RJ45 Ethernet ports
• Connects up to 30 Compact I/O modules on a single local I/O bank
• Supports up to 128 Logix communication connections and 96 TCP/IP communication connections for high-performance industrial networking
• Operates from a 24 VDC power source and mounts directly to a 1769 Compact I/O system
• Ideal for remote I/O, machine automation, process control, material handling, packaging equipment, and OEM machinery
• Compatible with CompactLogix and ControlLogix controllers over EtherNet/IP
• Active Mature lifecycle status with replacement options available from Rockwell Automation.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-AENTR
• Product Series: Compact I/O
• Product Type: EtherNet/IP Adapter Module
• Communication Protocol: EtherNet/IP
• Ethernet Ports: 2 × RJ45 10/100 Mbps
• Network Topologies:
  • Linear
  • Device Level Ring (DLR)
• Supply Voltage: 24 VDC
• Current Draw: 500 mA @ 5.2 VDC
• Isolation Voltage: 50 V Continuous (Basic Insulation)
• Logix Communication Connections: 128
• TCP/IP Communication Connections: 96
• Mounting Type:
  • DIN Rail
  • Panel Mount
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% Non-Condensing
• Vibration: 2 G @ 10–500 Hz
• Shock: 15 G Operating
• Certifications:
  • UL Listed
  • CE
  • UKCA
  • cUL
• Country of Origin: United States
• Applications:
  • Remote I/O Systems
  • CompactLogix PLC Systems
  • ControlLogix PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Material Handling
  • OEM Equipment

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 50 mm (1.97 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.28 kg (0.62 lb).
