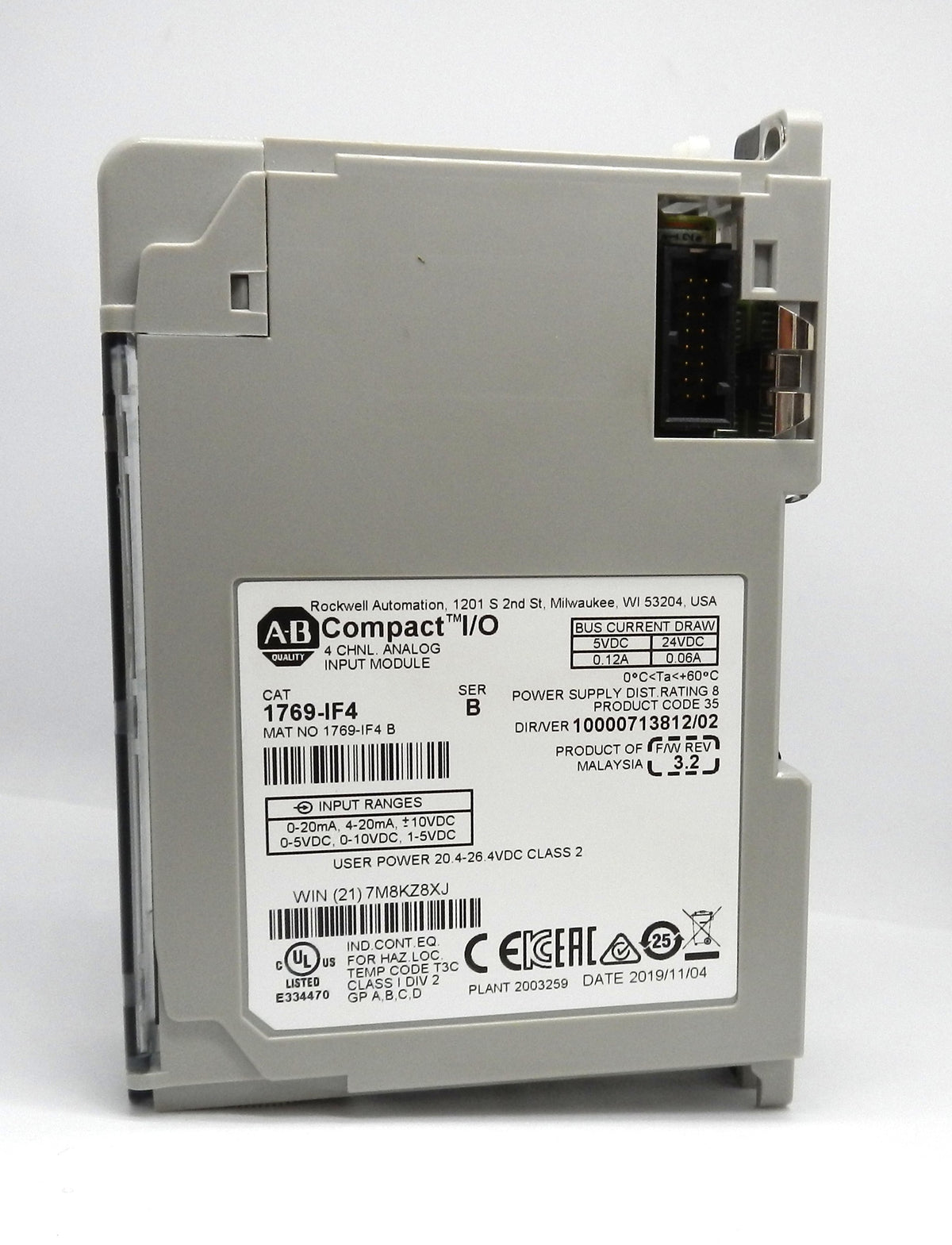

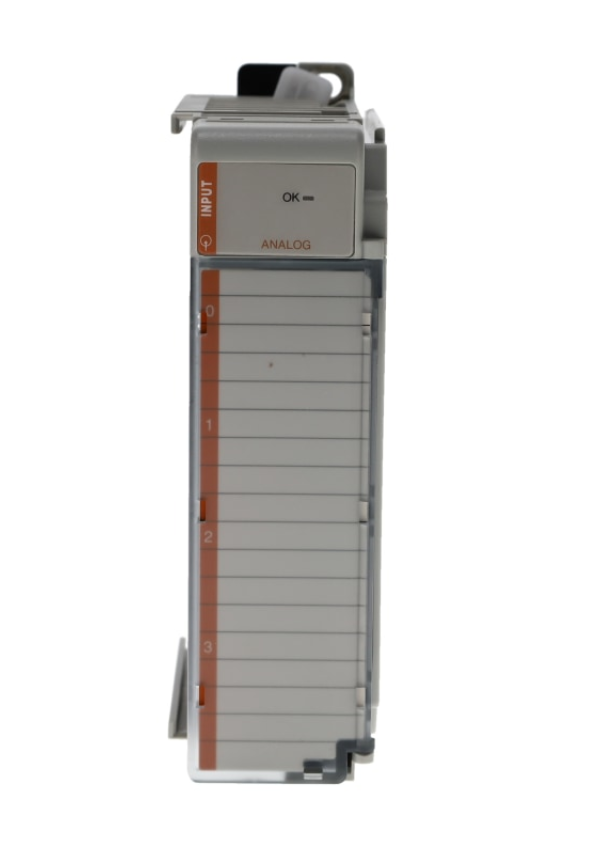

1769-IF4 Allen-Bradley Compact I/O 4-Channel Analog Input Module

Description

• Allen-Bradley 1769-IF4 Compact I/O analog input module.

• Features 4 analog input channels for industrial automation applications.

• Supports voltage and current analog input signals.

• Compatible with supported CompactLogix and MicroLogix 1500 PLC systems.

• Provides accurate analog signal monitoring and data acquisition.

• Suitable for pressure, temperature, flow, and level monitoring applications when used with compatible transmitters.

• Designed for industrial process control and machine automation.

• Compact design for DIN rail or panel mounting.

• Ideal for industrial PLC control systems and automation equipment.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1769-IF4

• Series: 1769 Compact I/O

• Product Type: Analog Input Module

• Number of Channels: 4

• Input Type: Differential or Single-Ended Analog Inputs

• Voltage Input Ranges: ±10V DC, 0–10V DC, 0–5V DC, 1–5V DC

• Current Input Ranges: 0–20mA, 4–20mA

• Resolution: 14-bit maximum, depending on configured input range

• Communication: 1769 Compact I/O Bus

• Mounting Type: DIN Rail or Panel Mount

• Compatible Systems: CompactLogix and MicroLogix 1500 (supported configurations)

• Application: Industrial Automation and Process Monitoring

Dimensions

• Height: 118 mm (4.65 in)

• Width: 35 mm (1.38 in)

• Depth: 87 mm (3.43 in)

Weight

• Approximate Weight: 0.30 kg

• Weight in Pounds: 0.66 lb
