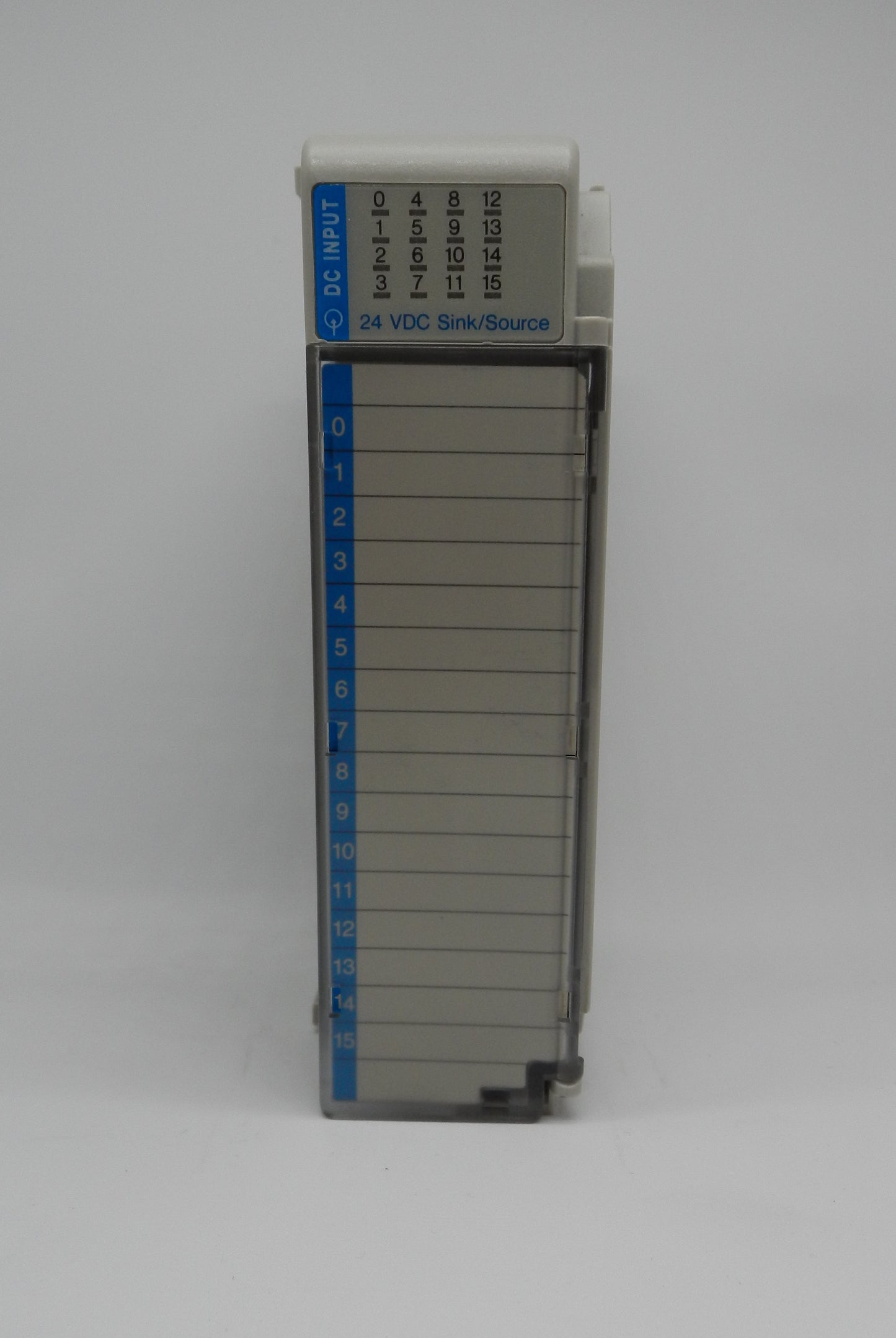

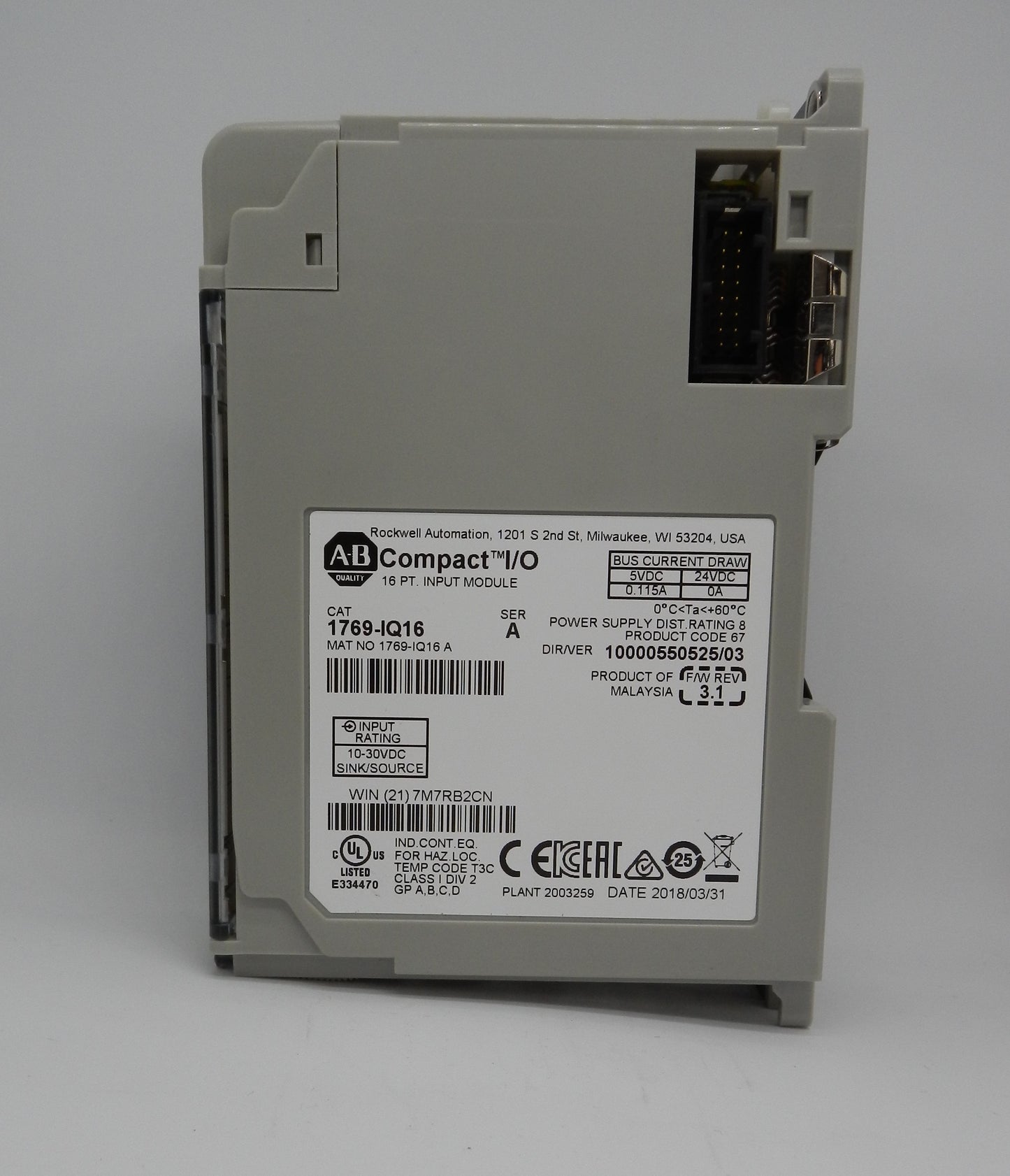

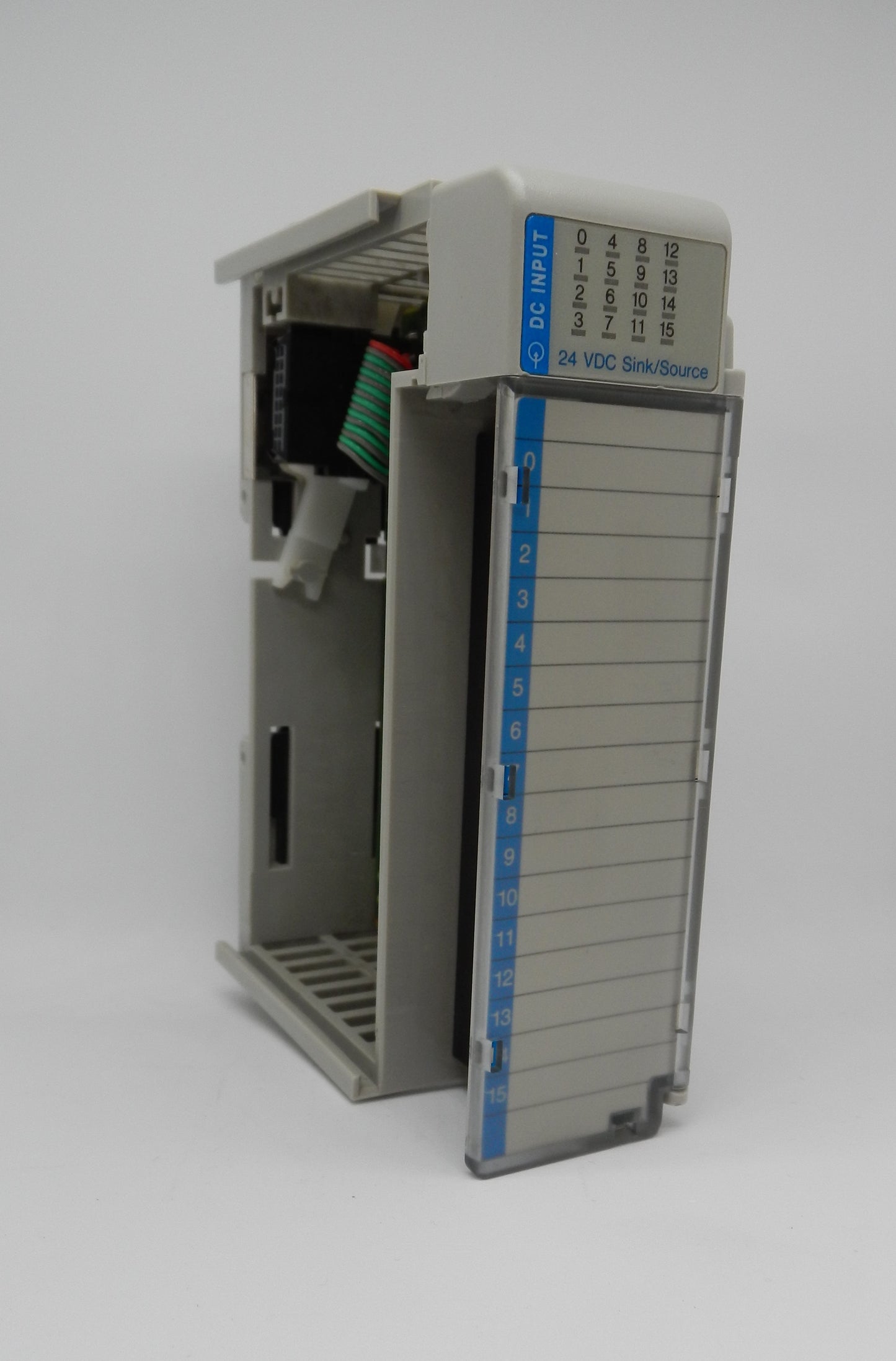

1769-IQ16 Allen-Bradley Compact I/O 16-Point 24VDC Digital Input Module Sink/Source

Description:

• Genuine Allen-Bradley Compact I/O digital input module for CompactLogix and MicroLogix 1500 automation systems
• Provides 16 digital input channels with 24 VDC sink/source input capability
• Supports 10–30 VDC input signals for industrial sensors and field devices
• Configured as 16 inputs arranged in two groups of 8 points with separate commons
• Compatible with CompactLogix, Compact GuardLogix, and 1769 Compact I/O expansion systems
• Front-panel LED status indicators provide clear input diagnostics and simplified troubleshooting
• High isolation rating improves electrical noise immunity and system reliability
• Compact DIN rail or panel-mount design for space-saving control panel installation
• Ideal for machine automation, process control, packaging equipment, material handling, OEM machinery, and industrial control systems
• Lifecycle Status: Active Mature.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-IQ16
• Product Series: Compact I/O (1769 Series)
• Product Type: Digital Input Module
• Number of Inputs: 16
• Input Configuration: 8 Points per Group (2 Groups)
• Input Type: 24 VDC Sink/Source
• Nominal Input Voltage: 24 VDC
• Operating Voltage Range:
  • 10–30 VDC @ 30°C
  • 10–26.4 VDC @ 60°C
• Input Delay:
  • ON: 8 ms
  • OFF: 8 ms
• Input Impedance: 3 kΩ Nominal
• Minimum ON-State Current: 2 mA
• Maximum OFF-State Current: 1.5 mA
• Maximum OFF-State Voltage: 5 VDC
• Isolation Voltage:
  • 1200 VAC for 1 second
  • 1697 VDC for 1 second
• Backplane Current Draw: 115 mA @ 5.1 VDC
• Maximum Heat Dissipation: 3.55 W
• Mounting:
  • 35 mm DIN Rail
  • Panel Mount
• Operating Temperature: 0°C to +60°C
• Country of Origin: Malaysia
• Compatible Controllers:
  • CompactLogix
  • Compact GuardLogix
  • MicroLogix 1500
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Packaging Equipment
  • Material Handling
  • OEM Equipment

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 35 mm (1.38 in)
• Depth: 87 mm (3.43 in)
• Height with Mounting Tabs: 138 mm (5.43 in)

Weight:

• Approximate Weight: 0.27 kg (0.60 lb).
