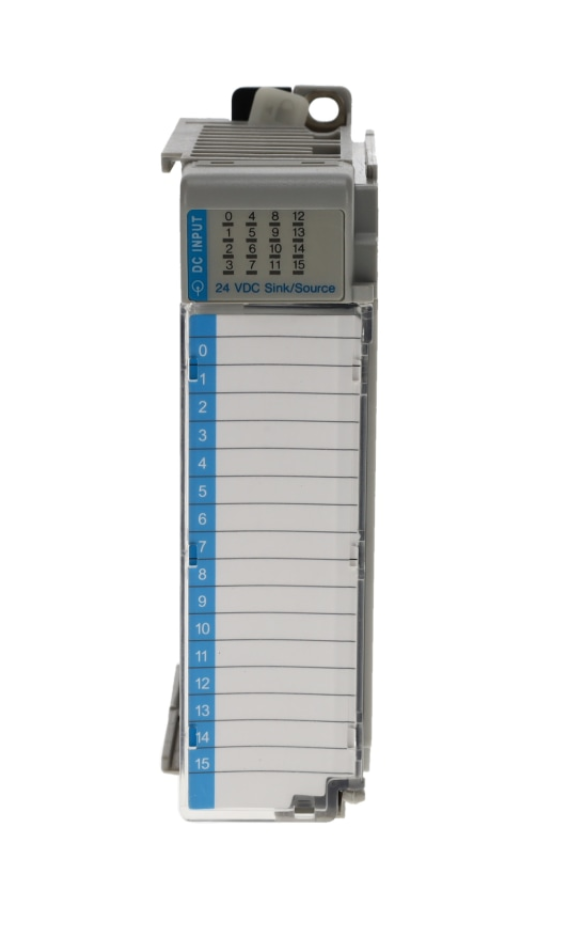

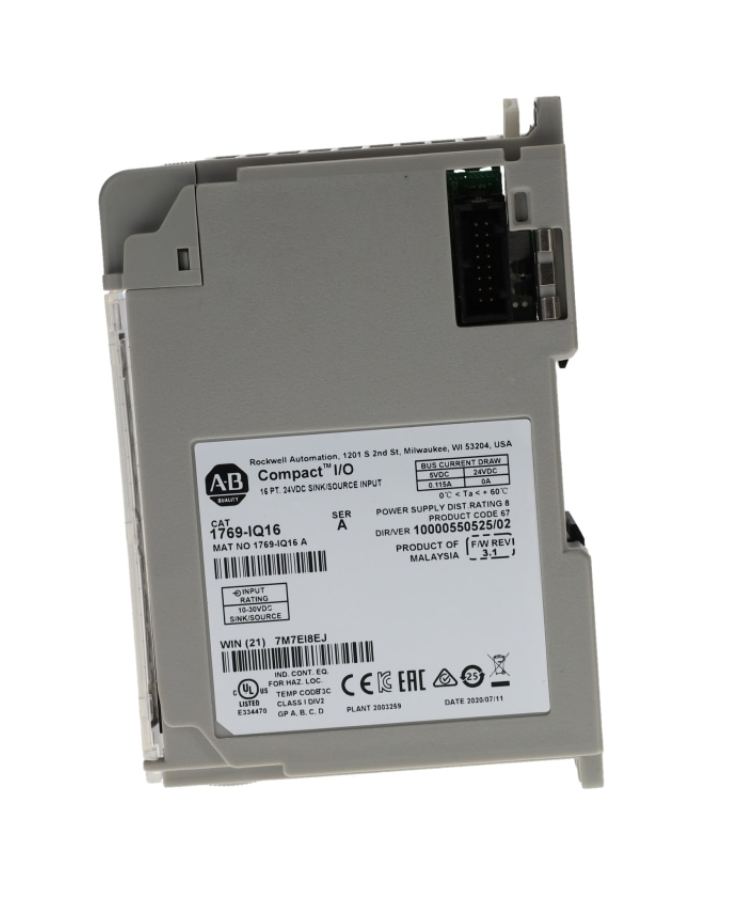

1769-IQ16 Allen-Bradley CompactLogix 16-Point 24VDC Digital Input Module

Description

• Allen-Bradley Compact I/O digital input module
• 16 digital input points arranged in two groups of 8
• 24 VDC sinking or sourcing input operation
• Designed for CompactLogix and compatible 1769 Compact I/O systems
• Suitable for sensors, switches and industrial control signals
• Compact DIN rail or panel-mounted design
• Suitable for industrial automation and machine control applications

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Part Number: 1769-IQ16
• Product Family: 1769 Compact I/O
• Product Type: Digital Input Module
• Number of Inputs: 16
• Input Groups: 2 groups of 8
• Voltage Category: 24 VDC
• Input Type: Sinking / Sourcing
• Operating Voltage: 10–30 VDC at 30°C
• Operating Voltage: 10–26.4 VDC at 60°C
• Backplane Current Draw: 115 mA at 5.1 VDC
• Input ON Delay: 8 ms
• Input OFF Delay: 8 ms
• Isolation: 1200 VAC for 1 second or 1697 VDC
• Approximate Weight: 270 g / 0.60 lb
• Lifecycle Status: Active Mature



  Dimensions

  • Height: 118 mm / 4.65 in
  • Width: 35 mm / 1.38 in
  • Depth: 87 mm / 3.43 in
  • Height Including Mounting Tabs: 138 mm / 5.43 in

  Weight

  • Approx. 0.60 lb
  • Approx. 270 g
