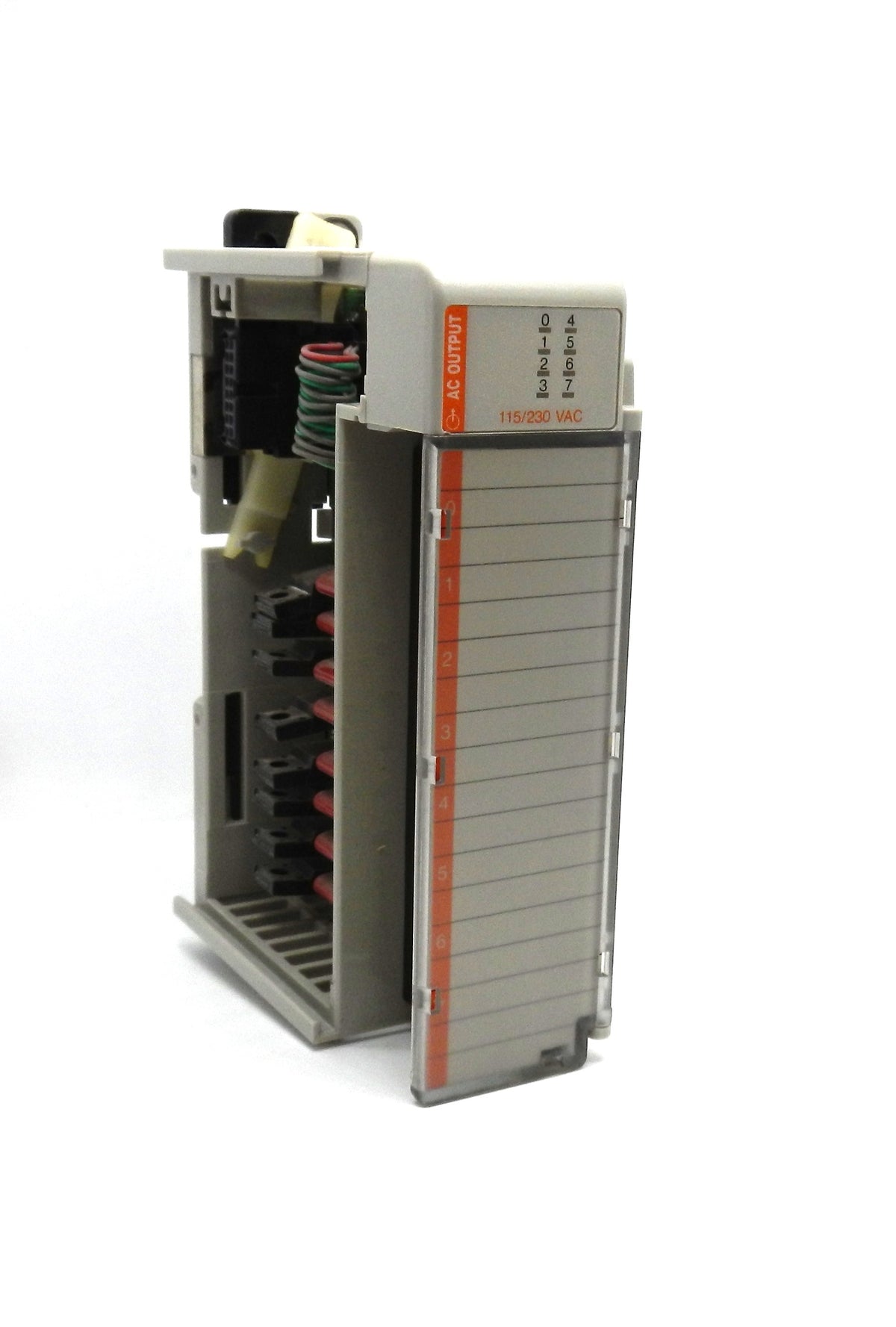

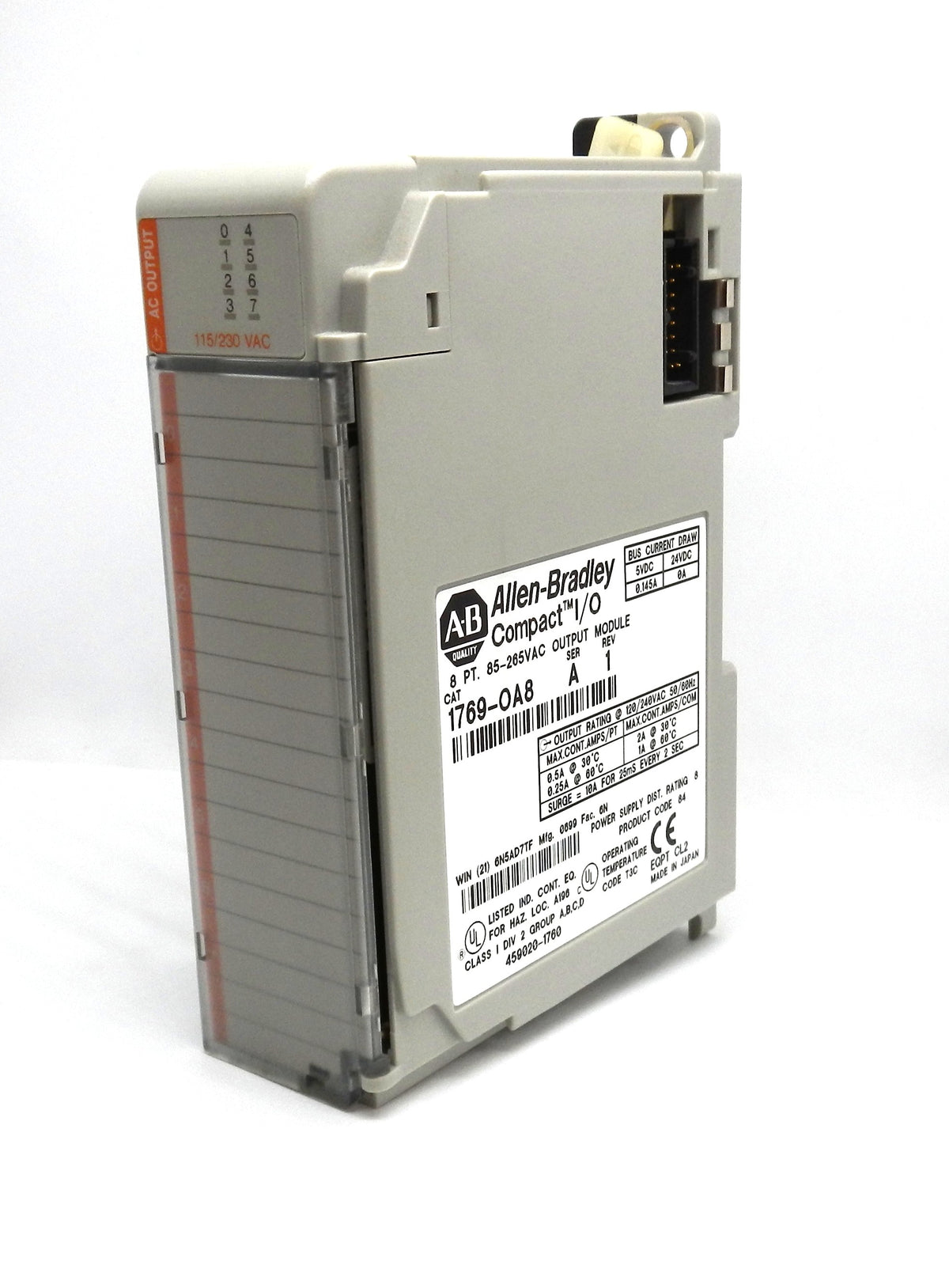

1769-OA8 Allen-Bradley Compact I/O 8-Point AC Output Module 100–240VAC

Description

• Allen-Bradley 1769-OA8 Compact I/O digital AC output module.

• Features 8 AC output points for industrial automation applications.

• Designed for use with compatible CompactLogix and MicroLogix 1500 systems.

• Supports 100–240V AC output voltage.

• Provides reliable switching of AC electrical loads.

• Suitable for controlling contactors, solenoids, relays, and other AC-operated devices.

• Compact design for installation in industrial control panels.

• Supports DIN rail or panel mounting.

• Ideal for PLC control systems, manufacturing equipment, and industrial machinery.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1769-OA8

• Series: 1769 Compact I/O

• Product Type: Digital AC Output Module

• Number of Outputs: 8

• Output Type: Triac (Solid-State AC)

• Output Voltage: 100–240V AC

• Operating Voltage Range: 85–265V AC

• Output Frequency: 47–63 Hz

• Maximum Output Current: 0.5A per Point

• Maximum Module Current: 2A

• Output Groups: 2 Groups of 4 Outputs

• Mounting Type: DIN Rail or Panel Mount

• Compatible Systems: CompactLogix and MicroLogix 1500 (compatible configurations)

• Application: Industrial Automation and PLC Control

Dimensions

• Height: 118 mm (4.65 in)

• Width: 35 mm (1.38 in)

• Depth: 87 mm (3.43 in)

Weight

• Approximate Weight: 0.28 kg

• Weight in Pounds: 0.62 lb
