AB ALLEN-BRADLEY

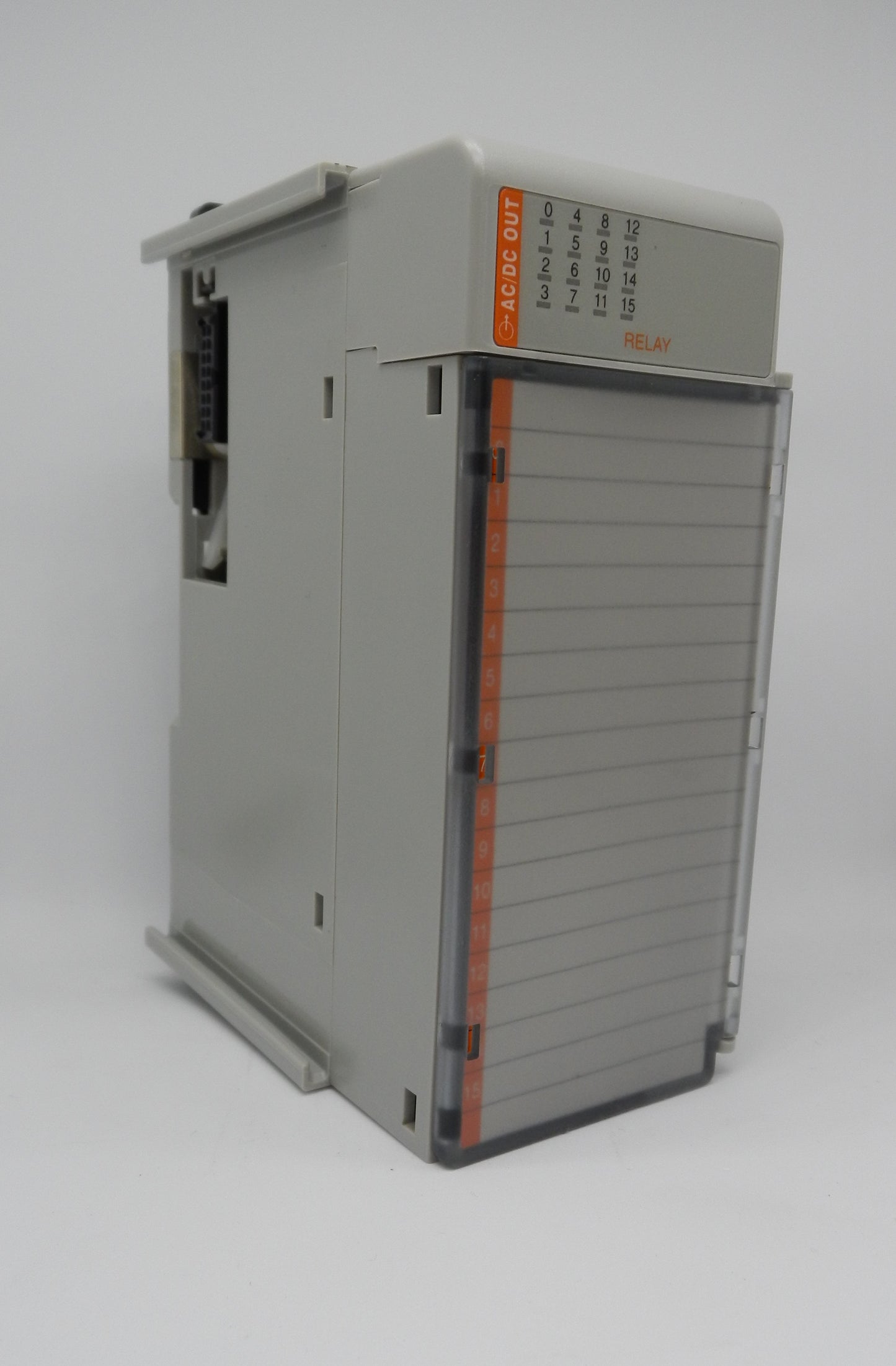

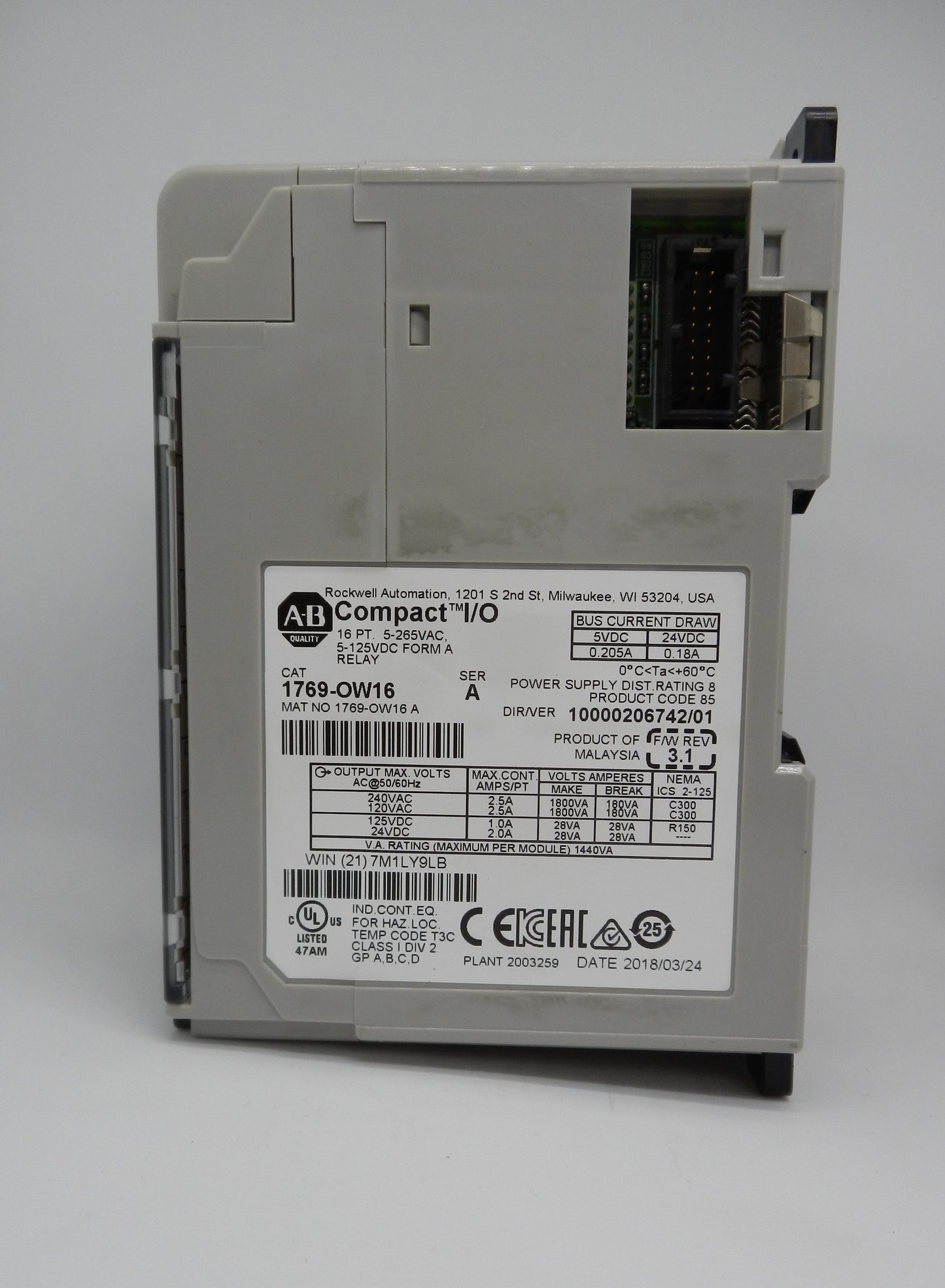

1769-OW16 Allen-Bradley CompactLogix 16-Point Relay Output Module VAC/VDC Compact I/O

$279.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Allen-Bradley Compact I/O relay output module for CompactLogix and MicroLogix automation systems
Provides 16 relay output channels for switching both AC and DC loads
Supports output voltages from 5–265 VAC and 5–125 VDC, making it ideal for mixed-voltage applications
Mechanical relay outputs are suitable for controlling contactors, relays, solenoids, pilot lights, valves, and other industrial devices

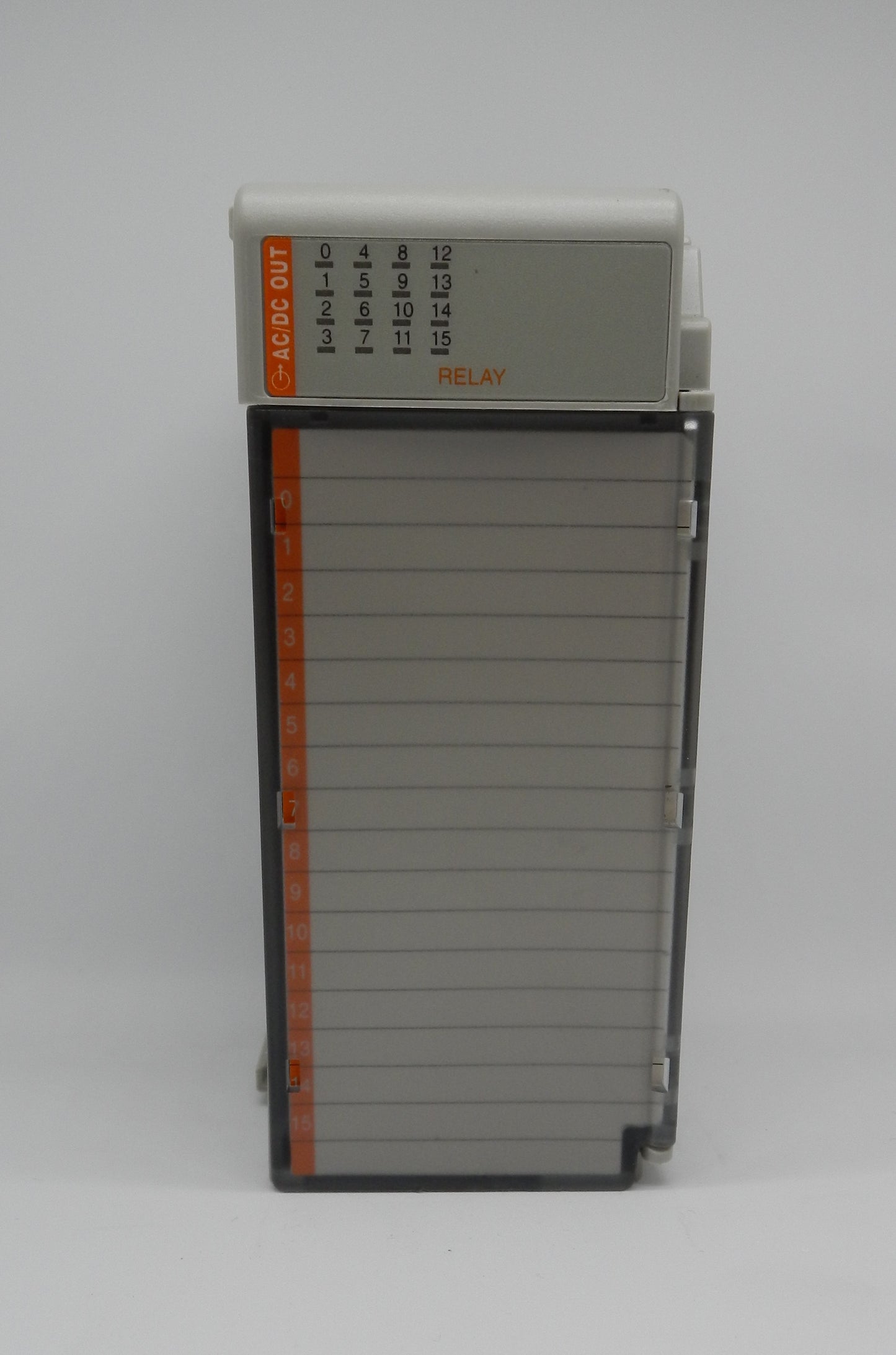

Features LED status indicators for each output channel to simplify diagnostics and troubleshooting
Designed for installation in 1769 Compact I/O systems used with CompactLogix and selected MicroLogix controllers
Removable terminal block with screw-clamp terminals provides secure and convenient field wiring
High isolation between field wiring and backplane for reliable industrial performance
Ideal for machine automation, process control, packaging equipment, material handling, OEM machinery, and industrial control panels
Lifecycle Status: Active Mature with replacement available through Rockwell Automation.

Manufacturer Name: Allen-Bradley (Rockwell Automation)
Part Number (MPN): 1769-OW16
Product Series: Compact I/O (1769 Series)
Product Type: Relay Output Module
Number of Outputs: 16
Output Type: Relay
Output Voltage:
- 5–265 VAC
- 5–125 VDC
Minimum Load Current: 10 mA
Isolation:
- 1836 VAC for 1 second
- 2596 VDC for 1 second (Group Isolation)
Backplane Current Consumption: 175 mA @ 5 VDC
Terminal Type: Screw Clamp
Mounting Type: Compact I/O DIN Rail or Panel Mount
Status Indicators: Individual Output LEDs
Operating Temperature: 0°C to +60°C
Country of Origin: Malaysia
Certifications:
- UL Listed
- CE
- UKCA
- CSA
Applications:
- CompactLogix PLC Systems
- MicroLogix Systems
- Industrial Automation
- Machine Control
- Process Control
- Material Handling
- Packaging Equipment
- OEM Machinery
