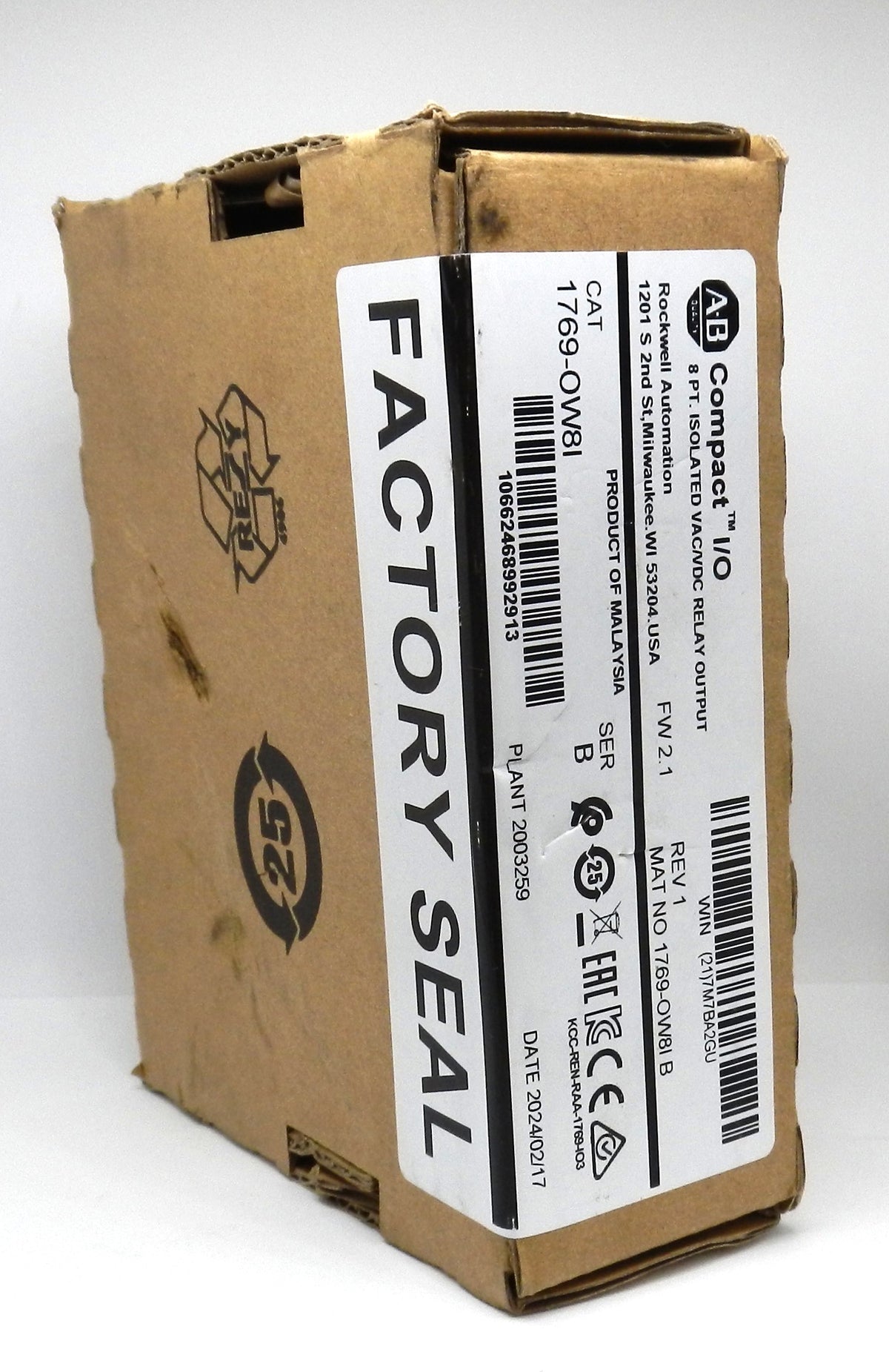

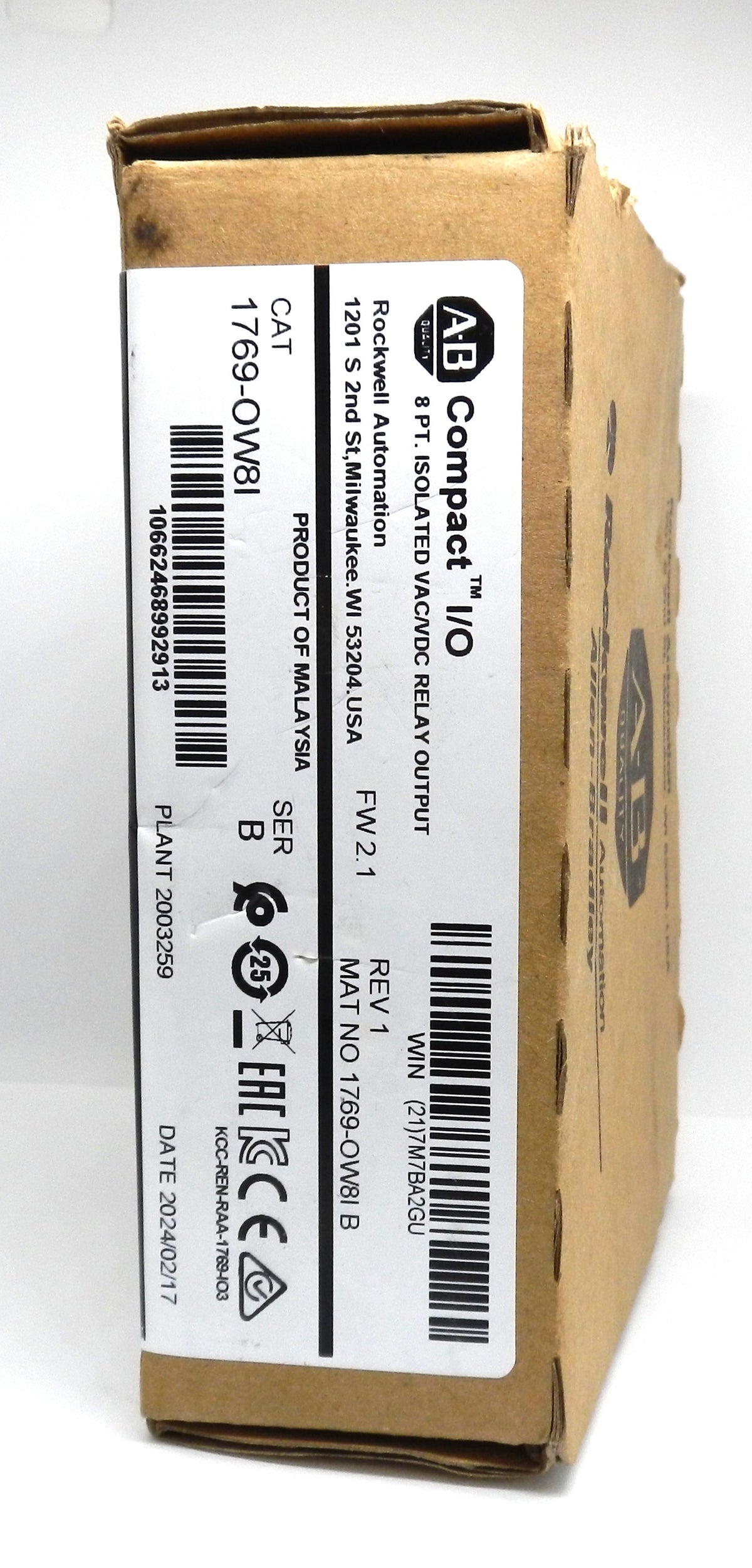

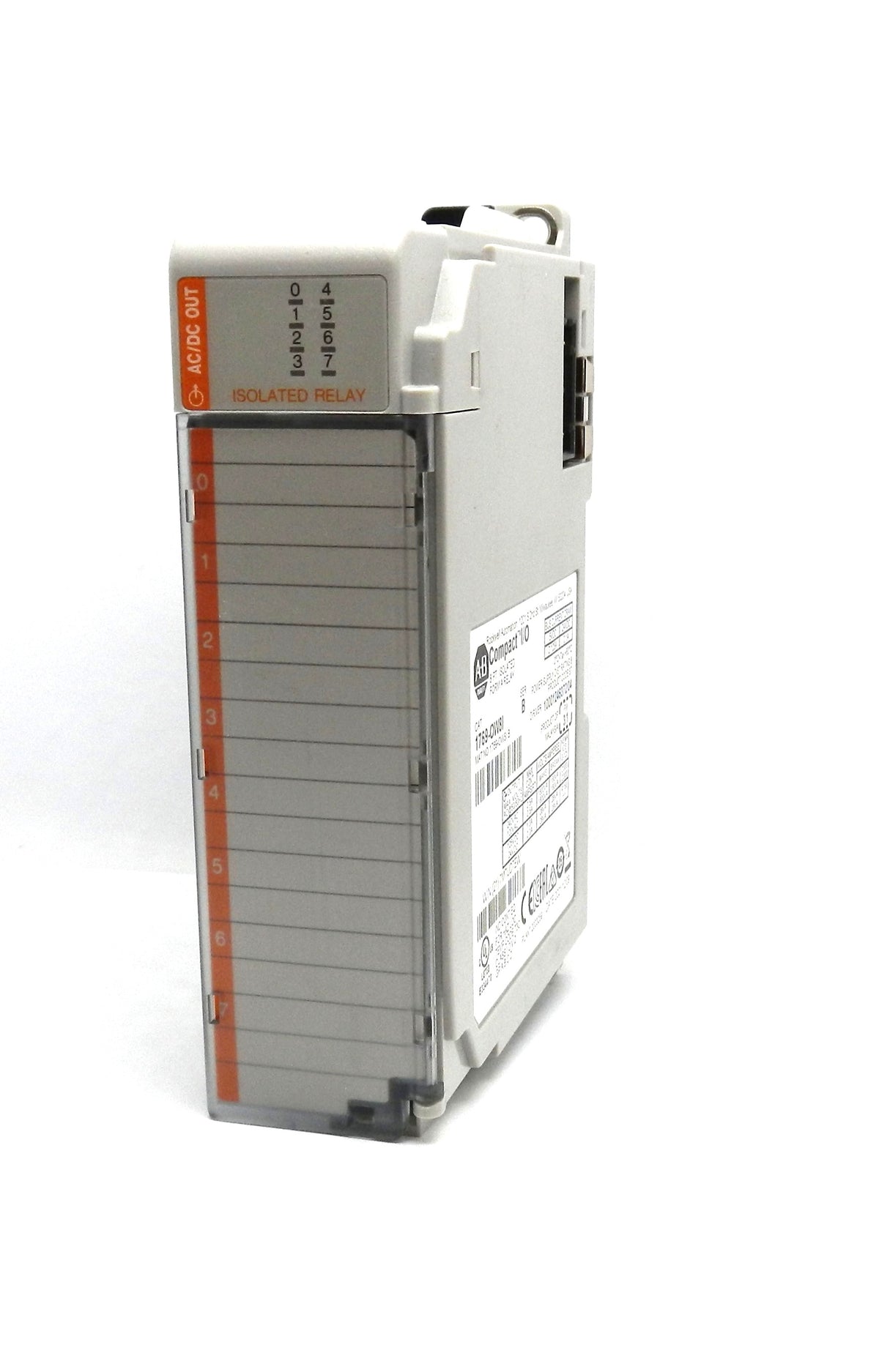

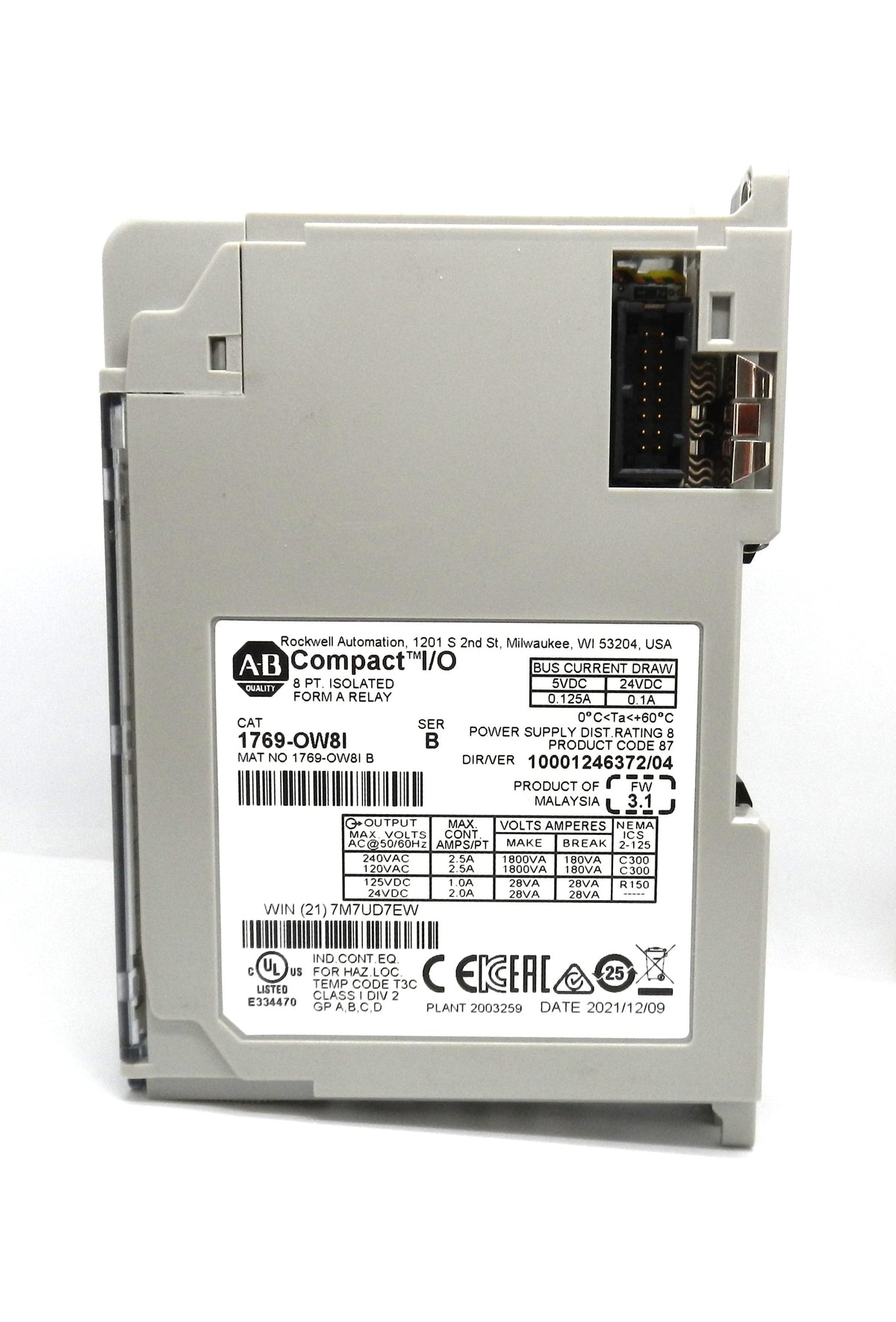

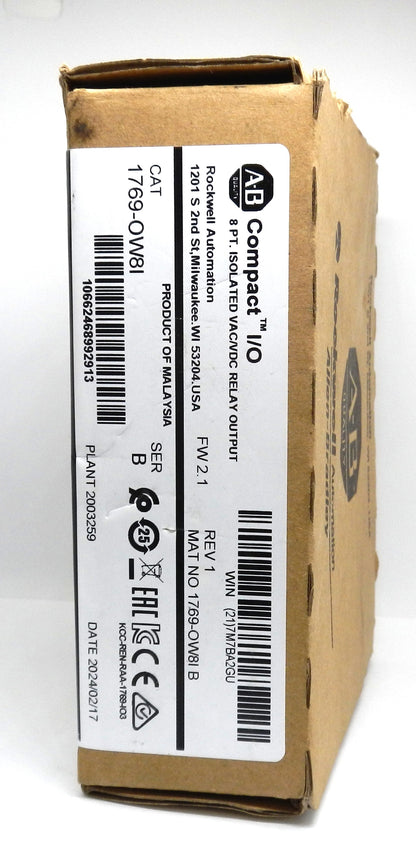

1769-OW8I Allen-Bradley Compact I/O 8-Point Isolated Relay Output Module

Description

• Allen-Bradley 1769-OW8I Compact I/O relay output module.

• Features 8 individually isolated relay outputs.

• Designed for CompactLogix PLC and industrial automation systems.

• Supports AC and DC switching applications.

• Provides reliable control of industrial machinery and electrical equipment.

• Suitable for motor control, signaling, and automation applications.

• Compact design for DIN rail or panel mounting.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1769-OW8I

• Series: 1769 Compact I/O

• Product Type: Digital Relay Output Module

• Number of Outputs: 8

• Output Type: Normally Open Relay Contacts

• Output Isolation: Individually Isolated

• Operating Voltage: 5–265V AC / 5–125V DC

• Maximum Current per Output: 2.5A

• Maximum Current per Module: 16A

• Turn-On Delay: 10 ms

• Turn-Off Delay: 10 ms

• Mounting Type: DIN Rail or Panel Mount

• Application: PLC Control and Industrial Automation

Dimensions

• Height: 118 mm (4.65 in)

• Width: 35 mm (1.38 in)

• Depth: 87 mm (3.43 in)

Weight

• Approximate Weight: 0.29 kg

• Weight in Pounds: 0.64 lb
