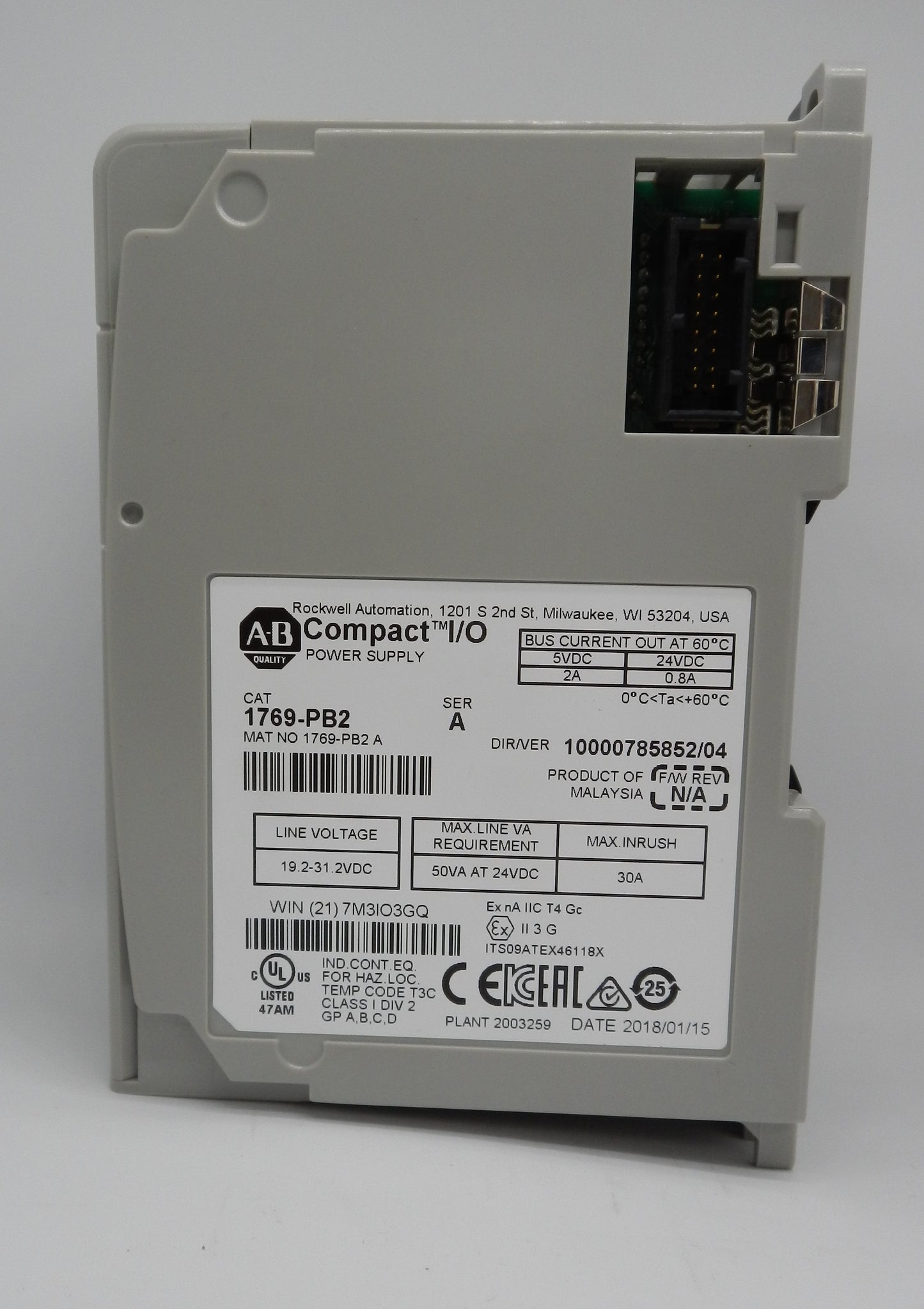

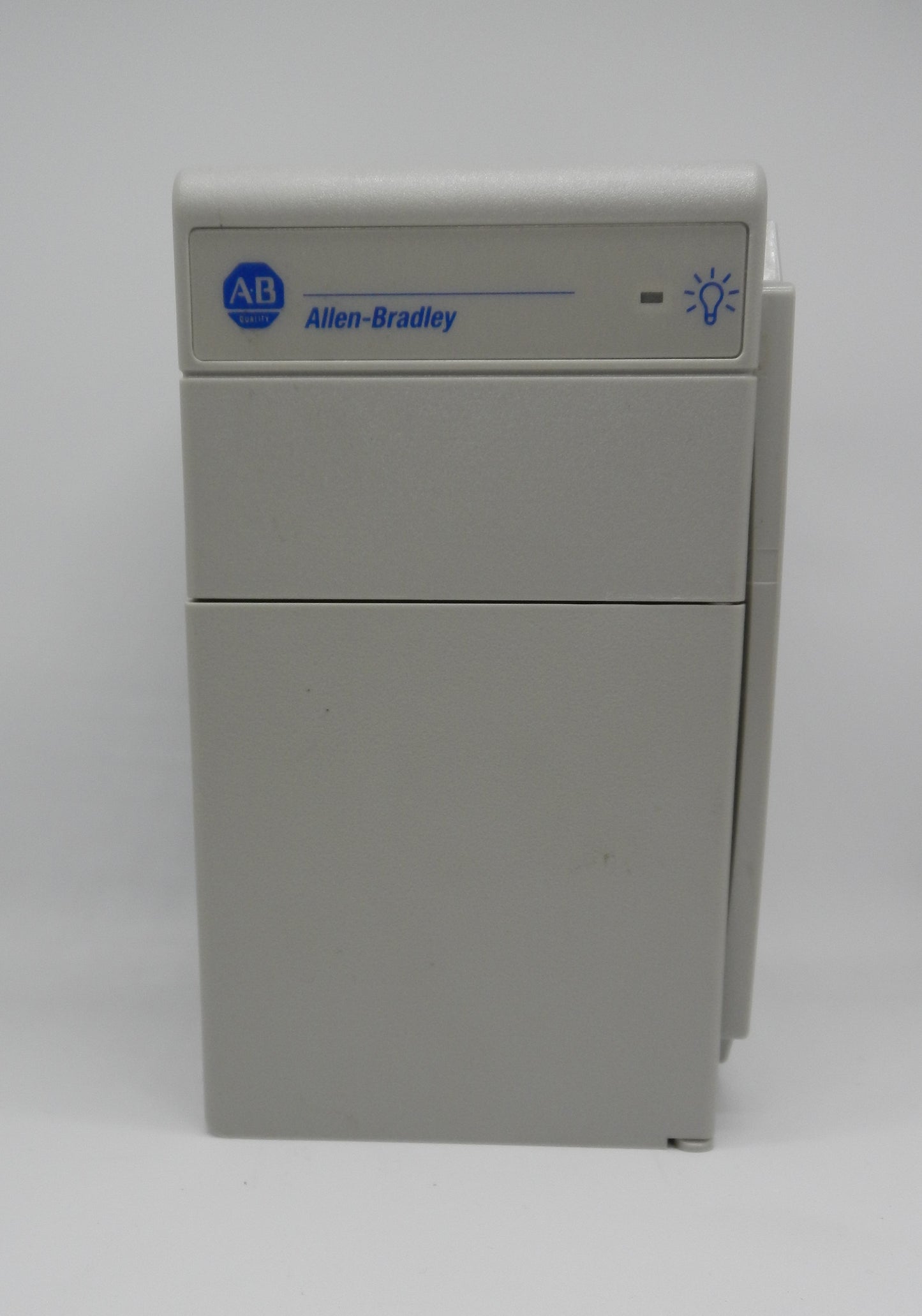

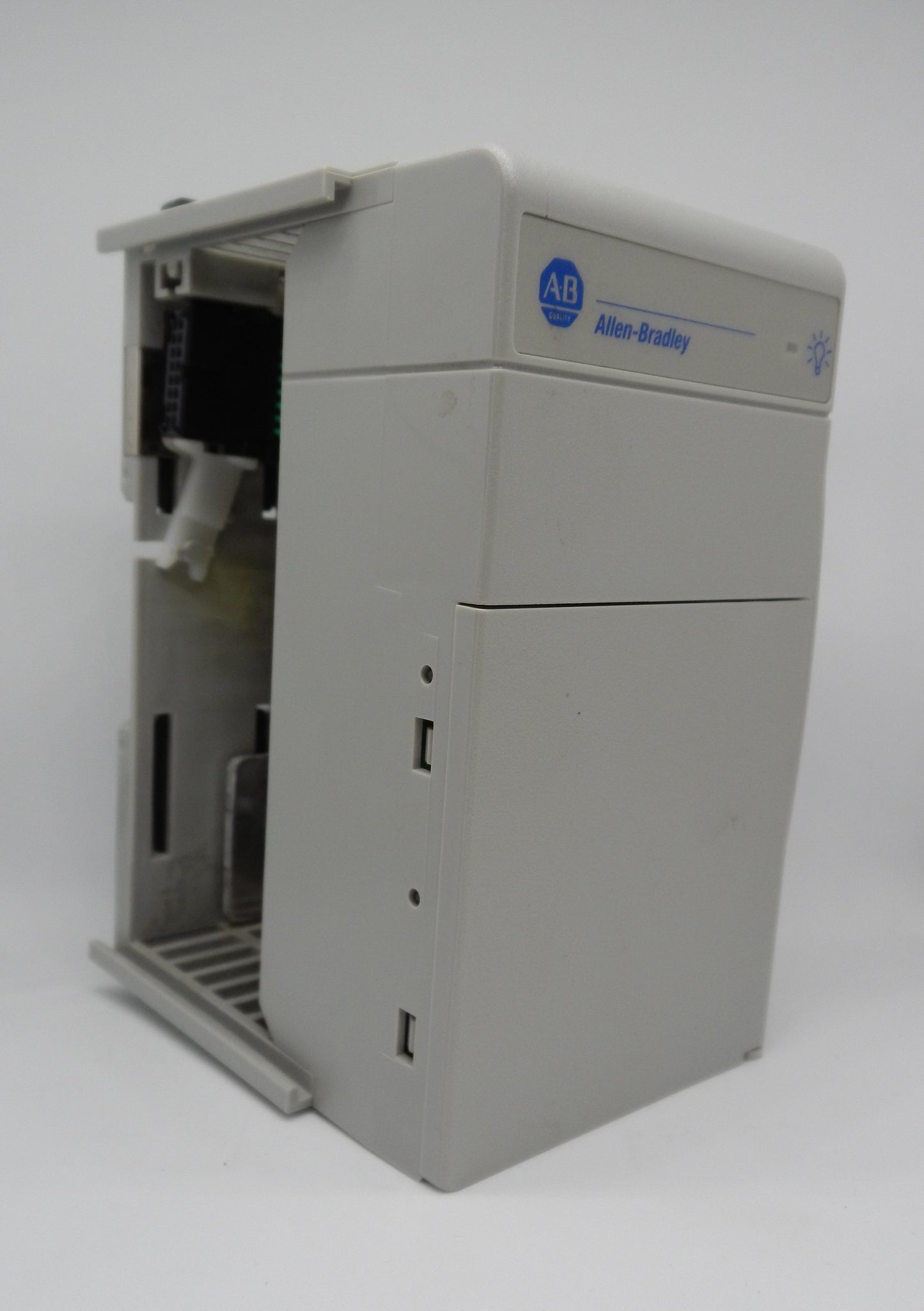

1769-PB2 Allen-Bradley CompactLogix 24VDC Power Supply Module 2A/0.8A Compact I/O

Description:

• Genuine Allen-Bradley CompactLogix DC power supply for 1769 Compact I/O and CompactLogix controllers
• Accepts 24 VDC nominal input (19.2–31.2 VDC) for reliable operation in industrial automation systems
• Provides 2.0 A @ 5 VDC and 0.8 A @ 24 VDC output capacity for CompactLogix controllers and I/O modules
• Supports up to 16 Compact I/O modules (8 modules on each side of the power supply), depending on system power requirements and module power ratings
• Compact open-style design for DIN rail or panel mounting
• Integrated fuse protection and status indicators for dependable operation
• Compatible with CompactLogix L3x/L3y controllers and the complete family of 1769 Compact I/O modules
• Ideal for machine automation, OEM equipment, packaging machinery, process control, material handling, and industrial control panels
• Lifecycle Status: Active Mature with ongoing Rockwell Automation support.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-PB2
• Product Series: CompactLogix / 1769 Compact I/O
• Product Type: DC Power Supply Module
• Input Voltage:
  • 19.2–31.2 VDC
  • 24 VDC Nominal
• Input Power: 50 VA @ 24 VDC
• Output Capacity:
  • 2.0 A @ 5 VDC
  • 0.8 A @ 24 VDC
• Power Dissipation: 7.5 W
• Maximum Inrush Current: 30 A @ 31.2 VDC
• Isolation Voltage: 75 V Continuous
• Mounting Type:
  • DIN Rail
  • Panel Mount
• Enclosure Type: Open Style
• Operating Temperature: 0°C to +60°C (32°F to +140°F)
• Wire Size:
  • 14 AWG (2.5 mm²) Solid Copper
• Country of Origin: Malaysia
• Certifications:
  • UL Listed
  • ATEX
  • IECEx
  • UKCA
  • ABS
  • RINA
• Applications:
  • CompactLogix PLC Systems
  • Compact I/O Systems
  • Industrial Automation
  • Machine Control
  • OEM Equipment
  • Process Control
  • Material Handling

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 52.5 mm (2.07 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.34 kg (0.75 lb).
