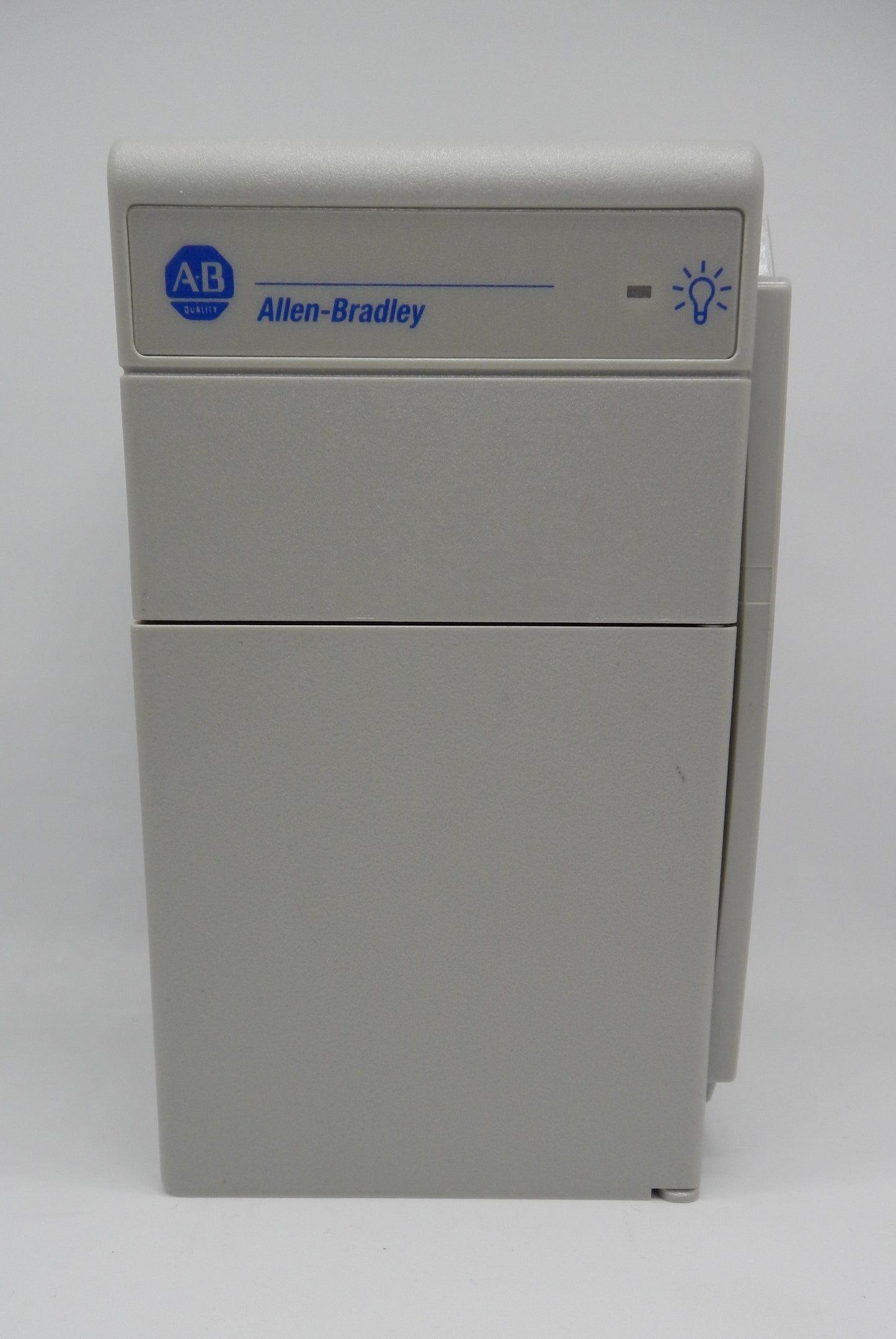

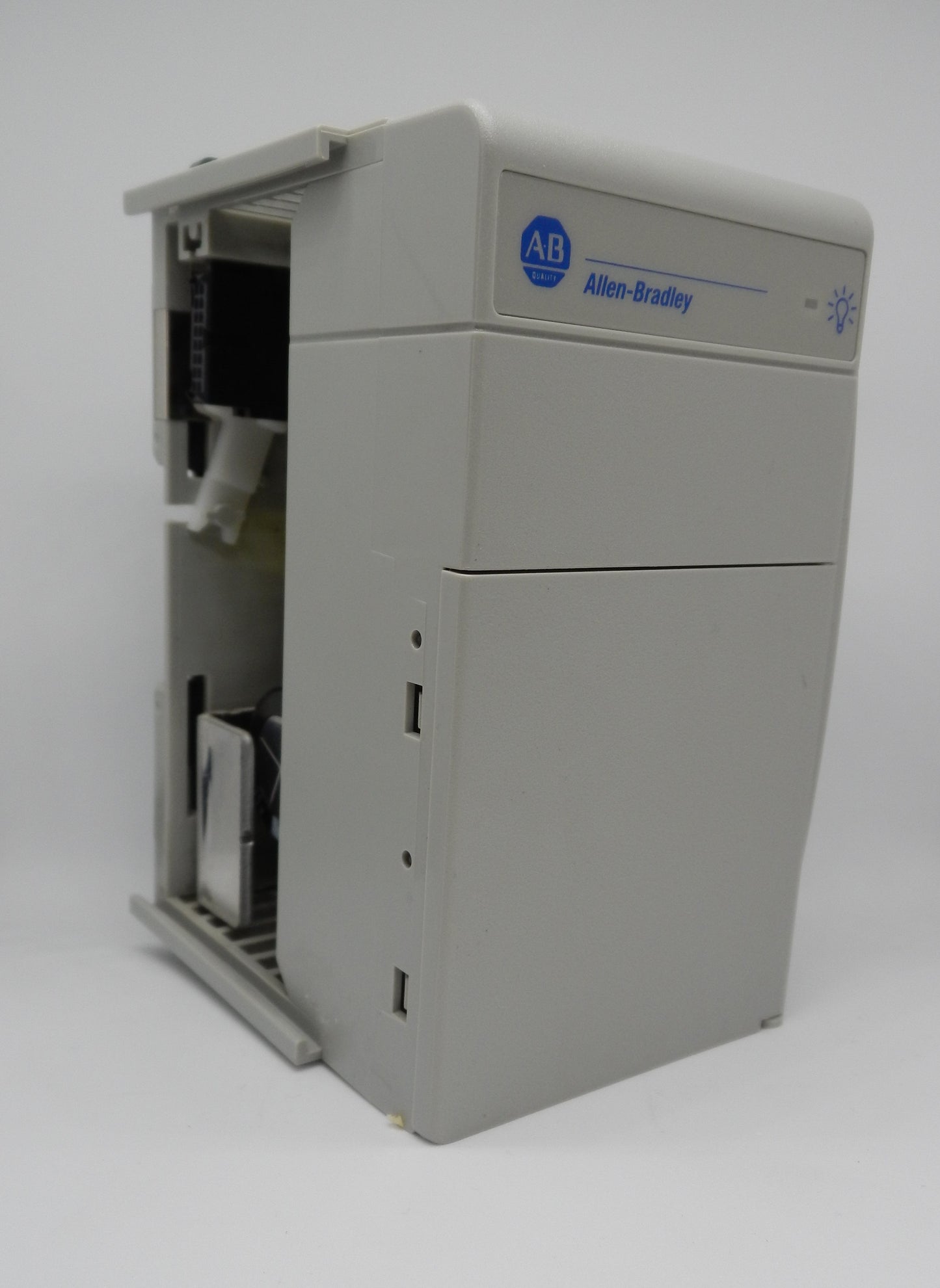

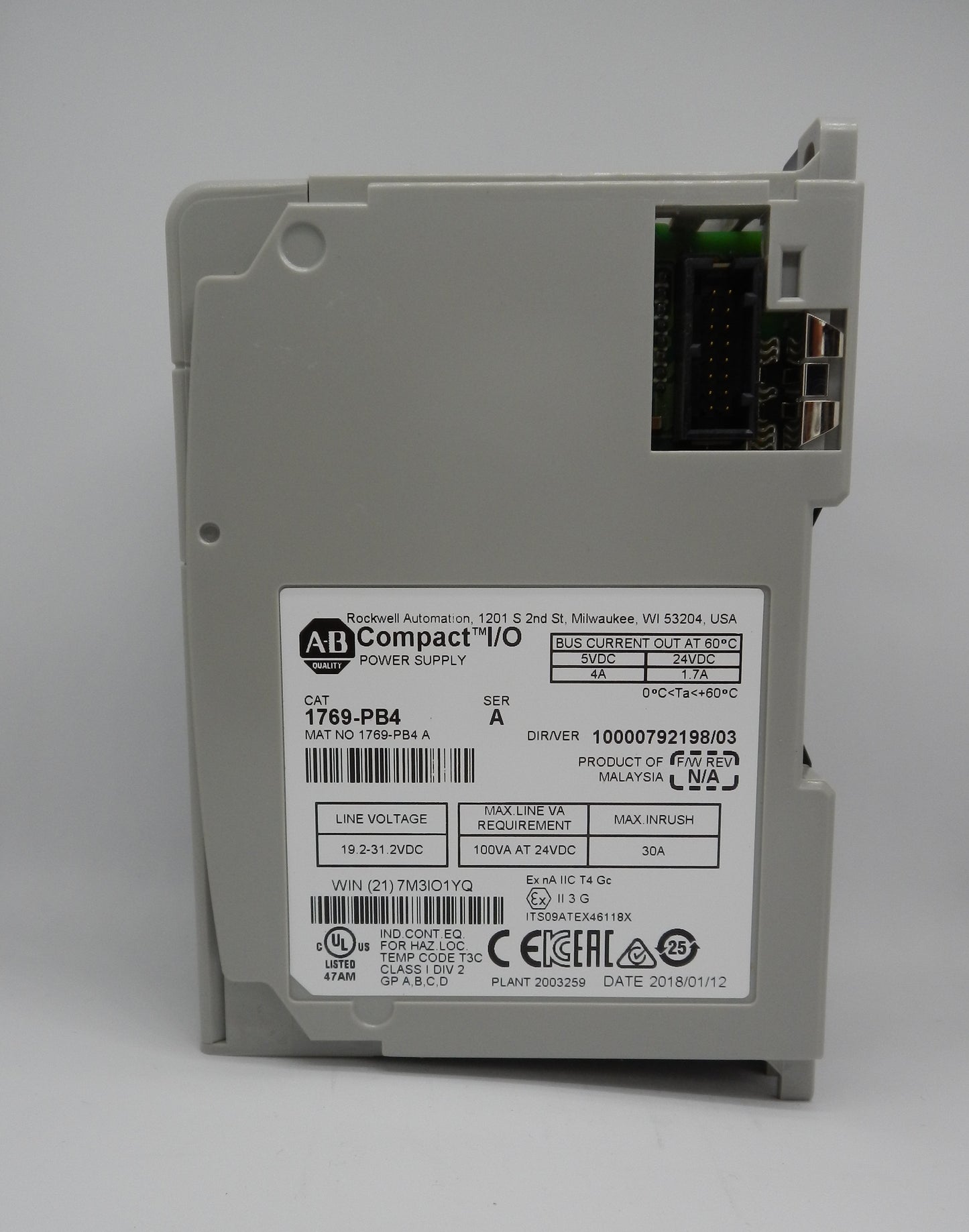

1769-PB4 Allen-Bradley CompactLogix 24VDC Power Supply Module 4A/2A Compact I/O

Description:

• Genuine Allen-Bradley CompactLogix DC power supply module for 1769 Compact I/O and CompactLogix L3x/L3y control systems
• Accepts 24V DC input (19.2–31.2 VDC) and provides regulated power for CompactLogix controllers and 1769 I/O modules
• Delivers 4A @ 5V DC and 2A @ 24V DC with a total output power of 75W
• Supports up to 8 Compact I/O modules on either side of the power supply, depending on system configuration
• Compact design mounts directly to DIN rail or panel for easy installation
• No external connection cables required for system integration
• Ideal for industrial automation, OEM machinery, packaging equipment, material handling, process control, and manufacturing systems
• Designed for reliable operation in demanding industrial environments
• Lifecycle Status: Active Mature with ongoing Rockwell Automation support.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1769-PB4
• Product Series: CompactLogix / 1769 Compact I/O
• Product Type: DC Power Supply Module
• Input Voltage: 19.2–31.2 VDC
• Nominal Input Voltage: 24 VDC
• Output Power: 75 W
• Output Current:
  • 4A @ 5V DC
  • 2A @ 24V DC
• Input Voltage Type: DC
• Mounting Type:
  • DIN Rail
  • Panel Mount
• Maximum Supported I/O Distance:
  • Up to 8 modules on each side (application dependent)
• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5–95% Non-Condensing
• Country of Origin: Malaysia
• Lifecycle Status: Active Mature
• Certifications:
  • UL Listed
  • ATEX
  • IECEx
  • CE
  • UKCA
• Applications:
  • CompactLogix PLC Systems
  • 1769 Compact I/O
  • Industrial Automation
  • Machine Control
  • OEM Equipment
  • Process Control
  • Material Handling

Dimensions:

• Height: 118 mm (4.65 in)
• Width: 70 mm (2.76 in)
• Depth: 87 mm (3.43 in)

Weight:

• Approximate Weight: 0.63 kg (1.39 lb).
