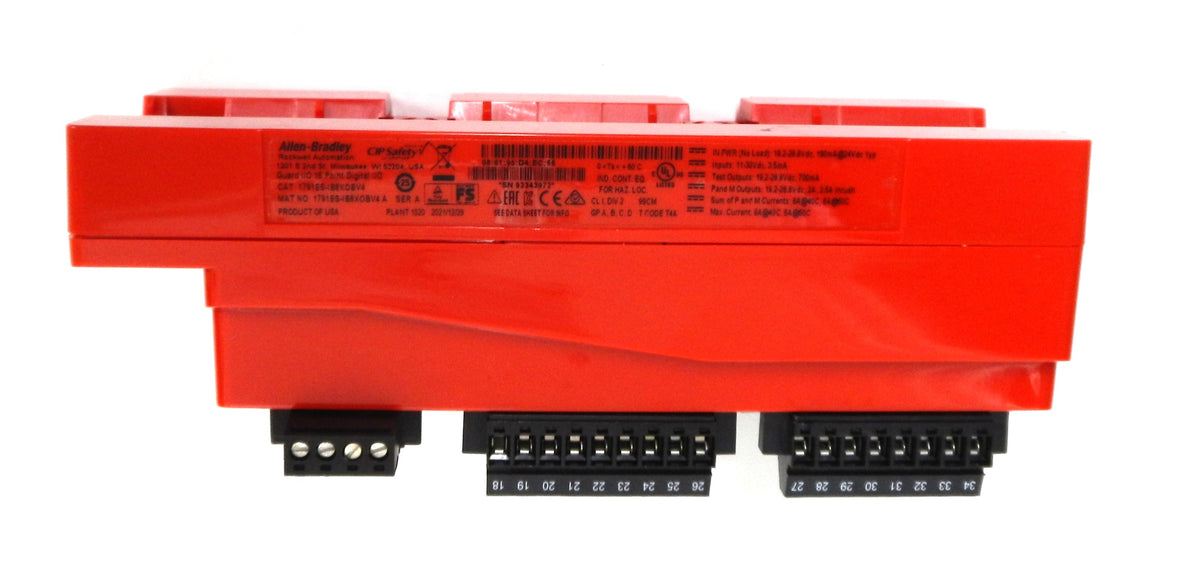

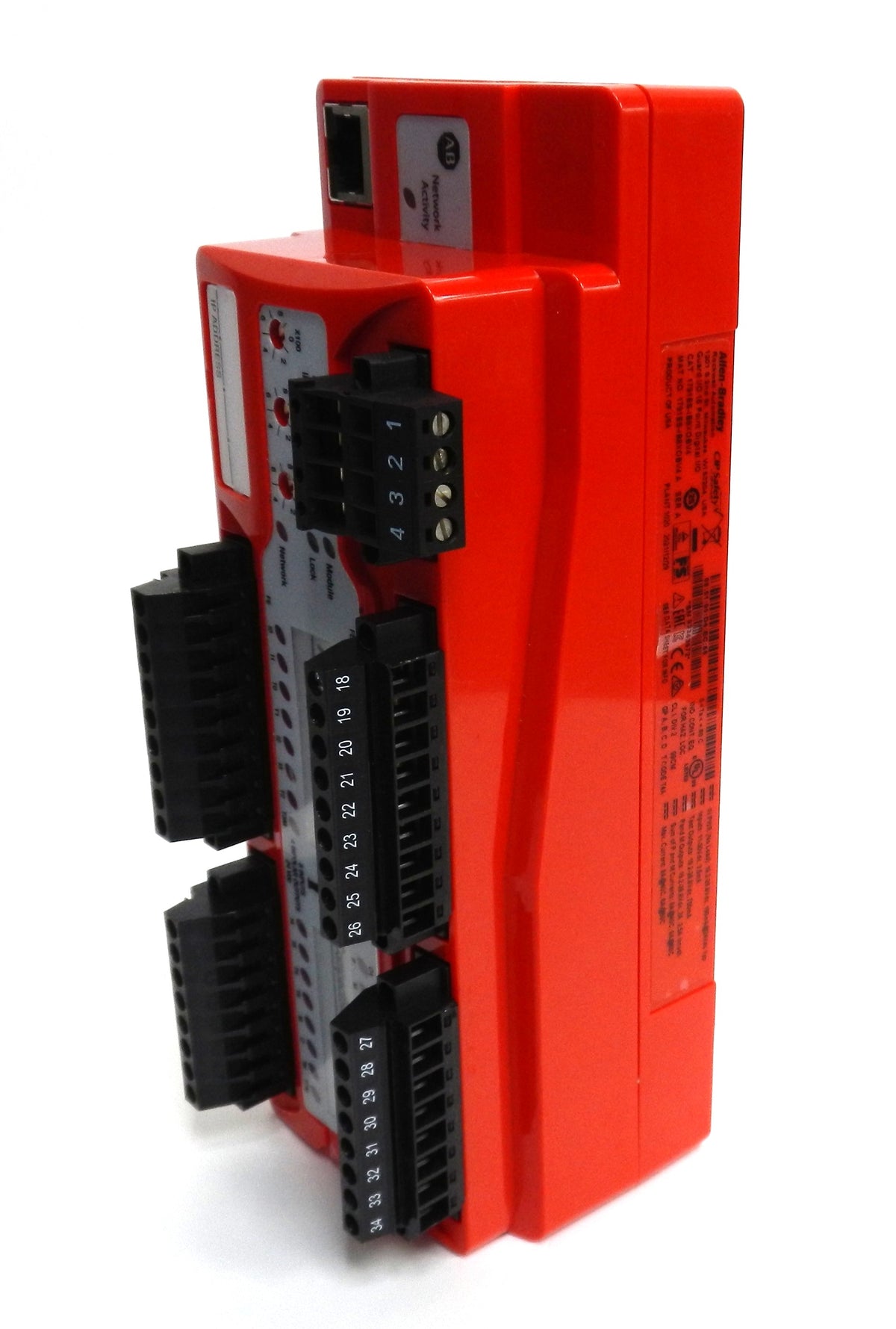

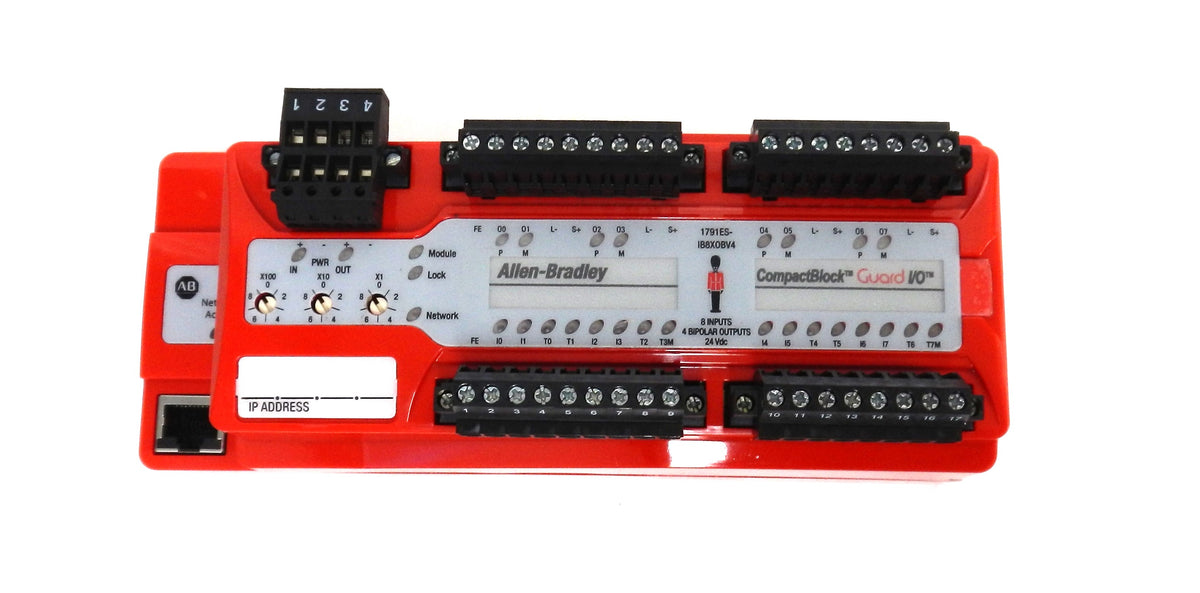

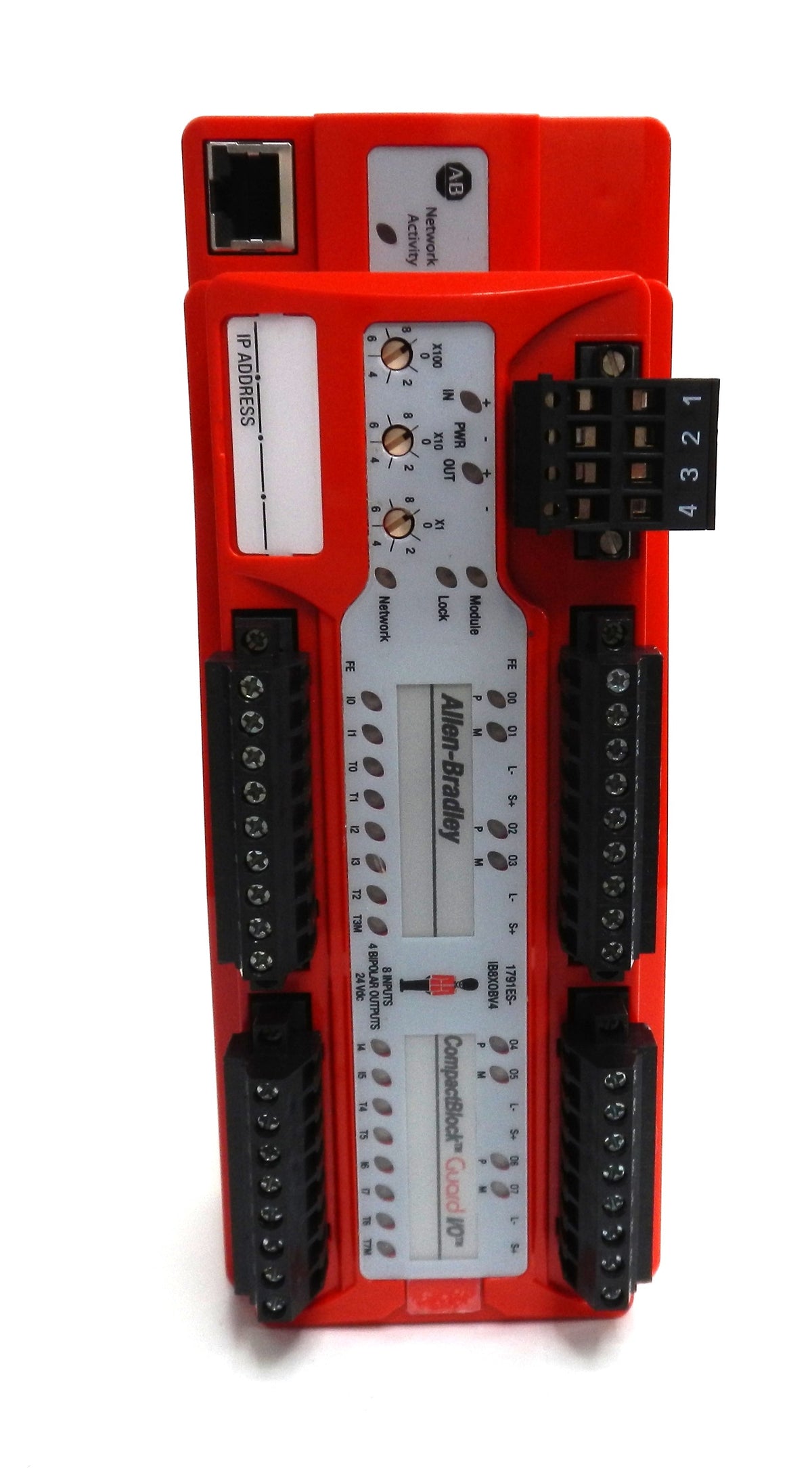

1791ES-IB8XOBV4 Allen-Bradley CompactBlock Guard I/O 8-Input 4-Output Safety Module 24VDC

Description

• Allen-Bradley 1791ES-IB8XOBV4 CompactBlock Guard I/O safety module.

• Features 8 safety-rated digital inputs and 4 bipolar safety outputs.

• Designed for industrial machine safety and automation applications.

• Supports EtherNet/IP communication with CIP Safety.

• Operates on a 24V DC power supply.

• Provides distributed safety input and output functionality.

• Suitable for emergency stop circuits, safety switches, light curtains, and machine guarding applications.

• Integrated Ethernet communication port for network connectivity.

• Features rotary switches for network address configuration.

• LED indicators for power, module, network, input, and output status.

• Suitable for industrial control panels and safety automation systems.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 1791ES-IB8XOBV4

• Series: A (as marked on product label)

• Product Series: CompactBlock Guard I/O

• Product Type: Safety Digital I/O Module

• Safety Inputs: 8

• Safety Outputs: 4 Bipolar Outputs

• Rated Supply Voltage: 24V DC

• Input Supply Voltage Range: 19.2–28.8V DC

• Communication Protocol: EtherNet/IP

• Safety Communication: CIP Safety

• Network Connection: RJ45 Ethernet

• Connection Type: Removable Screw Terminal Blocks

• Mounting Type: DIN Rail / Panel Mount

• Country of Origin: USA

• Application: Industrial Machine Safety and Automation

Dimensions

• Height: Approximately 90 mm (3.54 in)

• Width: Approximately 179 mm (7.05 in)

• Depth: Approximately 80 mm (3.15 in)

Weight

• Approximate Weight: 0.60 kg

• Weight in Pounds: 1.32 lb
