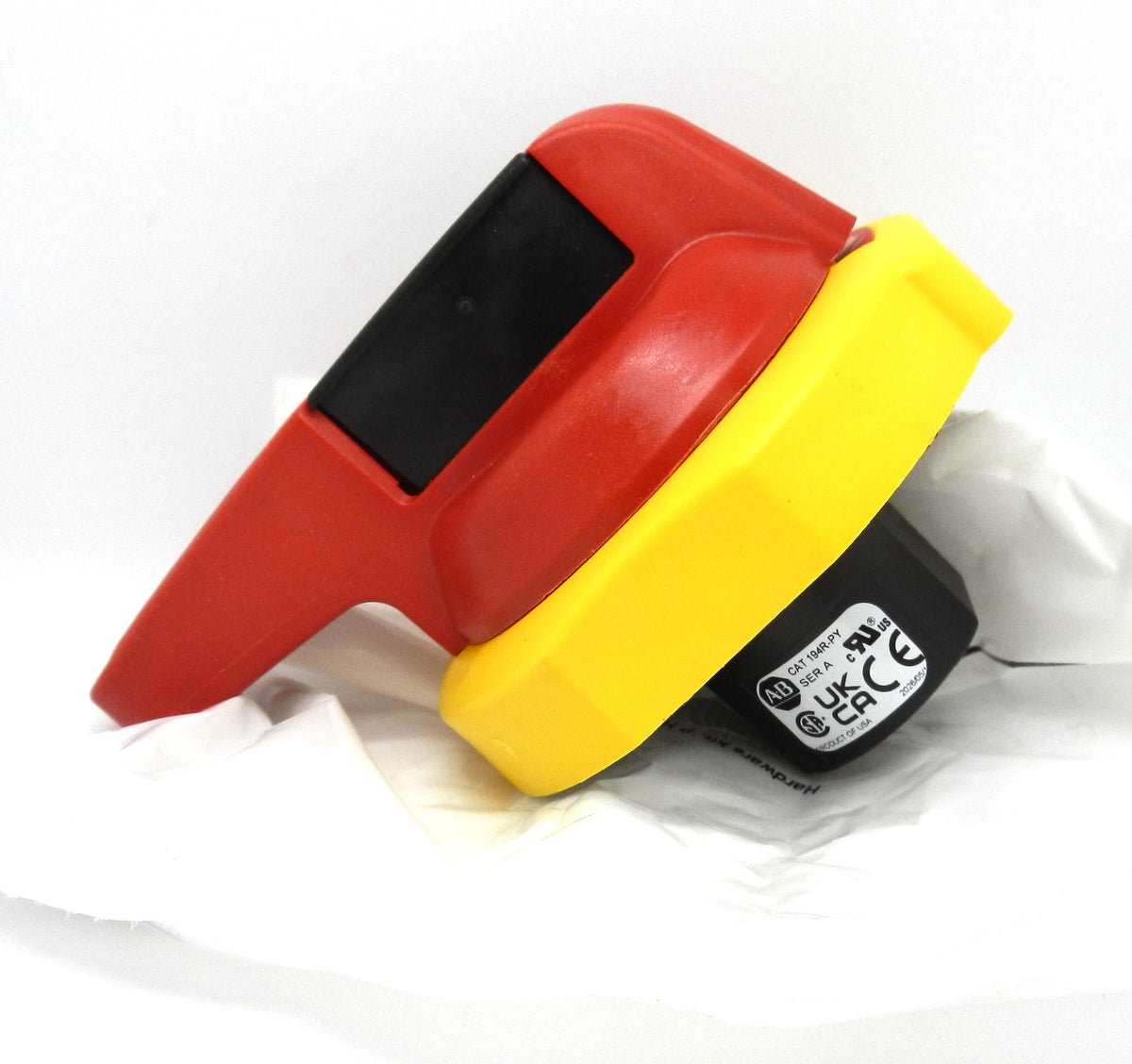

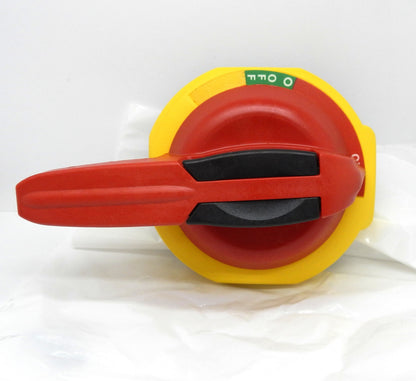

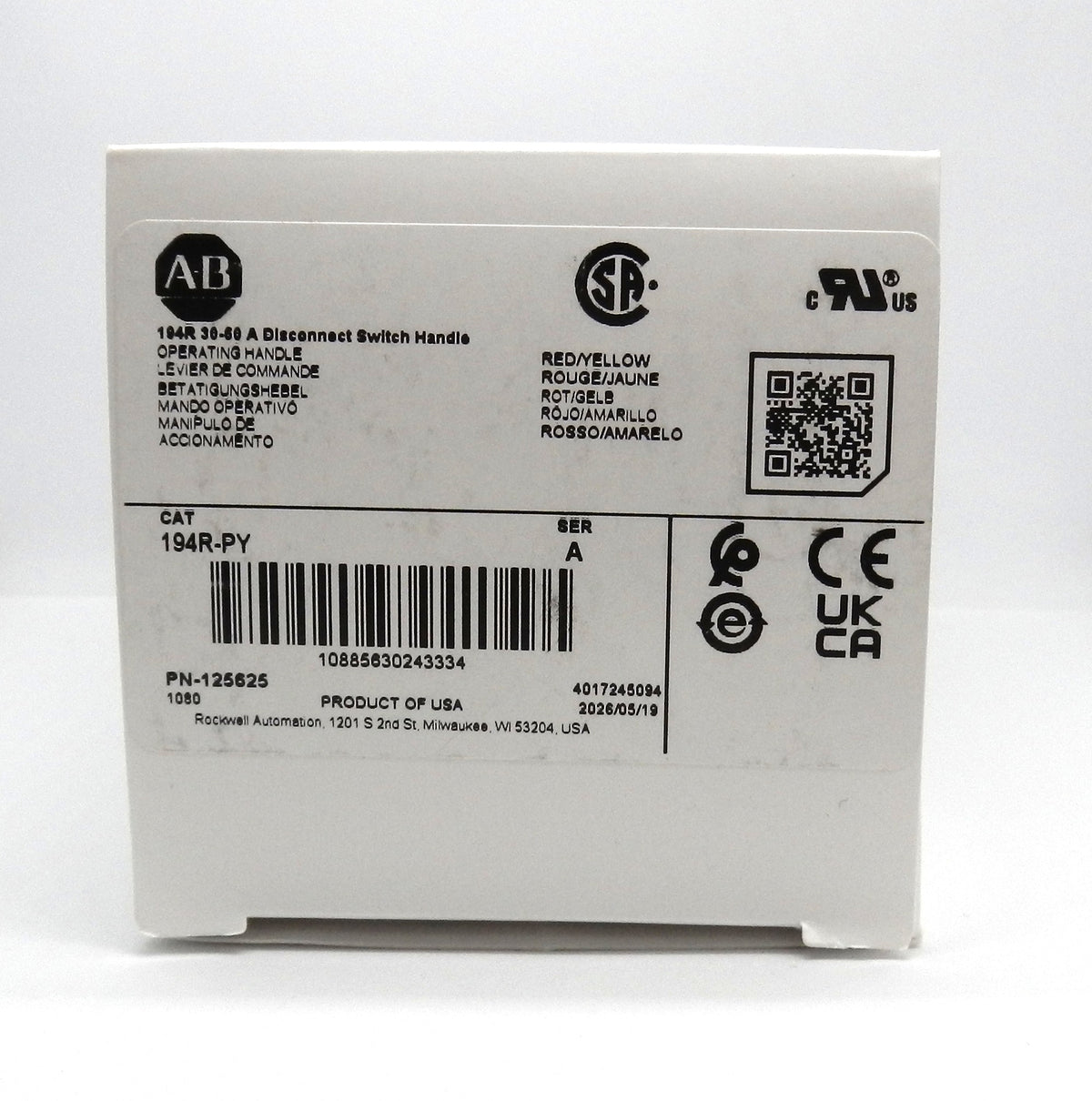

194R-PY Allen-Bradley Red/Yellow Padlockable Disconnect Handle 30–60A

Description

• Allen-Bradley 194R-PY rotary disconnect switch operating handle.

• Red and yellow pistol-style handle for industrial disconnect switches.

• Designed for compatible Allen-Bradley Bulletin 194R disconnect switches rated up to 60A.

• Padlockable design supporting up to three padlocks.

• Suitable for lockout/tagout safety applications.

• Standard door-mounted operating handle.

• IP66 ingress protection rating.

• NEMA Type 3R, 3, 4, 4X, and 12 enclosure ratings when properly installed.

• Suitable for industrial control panels, motor control centers, and electrical distribution equipment.

• Includes a 3-month warranty provided by Sam Electrical Store.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 194R-PY

• Product Series: Bulletin 194R

• Product Type: Disconnect Switch Operating Handle

• Handle Type: Rotary / Pistol

• Handle Color: Red / Yellow

• Compatible Switch Rating: 30–60A

• Padlockable: Yes, up to 3 padlocks

• Mounting Type: Door Mount

• Protection Rating: IP66

• NEMA Rating: 3, 3R, 4, 4X, 12

• Application: Disconnect Switch Operation

• Manufacturer UPC: 885630243337

• Lifecycle Status: Active

• Country of Origin: USA (manufacturer-listed)

• Warranty: 3-Month Warranty Provided by Sam Electrical Store

Dimensions

• Width: Verify against manufacturer drawing.

• Height: Verify against manufacturer drawing.

• Depth: Verify against manufacturer drawing.

Weight

• Approximate Weight: 0.29 kg

• Weight in Pounds: 0.65 lb
