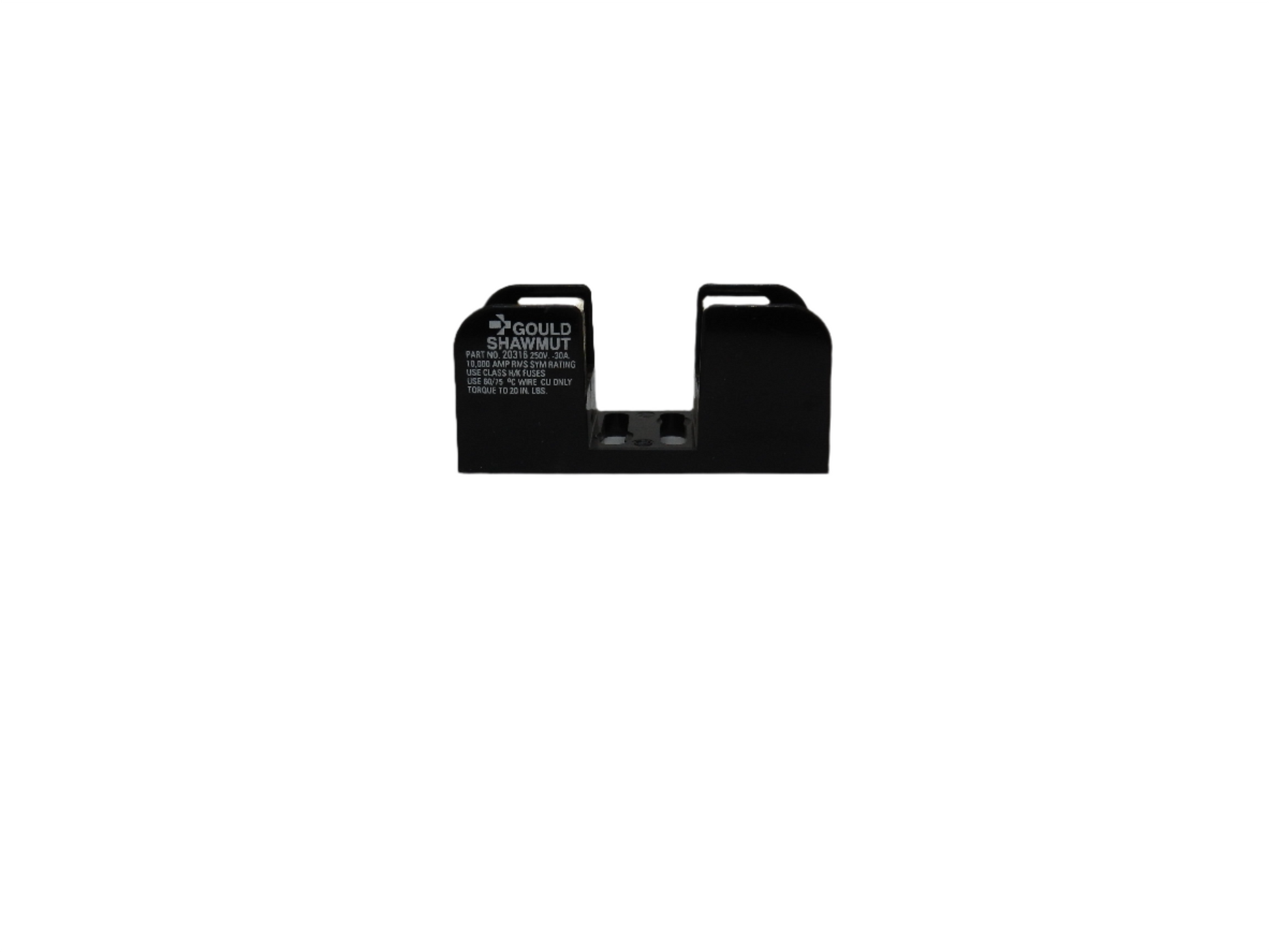

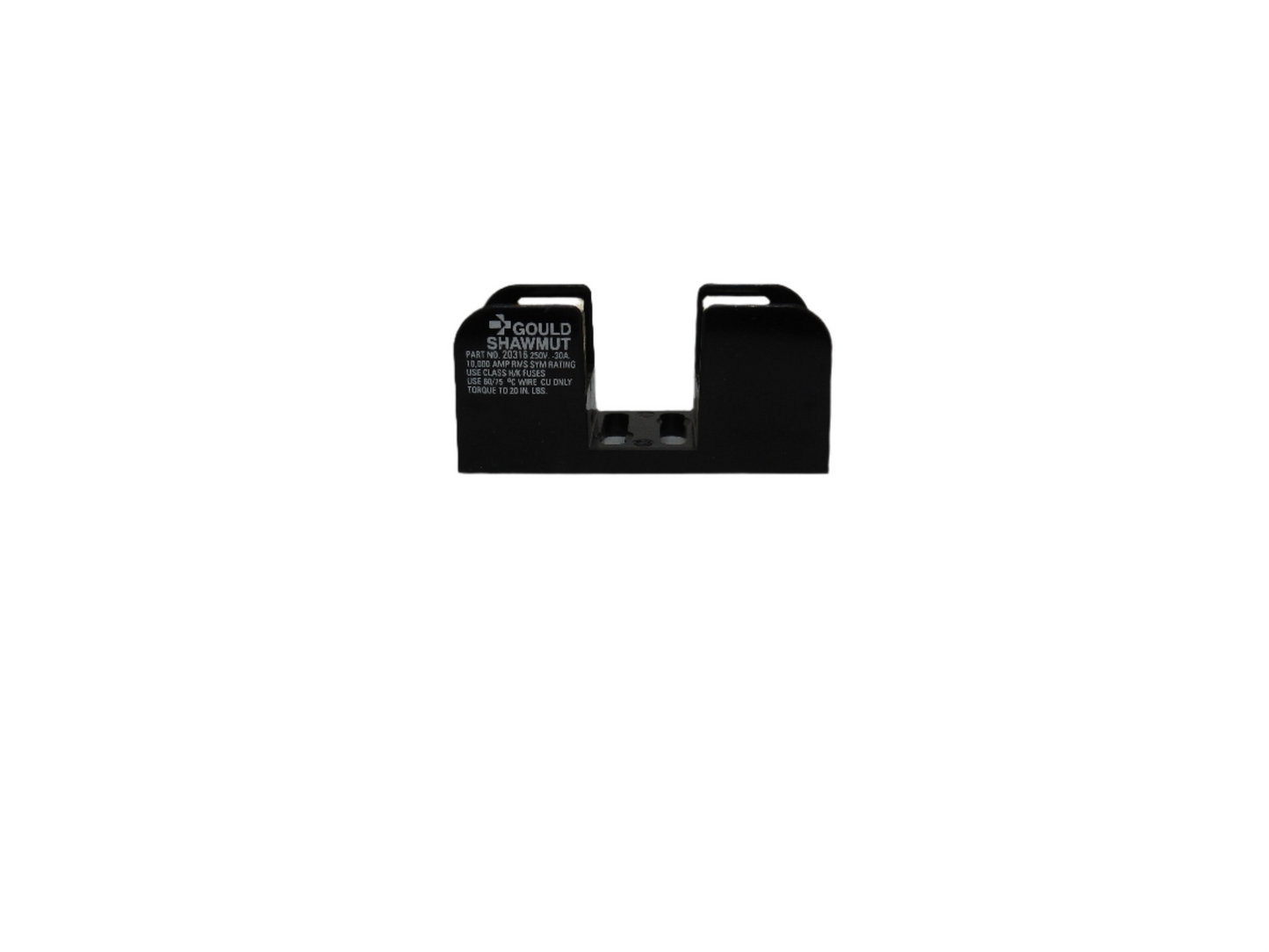

20316 Mersen Ferraz Shawmut Gould 30A 1-Pole Class H/K Fuse Block 250VAC Screw Terminal

Description:

• Genuine Mersen Ferraz Shawmut (formerly Gould Shawmut) Class H/K fuse block for industrial electrical protection applications
• Designed to accept Class H and Class K fuses rated up to 30 Amps

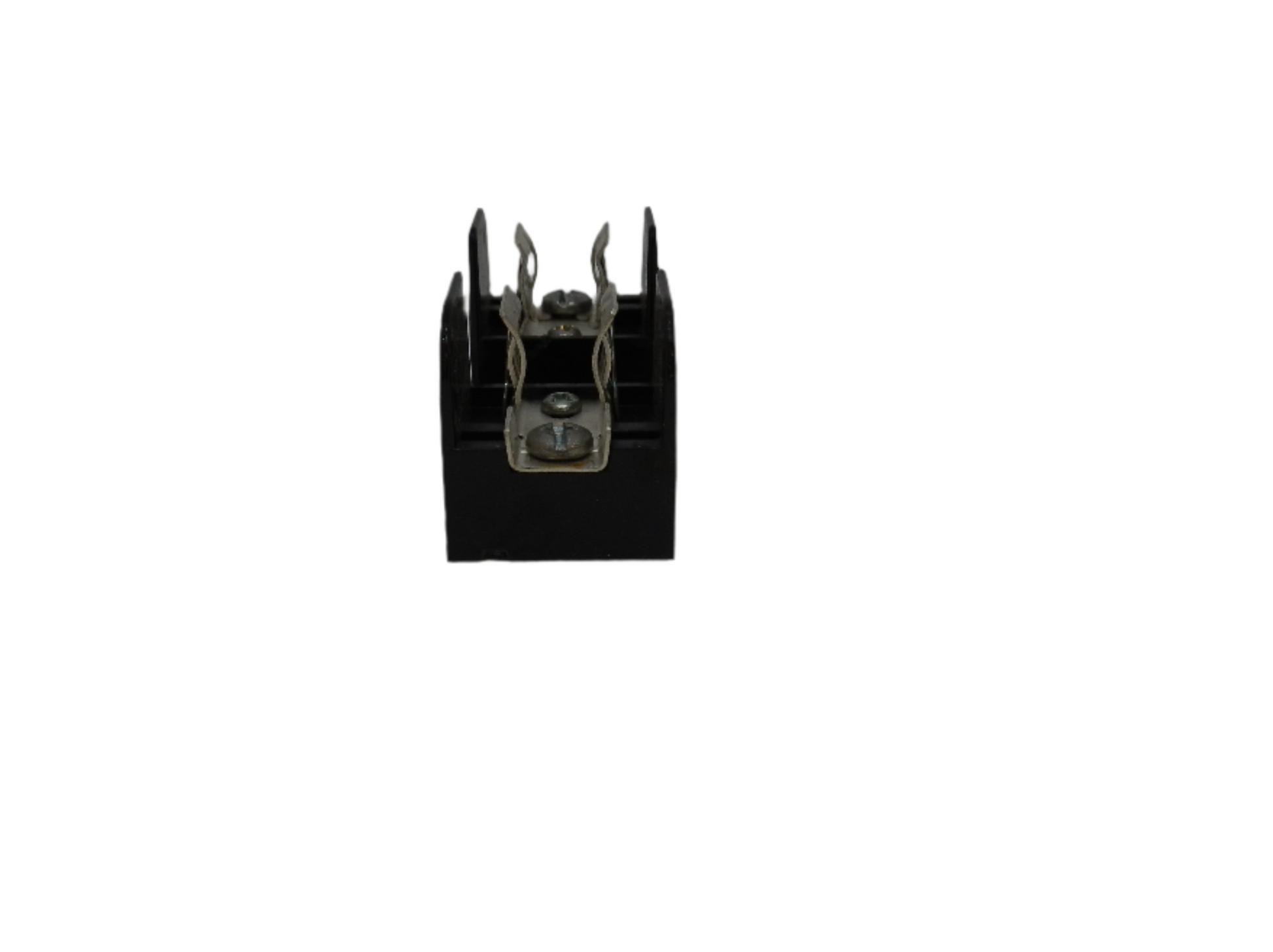

• 1-pole fuse block with spring-reinforced fuse clip for secure fuse retention and reliable electrical contact
• Rated for 250 VAC / 250 VDC
• Features screw terminal connections for dependable field wiring
• High-conductivity tin-plated copper fuse clips ensure low resistance and long service life
• Glass-filled polycarbonate insulated base provides excellent mechanical strength and dielectric performance
• Modular design allows multiple poles to be assembled using compatible adder blocks
• Ideal for industrial control panels, motor control centers, machinery, HVAC equipment, and OEM electrical systems.

Specifications:

• Manufacturer Name: Mersen (Formerly Ferraz Shawmut / Gould Shawmut)
• Part Number (MPN): 20316
• Product Type: Fuse Block
• Fuse Class: Class H / Class K
• Number of Poles: 1
• Current Rating: 30 A
• Rated Voltage:
  • 250 VAC
  • 250 VDC
• Terminal Type: Screw
• Fuse Clip Type: Spring Reinforced
• Fuse Clip Material: Tin-Plated Copper
• Body Material: Glass-Filled Polycarbonate (GFPC)
• Wire Size: #14–#10 AWG Copper
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Certifications:
  • UL 512
  • CSA
• Applications:
  • Industrial Control Panels
  • Motor Control
  • Electrical Distribution
  • OEM Equipment
  • HVAC Systems
  • Machine Automation

Dimensions:

• Compact single-pole fuse block designed for panel mounting.
• Modular design allows expansion into multi-pole assemblies using compatible adder blocks.

Weight:

• Approximate Weight: 0.06 kg (0.14 lb).
