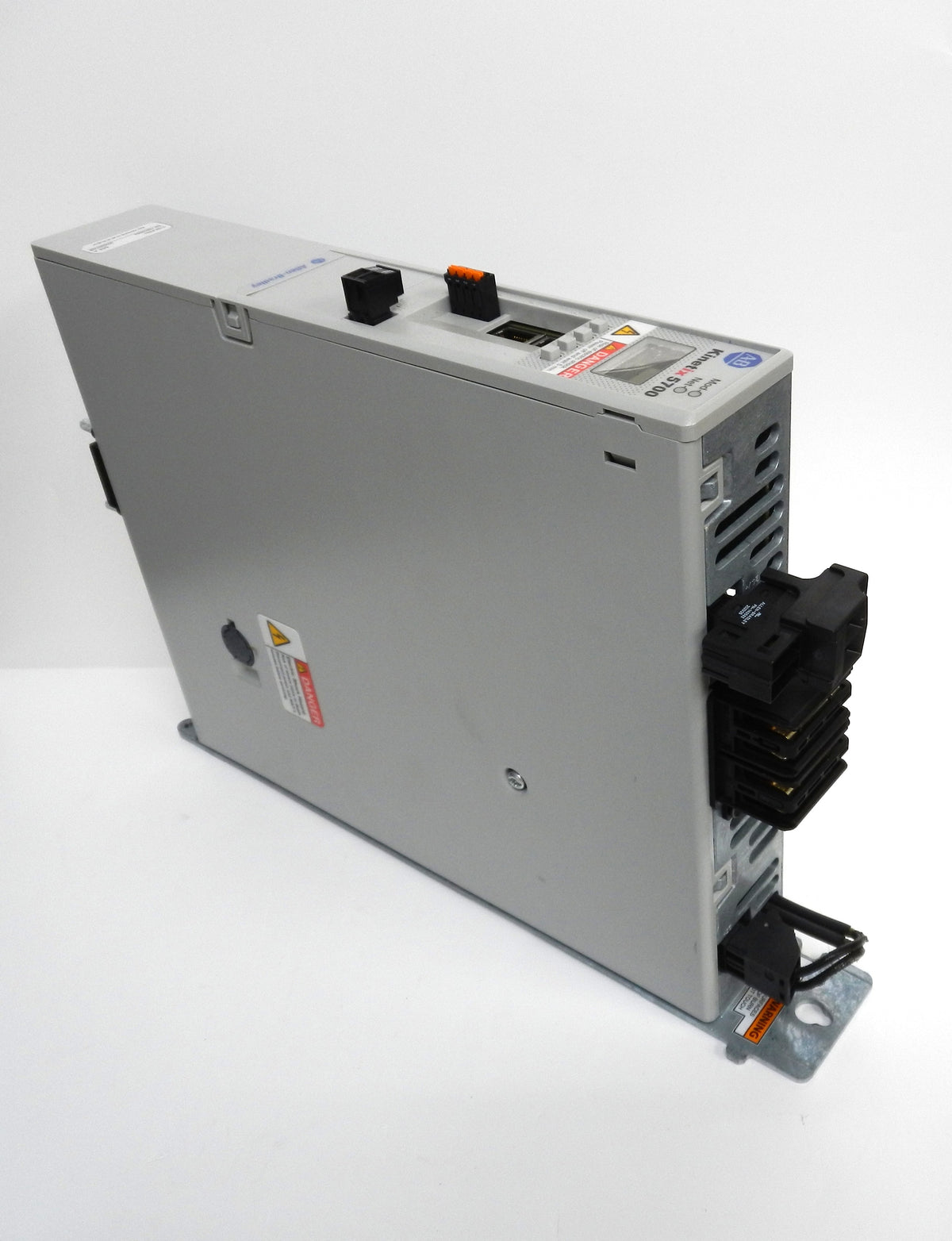

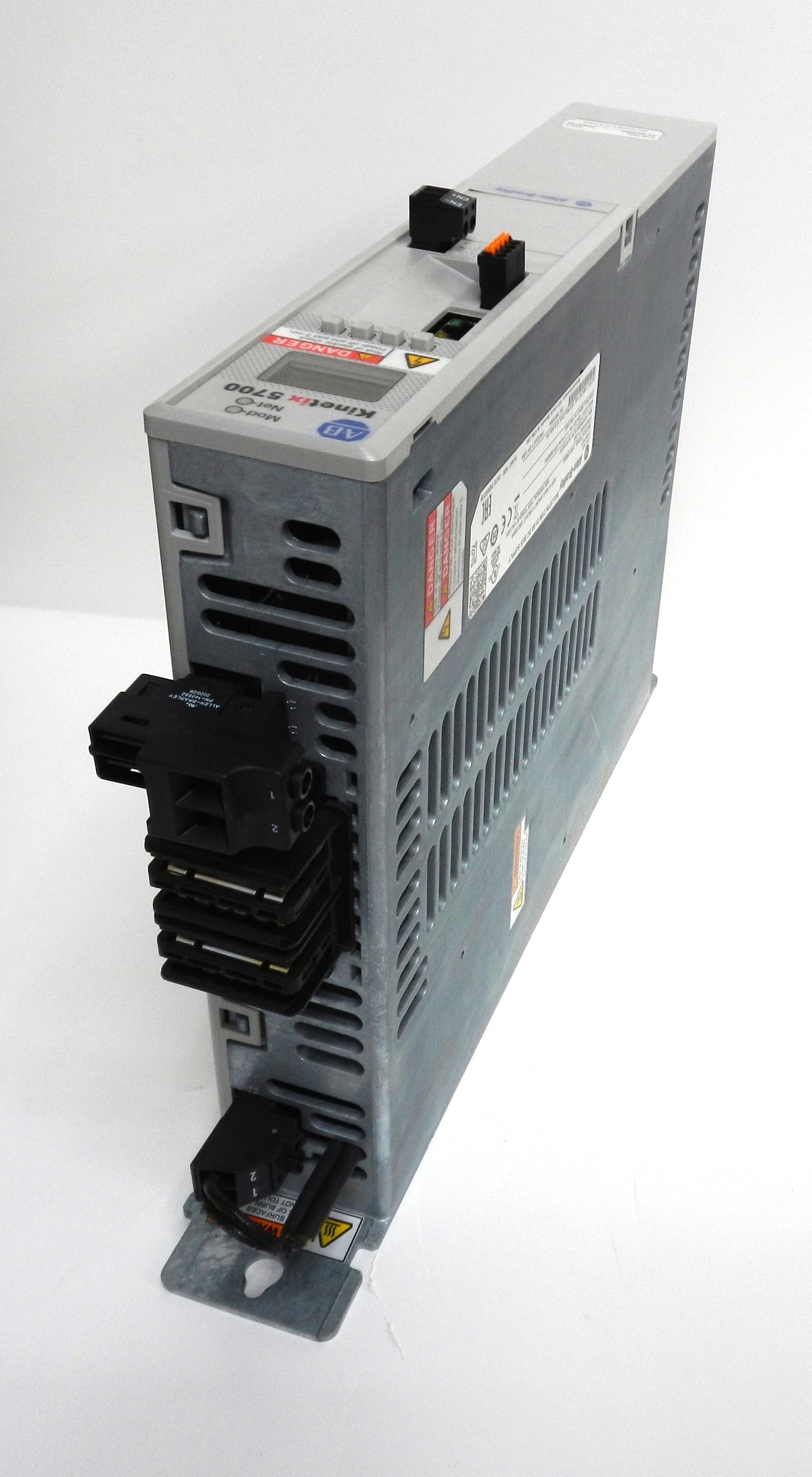

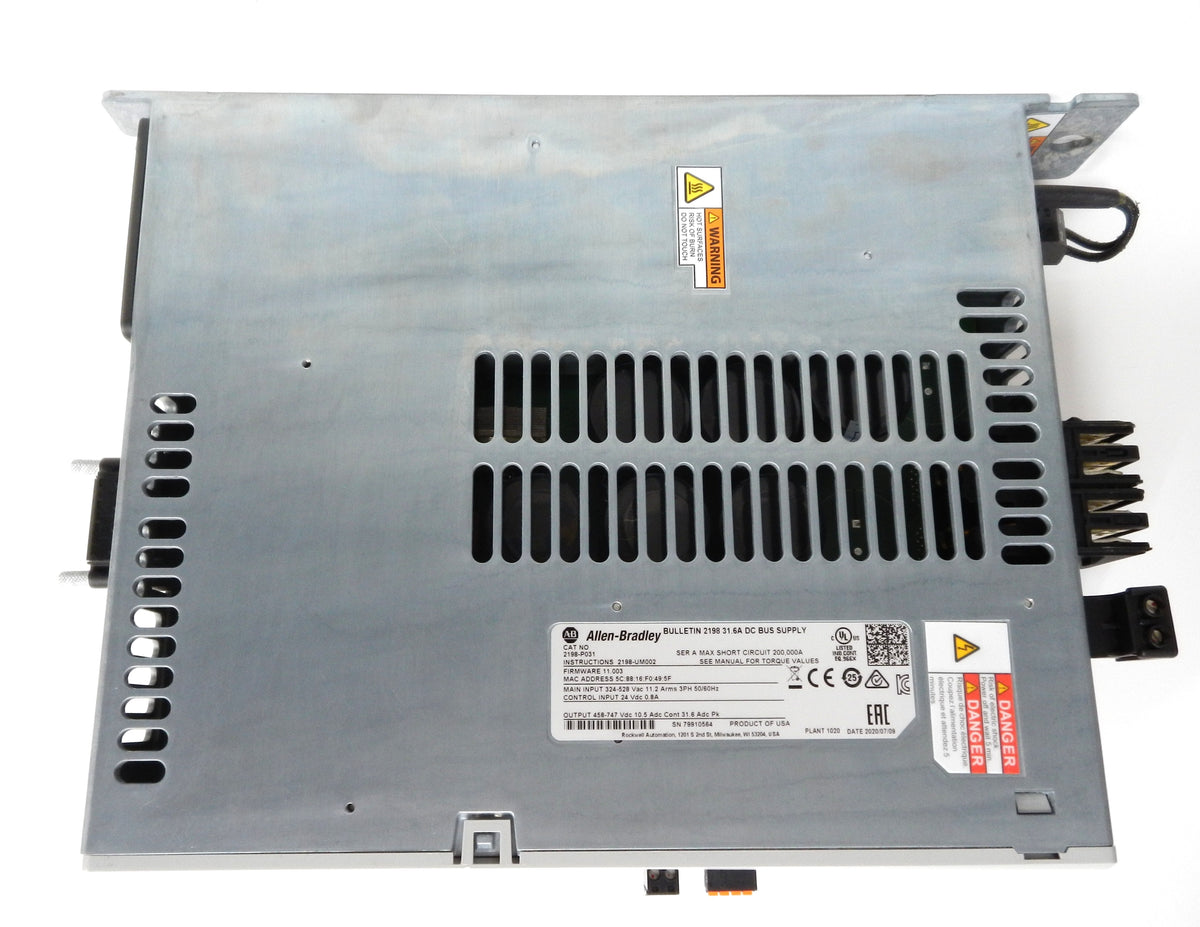

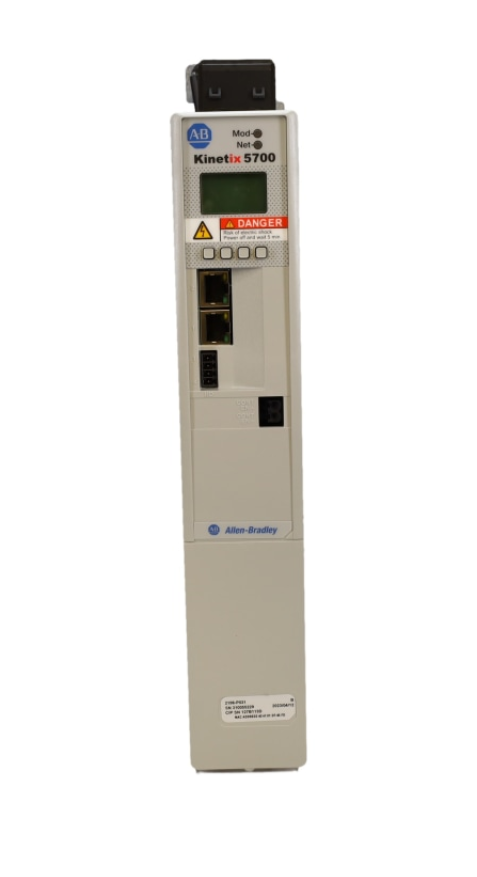

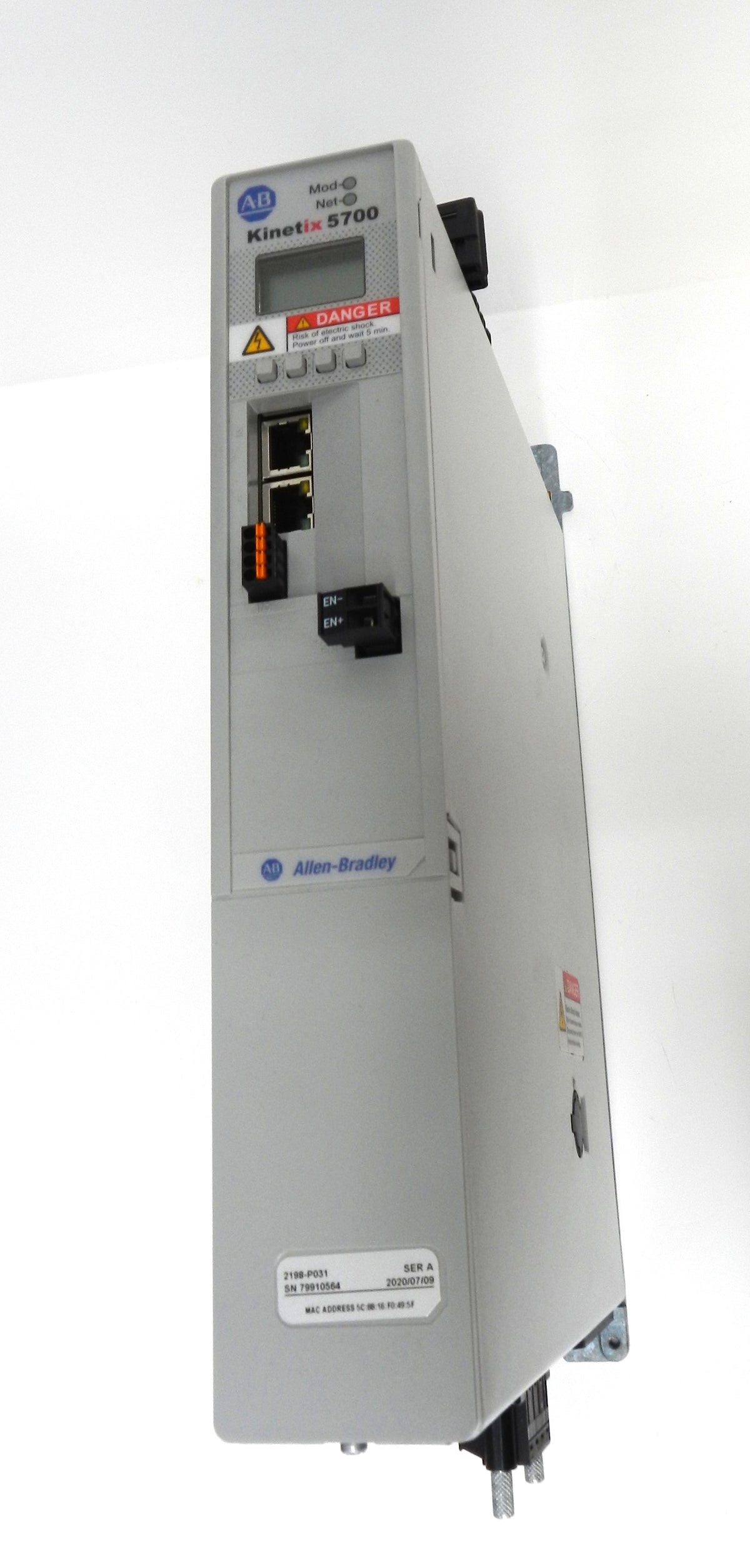

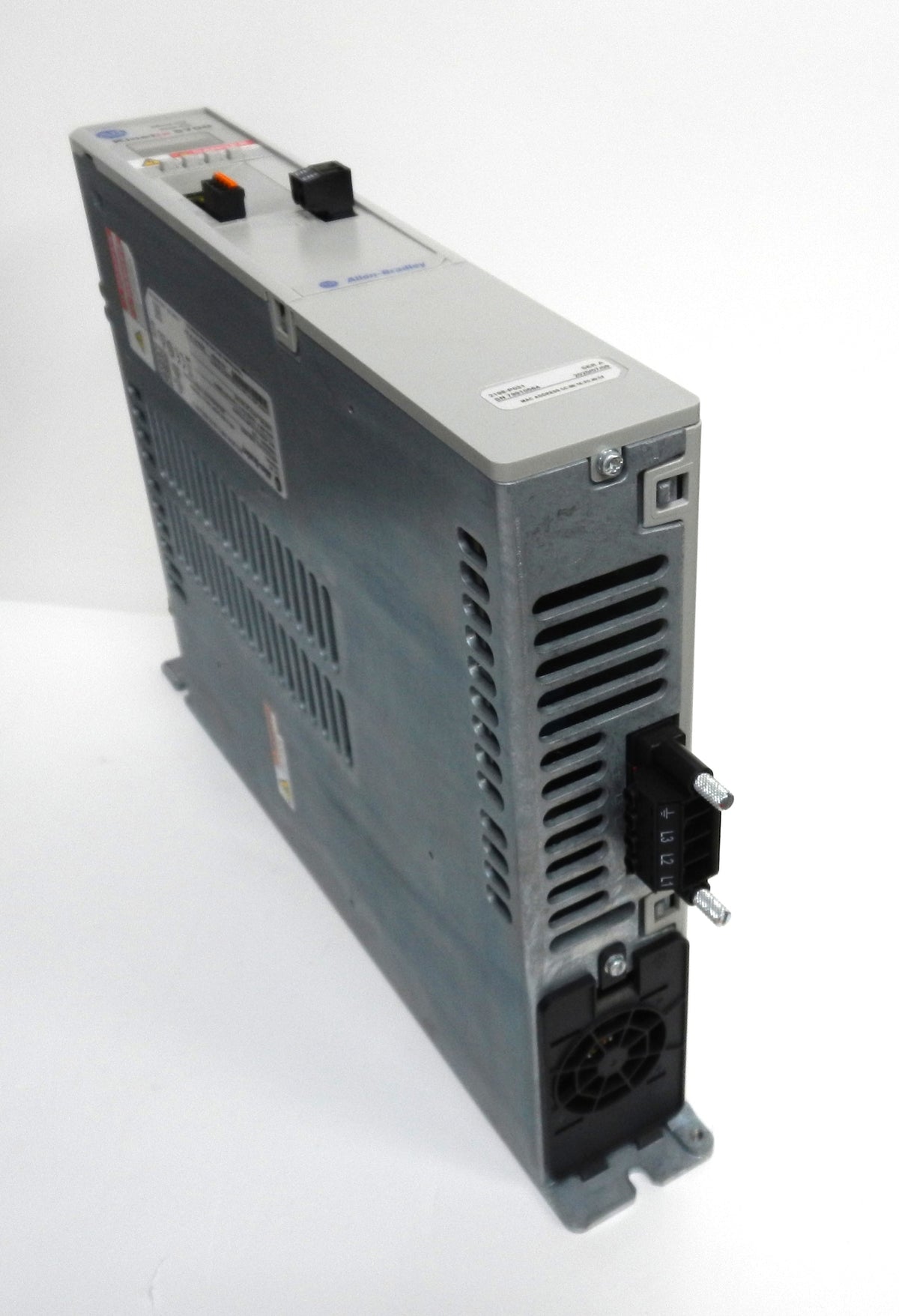

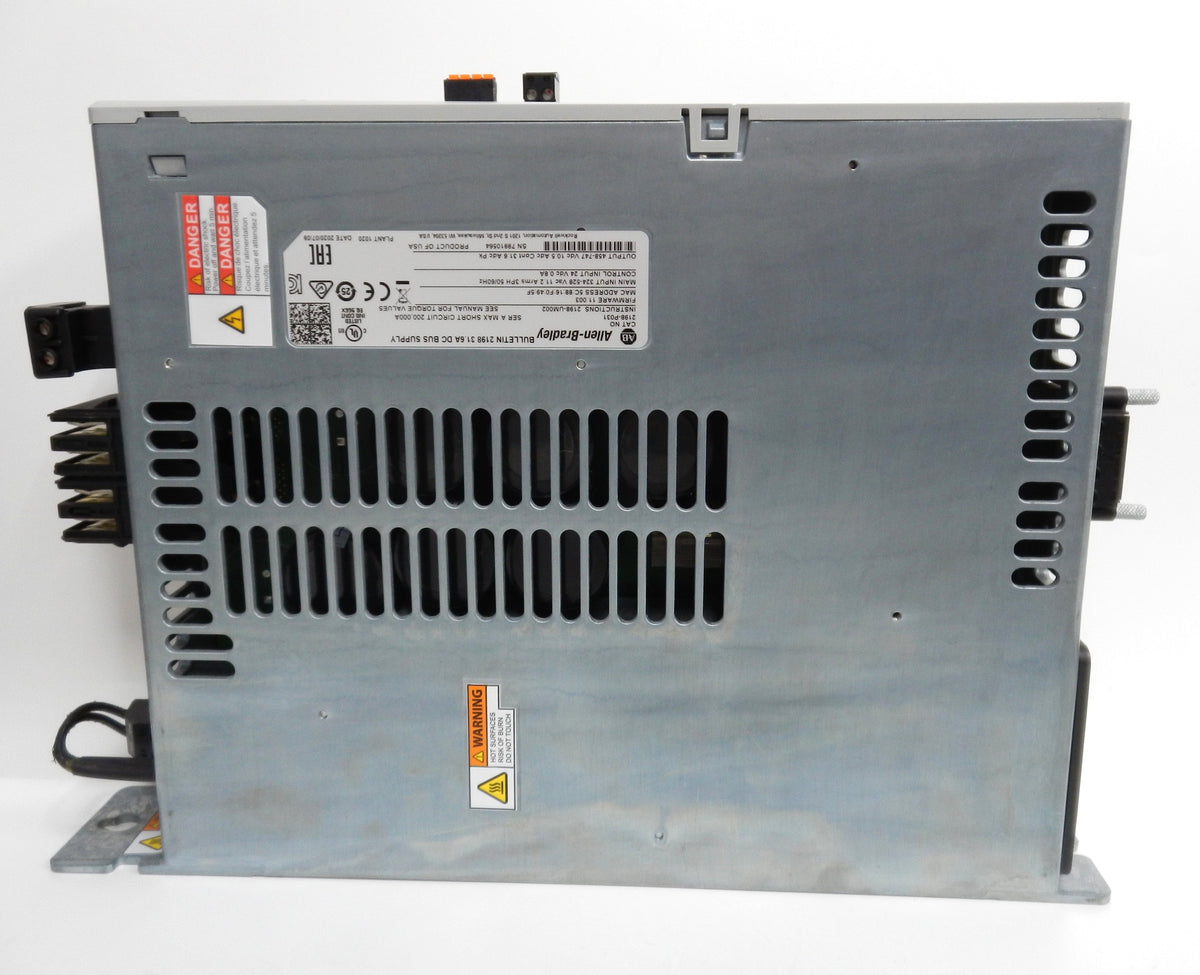

2198-P031 Allen-Bradley Kinetix 5700 DC Bus Power Supply 10A 480V AC 3-Phase

Description

• Allen-Bradley 2198-P031 Kinetix 5700 DC Bus Power Supply.

• Designed for industrial servo drive and motion control applications.

• Provides DC bus power to compatible Kinetix 5700 servo drives.

• Rated for 480V AC three-phase nominal input.

• 10.5A continuous DC bus output current.

• Supports multi-axis servo drive systems.

• Provides up to 7 kW continuous output power at 480V AC.

• Integrated status indicators for diagnostics and monitoring.

• Supports EtherNet/IP communication.

• Compact design for industrial control cabinet installation.

• Suitable for automated machinery, robotics, packaging equipment, and manufacturing systems.

Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Part Number: 2198-P031

• Series: Kinetix 5700

• Product Type: DC Bus Power Supply

• Input Voltage: 195–528V AC

• Nominal Input Voltage: 240/480V AC, Three-Phase

• Input Frequency: 47–63 Hz

• Rated Input Current: 11.2A

• Continuous DC Bus Output Current: 10.5A

• Peak DC Bus Output Current: 31.6A

• Nominal DC Bus Output Voltage: 276–747V DC

• Continuous Output Power: 7 kW at 480V AC

• Peak Output Power: 21 kW at 480V AC

• Control Voltage: 24V DC ±10%

• Efficiency: Approximately 99%

• Internal Capacitance: 585 µF

• Operating Temperature: 0°C to +50°C

• Storage Temperature: -40°C to +70°C

• Communication: EtherNet/IP

• Mounting Type: Panel Mount

• Lifecycle Status: Active

• UPC: 885630881683

• Country of Origin: Varies by manufacturing location

Dimensions

• Width: 55 mm (2.17 inches)

• Height: 358 mm (14.09 inches)

• Depth: 300 mm (11.81 inches)

• Rear Clearance Dimension: 252 mm (9.92 inches)

Weight

• Weight: 4.33 kg

• Weight in Pounds: 9.55 lb
