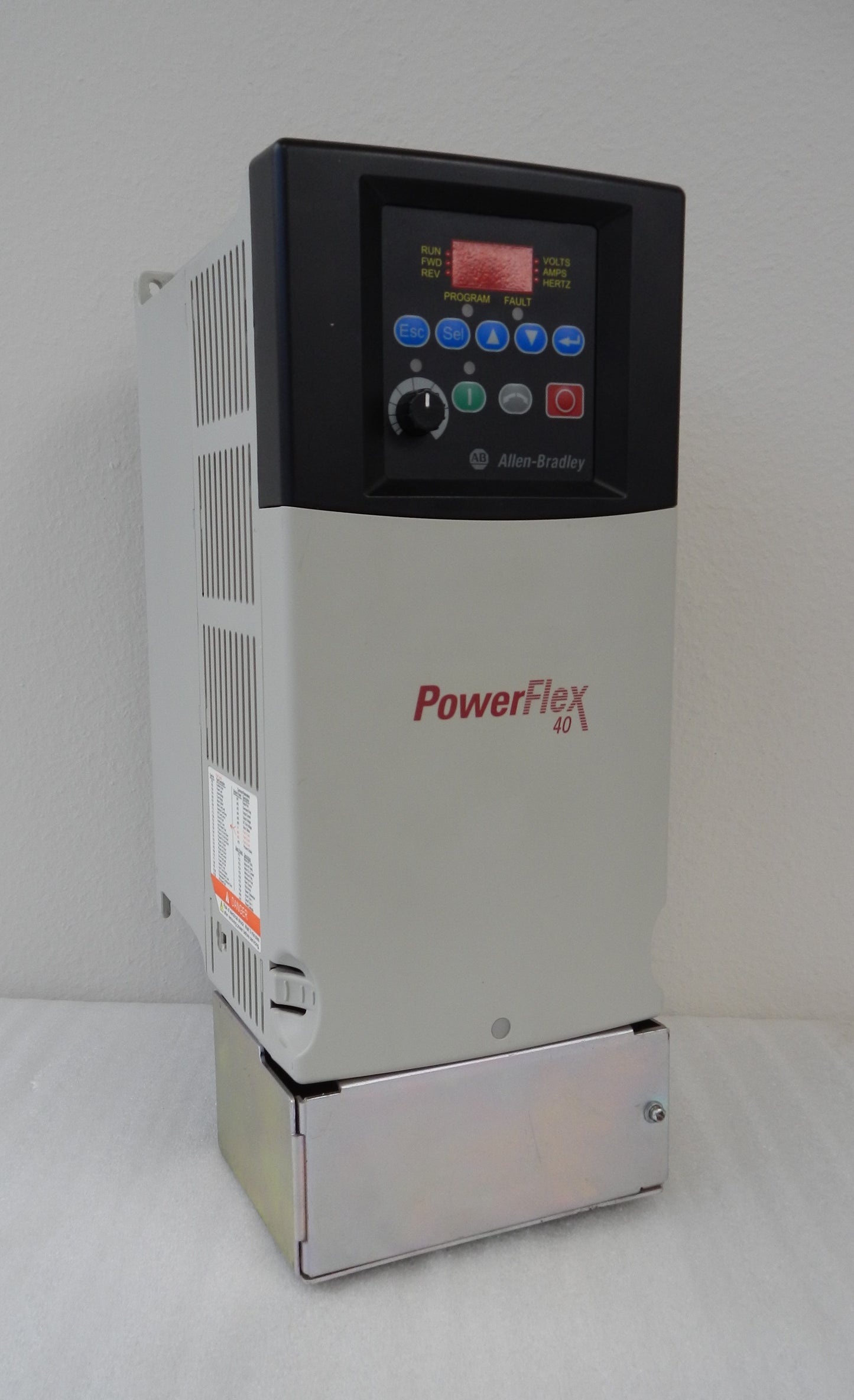

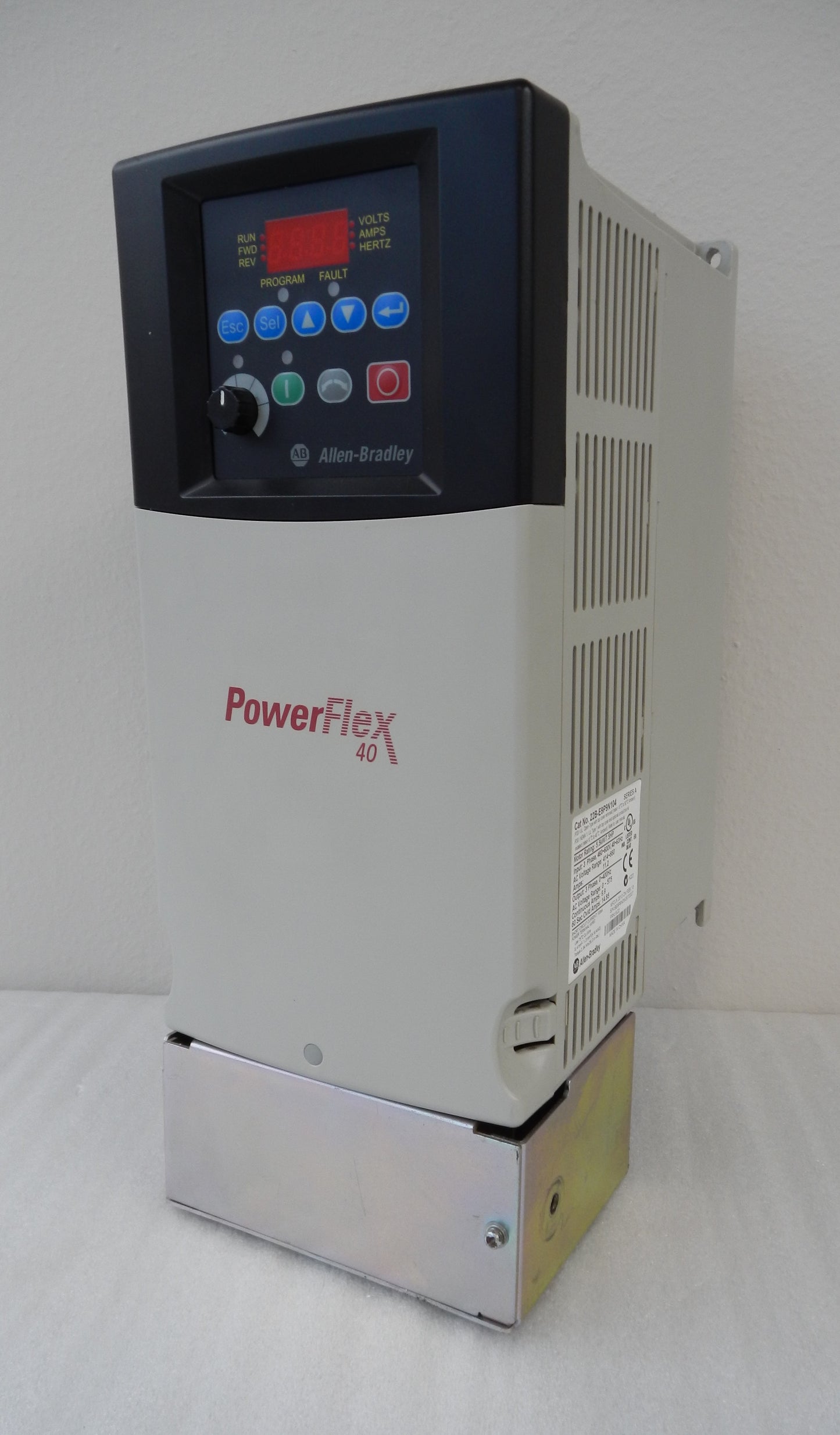

22B-E9P9N104 Allen-Bradley PowerFlex 40 AC Drive 7.5HP 600V 3-Phase VFD Panel Mount

Description:

• Genuine Allen-Bradley PowerFlex 40 AC variable frequency drive (VFD) for industrial motor speed control applications
• Rated for 7.5 HP (5.5 kW), 600V AC, 3-phase motors
• Delivers 9.9A continuous output current for reliable motor performance
• Compact Frame C design with IP20 / NEMA Type Open enclosure for panel mounting
• Integral LED display and digital keypad simplify configuration, monitoring, and diagnostics
• Built-in RS-485 communication supports integration with industrial control systems and optional network adapters
• Includes an integral brake IGBT for dynamic braking applications
• Sensorless Vector Control provides excellent low-speed torque and precise motor control
• Built-in PID control, timer, counter, and programmable logic functions reduce the need for external control hardware
• Ideal for conveyors, pumps, fans, compressors, packaging machinery, material handling systems, and general industrial automation
• Discontinued by Rockwell Automation. Recommended engineering replacement: 25B-E9P9N104 PowerFlex 525.

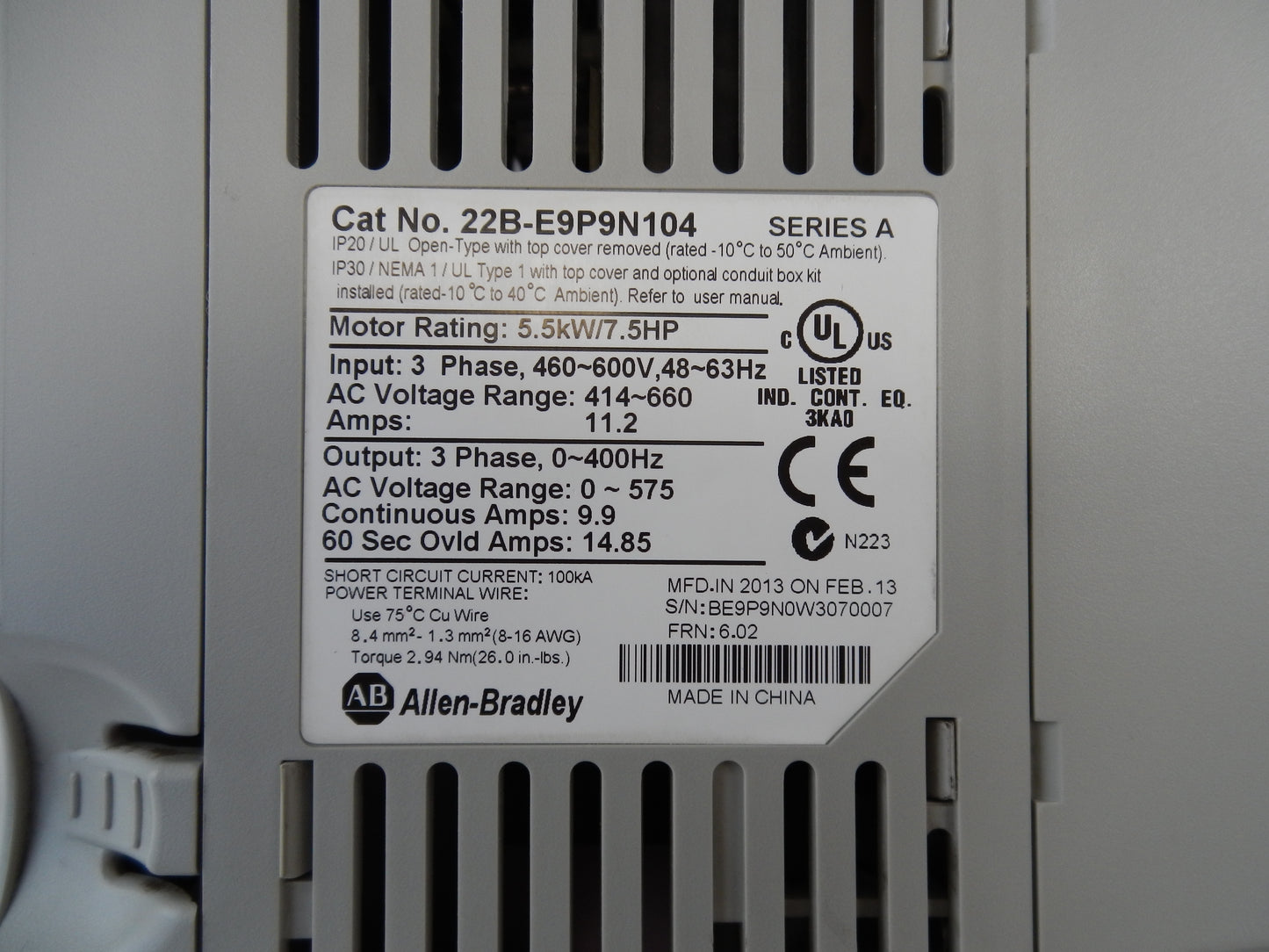

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 22B-E9P9N104
• Product Series: PowerFlex 40
• Product Type: AC Variable Frequency Drive (VFD)
• Motor Rating: 7.5 HP (5.5 kW)
• Input Voltage: 460–600 VAC
• Input Phase: 3-Phase
• Input Frequency: 47–63 Hz
• Output Current: 9.9 A
• Frame Size: C
• Enclosure Rating: IP20 / NEMA Type Open
• Mounting Type: Panel Mount
• User Interface: Integral LED Display with Digital Keypad
• Communications:
  • Integral RS-485
  • Optional EtherNet/IP
  • Optional DeviceNet
  • Optional ControlNet
• Brake IGBT: Included
• Analog Inputs: 2
• Analog Output: 0–10V / 4–20mA
• Control Method:
  • V/Hz Control
  • Sensorless Vector Control
• Built-in PID Controller: Yes
• Certifications:
  • UL Listed
  • CE
  • CSA
• Country of Origin: China
• Lifecycle Status: Discontinued (Replacement: 25B-E9P9N104)

Dimensions:

• Height: 190 mm (7.48 in)
• Width: 100 mm (3.94 in)
• Depth: 180 mm (7.09 in)
• Frame Size: C

Weight:

• Approximate Weight: 3.63 kg (8.0 lb).
