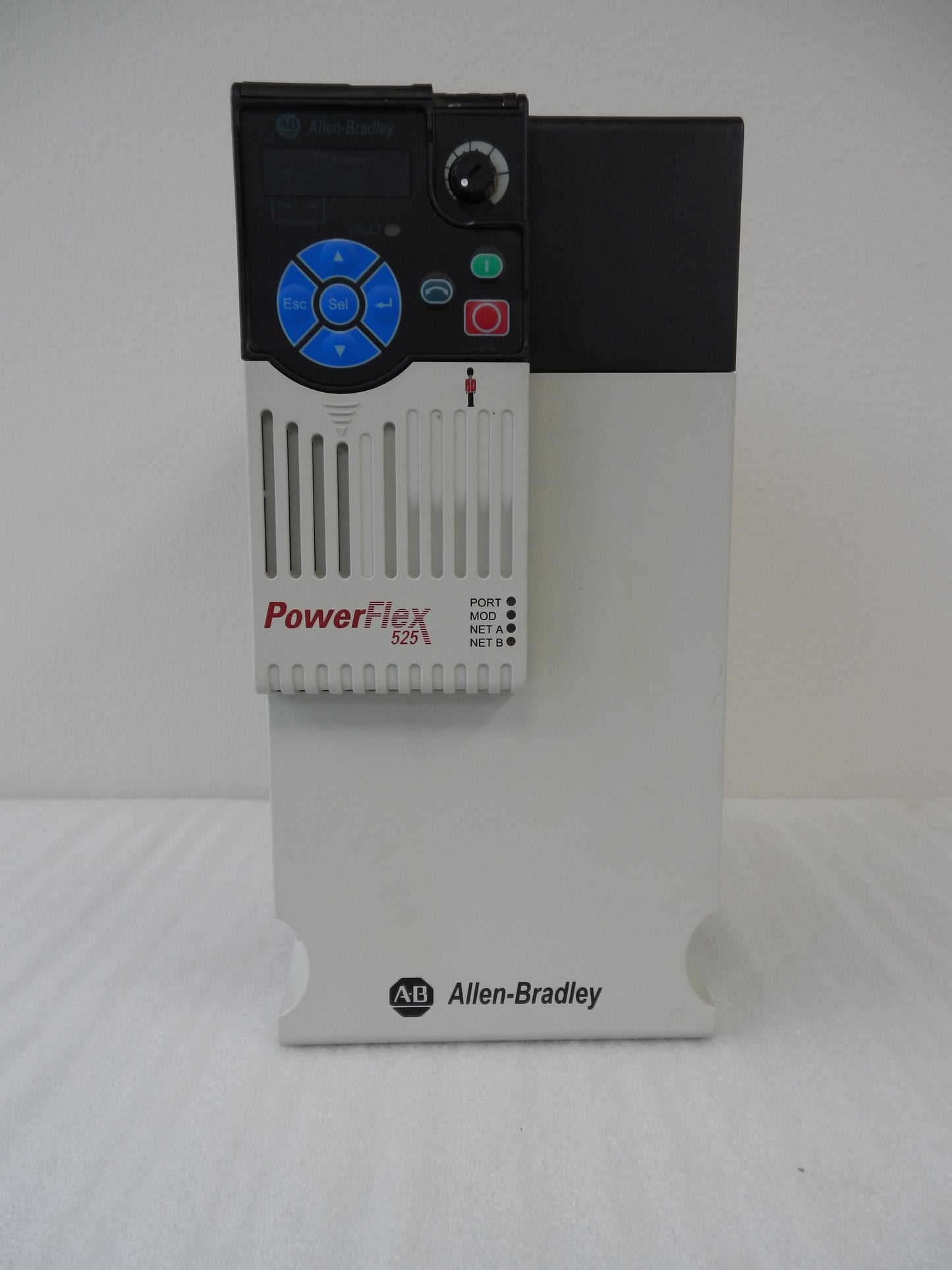

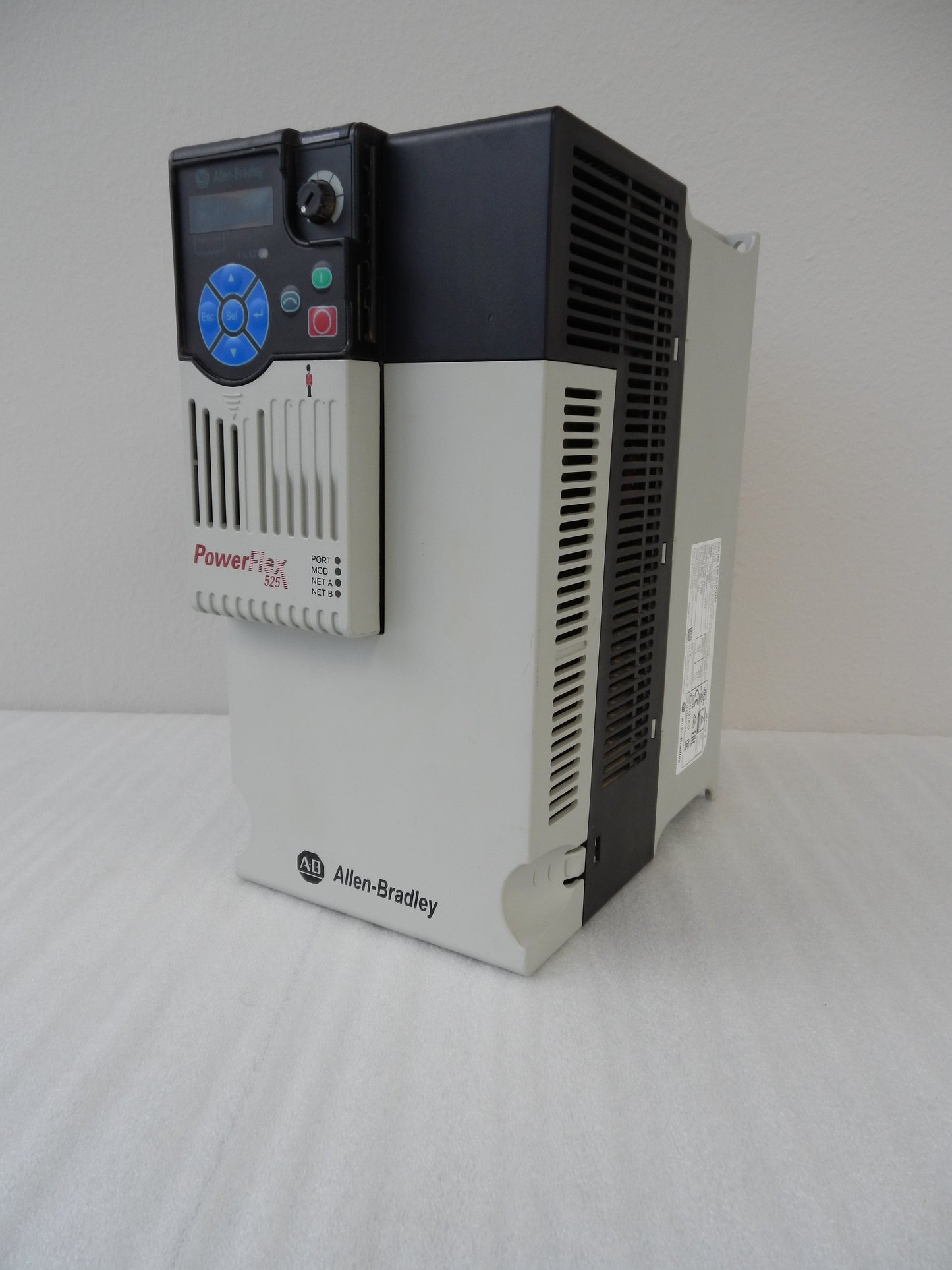

25B-D024N104 Allen-Bradley PowerFlex 525 AC Drive 15HP 480V 3-Phase EtherNet/IP IP20 VFD

Description:

• Genuine Allen-Bradley PowerFlex 525 variable frequency AC drive for industrial motor speed and torque control
• Rated for 15 HP (11 kW) motors with 380–480 VAC, 3-phase input power
• Delivers 24A output current for both Normal Duty and Heavy Duty applications
• Features embedded EtherNet/IP communication for seamless integration with ControlLogix, CompactLogix, and other industrial Ethernet networks
• Integrated Safe Torque Off (STO) safety functionality helps improve machine safety while reducing wiring requirements
• Includes an integral keypad with potentiometer and LED display for local programming and operation
• Supports sensorless vector control, Volts/Hertz control, and permanent magnet motor control for a wide range of applications
• Built-in USB programming interface allows quick configuration using Connected Components Workbench™ software
• IP20 / NEMA Open Type enclosure suitable for installation inside electrical control panels
• Ideal for conveyors, pumps, fans, compressors, mixers, packaging equipment, material handling systems, and industrial automation applications
• Active product in the Rockwell Automation PowerFlex 525 family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)

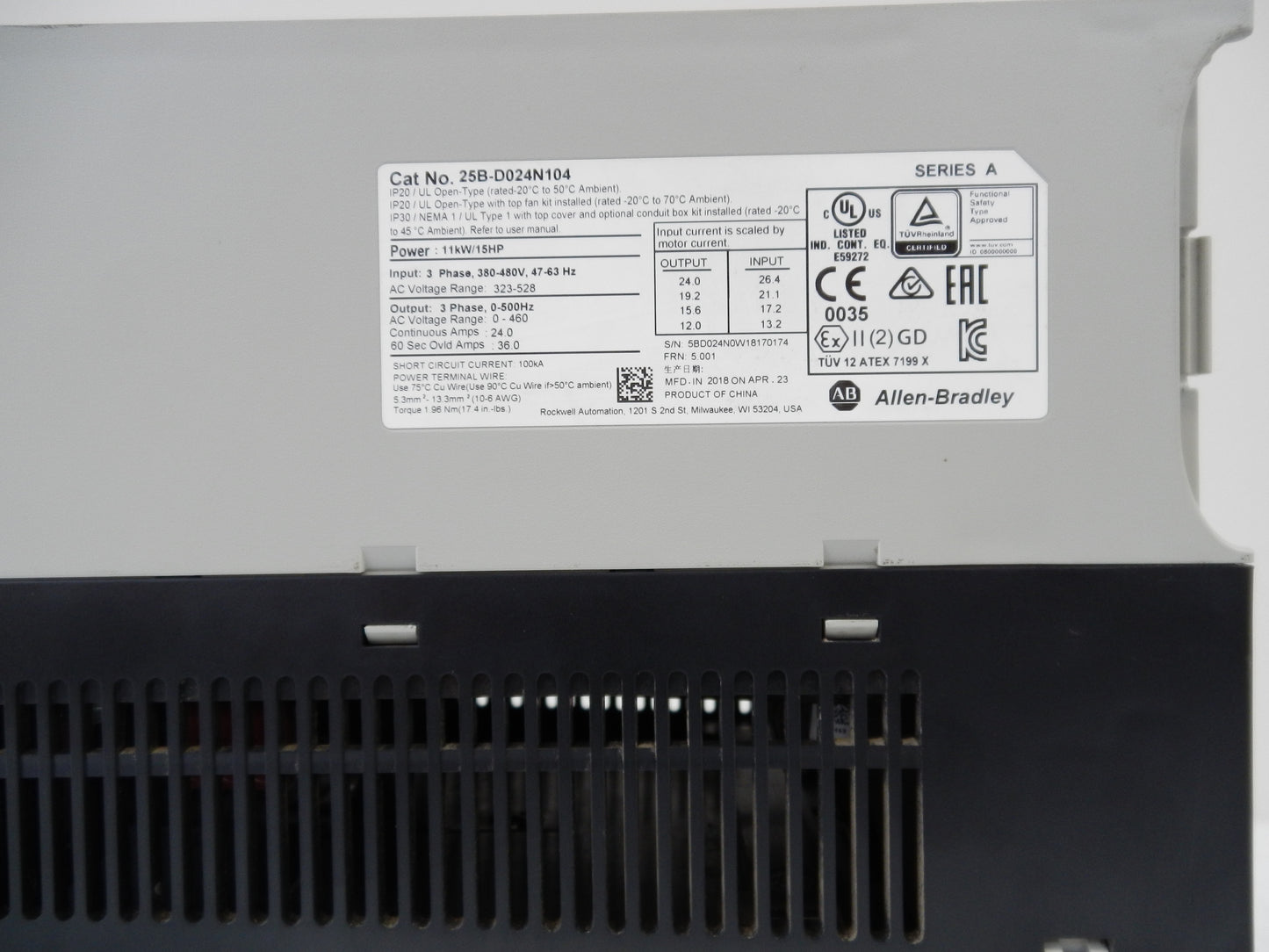

• Part Number (MPN): 25B-D024N104
• Product Series: PowerFlex 525
• Product Type: Variable Frequency Drive (VFD)
• Motor Rating:
  • 15 HP
  • 11 kW
• Input Voltage: 380–480 VAC
• Input Phase: 3-Phase
• Input Frequency: 50/60 Hz
• Output Current: 24 A
• Frame Size: Frame D
• Enclosure Rating: IP20 / NEMA Open Type
• Communication:
  • Embedded EtherNet/IP
  • USB Programming Port
• Safety Feature: Safe Torque Off (STO)
• User Interface:
  • Integral Keypad
  • Built-in Potentiometer
  • LED Display
• EMC Filter: No Filter
• Brake IGBT: Included
• Mounting Type: Panel Mount
• Lifecycle Status: Active
• Country of Origin: Multiple (manufacturing location dependent)
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Packaging Equipment
  • Material Handling
  • Industrial Automation
  • OEM Machinery

Dimensions:

• Height: 260 mm (10.24 in)
• Width: 140 mm (5.51 in)
• Depth: 195 mm (7.68 in)

Weight:

• Approximate Weight: 4.9 kg (10.8 lb).
