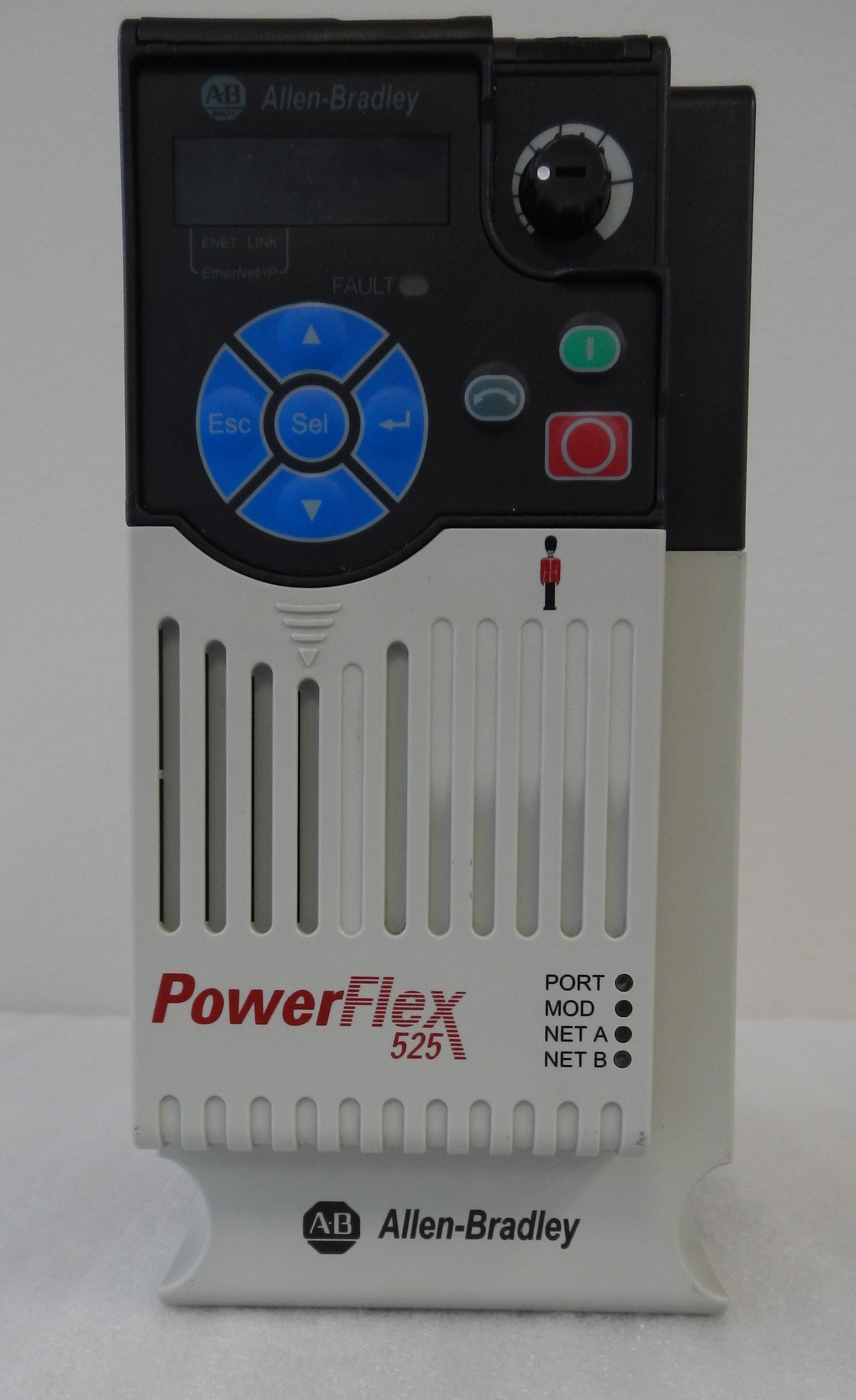

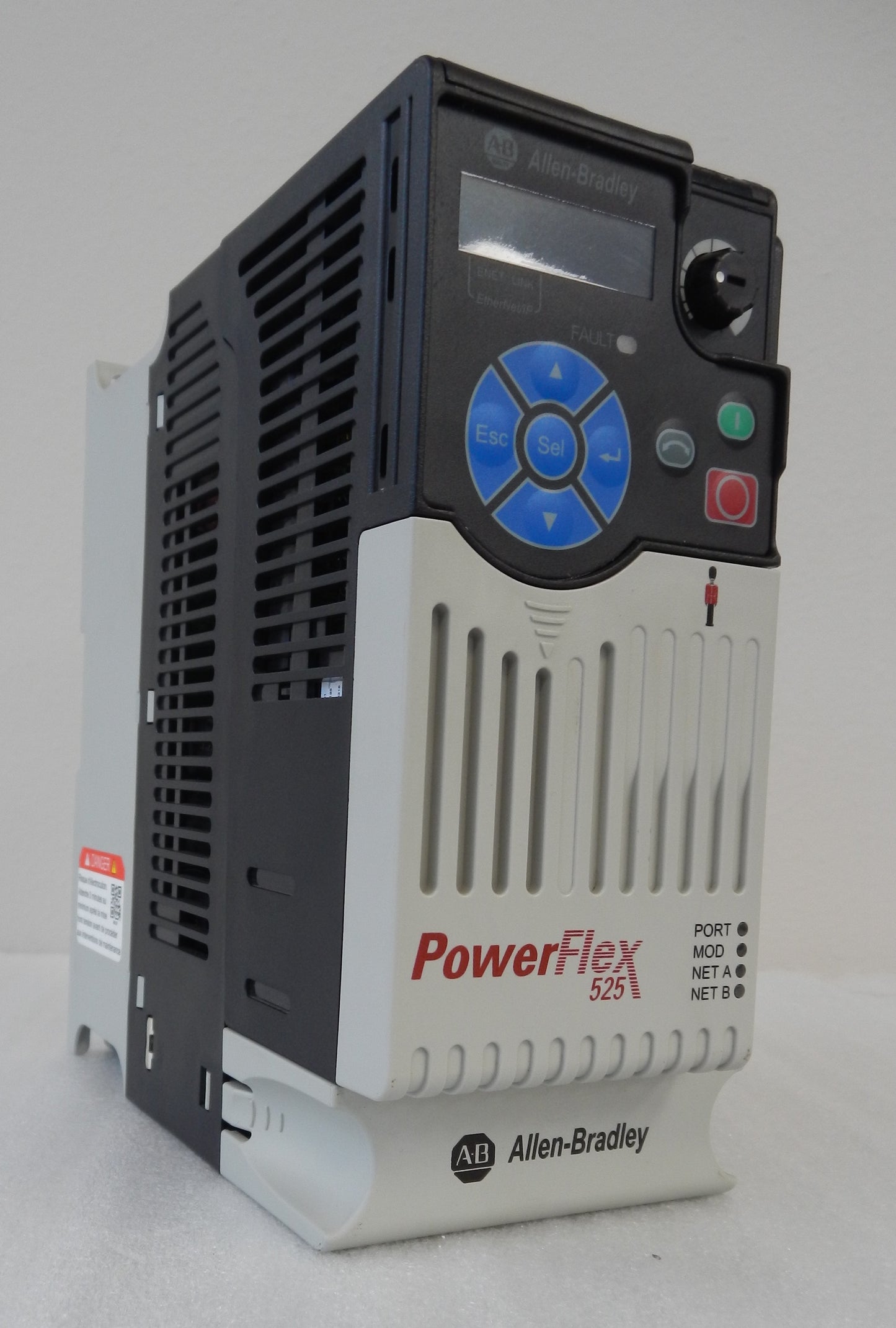

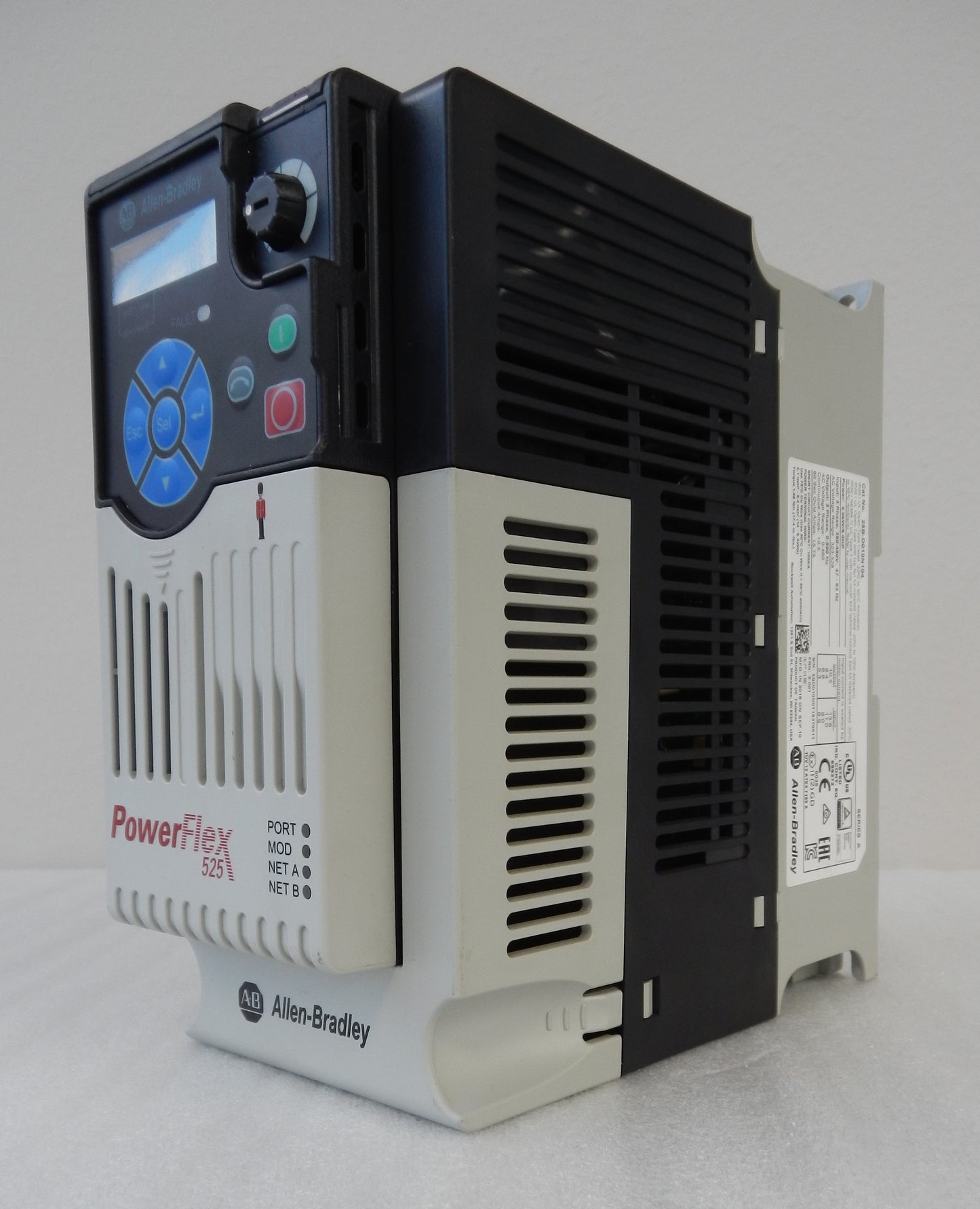

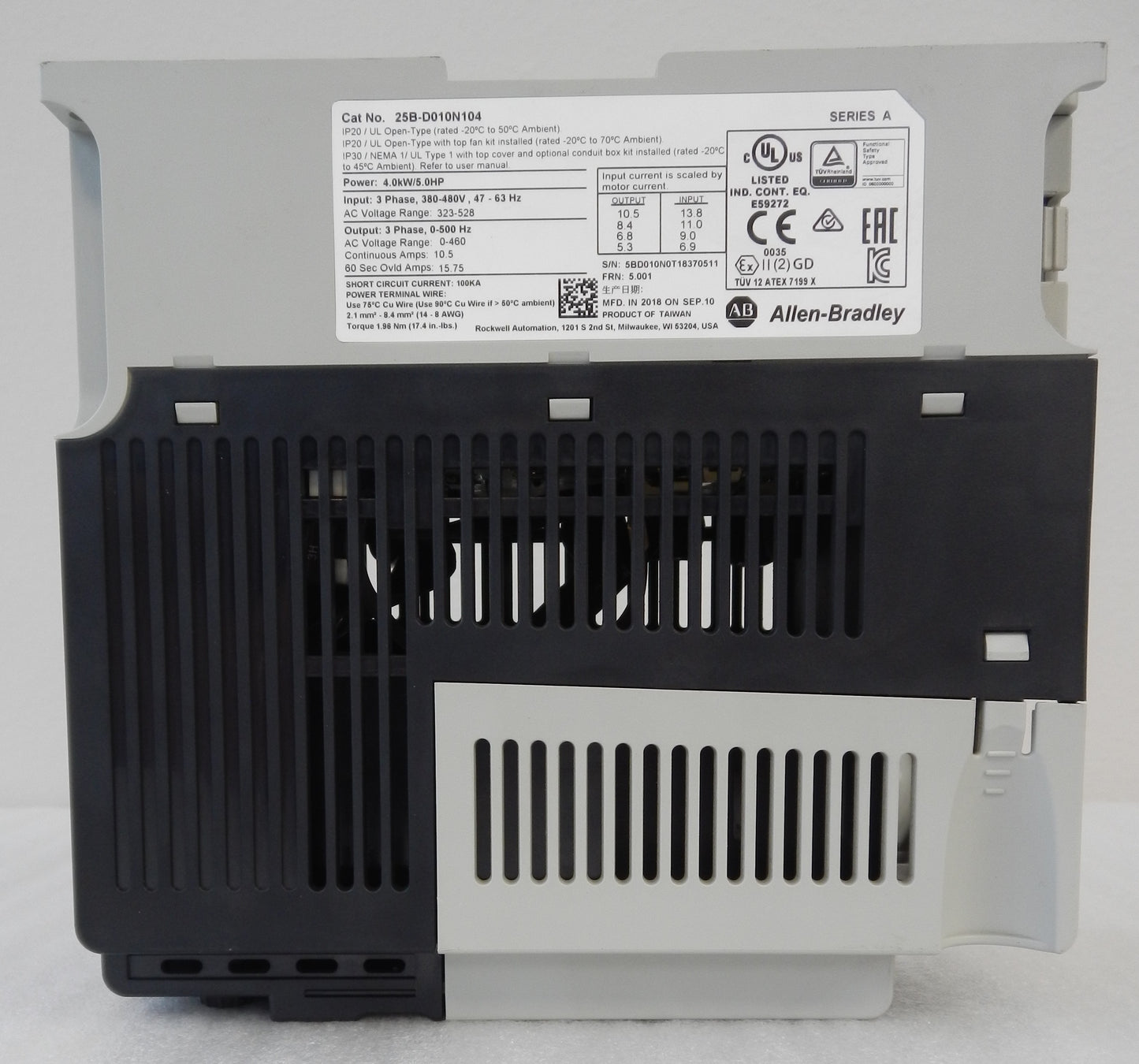

25B-D010N104 Allen-Bradley PowerFlex 525 AC Drive 480V 3-Phase 5HP 4kW 10.5A IP20 VFD

Description:

• Genuine Allen-Bradley PowerFlex 525 adjustable frequency AC drive for industrial motor speed control
• Rated for 480V AC, 3-phase input with 5 HP (4 kW) output and 10.5 A output current
• Features embedded EtherNet/IP communication for seamless integration with Rockwell Automation control systems
• Integrated Safe Torque-Off (STO) safety function helps improve machine safety without external contactors
• Supports multiple motor control modes including V/Hz, Sensorless Vector Control, Closed-Loop Vector Control, and Permanent Magnet Motor Control
• Compact Frame B design with IP20 / NEMA Open Type enclosure for panel mounting
• Built-in RS-485 communication port supports additional networking options
• No integrated EMC filter for flexible installation requirements
• Ideal for conveyors, pumps, fans, compressors, mixers, packaging machinery, material handling systems, OEM equipment, and industrial automation
• Compatible with PowerFlex 520-Series accessories including HIM modules, communication adapters, I/O expansion, and braking options.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)

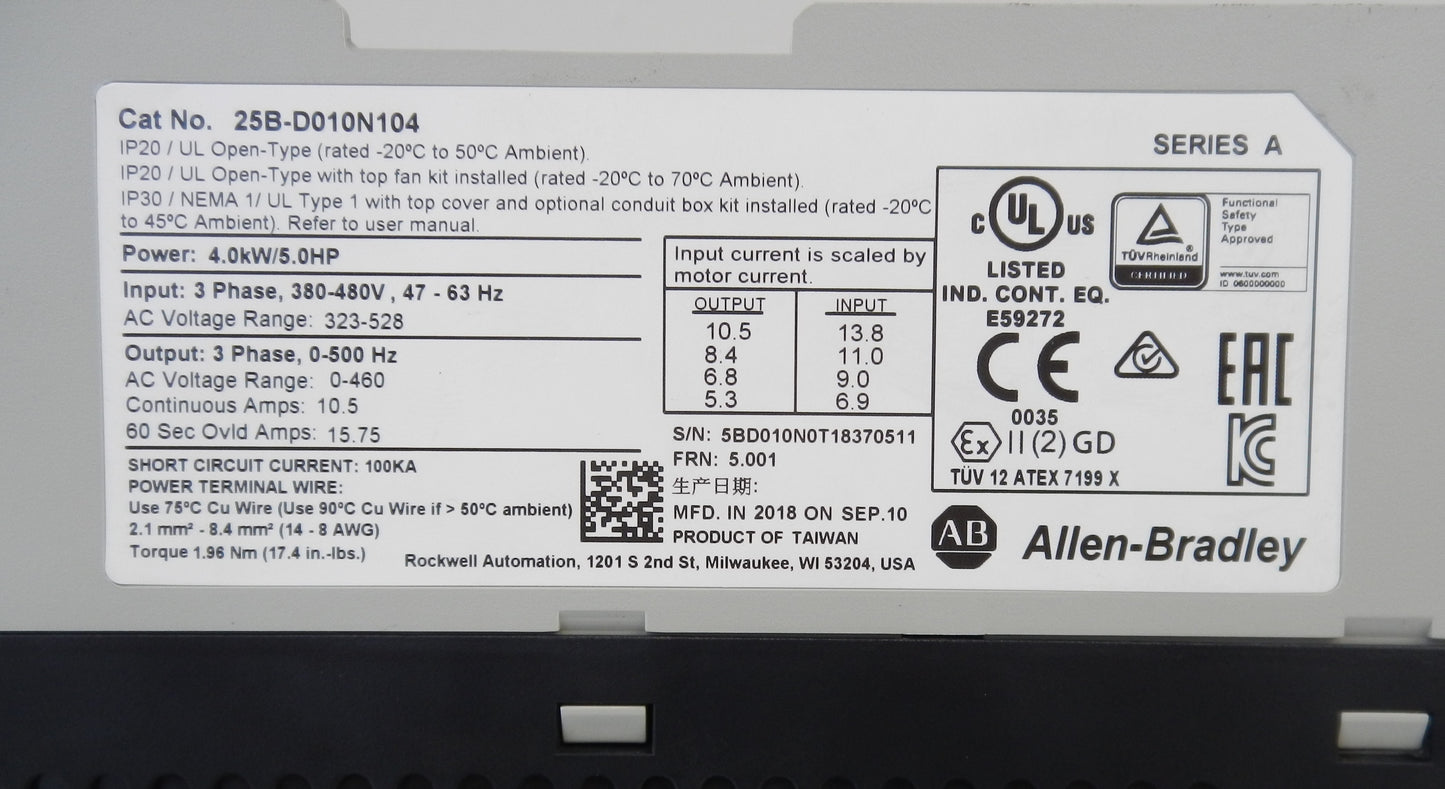

• Part Number (MPN): 25B-D010N104
• Product Series: PowerFlex 525
• Product Type: Adjustable Frequency AC Drive (Variable Frequency Drive)
• Input Voltage: 380–480 VAC
• Nominal Input Voltage: 480 VAC
• Input Phase: 3-Phase
• Output Power:
  • 5 HP
  • 4 kW
• Output Current: 10.5 A
• Input Current: 13.8 A
• Output Voltage: 0–460 VAC
• Frame Size: Frame B
• Enclosure Rating: IP20 / NEMA Open Type
• Mounting Type:
  • Panel Mount
  • DIN Rail Mount
• Interface Module: Standard
• Communication:
  • Embedded EtherNet/IP
  • RS-485 (DSI)
• Safety Feature: Safe Torque-Off (STO)
• EMC Filter: No Filter
• Braking: Standard Brake IGBT
• Motor Control Modes:
  • V/Hz
  • Sensorless Vector
  • Closed-Loop Vector
  • Permanent Magnet Motor Control
• Operating Frequency: 50/60 Hz
• Applications:
  • Industrial Automation
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Packaging Equipment
  • Material Handling
  • OEM Machinery
  • Process Control

Dimensions:

• Height: 180 mm (7.09 in)
• Width: 87 mm (3.43 in)
• Depth: 172 mm (6.77 in).

Weight:

• Approximate Weight: 1.6 kg (3.53 lb).
