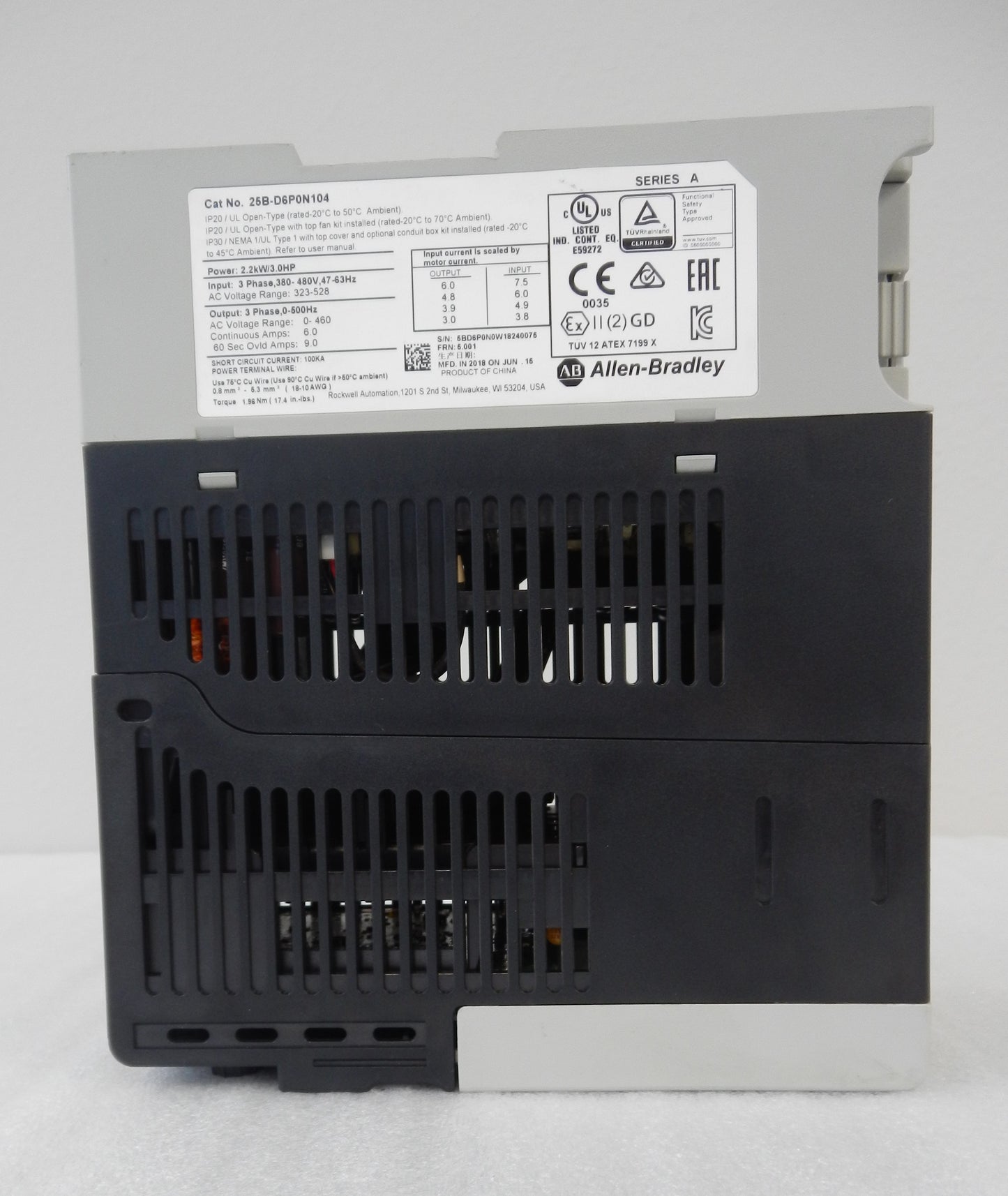

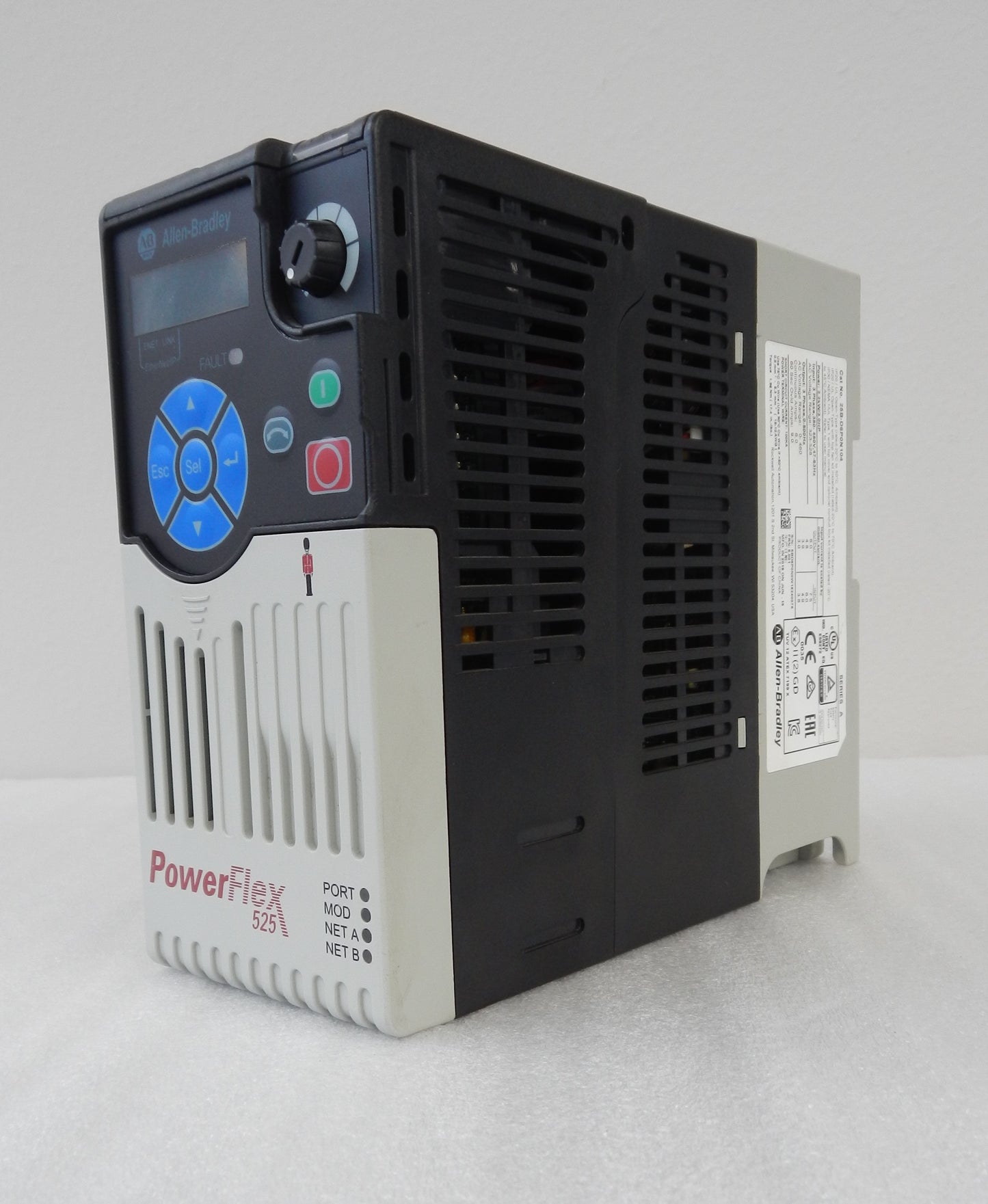

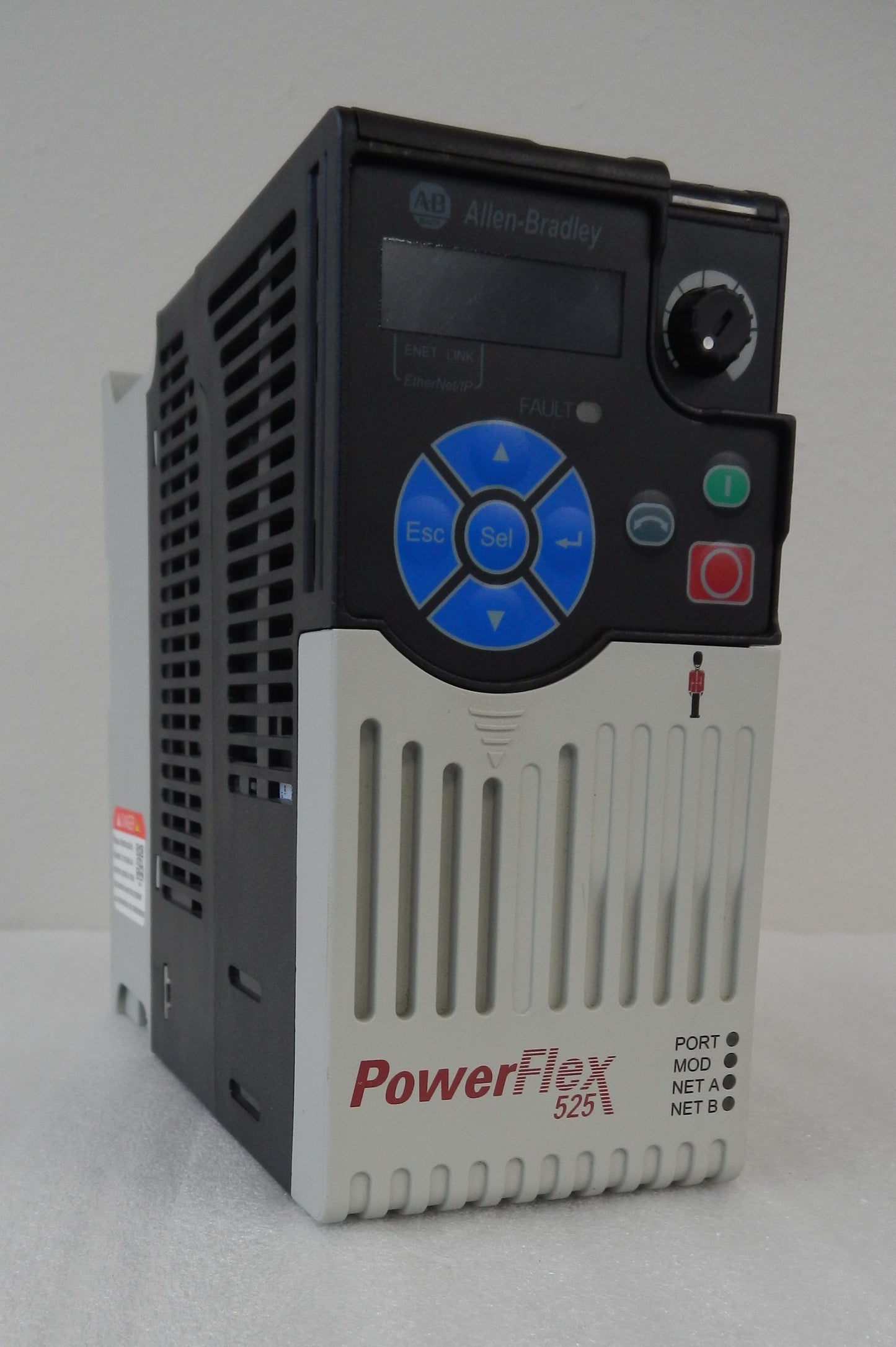

25B-D6P0N104 Allen-Bradley PowerFlex 525 AC Drive 3HP 2.2kW 480V 3-Phase 6A EtherNet/IP

Description:

• Genuine Allen-Bradley PowerFlex 525 AC variable frequency drive (VFD) for industrial motor speed control
• Rated for 3 HP (2.2 kW) motors with 380–480 VAC, 3-phase input
• Delivers 6.0 A continuous output current for both normal-duty and heavy-duty applications
• Features embedded EtherNet/IP communication for seamless PLC integration and networked automation
• Integrated Safe Torque Off (STO) safety functionality helps simplify machine safety design
• Built-in brake IGBT supports dynamic braking resistor connections

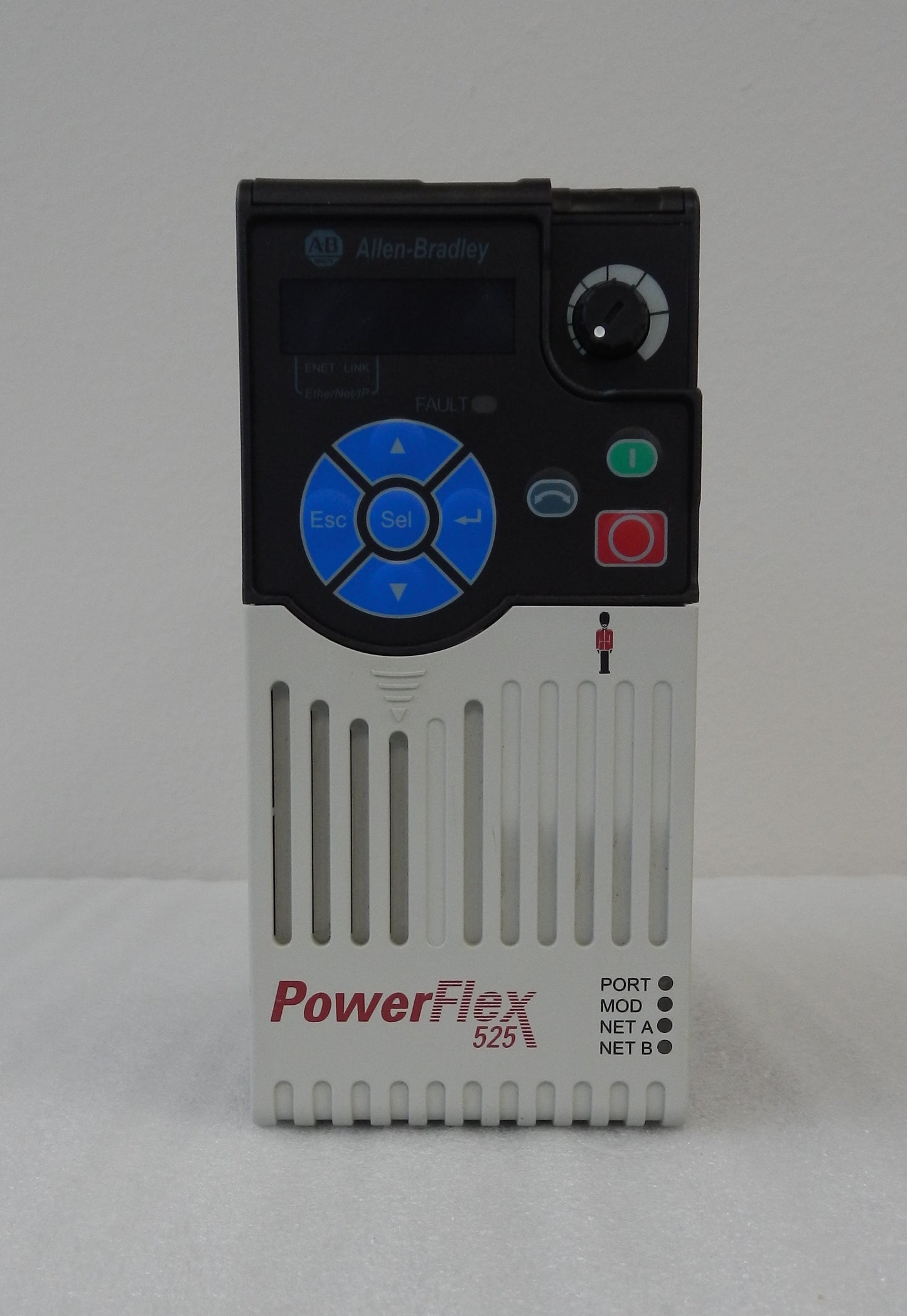

• Integral keypad with potentiometer and LED display for local configuration, monitoring, and operation
• Supports multiple motor control modes including V/Hz, Sensorless Vector Control (SVC), and Permanent Magnet Motor Control
• Compact Frame A, IP20 / NEMA Open Type enclosure for panel-mounted installations
• Ideal for conveyors, pumps, fans, mixers, compressors, packaging machinery, material handling, and OEM automation systems
• Active product in the Rockwell Automation PowerFlex 525 family.

Specifications:

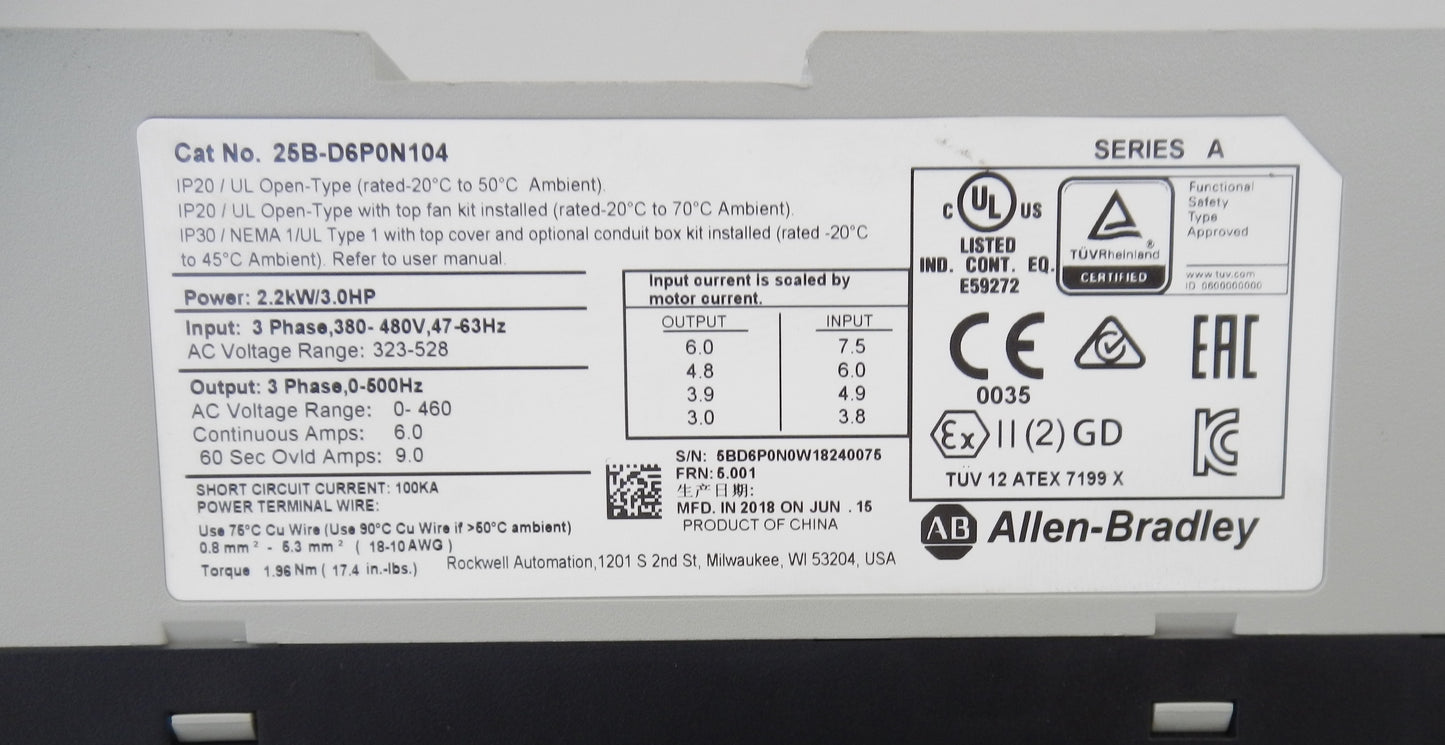

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 25B-D6P0N104
• Product Series: PowerFlex 525
• Product Type: AC Variable Frequency Drive (VFD)
• Motor Rating:
  • 3 HP
  • 2.2 kW
• Input Voltage: 380–480 VAC
• Input Phase: 3-Phase
• Input Frequency: 47–63 Hz
• Output Current: 6.0 A
• Output Frequency: 0–500 Hz
• Frame Size: A
• Enclosure Rating: IP20 / NEMA Open Type
• EMC Filter: No Filter
• Communication:
  • Embedded EtherNet/IP
  • USB Programming Port
• Safety Feature: Safe Torque Off (STO)
• Brake IGBT: Included
• User Interface: Integral Keypad with Potentiometer and LED Display
• Mounting: Panel Mount
• Power Factor: 0.98
• Operating Temperature: -20°C to +50°C (without derating)
• Certifications:
  • UL Listed
  • CE
  • CSA
  • UKCA
  • RCM
• Lifecycle Status: Active
• Applications:
  • Variable Speed Motor Control
  • Industrial Automation
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Packaging Equipment
  • Material Handling
  • OEM Machinery

Dimensions:

• Height: 160 mm (6.30 in)
• Width: 73 mm (2.87 in)
• Depth: 180 mm (7.09 in)

Weight:

• Approximate Weight: 1.32 kg (2.91 lb).
