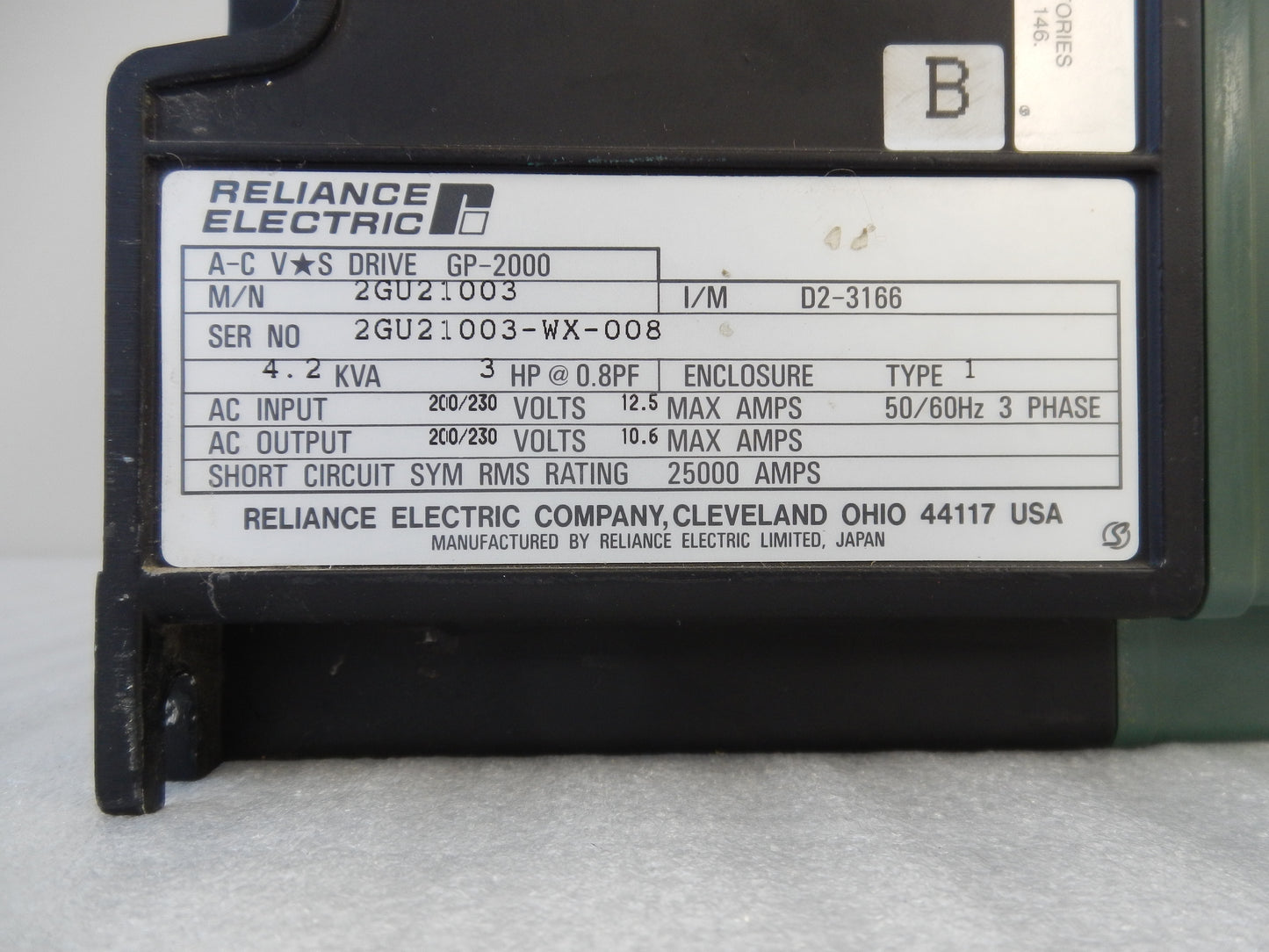

Reliance Electric GP-2000 Variable Frequency Drive 2HP / 3HP 200–230V NEMA 1 VFD | 2GU21002 & 2GU21003

Description:

• Genuine Reliance Electric GP-2000 Variable Frequency Drive (VFD) for precise AC motor speed and torque control
• Available in 2 HP (Model 2GU21002) and 3 HP (Model 2GU21003) configurations
• Designed for 200–230 VAC, 3-phase input industrial motor applications
• Rugged NEMA 1 enclosed housing for installation in clean indoor industrial environments
• Delivers adjustable voltage and frequency output for smooth motor acceleration, deceleration, and speed regulation
• Built-in keypad and digital display for easy programming, monitoring, and diagnostics
• Supports operation on 50/60 Hz power systems
• Suitable for pumps, fans, conveyors, compressors, mixers, packaging equipment, HVAC systems, and general-purpose machinery
• Can be operated from single-phase 230 VAC input with horsepower derating, as specified by the manufacturer.

Specifications:

• Manufacturer Name: Reliance Electric
• Product Series: GP-2000
• Product Type: Variable Frequency Drive (VFD)
• Models:
  • 2GU21002 – 2 HP
  • 2GU21003 – 3 HP
• Input Voltage: 200–230 VAC
• Input Phase: 3-Phase
• Output Phase: 3-Phase
• Frequency: 50/60 Hz
• Enclosure Rating: NEMA 1
• Control Method: Variable Voltage / Variable Frequency (VVVF)
• Keypad: Built-In Programming Keypad with Display
• Motor Control: Adjustable Speed AC Motor Control
• Certifications:
  • UL Listed
  • IEC Certified
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Packaging Equipment
  • Material Handling
  • Industrial Automation
  • OEM Machinery

Model Ratings:

2GU21002

• Horsepower: 2 HP
• Input Voltage: 200–230 VAC
• Input Power: 3.5 kVA
• Maximum Input Current: 8.8 A
• Maximum Output Current: 7.5 A

2GU21003

• Horsepower: 3 HP
• Input Voltage: 200–230 VAC
• Input Power: 5.0 kVA
• Maximum Input Current: 12.5 A
• Maximum Output Current: 10.6 A

Dimensions:

• Enclosure: NEMA 1
• Compact industrial panel-mounted design.

Weight:

• Approximate Weight:
  • 2GU21002: 4.8 kg (10.6 lb)
  • 2GU21003: 5.7 kg (12.6 lb)
