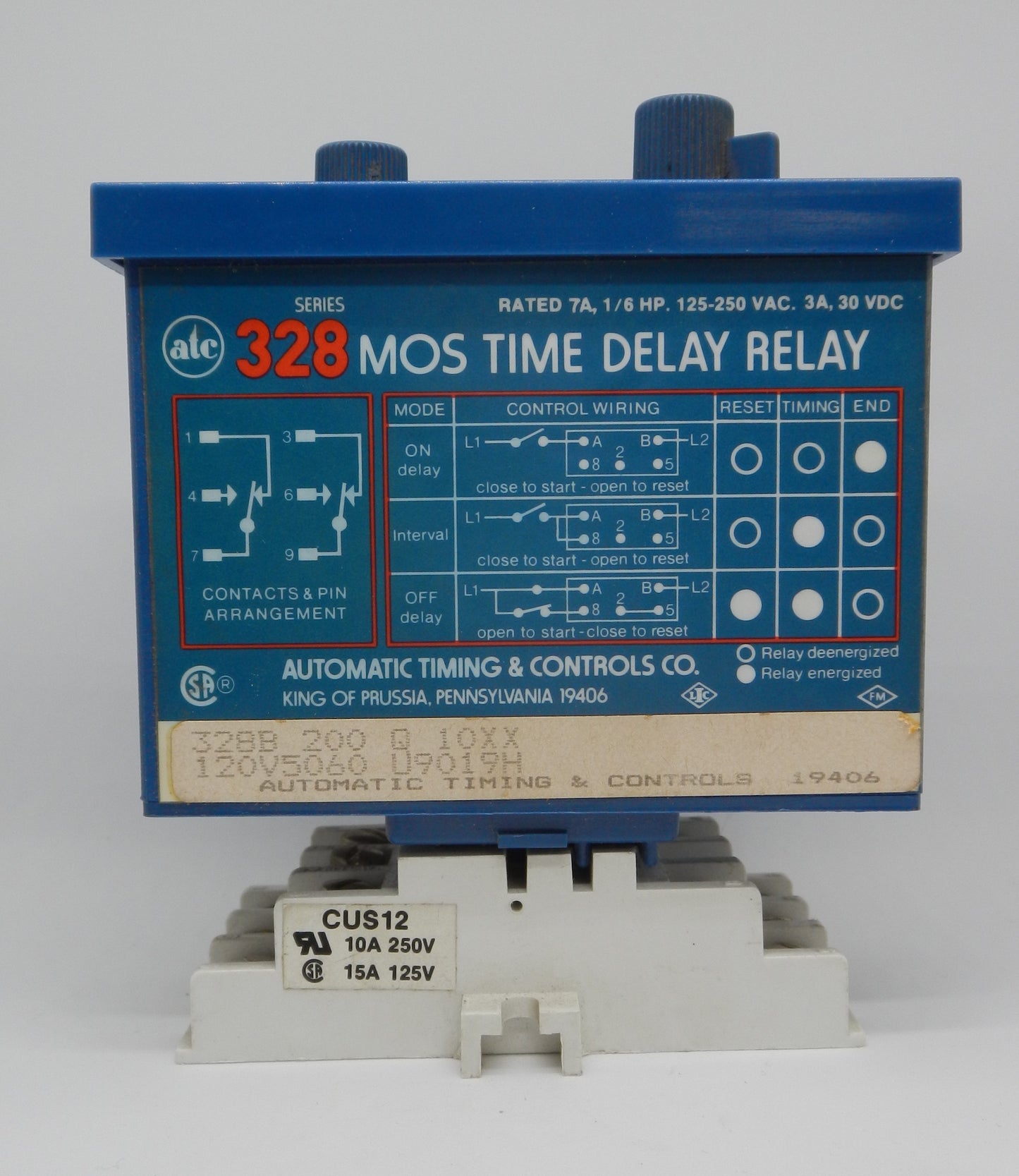

328B-200-Q-10-XX ATC Multi-Range Time Delay Relay 120VAC 1 Sec–10 Hr DPDT 11-Pin Plug-In

$49.99 CAD

Sale Sold out

Style REFURBISH

Description:

Genuine Automatic Timing & Controls (ATC) multi-range time delay relay for industrial automation and control applications
Provides ON-Delay, OFF-Delay, and Interval (One-Shot) timing functions in a single unit
Multi-range timing with selectable ranges from 1 second to 10 hours
Operates on 120 VAC, 50/60 Hz control power
Features DPDT (2 Form C) output contacts rated up to 7A for reliable switching of industrial loads
11-pin plug-in design allows quick installation and replacement using a compatible socket
Adjustable front dial enables precise timing control
Built-in LED timing indicator provides clear visual cycle progress
Ideal for motor control, conveyors, HVAC equipment, process control, machine automation, packaging machinery, and OEM equipment
Part of the ATC 328 Series MOS Time Delay Relay family and commonly used in legacy industrial control systems.

Manufacturer Name: Automatic Timing & Controls (ATC)
Part Number (MPN): 328B-200-Q-10-XX
Product Series: 328 Series
Product Type: Multi-Range Time Delay Relay
Timing Modes:
- ON-Delay
- OFF-Delay
- Interval (One-Shot)
Timing Ranges:
- 1 Second
- 10 Seconds
- 1 Minute
- 10 Minutes
- 1 Hour
- 10 Hours
Supply Voltage: 120 VAC
Frequency: 50/60 Hz
Output Contacts: DPDT (2 Form C)
Contact Rating:
- 7A Resistive @ 125/250 VAC
- 3A @ 30 VDC
- 1/6 HP @ 125–250 VAC
Mounting Type: 11-Pin Plug-In Socket
Timing Adjustment: Front Dial
Status Indicator: LED Timing Indicator
Operating Temperature: -18°C to +60°C (0°F to +140°F)
Reset: Power interruption or control input depending on operating mode
Applications:
- Industrial Automation
- Machine Control
- Motor Starters
- HVAC Systems
- Packaging Equipment
- Process Control
- Conveyor Systems
- OEM Machinery
