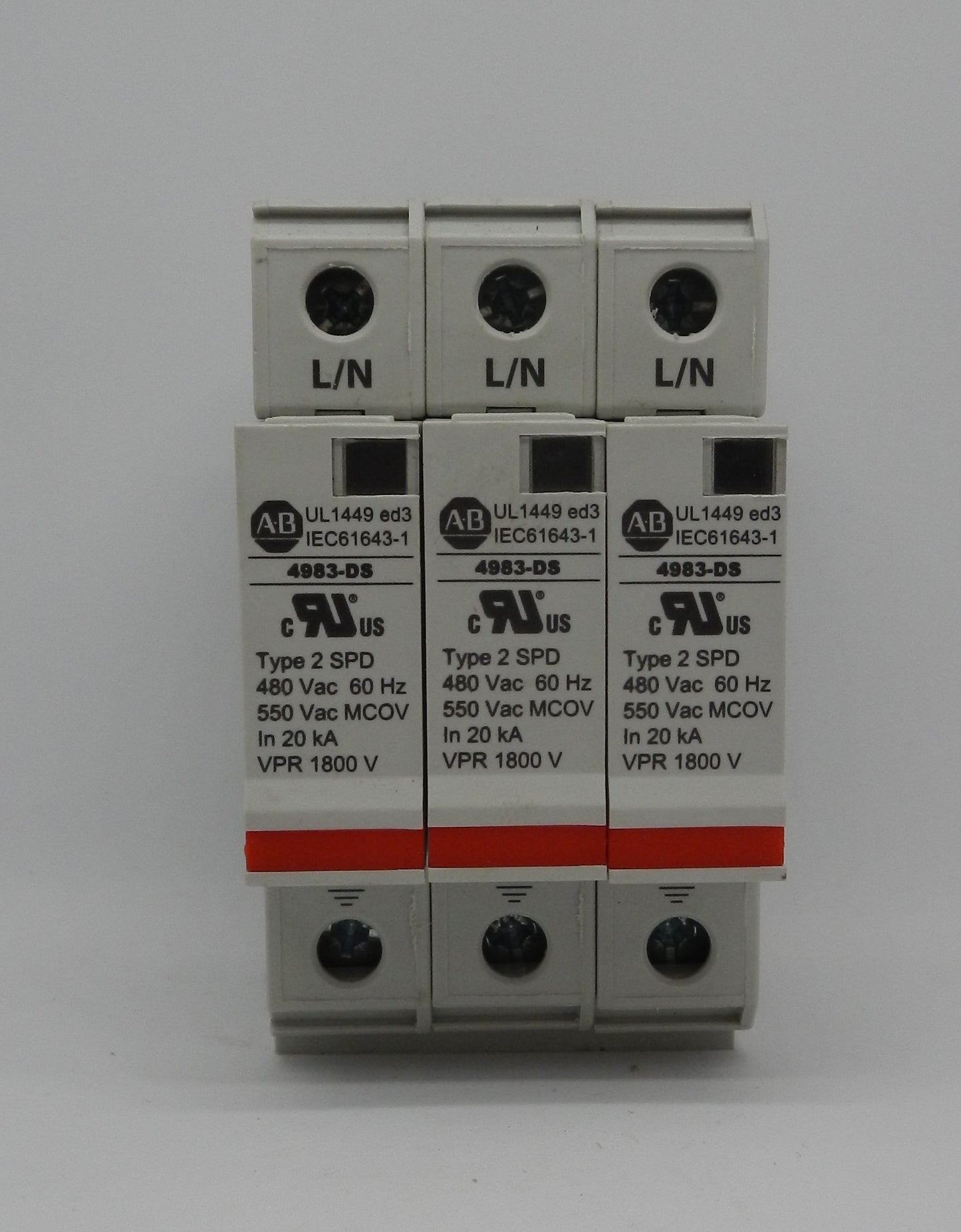

4983-DS480-403 Allen-Bradley Type 2 Surge Protective Device 480VAC 3-Pole 40kA DIN Rail

Description:

• Genuine Allen-Bradley Bulletin 4983-DS surge protective device (SPD) for industrial power distribution systems
• Provides Type 2 surge protection for 480 VAC three-phase electrical systems
• 3-pole configuration with 40 kA maximum surge current rating to protect equipment from transient overvoltage events
• Connected in parallel using MOV (Metal Oxide Varistor) technology to clamp high-voltage surges
• Compact 35 mm DIN rail mounting design for easy installation in industrial control panels
• Features a visual status indicator and remote signaling contact for monitoring surge protection status
• Pluggable replacement surge module simplifies maintenance and minimizes downtime
• UL 1449 certified for industrial surge protection applications
• Ideal for PLC panels, motor control centers, OEM machinery, manufacturing facilities, and industrial automation systems
• Active Rockwell Automation product.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 4983-DS480-403
• Product Series: Bulletin 4983-DS
• Product Type: Type 2 Surge Protective Device (SPD)
• Configuration: 3-Pole
• Nominal Voltage: 480 VAC
• Maximum Continuous Operating Voltage (MCOV): 550 VAC
• Maximum Surge Current (Imax): 40 kA (8/20 μs)
• Nominal Discharge Current (In): 20 kA (8/20 μs)
• Voltage Protection Level (Up): 1.8 kV
• UL 1449 Voltage Protection Rating (VPR): 1800 V
• Mounting Type: 35 mm DIN Rail
• Protection Technology: MOV (Metal Oxide Varistor)
• Remote Status Contact: Yes
• Visual Status Indicator: Yes
• Replaceable Surge Module: 4983-DS480-40
• Certifications:
  • UL 1449
  • CE
  • CSA
  • cURus Recognized
• Country of Origin: China
• Lifecycle Status: Active
• Applications:
  • Industrial Control Panels
  • PLC Systems
  • Motor Control Centers
  • Manufacturing Equipment
  • Process Automation
  • Electrical Distribution Panels
  • OEM Machinery

Dimensions:

• Mounting: 35 mm DIN Rail
• Compact modular enclosure for industrial control panels.

Weight:

• Approximate Weight: 0.60 kg (1.32 lb).
