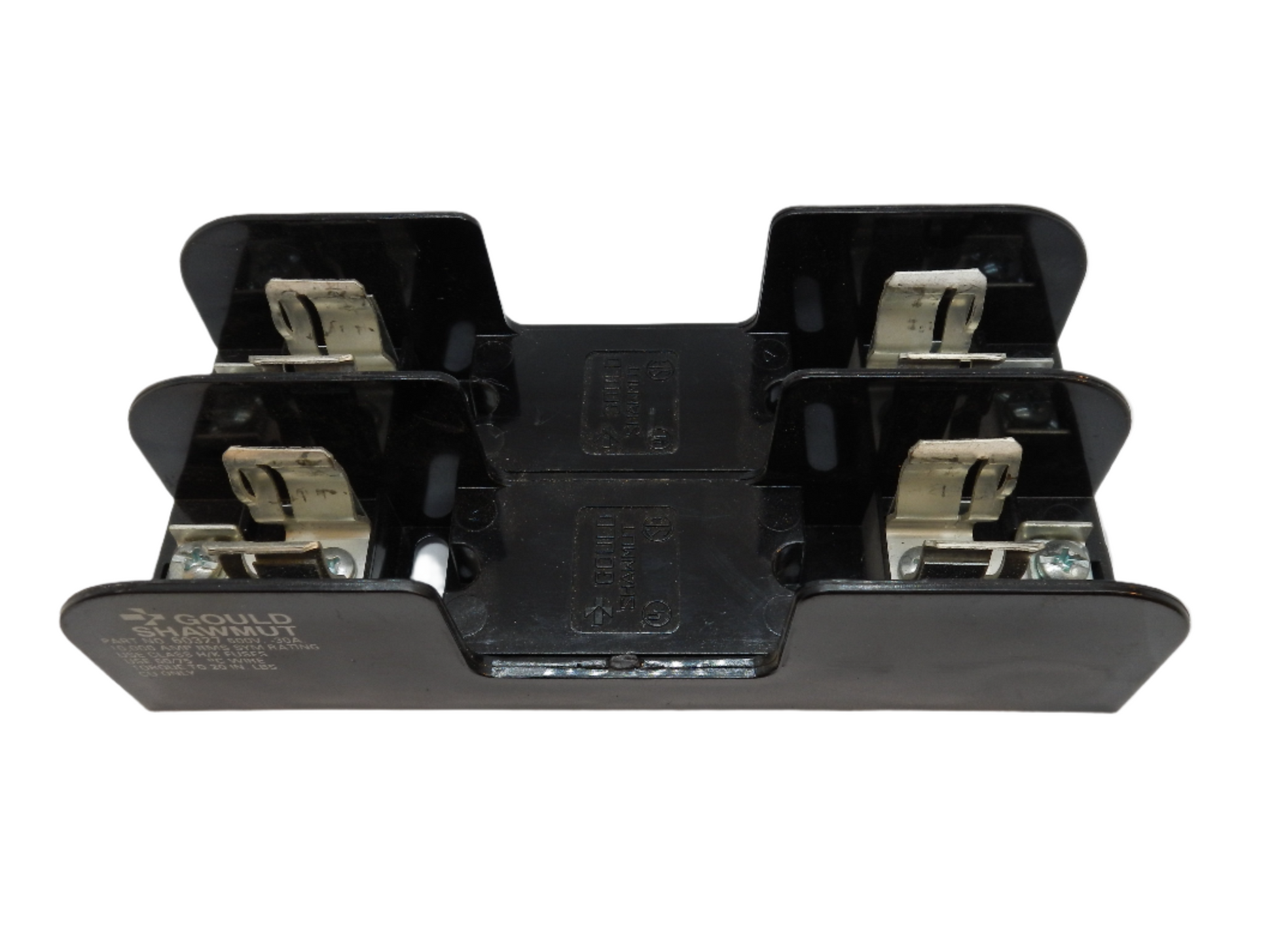

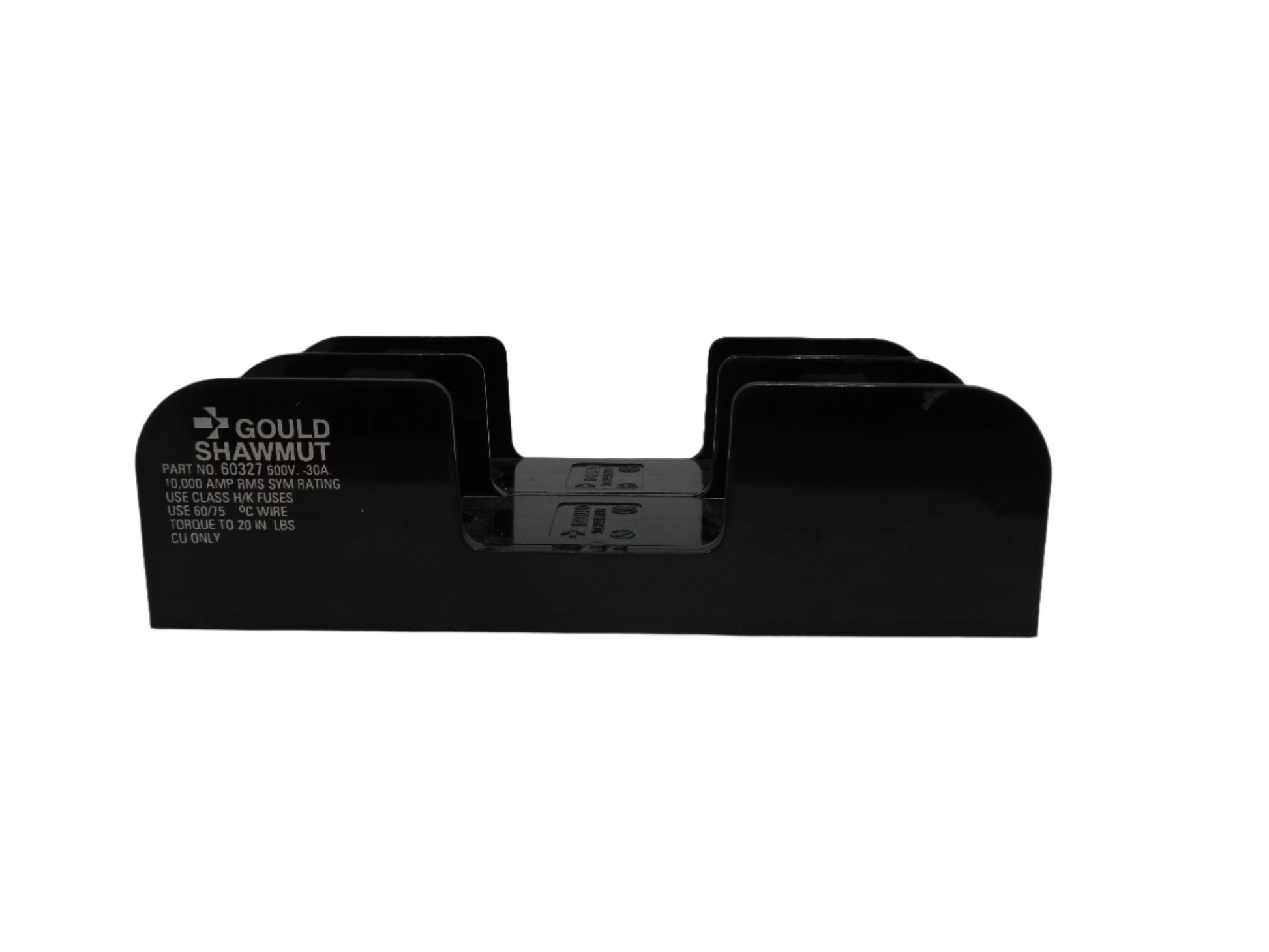

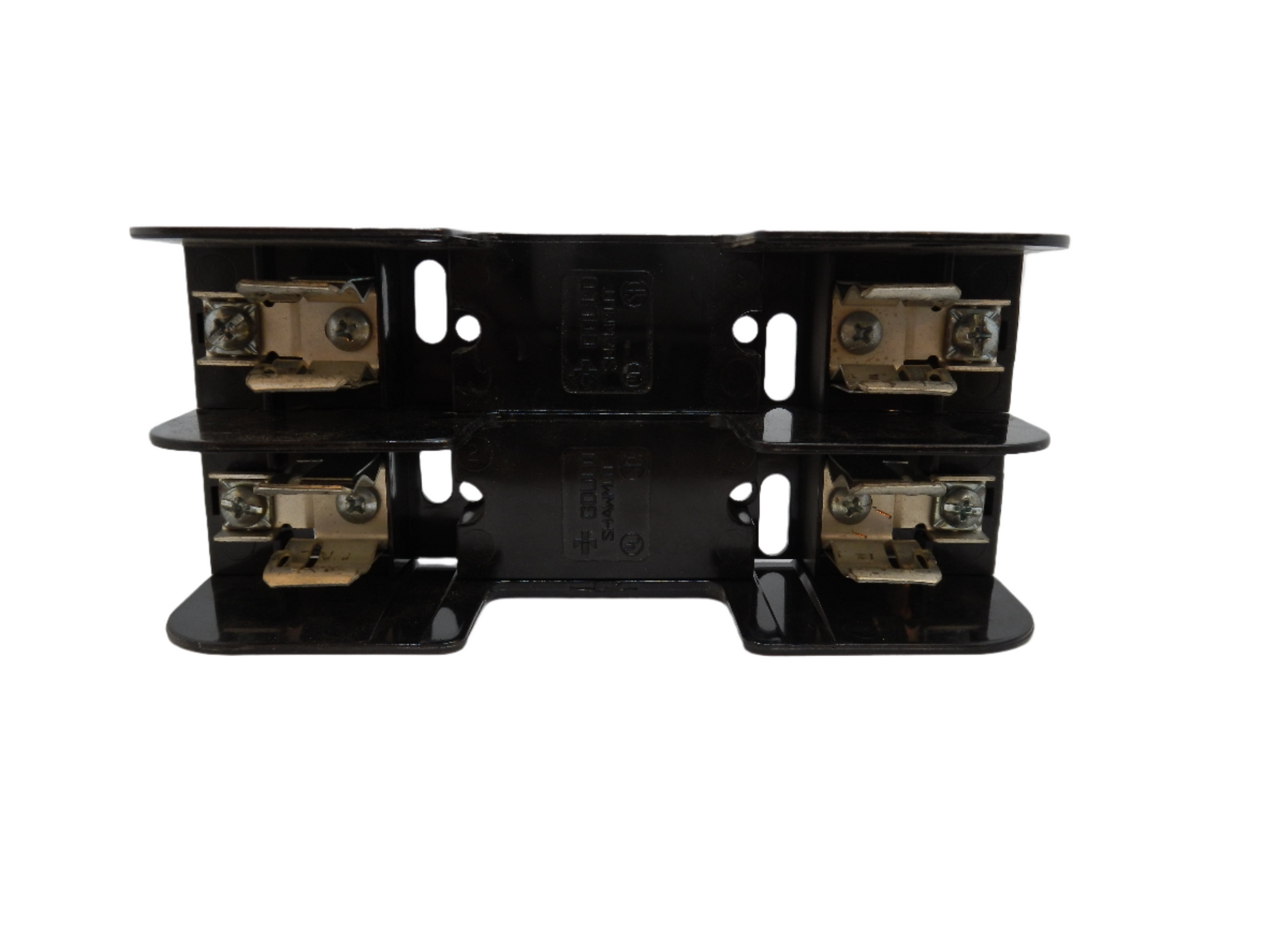

60327 Mersen Ferraz Shawmut Gould Shawmut Class H/K Fuse Block 30A 2-Pole 600VAC/600VDC

Description:

• Genuine Mersen Ferraz Shawmut (formerly Gould Shawmut) Class H/K fuse block for industrial power distribution and circuit protection
• Designed for Class H and Class K fuses in 600 VAC / 600 VDC applications
• 2-pole fuse block with a 30 Amp current rating
• Features pressure plate terminals with spring-reinforced fuse clips for secure, vibration-resistant connections
• Accepts copper or aluminum conductors using pressure plate terminals
• High-strength glass-filled polycarbonate (GFPC) insulating base provides excellent dielectric performance
• Modular design allows additional poles to be added using compatible adder blocks
• Suitable for industrial control panels, motor control centers, switchgear, OEM equipment, and power distribution systems
• UL Listed and CSA Certified for industrial electrical installations.

Specifications:

• Manufacturer Name: Mersen (Ferraz Shawmut / Gould Shawmut)
• Part Number (MPN): 60327
• Product Series: Class H/K 600V Fuseholders
• Product Type: Fuse Block / Fuse Holder
• Fuse Class: Class H / Class K
• Number of Poles: 2
• Rated Current: 30 A
• Rated Voltage:
  • 600 VAC
  • 600 VDC
• Frequency: 50/60 Hz
• Terminal Type: Pressure Plate
• Fuse Clip Type: Spring Reinforced
• Insulator Material: Glass-Filled Polycarbonate (GFPC)
• Short Circuit Current Rating (SCCR): 50 kA
• Mounting Type: Screw Mount
• Certifications:
  • UL 4248 Listed
  • CSA Certified
  • RoHS Compliant
• Applications:
  • Industrial Control Panels
  • Motor Control Centers
  • Power Distribution
  • OEM Equipment
  • Electrical Switchgear
  • Machine Automation

Dimensions:

• Length: 178 mm (7.0 in)
• Width: 78 mm (3.09 in)
• Height: 51 mm (2.0 in)

Weight:

• Approximate Weight: 0.26 kg (0.57 lb).
