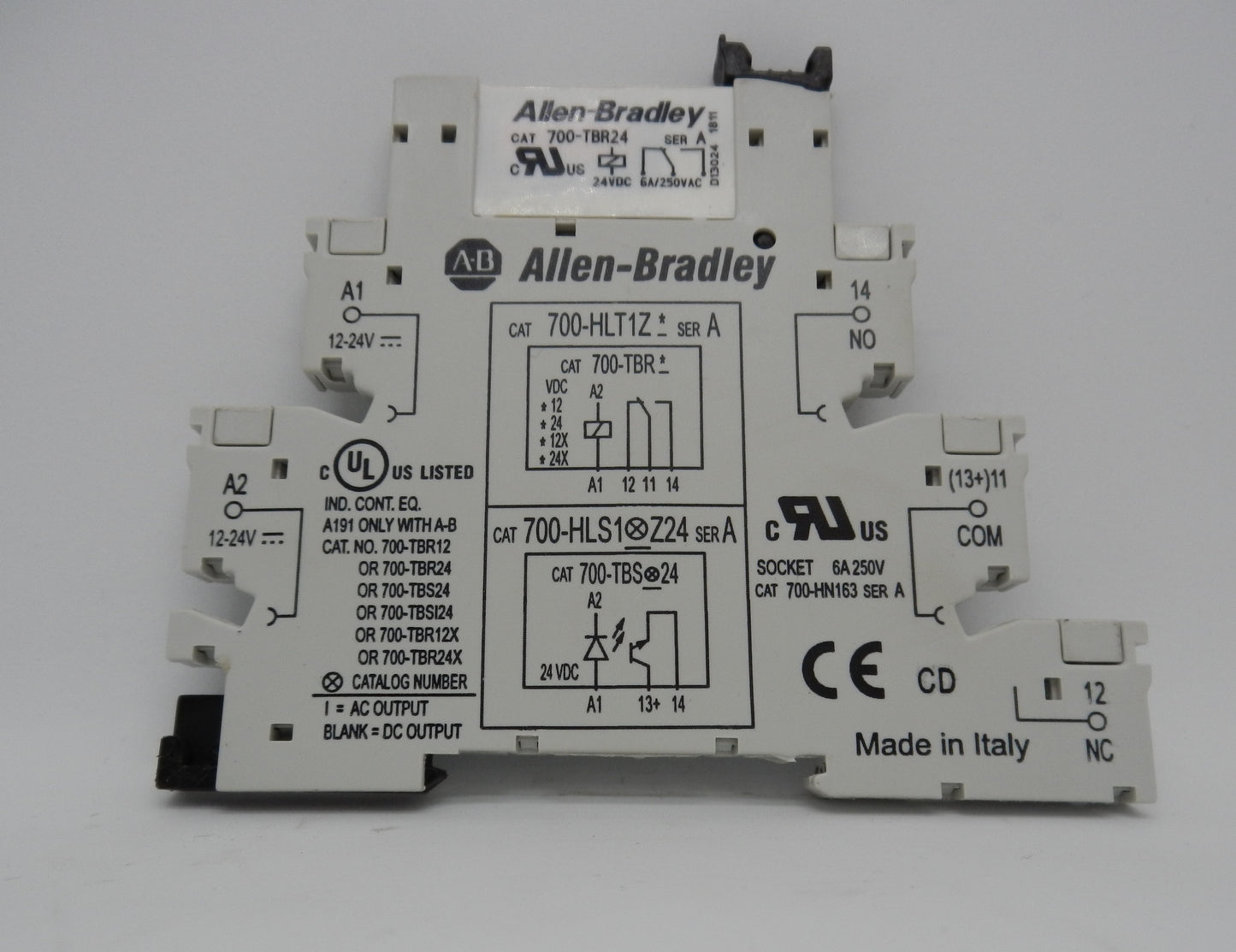

700-TBR24 + 700-HLT1Z Allen-Bradley 24VDC Terminal Block Relay Assembly SPDT 6A with Socket

Description:

• Genuine Allen-Bradley terminal block relay assembly consisting of the 700-TBR24 replacement relay and 700-HLT1Z terminal block relay socket
• Complete 24 VDC electromechanical relay interface for industrial automation and PLC output applications
• Features SPDT (Single Pole Double Throw / 1 Form C) contact configuration
• Rated for 6 Amp switching capacity for reliable control of industrial loads
• Screw-clamp terminal connections provide secure and dependable field wiring
• Built-in LED status indicator and coil surge suppression simplify diagnostics and protect control circuits
• Touch-safe terminal construction enhances installation safety
• Replaceable relay design minimizes downtime during maintenance
• Ideal for PLC output isolation, relay interfacing, industrial control panels, machine automation, OEM equipment, HVAC systems, and process control
• Compatible with Allen-Bradley 700-HL terminal block relay systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Numbers (MPN):
  • 700-TBR24
  • 700-HLT1Z (Assembly commonly supplied as 700-HLT1Z24)
• Product Series: Bulletin 700-HL
• Product Type: Terminal Block Relay Assembly
• Relay Type: Electromechanical
• Contact Configuration: SPDT (1 Form C / 1 Changeover)
• Rated Coil Voltage: 24 VDC
• Contact Rating: 6 A
• Coil Power Consumption: 0.5 W
• Terminal Type: Screw Clamp
• Contact Material: Standard Silver Contacts
• LED Indicator: Yes
• Coil Surge Protection: Yes
• Touch-Safe Terminals: Yes
• Replaceable Relay Module: Yes
• Degree of Protection: IP20
• Mounting Type: DIN Rail
• Operating Temperature: -40°C to +55°C
• Country of Origin:
  • 700-TBR24: Czechia
  • 700-HLT1Z24: Italy
• Certifications:
  • UL Listed
  • CE
  • UL Recognized
• Applications:
  • PLC Output Interface
  • Industrial Automation
  • Control Panels
  • Machine Control
  • OEM Equipment
  • Process Control
  • HVAC Systems
  • Relay Isolation

Dimensions:

• Compact DIN rail-mounted terminal block relay assembly.
• Designed for high-density control panel installations with replaceable relay modules.

Weight:

• Approximate Weight: 0.09 kg (0.20 lb).
