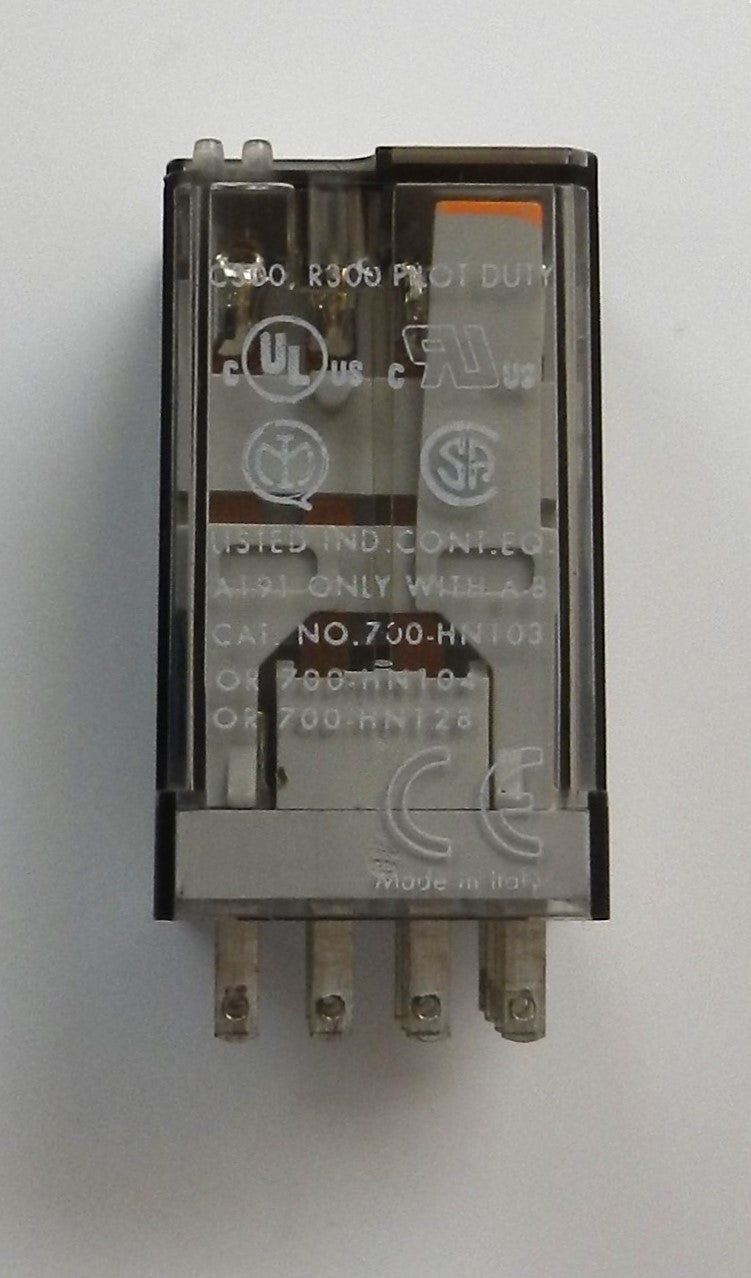

700-HC24Z24 Allen-Bradley General Purpose Ice Cube Relay 24VDC Coil 4PDT 7A Plug-In

Description:

• Genuine Allen-Bradley general-purpose plug-in relay for industrial automation and control applications

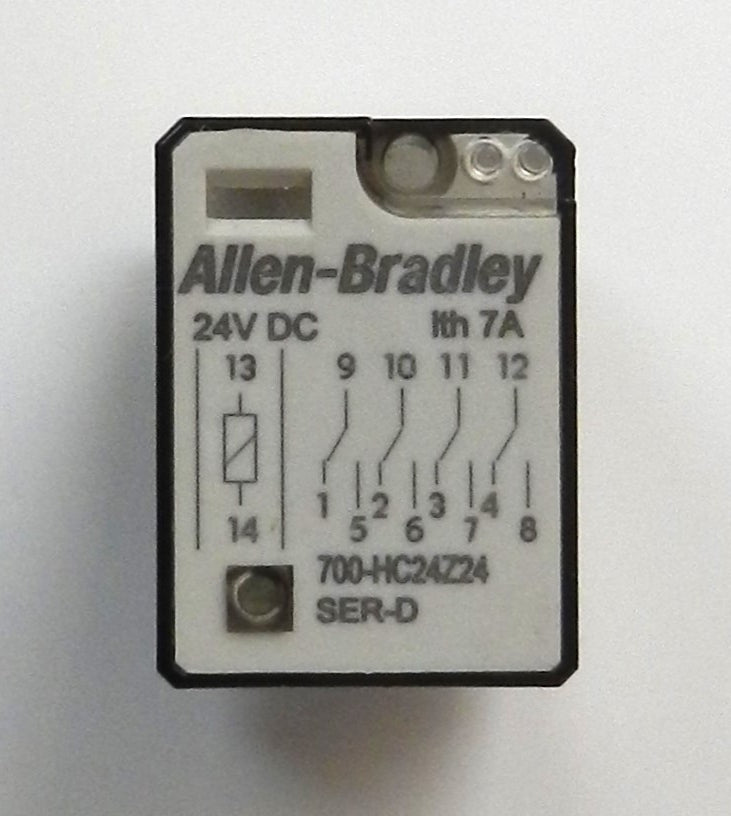

• Features a 24 VDC coil with 4PDT (4 Form C) contact configuration
• Rated for 7A switching capacity, making it ideal for industrial control circuits and relay logic
• Low-energy contact rating supports reliable switching of low-level signals (10 V, 10 mA minimum)

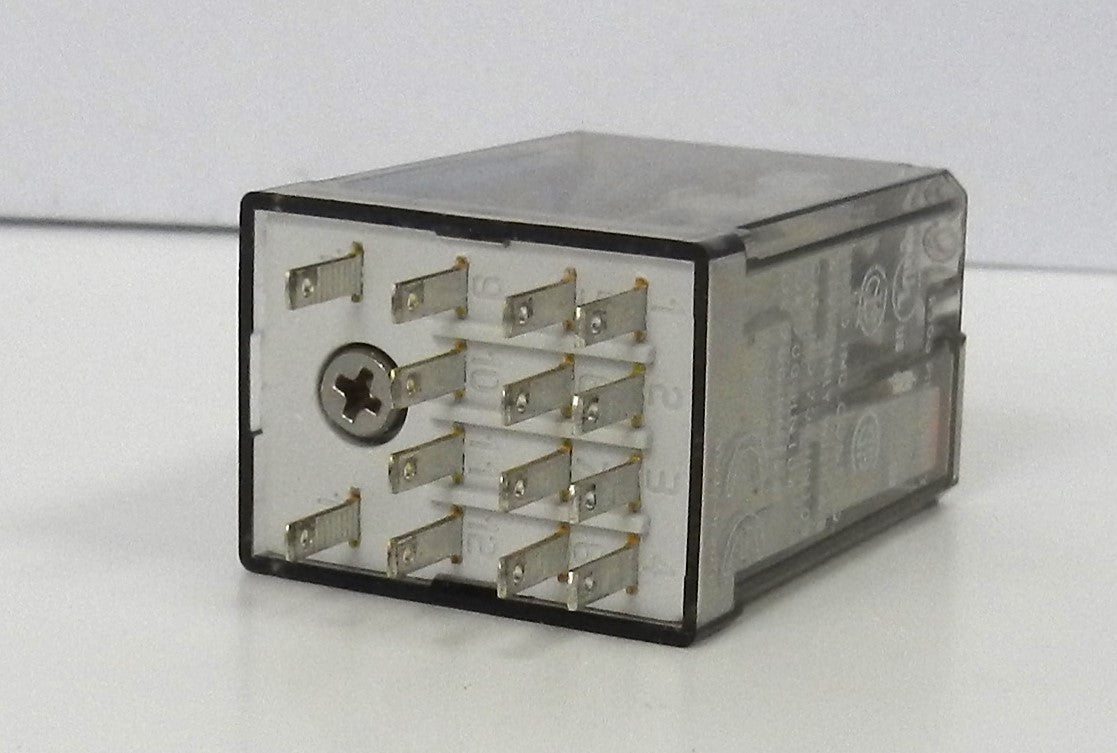

• Standard 14-blade plug-in "Ice Cube" relay design for easy installation and replacement

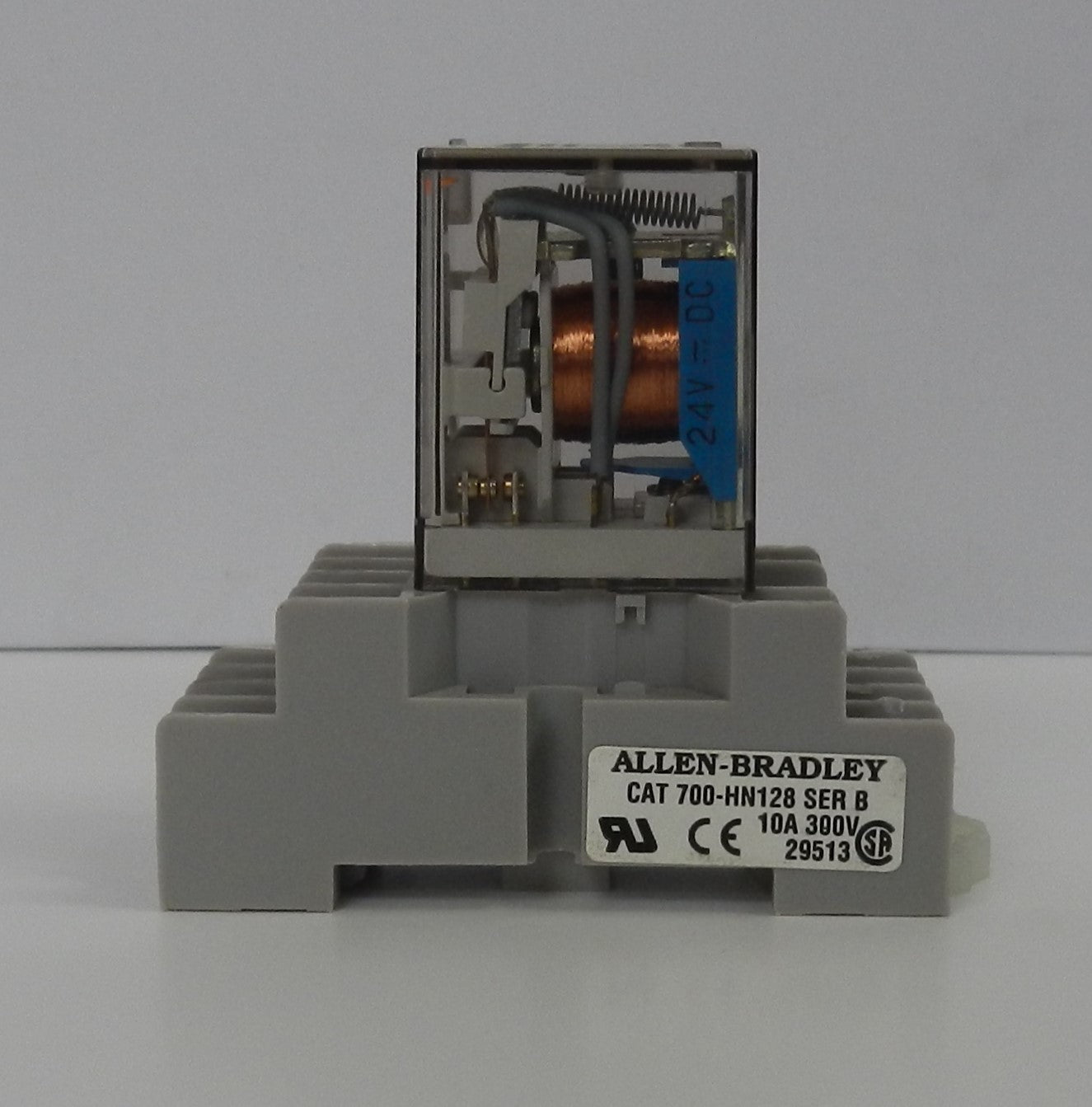

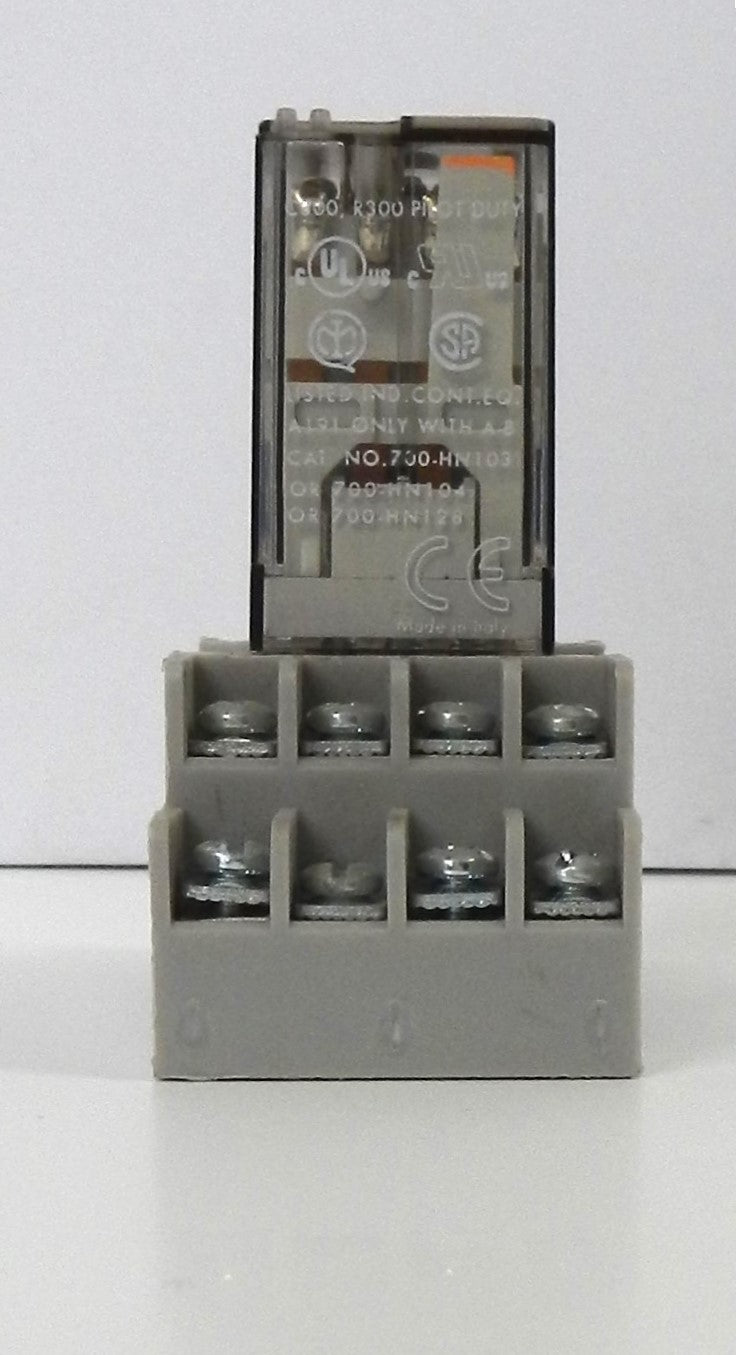

• Compatible with Allen-Bradley 700-HN relay sockets (sold separately)
• Silver nickel (AgNi) contacts provide excellent durability and long service life
• Ideal for PLC interfaces, motor control, process automation, machine control, OEM equipment, HVAC systems, and industrial control panels
• Active product in the Allen-Bradley Bulletin 700-HC relay family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HC24Z24
• Product Series: Bulletin 700-HC
• Product Type: General Purpose Ice Cube Relay
• Coil Voltage: 24 VDC
• Contact Configuration: 4PDT (4 Form C)
• Number of Contacts: 4 Changeover Contacts
• Contact Rating: 7 A
• Minimum Switching Load: 10 V, 10 mA
• Contact Material: Silver Nickel (AgNi)
• Connection Type: 14-Blade Plug-In

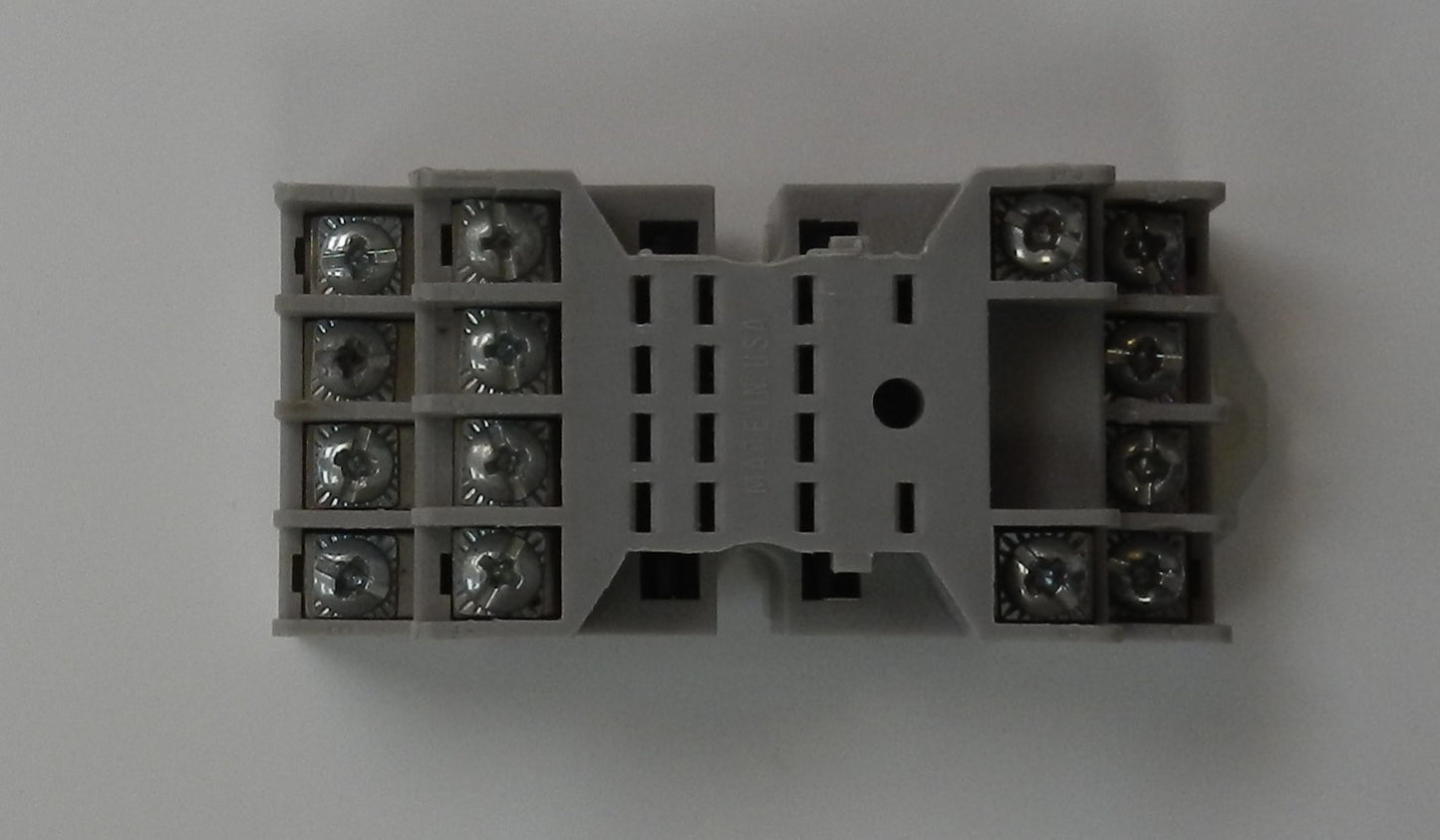

• Socket Required: 700-HN Series (Sold Separately)
• Electrical Life: 100,000 Operations Minimum
• Mechanical Life: 50,000,000 Operations
• Protection Rating: IP20 (with guarded terminal socket)
• Operating Temperature: -30°C to +70°C
• Storage Temperature: -55°C to +85°C
• Country of Origin: Italy
• Certifications:
  • UL Listed
  • UL Recognized
  • CSA Listed
  • CE
  • UKCA
• Applications:
  • PLC Interface Relays
  • Industrial Automation
  • Control Panels
  • Machine Control
  • Process Control
  • HVAC Systems
  • OEM Equipment
  • Relay Logic Circuits

Dimensions:

• Height: 37.2 mm (1.46 in)
• Width: 27.7 mm (1.09 in)
• Depth: 20.7 mm (0.81 in)

Weight:

• Approximate Weight: 0.03 kg (0.07 lb).
