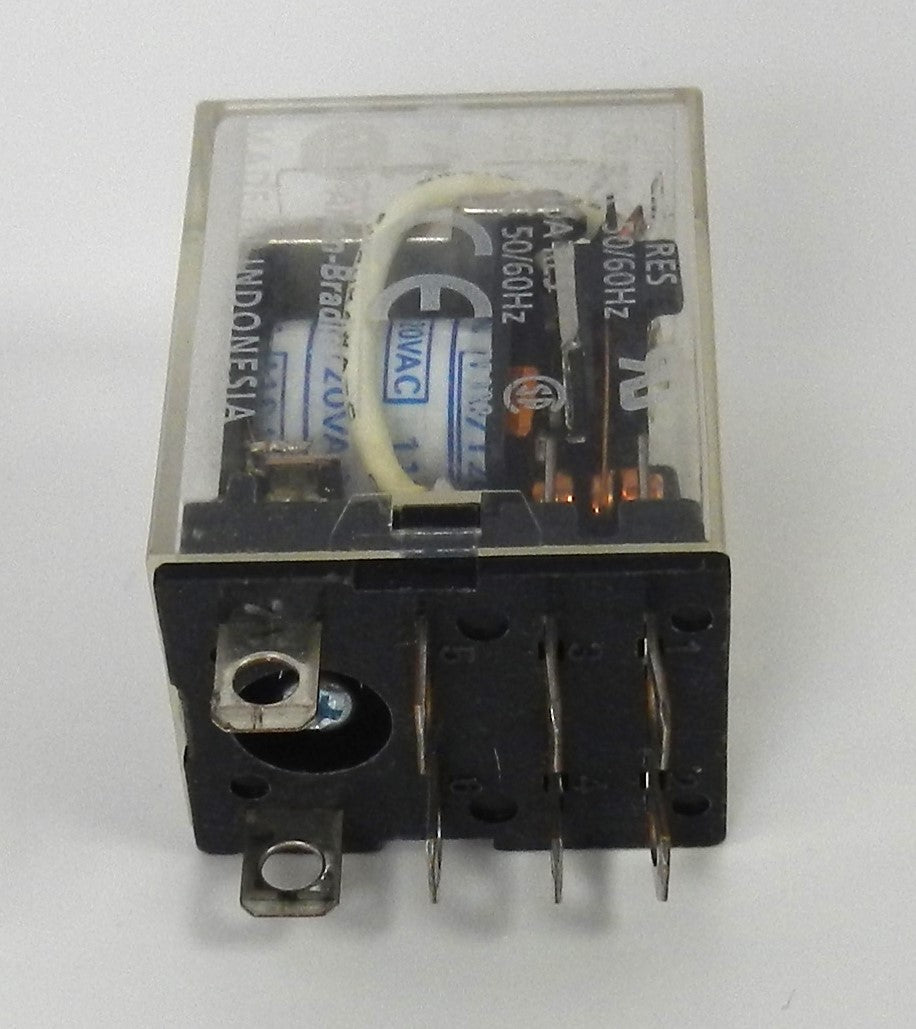

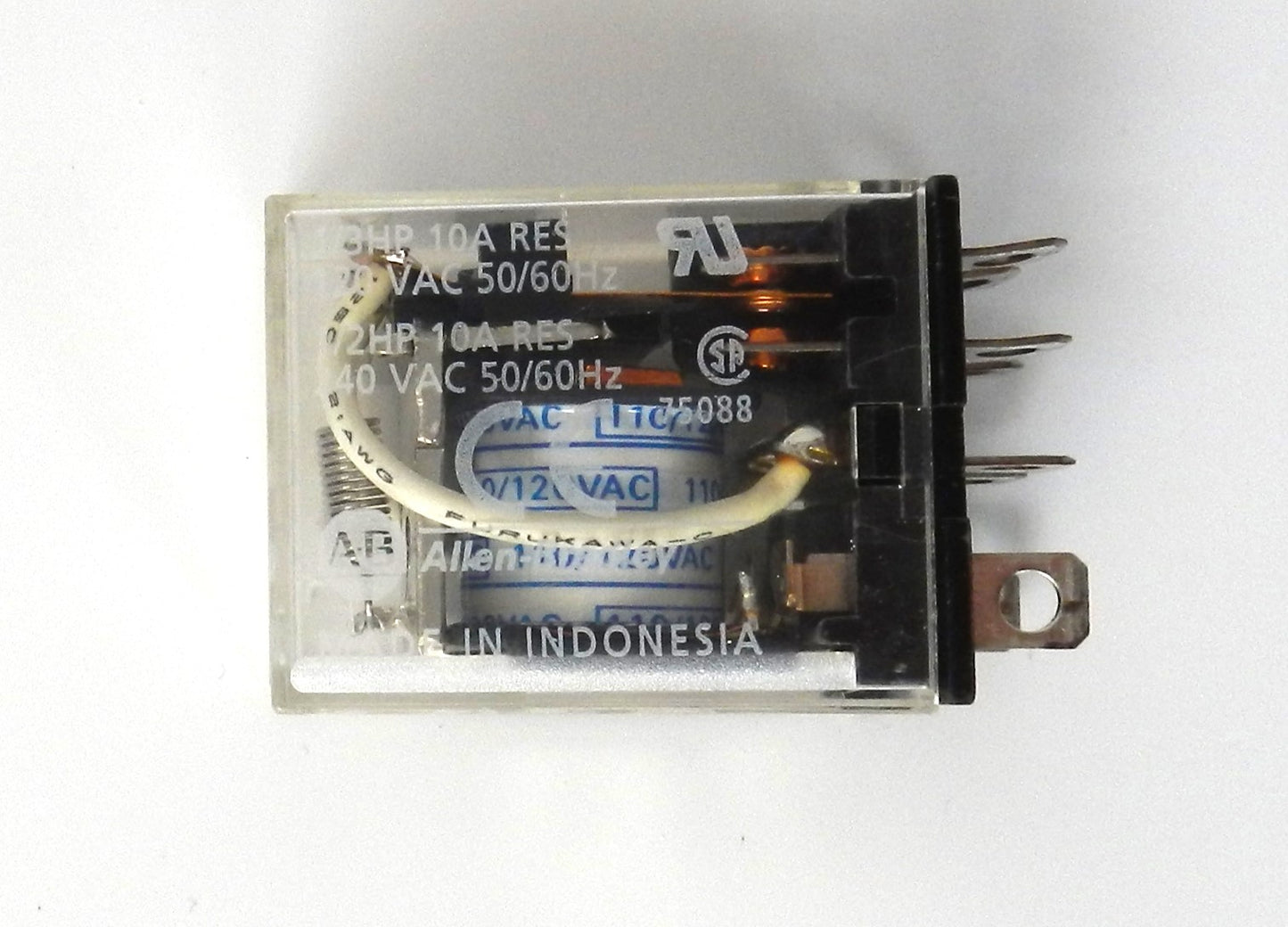

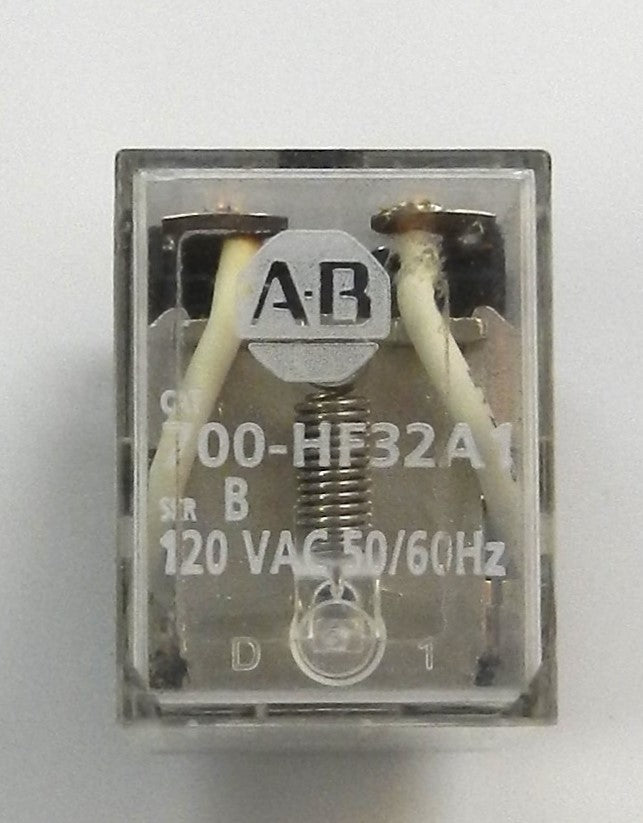

700-HF32A1 Allen-Bradley General Purpose Plug-In Relay DPDT 120VAC Coil 12A with LED

Description:

• Genuine Allen-Bradley general-purpose plug-in relay designed for industrial control and automation applications
• Features 2 Form C (DPDT) changeover contacts for versatile switching of control circuits
• Equipped with a 120 VAC, 50/60 Hz AC coil
• 12 Amp contact rating suitable for industrial control, interposing relay, alarm, and machine control applications
• Built-in LED status indicator provides clear visual indication of relay coil energization
• Plug-in design allows fast installation and easy relay replacement without rewiring
• Compatible with Allen-Bradley 700-HN relay sockets (sold separately)
• Compact square-base design for use in industrial control panels and OEM equipment
• Ideal for PLC interfaces, motor control, HVAC systems, process automation, and machine automation
• Manufactured by Rockwell Automation as part of the Bulletin 700-HF general-purpose relay family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HF32A1
• Product Series: Bulletin 700-HF
• Product Type: General Purpose Plug-In Relay
• Contact Configuration: 2 Form C (DPDT)
• Number of Contacts: 2 Changeover Contacts
• Contact Rating: 12 A
• Coil Voltage:
  • 120 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Coil Type: AC
• Electrical Connection: Plug-In
• LED Indicator: Yes
• Contact Material: Silver Cadmium Oxide (AgCdO)
• Degree of Protection: IP20 (with guarded terminal socket)
• Mechanical Shock Resistance: 15 G
• Vibration Resistance: 15 G
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -50°C to +85°C
• Country of Origin: Italy
• Certifications:
  • UL Listed
  • UL Recognized
  • CSA Listed
  • CE
• Applications:
  • PLC Interface
  • Industrial Automation
  • Control Panels
  • Machine Control
  • HVAC Systems
  • Process Control
  • OEM Equipment

Dimensions:

• Height: 44.2 mm (1.74 in)
• Width: 20.7 mm (0.81 in)
• Depth: 27.7 mm (1.09 in)

Weight:

• Approximate Weight: 0.05 kg (0.11 lb)
