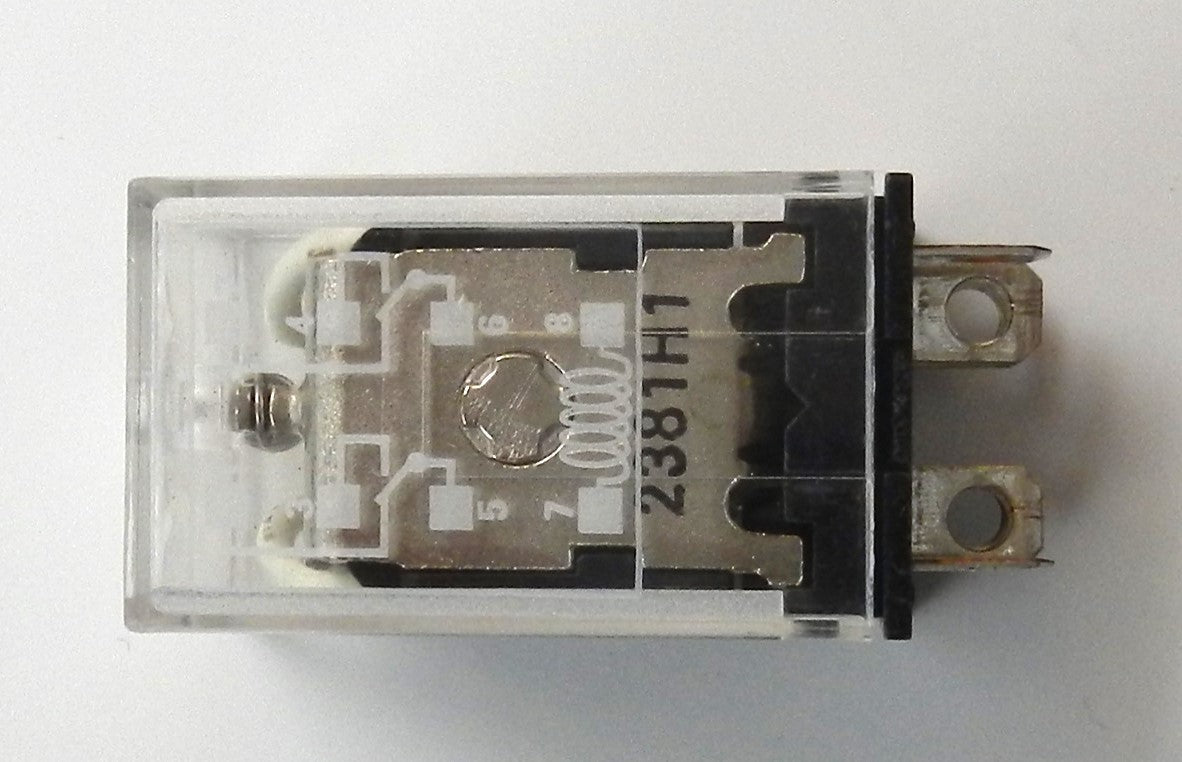

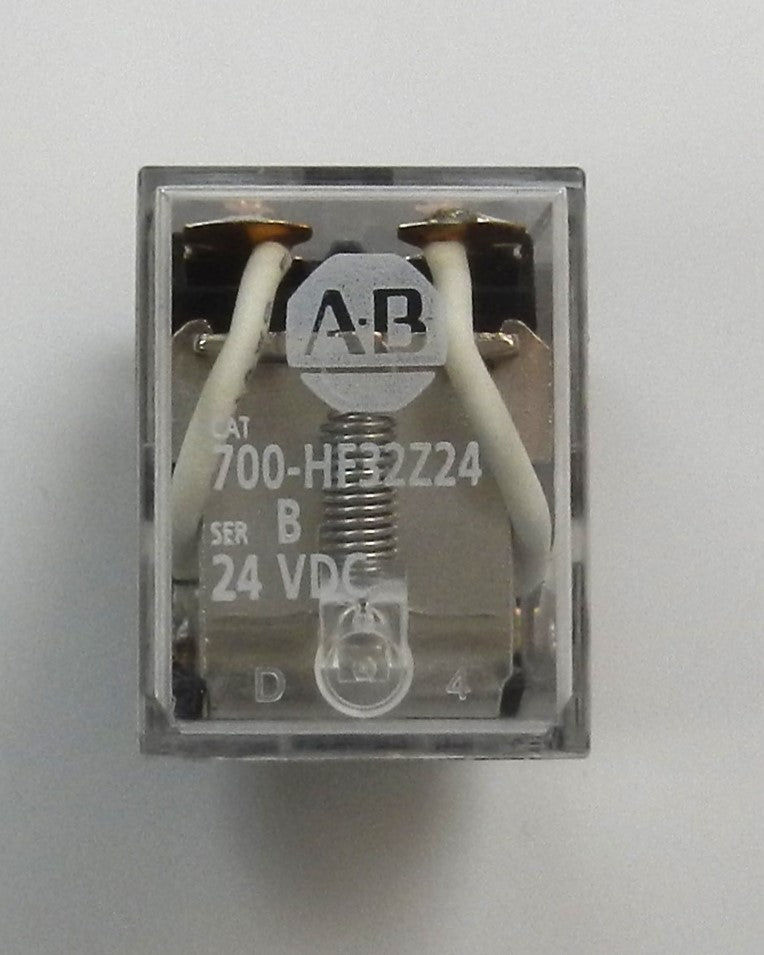

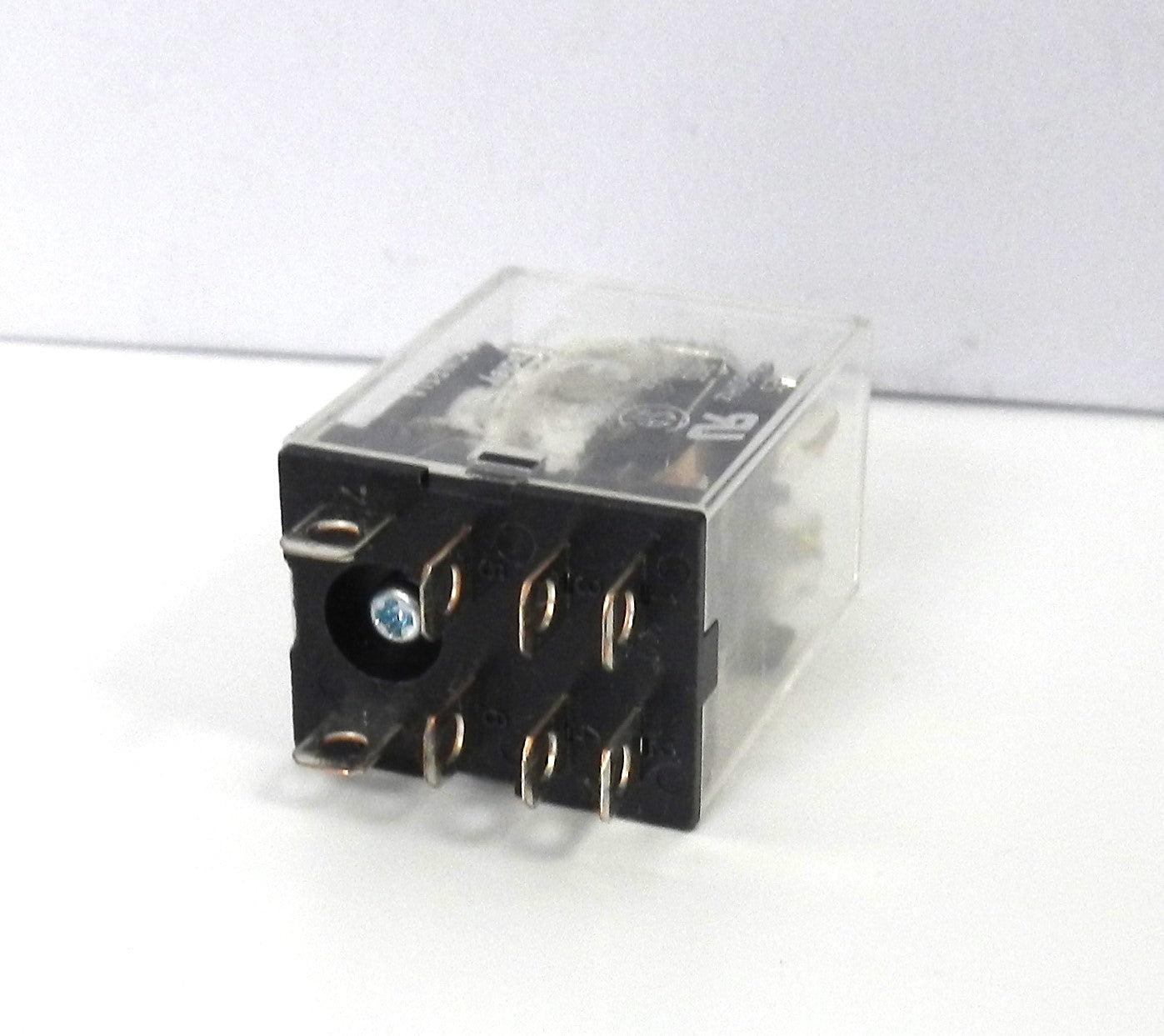

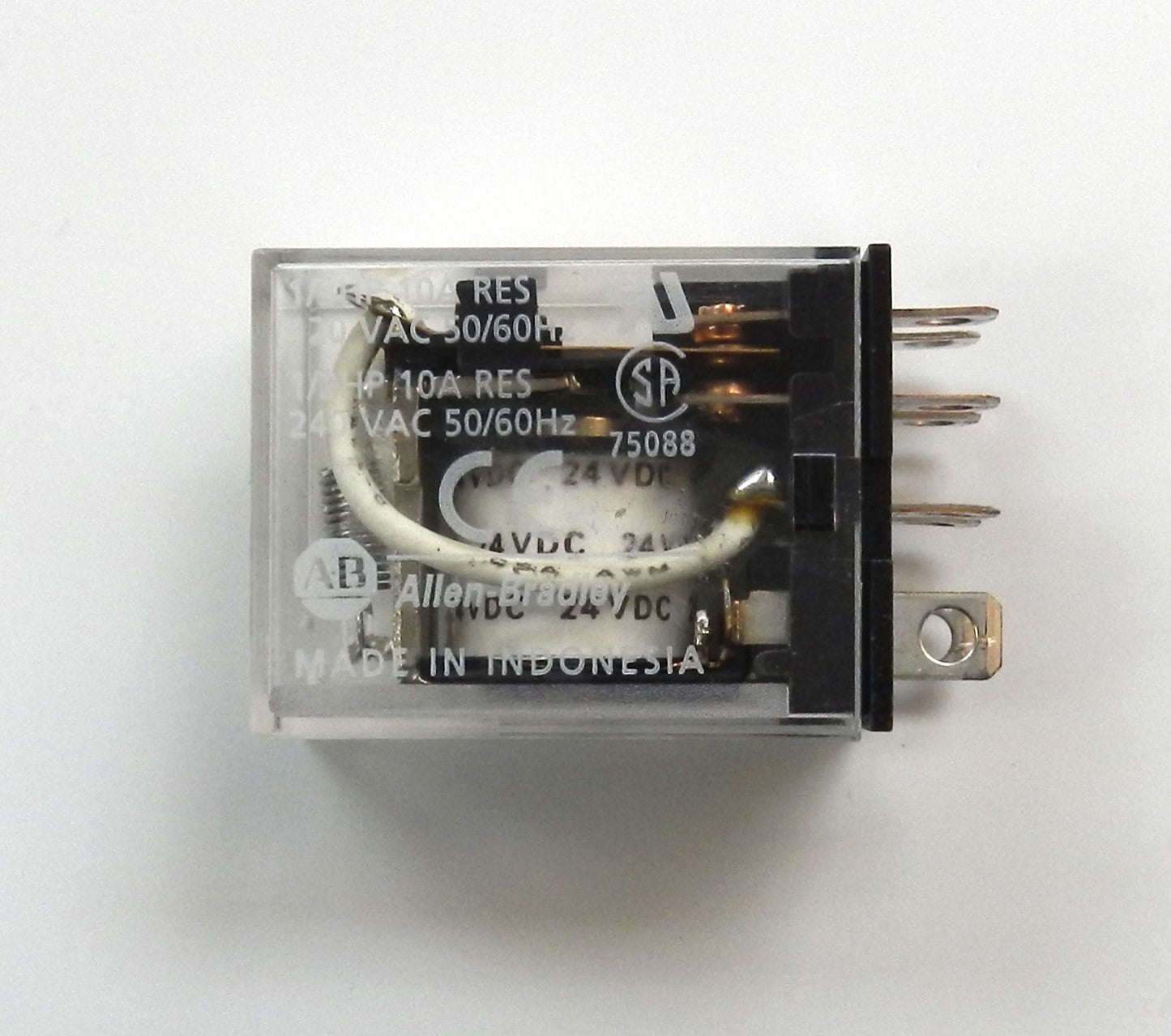

700-HF32Z24 Allen-Bradley General Purpose Relay DPDT 24VDC Coil 12A Plug-In Square Base

Description:

• Genuine Allen-Bradley general purpose miniature square base relay for industrial control and automation applications
• Features DPDT (2 Form C) contact configuration with 2 changeover contacts
• 24 VDC coil for reliable low-voltage control circuits
• Rated for 12A switching capacity with silver cadmium oxide (AgCdO) contacts for long service life
• Compact plug-in design for quick installation and easy replacement using compatible relay sockets
• Suitable for switching motors, solenoids, contactors, pilot lights, alarms, HVAC equipment, and industrial control circuits
• Designed for industrial automation, OEM machinery, process control, packaging equipment, and electrical control panels
• Compatible with Allen-Bradley 700-HF relay sockets and accessories
• Active product in the Allen-Bradley Bulletin 700-HF relay family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HF32Z24
• Product Series: Bulletin 700-HF
• Product Type: General Purpose Miniature Relay
• Contact Configuration: DPDT (2 Form C)
• Number of Contacts: 2 Changeover Contacts
• Contact Rating: 12 A
• Nominal Current: 12 A
• Coil Voltage: 24 VDC
• Coil Type: DC
• Connection Type: Plug-In
• Socket Required: Compatible 700-HF Relay Socket (Sold Separately)
• Contact Material: Silver Cadmium Oxide (AgCdO)
• LED Indicator: No
• Mechanical Shock Resistance: 15 G
• Vibration Resistance: 15 G
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -50°C to +85°C
• Degree of Protection: IP20 (when installed with guarded terminal socket)
• Country of Origin: Italy
• Certifications:
  • UL Recognized
  • UL Listed
  • CSA
  • CE
  • EN 61810-1
• Applications:
  • Industrial Automation
  • Control Panels
  • Machine Control
  • HVAC Systems
  • Process Control
  • Packaging Equipment
  • OEM Machinery
  • Relay Logic Circuits

Dimensions:

• Height: 44.2 mm (1.74 in)
• Width: 20.7 mm (0.81 in)
• Depth: 27.7 mm (1.09 in)

Weight:

• Approximate Weight: 0.04 kg (0.09 lb).
