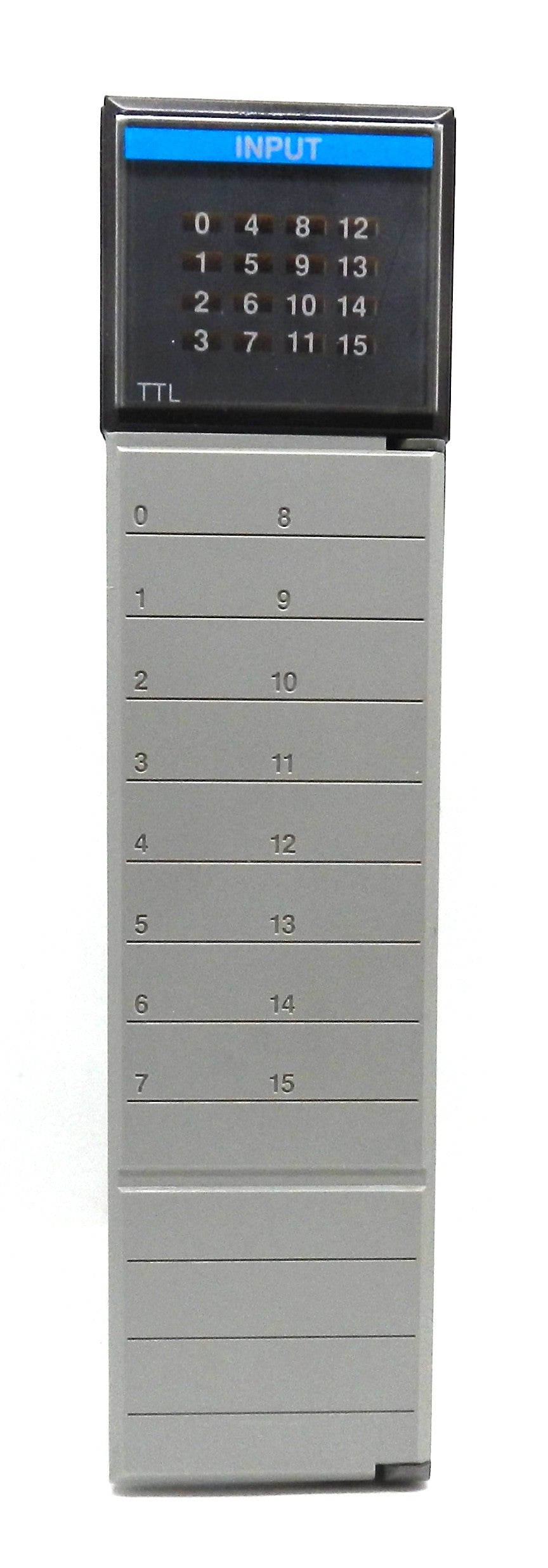

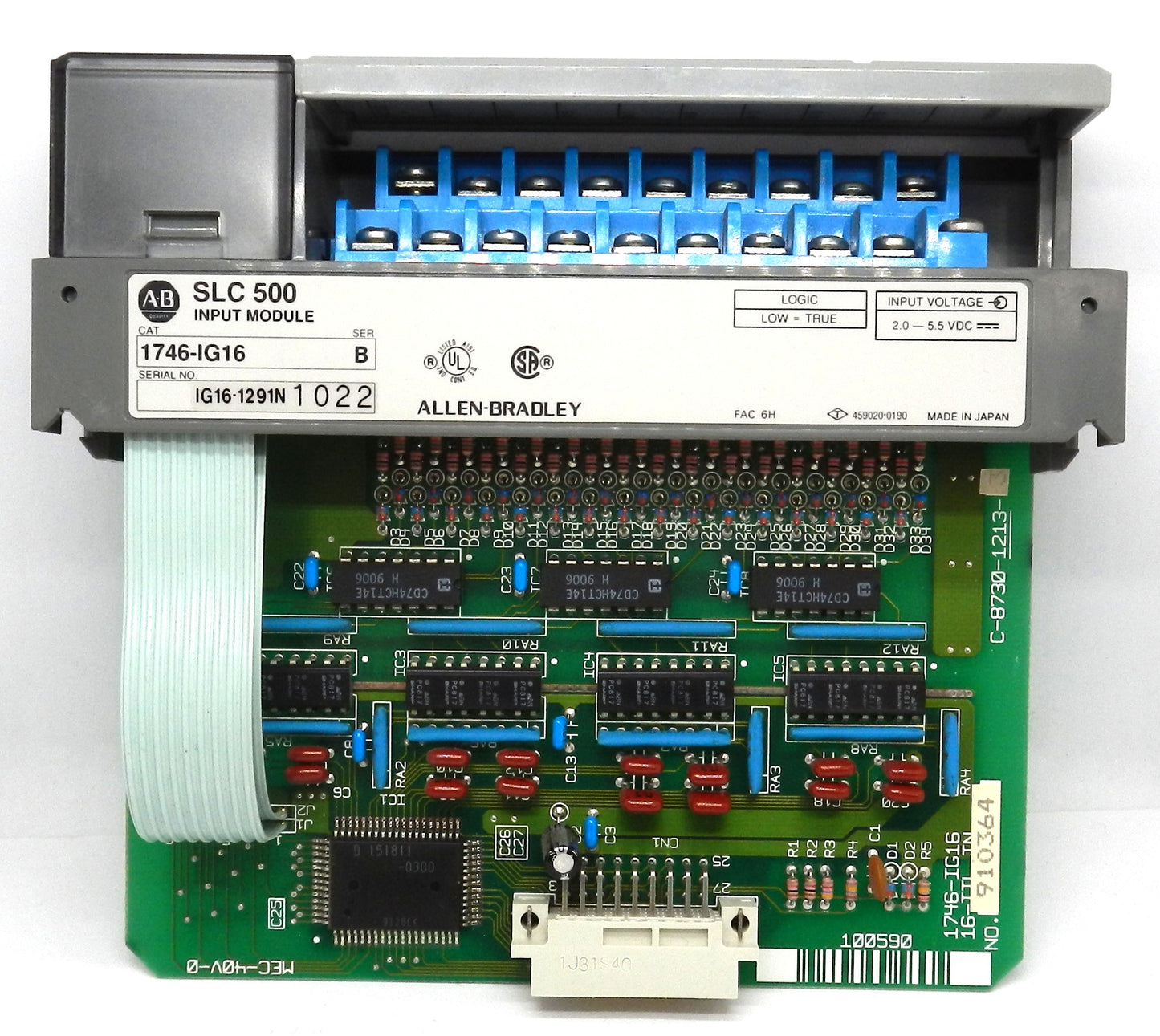

1746-IG16 Allen-Bradley SLC 500 16-Point 5VDC TTL Digital Input Module Series B

Description:

• Allen-Bradley SLC 500 digital input module designed for industrial automation and machine control applications
• 16-point 5VDC TTL sourcing digital input module for high-speed logic signal processing
• Compatible with SLC 500 modular PLC systems
• Series B hardware revision
• Supports 5VDC TTL input signals with fast response times for precise control applications
• Removable terminal block simplifies wiring and maintenance
• LED status indicators provide real-time monitoring of each input channel
• Installs directly into any compatible SLC 500 chassis
• Ideal for CNC equipment, robotics, machine tools, semiconductor equipment, OEM machinery, and industrial automation systems
• Manufactured by Rockwell Automation for dependable industrial control performance.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1746-IG16
• Series: Series B
• Product Series: SLC 500
• Product Type: Digital Input Module
• Number of Inputs: 16
• Input Type: 5VDC TTL (Sourcing)
• Operating Voltage: 4.5–5.5 VDC
• Input Current: 3.7 mA @ 5 VDC
• Points per Common: 16
• Backplane Current: 0.14 A @ 5VDC
• Signal Delay:
  • ON: 0.25 ms (Max)
  • OFF: 0.50 ms (Max)
• Mounting: SLC 500 Chassis
• Status Indicators: One LED per Input Channel
• Application: PLC Control Systems, Industrial Automation, CNC Machinery, Robotics, Semiconductor Equipment, OEM Machinery.

Dimensions:

• Standard SLC 500 plug-in module
• Fits any compatible SLC 500 chassis
• Removable terminal block for simplified wiring.

Weight:

• Approximate Weight: 0.27 kg (0.60 lb).
