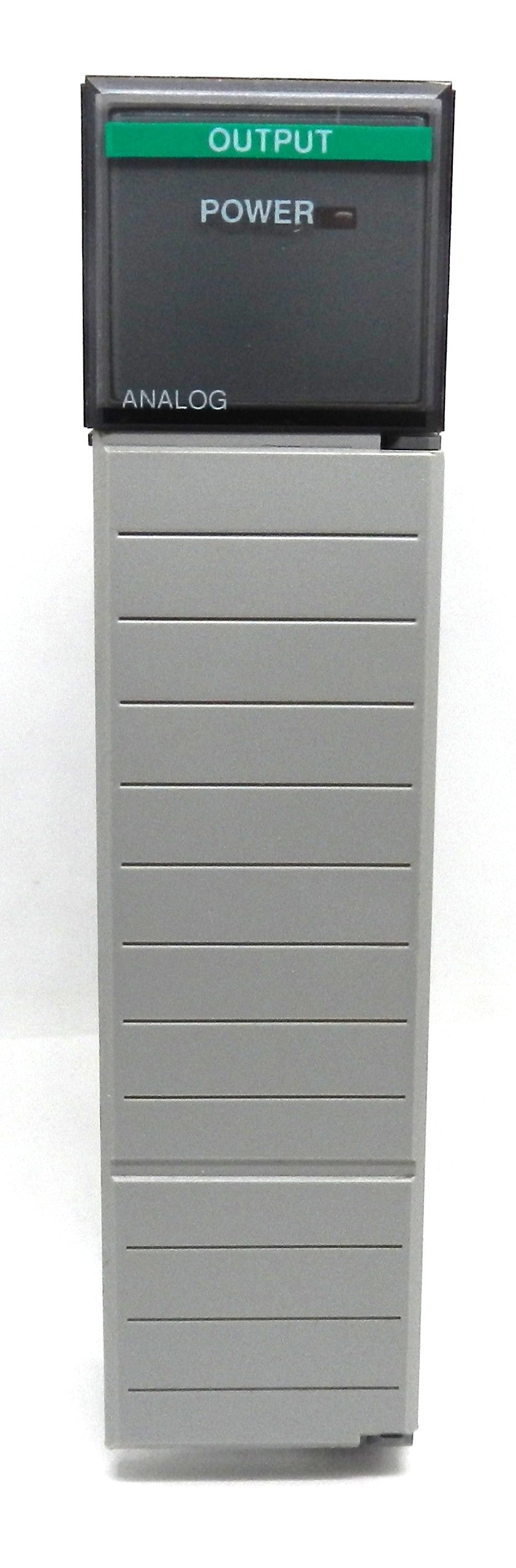

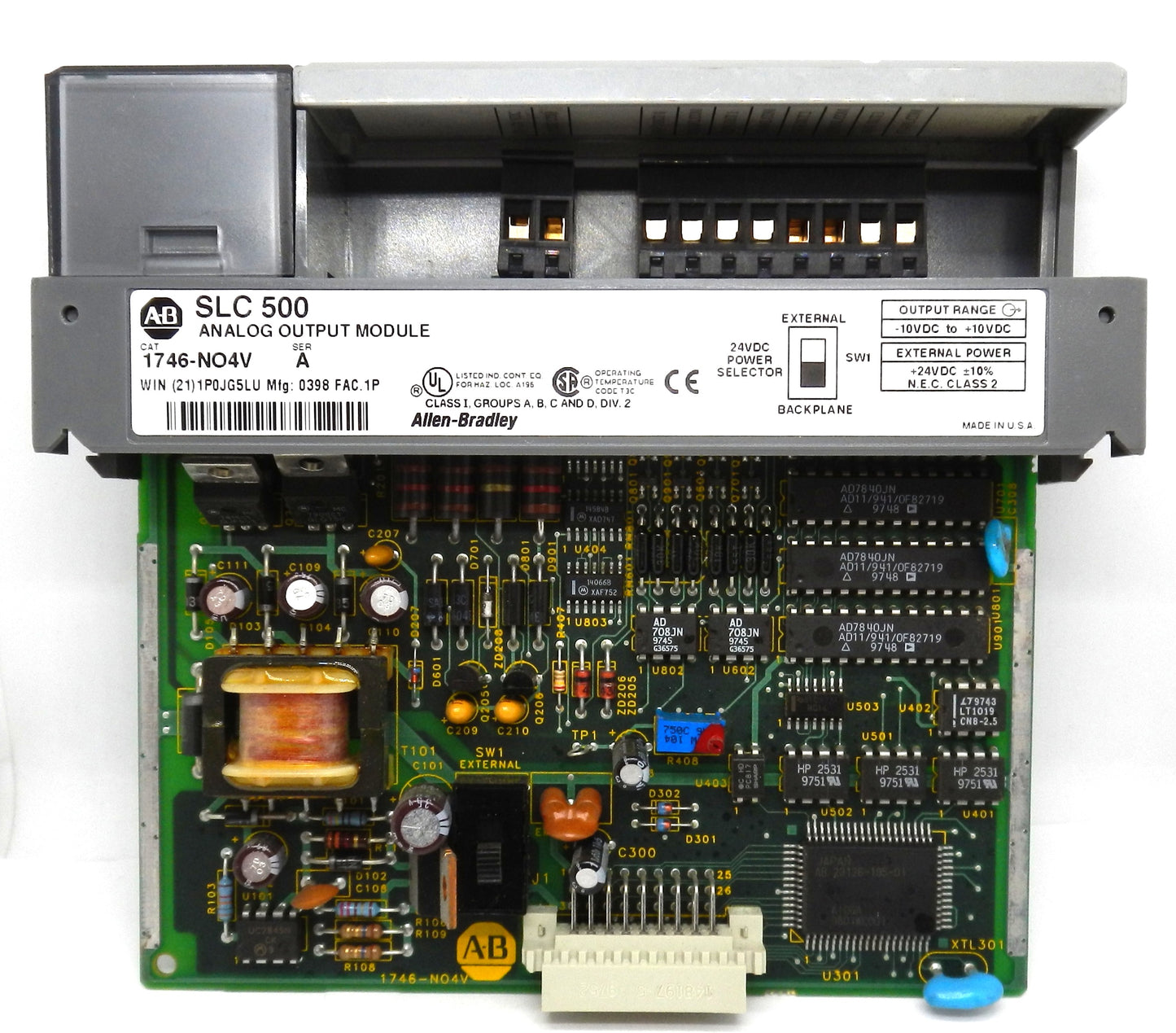

1746-NO4V Allen-Bradley SLC 500 4-Channel Analog Voltage Output Module ±10VDC

Description:

• Allen-Bradley SLC 500 analog output module designed for precision voltage control in industrial automation applications
• Provides 4 analog voltage output channels for accurate control of drives, valves, actuators, and process equipment
• Output range of ±10 VDC
• Compatible with Allen-Bradley SLC 500 modular PLC systems
• High-resolution analog outputs for precise process and motion control
• Requires 5 VDC backplane power and 24 VDC external power
• LED status indicators simplify diagnostics and troubleshooting
• Easily installs into any compatible SLC 500 chassis
• Ideal for variable frequency drives (VFDs), servo systems, process control, positioning systems, and industrial automation
• Discontinued by Rockwell Automation, making it an ideal replacement or spare for existing SLC 500 installations.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1746-NO4V
• Product Series: SLC 500
• Product Type: Analog Voltage Output Module
• Number of Outputs: 4
• Output Type: Analog Voltage
• Output Range: ±10 VDC
• Resolution: 14-bit
• Isolation: Non-Isolated Outputs
• Backplane Power: 5 VDC
• External Power Requirement: 24 VDC
• Mounting Type: SLC 500 Chassis
• Status Indicators: LED per Channel
• Application: PLC Systems, Variable Frequency Drives, Servo Control, Process Automation, Industrial Machinery, OEM Equipment, Motion Control.

Dimensions:

• Standard SLC 500 plug-in module
• Fits all compatible SLC 500 chassis
• Removable terminal block for simplified field wiring

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
