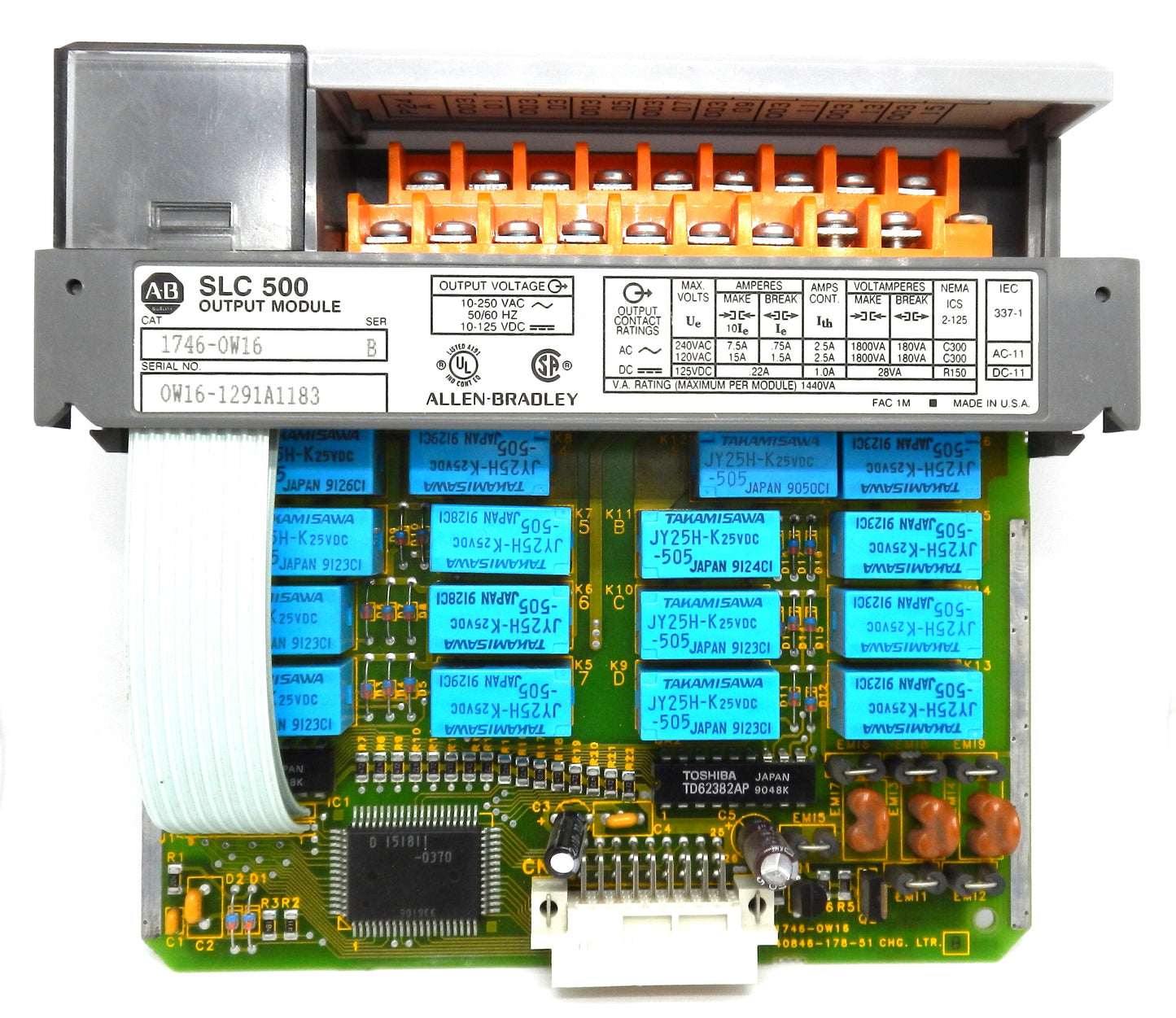

1746-OW16 Allen-Bradley SLC 500 16-Point Relay Output Module Normally Open 5-125VDC 5-265VAC

Description:

• Allen-Bradley SLC 500 digital relay output module designed for industrial automation and machine control applications
• 16 normally open (NO) relay outputs arranged in 2 groups of 8 outputs
• Supports switching 5–125 VDC and 5–265 VAC loads for maximum application flexibility
• Compatible with Allen-Bradley SLC 500 modular PLC systems
• Relay outputs allow control of both AC and DC loads from a single module

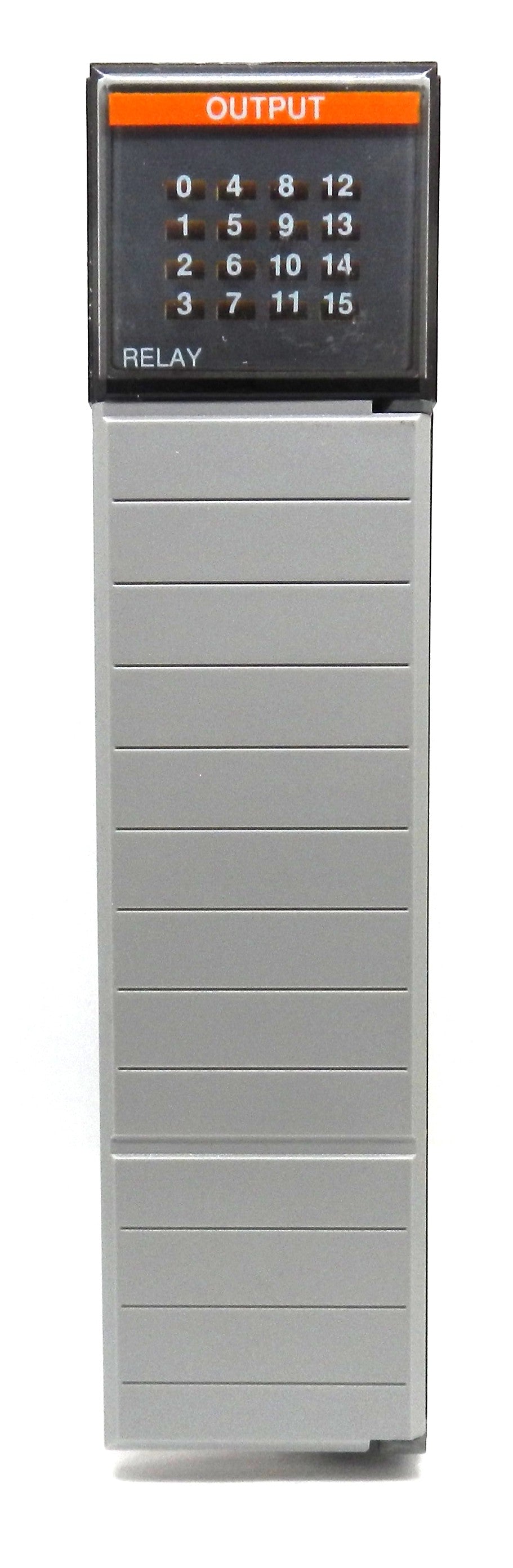

• Individual LED status indicators provide real-time output diagnostics
• Removable terminal block simplifies installation, wiring, and maintenance
• Mounts directly into any compatible SLC 500 chassis
• Ideal for motors, solenoids, contactors, pilot lights, alarms, valves, and industrial automation equipment
• Discontinued by Rockwell Automation, making it an ideal replacement or spare for existing SLC 500 systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1746-OW16
• Product Series: SLC 500
• Product Type: Digital Relay Output Module
• Number of Outputs: 16
• Output Type: Normally Open Relay
• Output Groups: 2 Groups of 8
• Output Voltage:
  • 5–125 VDC
  • 5–265 VAC
• Backplane Current:
  • 170 mA @ 5 VDC
  • 180 mA @ 24 VDC
• Isolation: 500 VDC Communication Circuit Isolation
• Response Time:
  • ON: 10 ms
  • OFF: 10 ms
• Terminal Type: Screw Clamp
• Mounting Type: SLC 500 Chassis
• Status Indicators: One LED Per Output
• Country of Origin: Malaysia
• Application: PLC Control Systems, Industrial Automation, Machine Control, Material Handling, Packaging Equipment, OEM Machinery, and Process Control.

Dimensions:

• Standard SLC 500 plug-in module
• Fits all compatible SLC 500 chassis
• Uses removable screw terminal wiring

Weight:

• Approximate Weight: 0.32 kg (0.71 lb).
