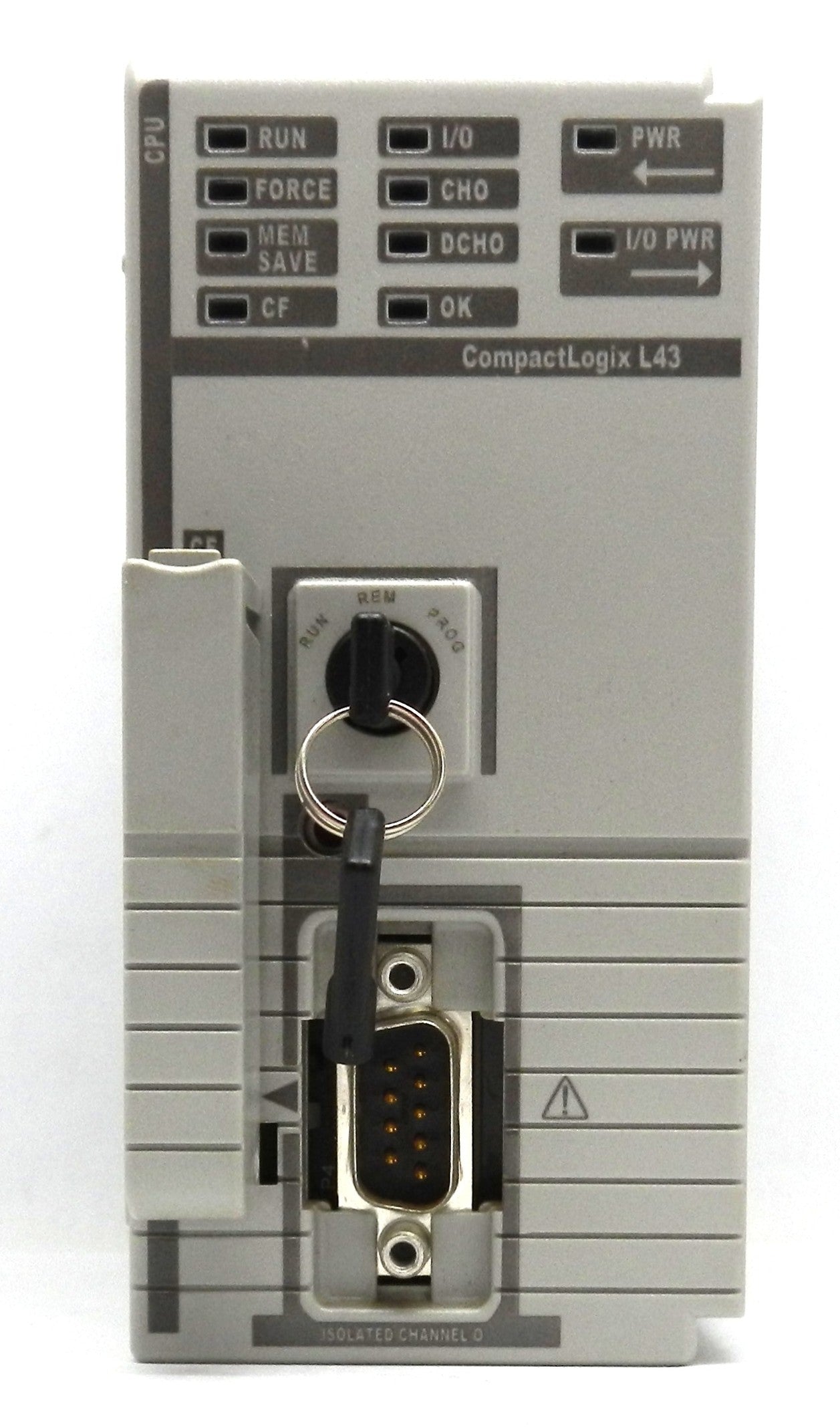

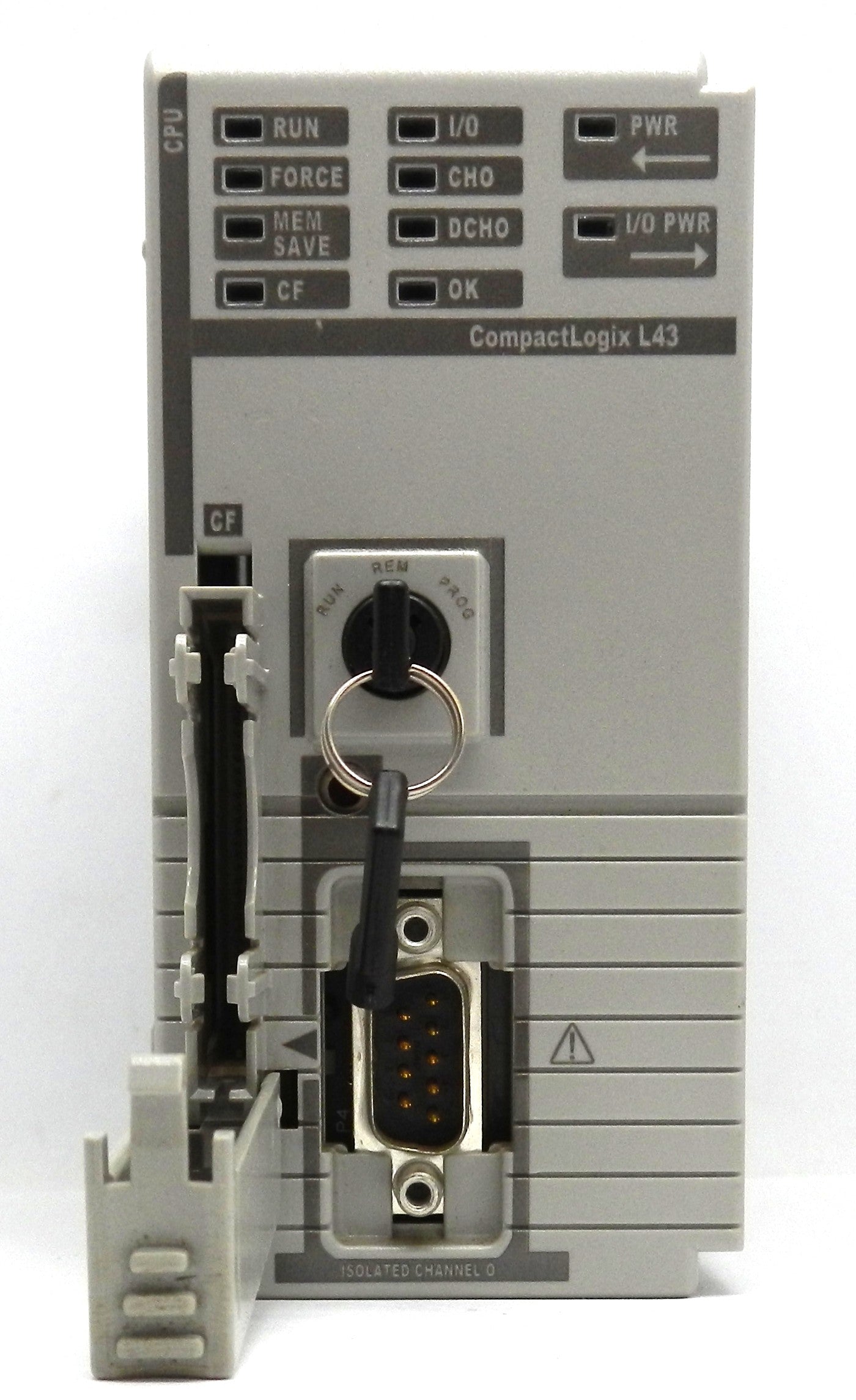

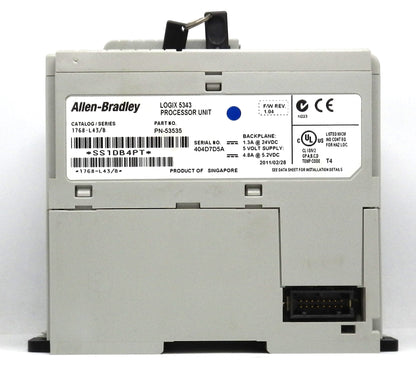

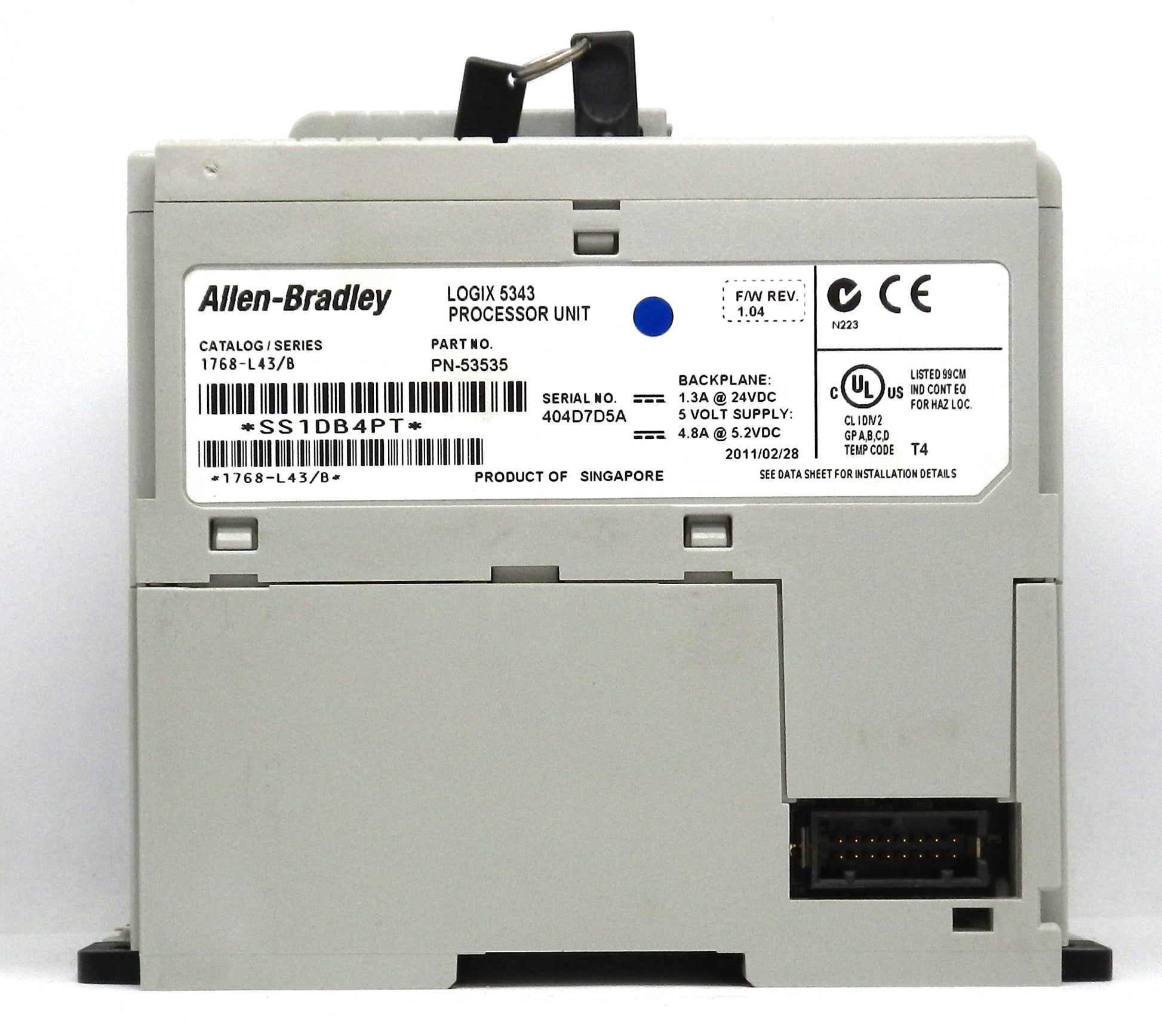

1768-L43 Allen-Bradley CompactLogix Processor Module 2MB Memory PLC Controller

Description:

• CompactLogix programmable automation controller (PAC) designed for high-performance machine and process control
• Features 2 MB user memory for complex industrial automation applications
• Supports up to 16 Compact I/O (1769) modules and 2 CompactLogix communication or motion modules (1768)
• Integrated RS-232 serial communication port for programming, diagnostics, and device connectivity
• Compatible with EtherNet/IP, ControlNet, and DeviceNet communication modules (sold separately)
• Supports Ladder Logic, Function Block Diagram (FBD), Structured Text (ST), and Sequential Function Chart (SFC) programming
• DIN rail or panel mount installation for flexible control cabinet integration
• Ideal for machine automation, material handling, packaging, OEM equipment, and industrial process control
• Discontinued by Rockwell Automation; suitable as a replacement or spare for existing CompactLogix systems.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1768-L43
• Product Series: CompactLogix 1768
• Product Type: Processor Module / PLC Controller
• User Memory: 2 MB
• Communication Port: 1 × RS-232 Serial
• Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
• Maximum 1768 Modules: 2
• Maximum 1768 Motion Modules: 2
• Maximum 1769 I/O Modules: 16
• Maximum I/O Banks: 2
• Backplane Current Draw: 1.3 A @ 24 VDC
• Current Draw: 2.8 A @ 5 VDC (1768 Bus)
• Power Consumption: 31.3 W
• Power Dissipation: 6.3 W
• Mounting Type: DIN Rail or Panel Mount
• Operating Temperature: 0°C to +60°C
• Compatible Power Supplies: 1768-PA3, 1768-PB3
• Application: Machine Control, Packaging, Material Handling, Industrial Automation, OEM Equipment, and Process Control.

Dimensions:

• Height: 131.1 mm (5.16 in)
• Width: 56.4 mm (2.22 in)
• Depth: 121.1 mm (4.77 in)

Weight:

• Approximate Weight: 0.34 kg (0.75 lb)
