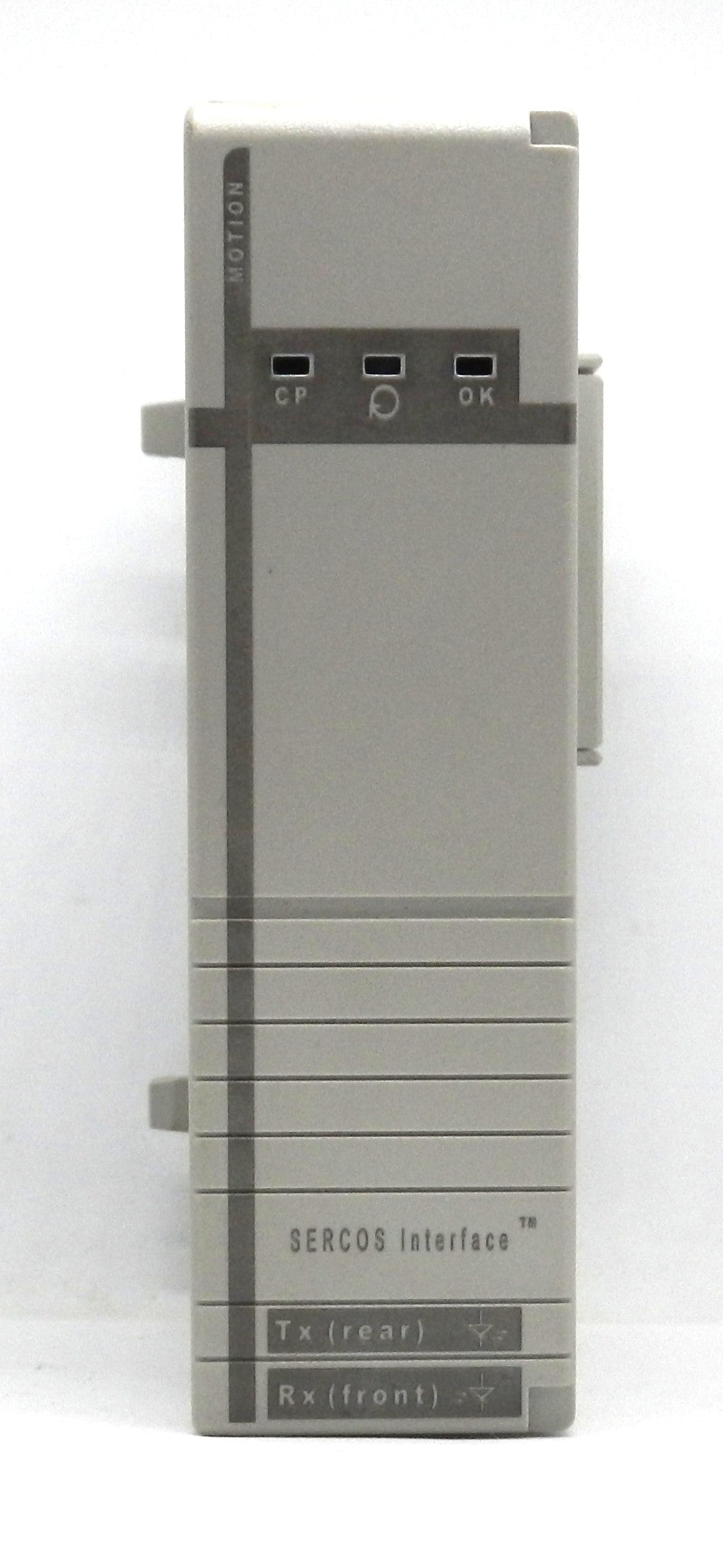

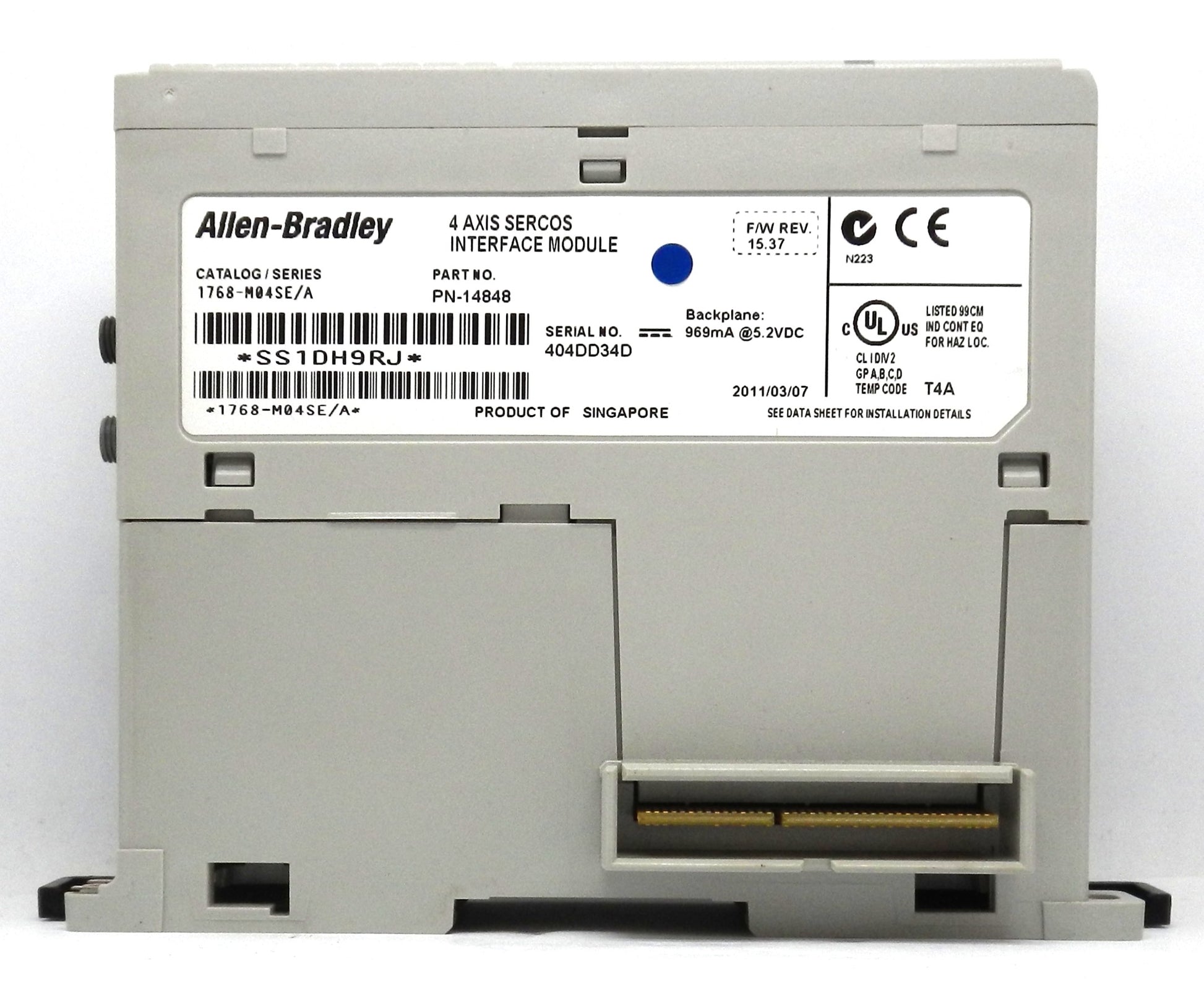

1768-M04SE Allen-Bradley CompactLogix SERCOS Interface Module 4-Axis Motion Controller

Description:

• CompactLogix SERCOS interface module designed for high-performance integrated motion control applications
• Supports up to 4 servo axes with synchronized multi-axis motion control
• Compatible with Allen-Bradley CompactLogix 1768-L43 and 1768-L45 controllers
• Communicates with Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra3000 SERCOS servo drives via fiber-optic SERCOS network
• Supports 4 Mbps and 8 Mbps SERCOS communication rates for high-speed motion control
• Provides position and velocity control modes for demanding automation applications
• Dual F-SMA fiber-optic connectors ensure reliable industrial communication
• DIN rail or panel mount installation for flexible control cabinet integration
• Ideal for packaging machinery, robotics, material handling, CNC equipment, and industrial automation systems
• Manufactured by Rockwell Automation for dependable integrated motion performance.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 1768-M04SE
• Product Series: CompactLogix 1768
• Product Type: SERCOS Interface Module
• Motion Axes Supported: 4 Servo Axes
• Auxiliary Feedback Axes: 2
• Communication Protocol: SERCOS Interface
• SERCOS Class: Class B (Position or Velocity)
• Data Rates: 4 Mbps / 8 Mbps
• Cycle Time:
  • 0.5 ms (up to 2 drives @ 4 Mbps)
  • 1 ms (up to 4 drives @ 4 Mbps)
  • 0.5 ms (up to 4 drives @ 8 Mbps)
• Fiber Optic Connector: F-SMA
• Compatible Drives: Kinetix 2000, Kinetix 6000, Kinetix 7000, Ultra3000 SERCOS
• Current Draw: 969 mA @ 5.2 VDC
• Power Dissipation: 5.04 W
• Mounting Type: DIN Rail or Panel Mount
• Enclosure: Open Style
• Operating Temperature: 0°C to +60°C
• Application: Motion Control, Robotics, Packaging Machines, CNC Equipment, Material Handling, Industrial Automation.

Dimensions:

• Height: 132 mm (5.20 in)
• Width: 57 mm (2.23 in)
• Depth: 105 mm (4.14 in)

Weight:

• Approximate Weight: 0.20 kg (0.44 lb)
