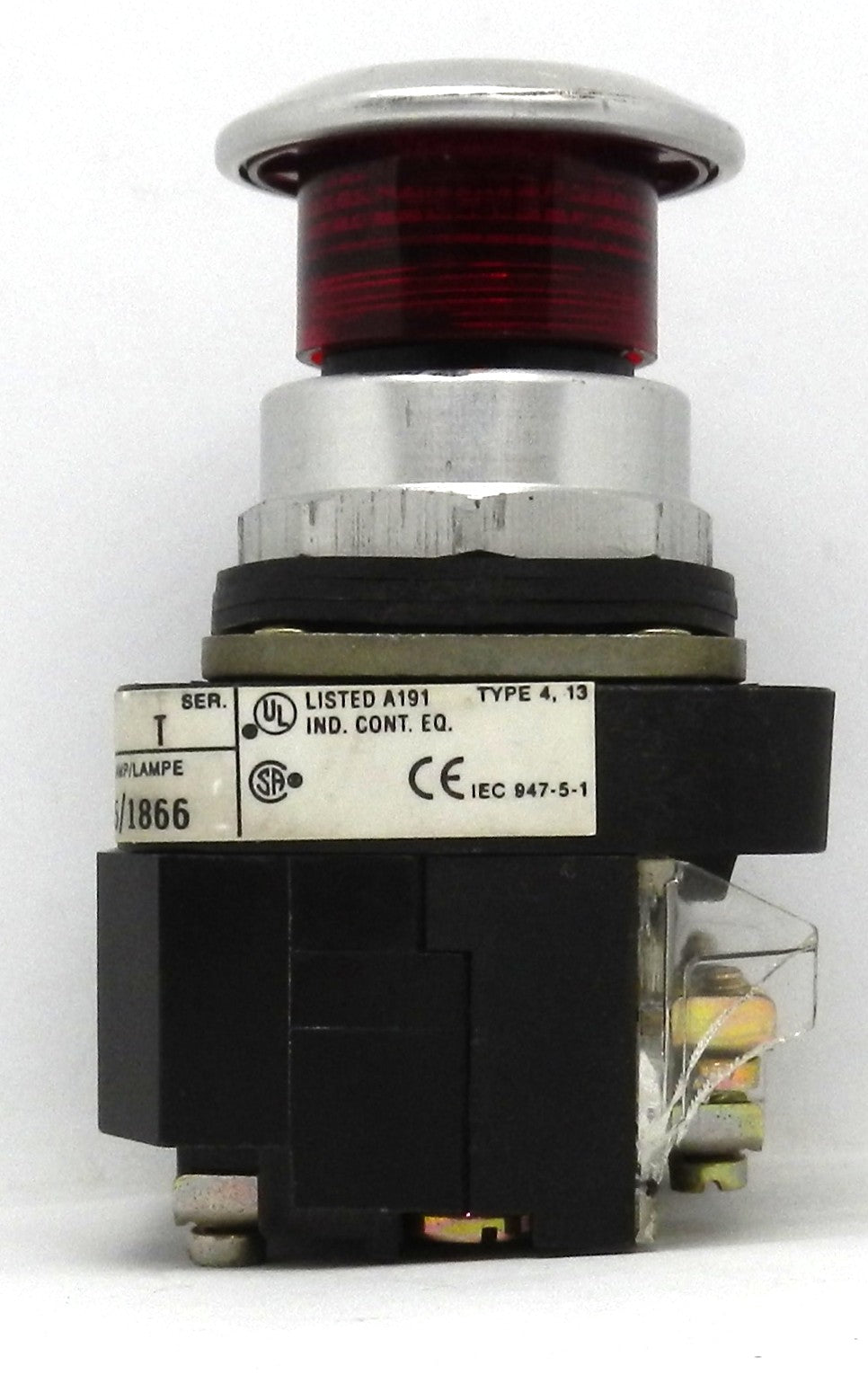

800T-FXP16RA1 Allen-Bradley 30.5mm Illuminated Push-Pull Mushroom Push Button 2-Position 120VAC Red

Description:

• Allen-Bradley Bulletin 800T heavy-duty illuminated push-pull push button designed for industrial machine control and safety applications
• 30.5 mm panel mount with rugged metal construction for demanding industrial environments
• Red 40 mm mushroom head with 2-position maintained push-pull operation
• Factory assembled with 120 VAC 50/60 Hz incandescent transformer illumination
• Includes 1 Normally Open (1 NO) and 1 Normally Closed Late Break (1 NCLB) contact block (800T-XA1)
• Rated A600 / AC-15 and Q600 / DC-13 for heavy-duty industrial control applications
• Screw terminal connections provide secure, vibration-resistant wiring
• NEMA Type 1, 4, 12, and 13 enclosure rating when properly installed
• Ideal for emergency control stations, machine control panels, motor control centers, OEM equipment, conveyors, and industrial automation systems
• Manufactured by Rockwell Automation for dependable industrial control performance.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 800T-FXP16RA1
• Product Series: Bulletin 800T
• Product Type: Illuminated Push-Pull Push Button
• Operation: Push-Pull, Maintained
• Head Style: Mushroom Head
• Head Color: Red
• Head Diameter: 40 mm
• Mounting Diameter: 30.5 mm
• Illumination Type: Incandescent Transformer
• Illumination Voltage: 120 VAC, 50/60 Hz
• Contact Configuration: 1 NO + 1 NCLB (800T-XA1)
• Contact Rating: 10 A Thermal
• Utilization Rating: A600 / AC-15, Q600 / DC-13
• Maximum Operating Voltage: 600 VAC / 600 VDC
• Terminal Type: Screw Terminals
• Operator Material: Plastic with Aluminum Spinover
• Construction: Metal
• Mechanical Life: 250,000 Operations (Minimum)
• Electrical Life: 1,000,000 Operations (at Rated Load)
• Enclosure Rating: NEMA 1, 4, 12, 13
• Certifications: UL Listed, CSA, CE, CCC
• Application: Industrial Control Panels, Emergency Stop Stations, Machine Automation, Motor Control, PLC Systems, OEM Equipment.

Dimensions:

• Mounting Hole Diameter: 30.5 mm
• Mushroom Head Diameter: 40 mm
• Heavy-duty modular design compatible with Bulletin 800T accessories.

Weight:

• Approximate Weight: 0.25 kg (0.55 lb).
