AB ALLEN-BRADLEY

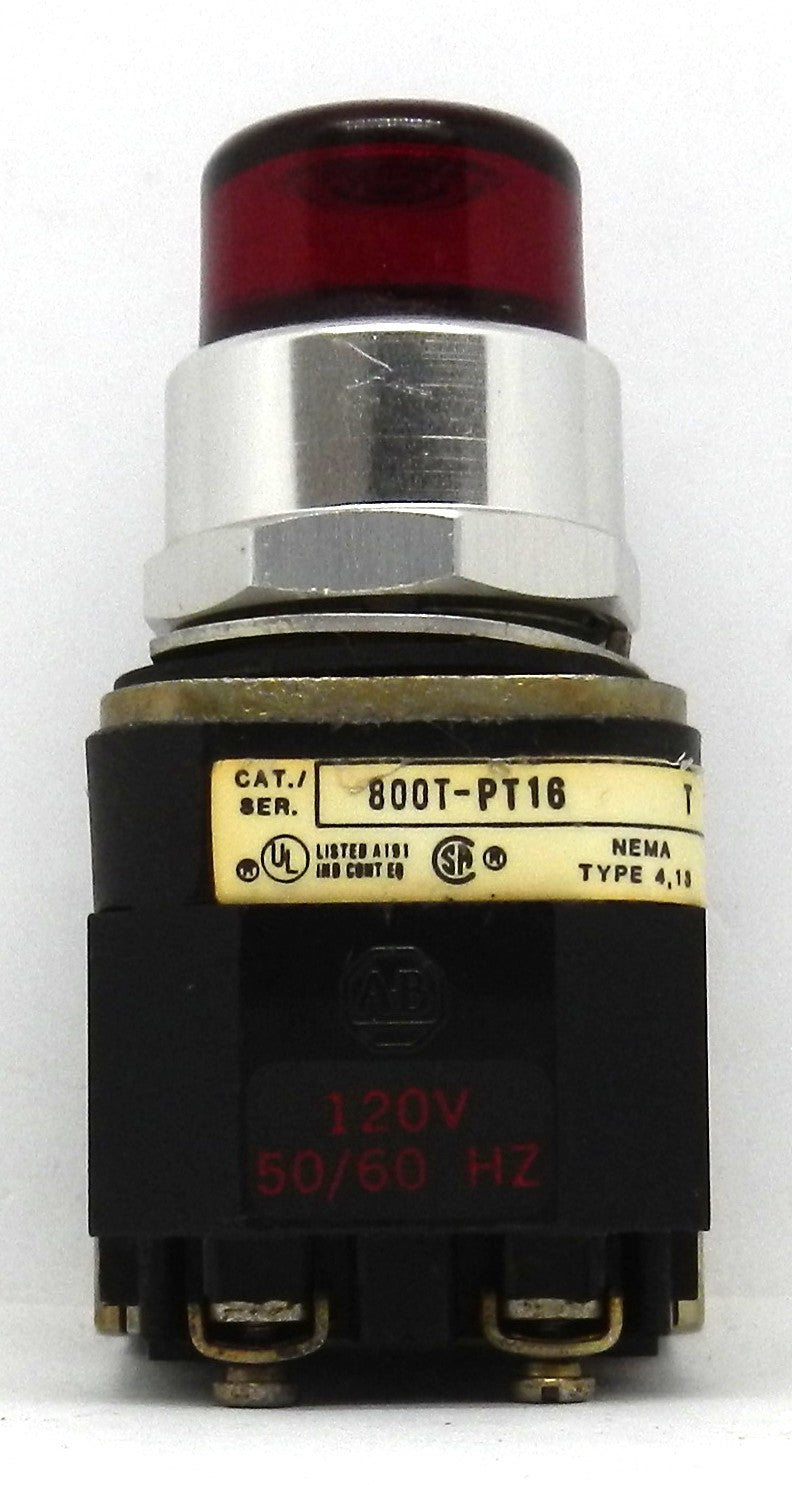

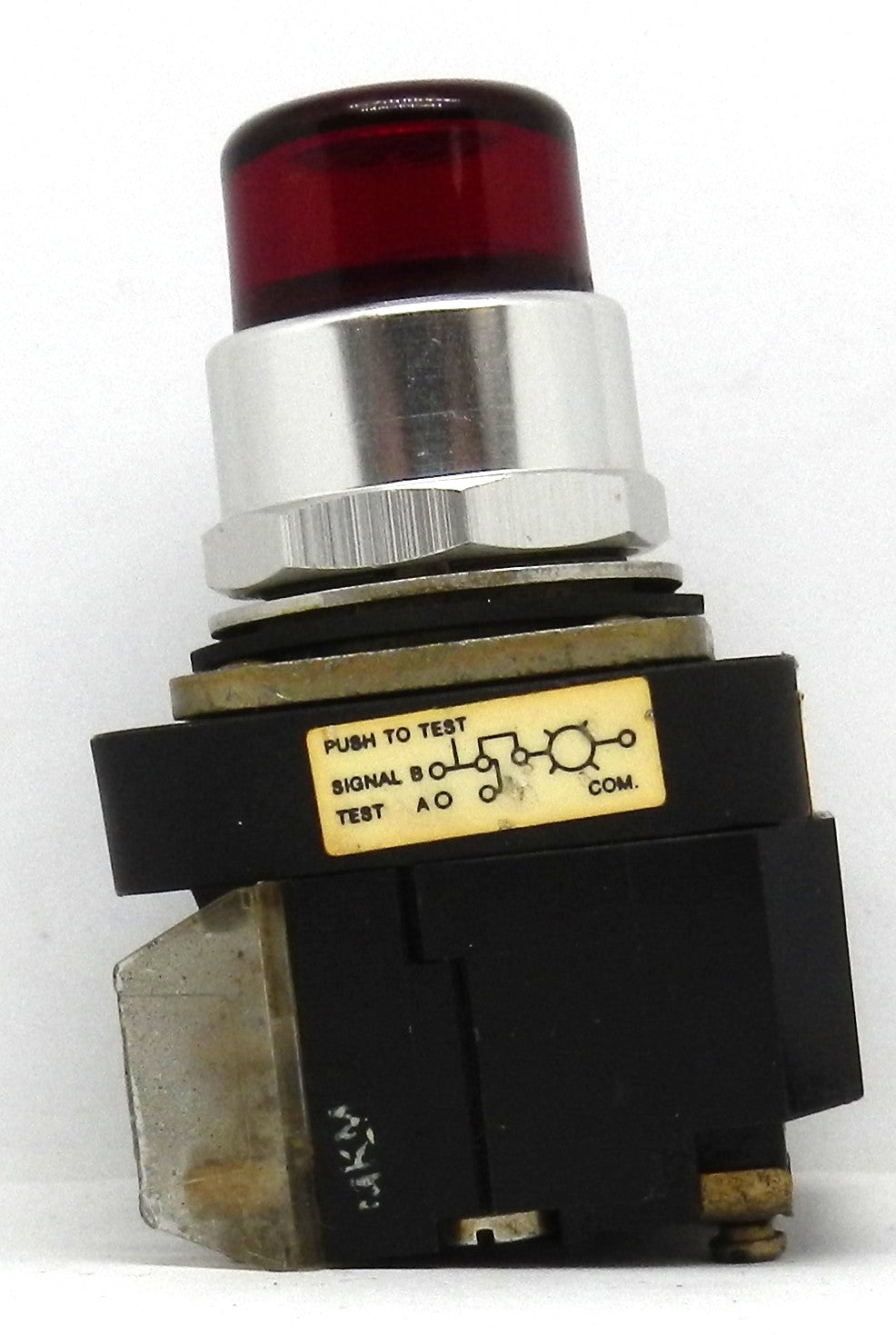

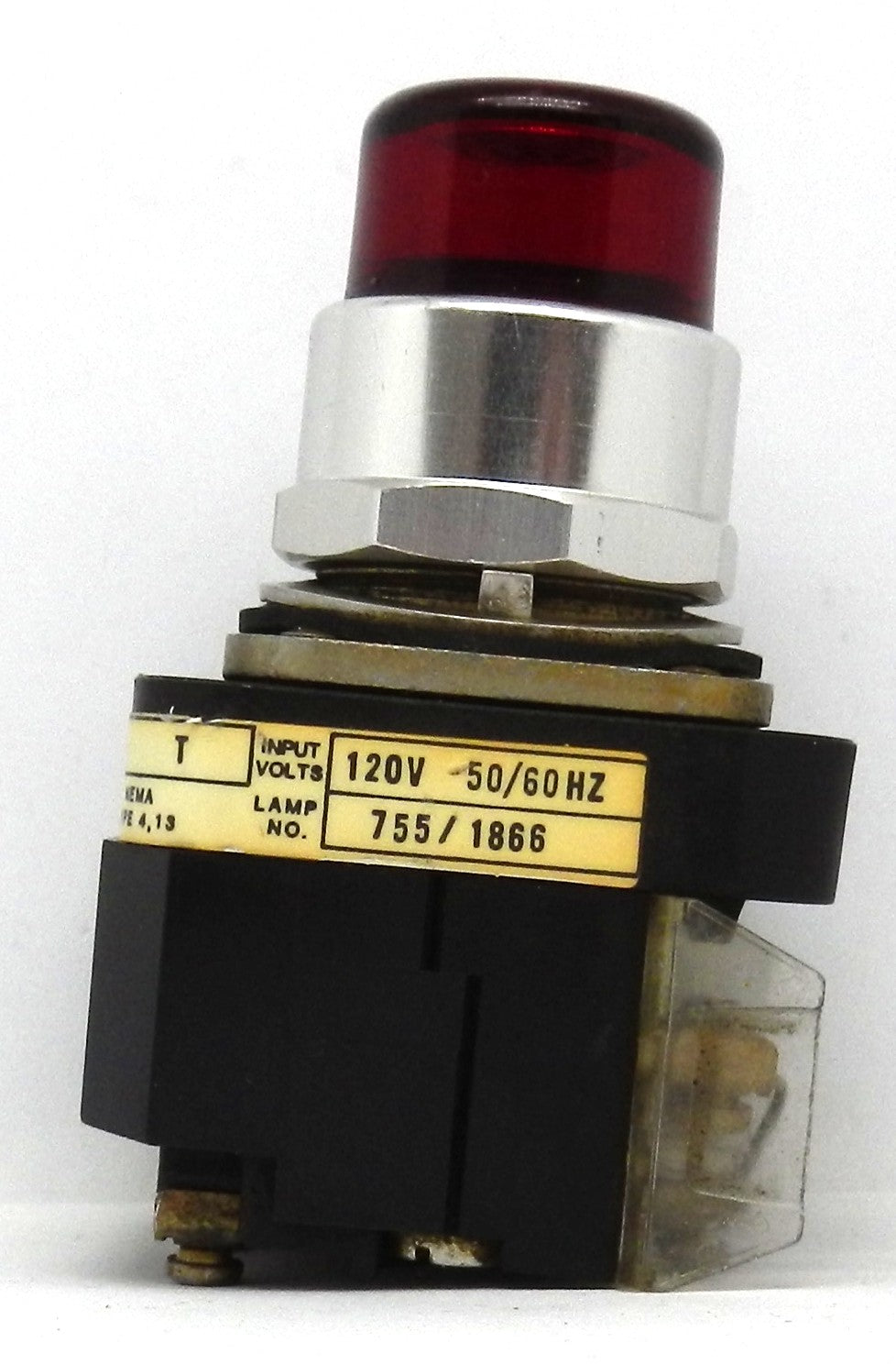

800T-PT16 Allen-Bradley 30.5mm Push-to-Test Pilot Light 120VAC Incandescent 1NO 1NC Metal

$54.99 CAD

Sale Sold out

STYLE Refurbish

Description:

Allen-Bradley Bulletin 800T heavy-duty Push-to-Test pilot light designed for industrial control panels and machine automation
30.5 mm panel mount with rugged metal construction for demanding industrial environments
Push-to-Test feature allows quick verification of lamp operation without interrupting machine operation
Factory assembled with 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) contact block
Includes 120 VAC 50/60 Hz transformer-type incandescent illumination module
Screw terminal connections provide secure, vibration-resistant wiring
Rated A600 / AC-15 and Q600 / DC-13 for industrial control applications
NEMA Type 1, 4, 12, and 13 enclosure rating when properly installed
Ideal for PLC panels, motor control centers, operator stations, OEM machinery, and industrial automation systems
Manufactured by Rockwell Automation for reliable pilot device performance.

Manufacturer Name: Allen-Bradley (Rockwell Automation)
Part Number (MPN): 800T-PT16
Product Series: Bulletin 800T
Product Type: Push-to-Test Pilot Light
Operator Function: Push-to-Test
Operator Type: Pilot Light
Mounting Diameter: 30.5 mm
Operator Construction: Metal
Illumination Type: Incandescent
Illumination Module: Transformer
Input Voltage: 120 VAC, 50/60 Hz
Contact Configuration: 1 NO + 1 NC
Contact Rating: 10 A Thermal
Utilization Rating: A600 / AC-15, Q600 / DC-13
Maximum Operating Voltage: 600 VAC / 600 VDC
Connection Type: Screw Terminals
Mechanical Life: 250,000 Operations (Minimum)
Electrical Life: 1,000,000 Operations (at Rated Load)
Enclosure Rating: NEMA 1, 4, 12, 13
Certifications: UL Listed, CSA, CE, CCC
Application: Industrial Control Panels, Machine Controls, Motor Control Centers, OEM Equipment, PLC Systems, Factory Automation.
