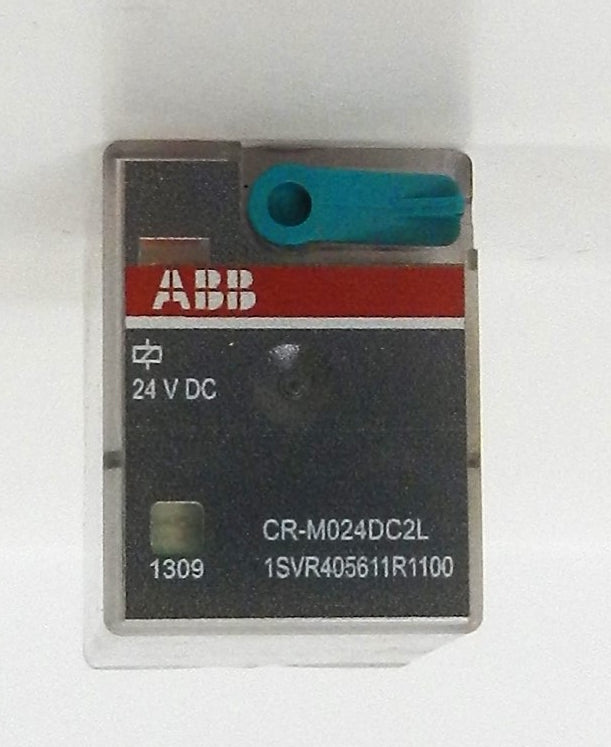

ABB CR-M024DC2L 24VDC Interface Relay 2 C/O DPDT 12A Plug-In Relay with LED

Description:

• Genuine ABB CR-M pluggable miniature interface relay for industrial automation and control applications
• Operates with a 24 VDC control coil and features an integrated LED for visual coil status indication
• Equipped with 2 changeover (2 C/O / DPDT) contacts rated at 12A, 250VAC
• Plug-in design allows quick installation and replacement using compatible ABB CR-M relay sockets
• Integrated manual test button enables easy testing and commissioning without energizing the control circuit
• Silver-nickel (AgNi) contacts provide excellent durability and switching performance
• Suitable for signal isolation, control logic, PLC interfaces, machine automation, process control, HVAC, OEM equipment, and industrial control panels
• Compatible with ABB CR-M2SS, CR-M4SS, and other CR-M series relay sockets and accessories

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): CR-M024DC2L
• Product ID: 1SVR405611R1100
• Product Series: CR-M
• Product Type: Pluggable Interface Relay
• Relay Type: Electromechanical
• Coil Voltage: 24 VDC

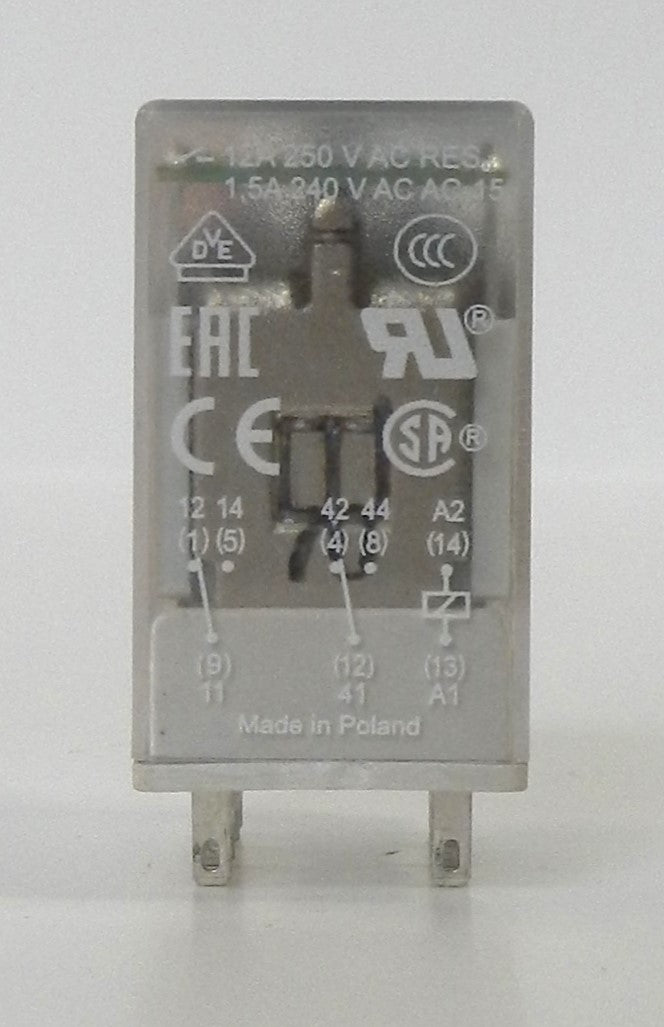

• Contact Configuration: 2 C/O (DPDT / 2 Form C)
• Contact Rating: 12 A @ 250 VAC
• Contact Material: Silver-Nickel (AgNi)

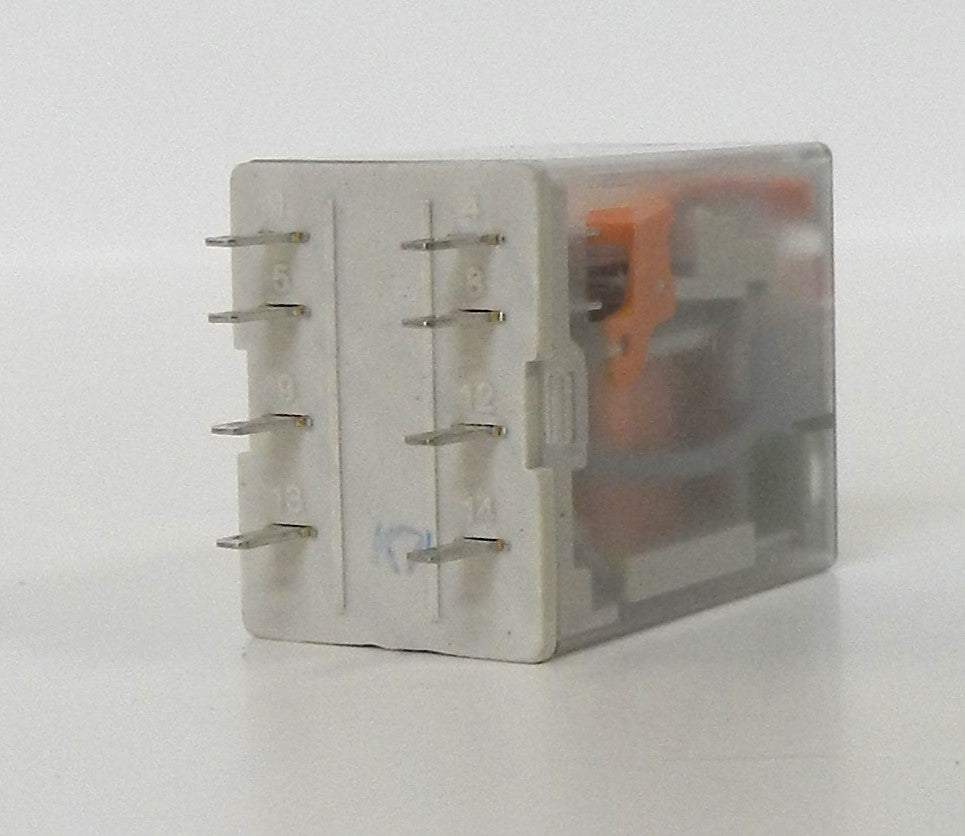

• Terminal Type: Flat Pin
• Indicator: Built-in LED
• Test Button: Integrated Manual Test Button
• Rated Insulation Voltage (Ui): 250 V
• Degree of Protection: IP40
• Mounting: Compatible Plug-In Socket / 35 mm DIN Rail (with socket)
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Maximum Operating Altitude: 2000 m
• Standards:
  • UL 508
  • CSA C22.2 No. 14
  • IEC/EN 61810-1
  • IEC/EN 63000
  • CE
  • RoHS Compliant

Dimensions:

• Width: 21.2 mm (0.83 in)
• Height: 35.6 mm (1.40 in)
• Depth: 27.5 mm (1.08 in)

Weight:

• Approximate Weight: 0.033 kg (0.07 lb).
