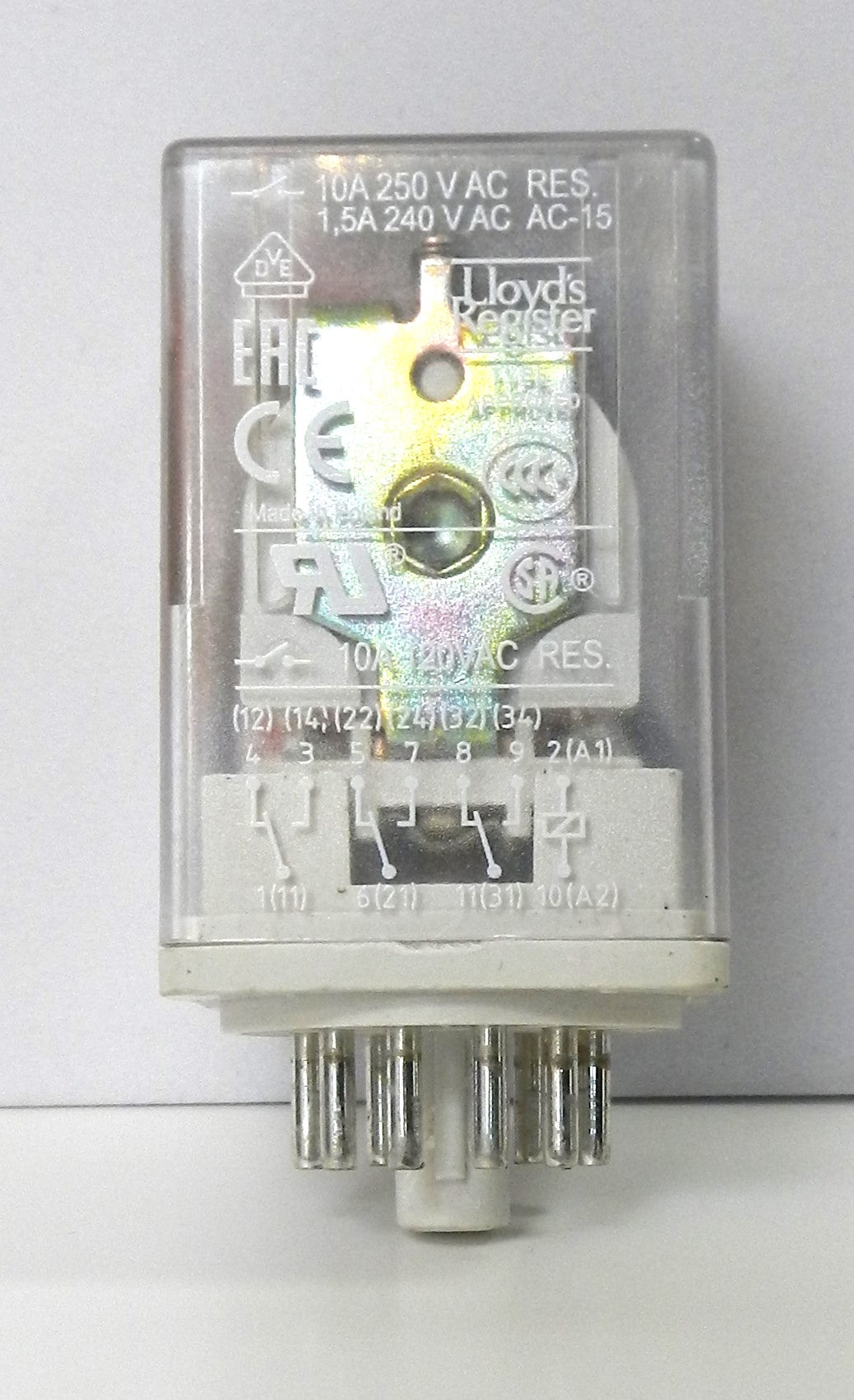

ABB CR-U024DC3L 24VDC Pluggable Interface Relay 3PDT 10A with LED

Description:

• Genuine ABB CR-U pluggable interface relay for industrial automation and control applications
• Operates with a 24 VDC control coil and features 3 changeover (3PDT / 3 C/O / SPDT) output contacts
• Rated for 250 VAC, 10 A switching capacity, making it suitable for a wide range of industrial loads
• Integrated LED status indicator provides clear visual indication of coil energization
• Built-in manual test button allows easy testing and locking of output contacts during commissioning and maintenance
• Designed for use with compatible ABB CR-U relay sockets and optional function modules
• Silver-nickel (AgNi) contacts provide reliable switching performance and long service life
• Compact plug-in design enables quick installation and replacement without rewiring
• Ideal for PLC interfaces, industrial control panels, HVAC systems, OEM machinery, process control, and automation systems.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): CR-U024DC3L
• ABB Order Code: 1SVR405622R1100
• Product Series: CR-U
• Product Type: Pluggable Interface Relay
• Coil Voltage: 24 VDC
• Contact Configuration: 3 C/O (3PDT / 3 SPDT)
• Rated Switching Capacity: 250 VAC / 10 A
• Contact Material: Silver-Nickel (AgNi)

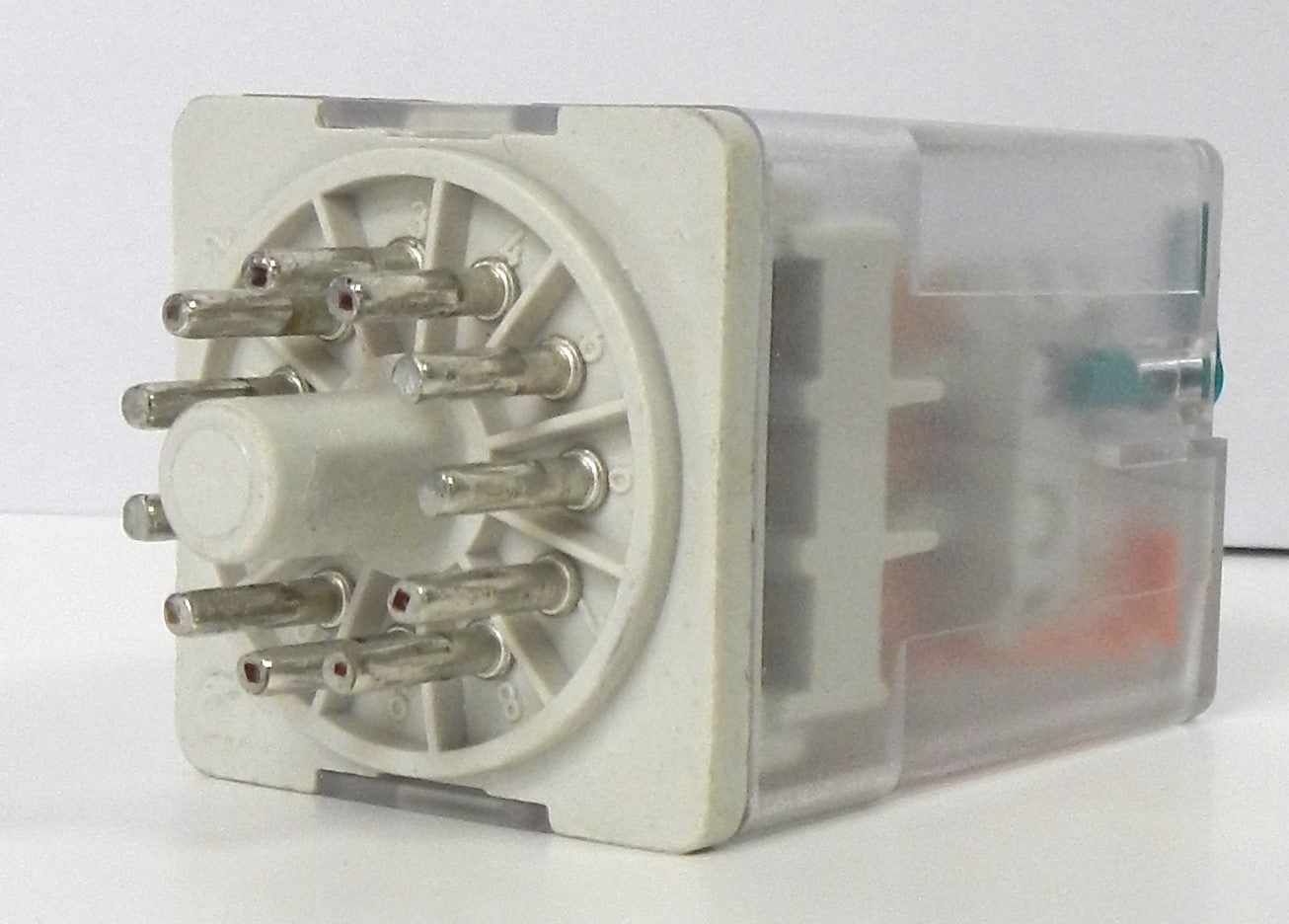

• Terminal Type: Pin
• Features:
  • Integrated LED Indicator
  • Manual Test Button
  • Lockable Test Function
• Rated Insulation Voltage (Ui): 250 V
• Degree of Protection: IP40
• Ambient Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Maximum Operating Altitude: 2000 m (without derating)
• Standards:
  • IEC/EN 61810-1
  • UL 508
  • CAN/CSA C22.2 No. 14
  • IEC/EN 63000
  • RoHS Compliant
• Compatible Accessories:
  • ABB CR-U3S Socket
  • ABB CR-U3E Socket
  • ABB CR-U3SM Socket
  • Function Modules
  • Hold-Down Clip
  • Marker Tags

Dimensions:

• Width: 35 mm (1.38 in)
• Height: 54.4 mm (2.14 in)
• Depth: 35 mm (1.38 in)

Weight:

• Approximate Weight: 0.083 kg (0.18 lb).
