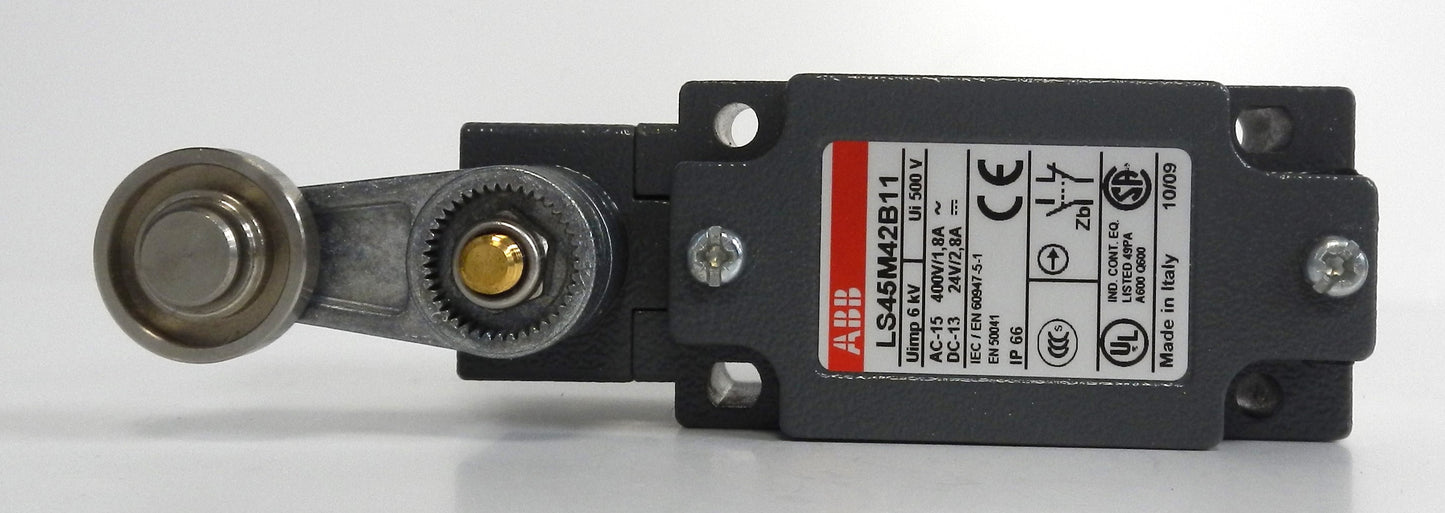

LS45M42B11 ABB Heavy-Duty Limit Switch Metal Roller Lever 1NO 1NC IP66

Description:

• Genuine ABB heavy-duty limit switch for industrial automation and machine control applications
• Features a 22 mm steel roller lever actuator for reliable position sensing and mechanical detection
• Rugged zinc alloy (Zamak) metal housing provides excellent durability in harsh industrial environments
• Equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) snap-action contacts with positive opening operation
• IP66 enclosure protects against dust ingress and powerful water jets
• 1/2 in. NPT bottom cable entry for secure conduit or cable gland installation
• Designed in accordance with EN 50041 standard housing dimensions for easy replacement and interchangeability
• Four mounting holes provide secure installation on industrial machinery and equipment
• Ideal for conveyors, machine tools, packaging equipment, material handling systems, OEM machinery, and industrial automation
• Part of the ABB LS4..M heavy-duty metal limit switch series.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): LS45M42B11
• Product ID: 1SBV013142R1211
• Product Series: LS4..M
• Product Type: Heavy-Duty Limit Switch
• Actuator Type: 22 mm Steel Roller Lever
• Housing Material: Zinc Alloy (Zamak)
• Contact Configuration:
  • 1 Normally Open (NO)
  • 1 Normally Closed (NC)
• Contact Type: Snap Action (Zb Type)
• Positive Opening Contacts: Yes
• Degree of Protection: IP66
• Cable Entry: 1/2 in. NPT (Bottom Entry)
• Mounting Style: Four-Bolt Panel Mount
• Maximum Actuation Speed: 1.5 m/s
• Minimum Operating Torque: 0.3 N·m
• Operating Temperature: -25°C to +70°C
• Standards & Certifications:
  • EN 50041
  • IEC 60947-5-1
  • UL Recognized
  • CE
  • RoHS Compliant
• Applications:
  • Industrial Automation
  • Machine Safety
  • Conveyor Systems
  • Packaging Machinery
  • Material Handling
  • Manufacturing Equipment
  • OEM Machinery

Dimensions:

• Width: 40 mm
• Height: 133 mm
• Depth: 60 mm

Weight:

• Approximate Weight: 0.279 kg (0.62 lb).
