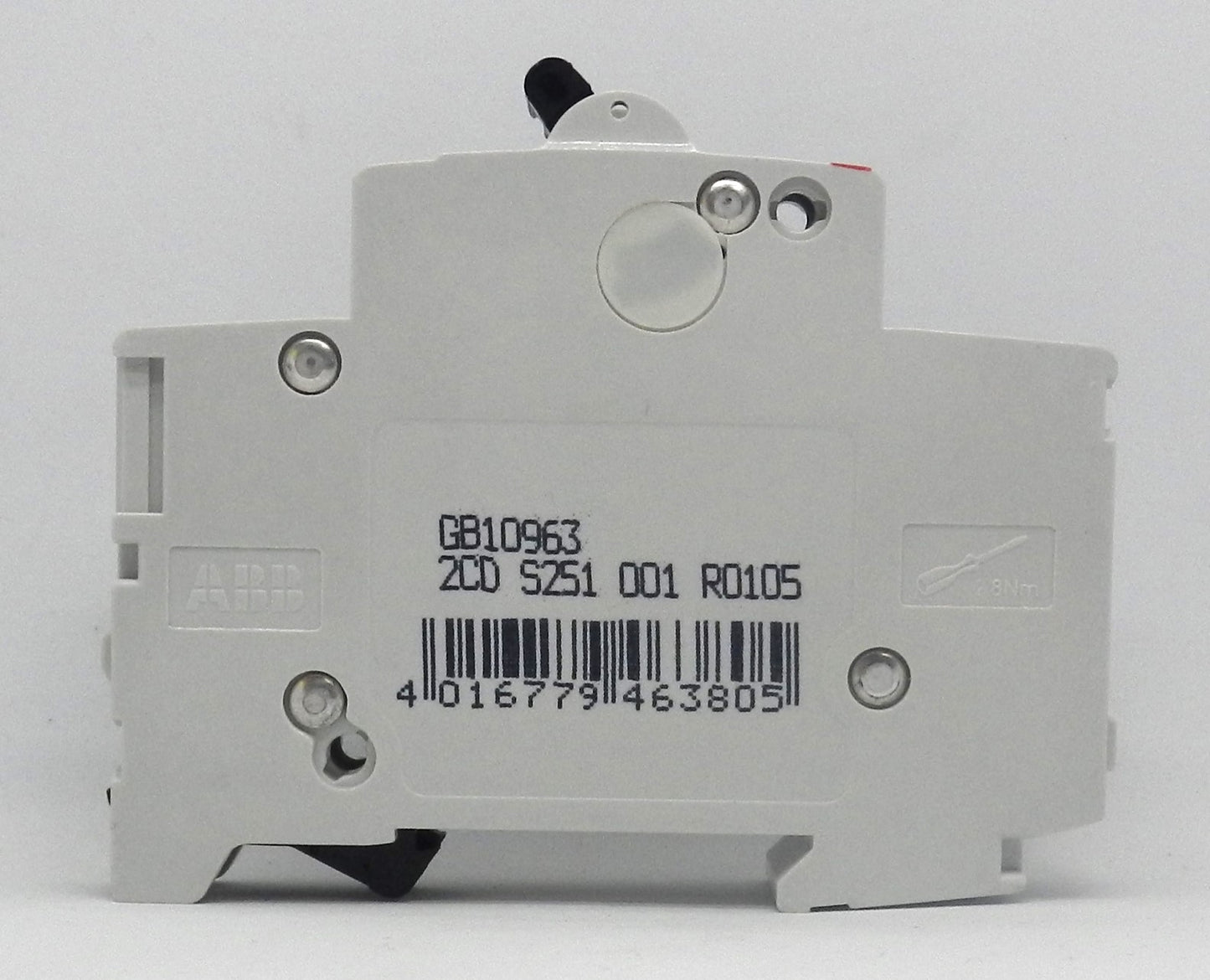

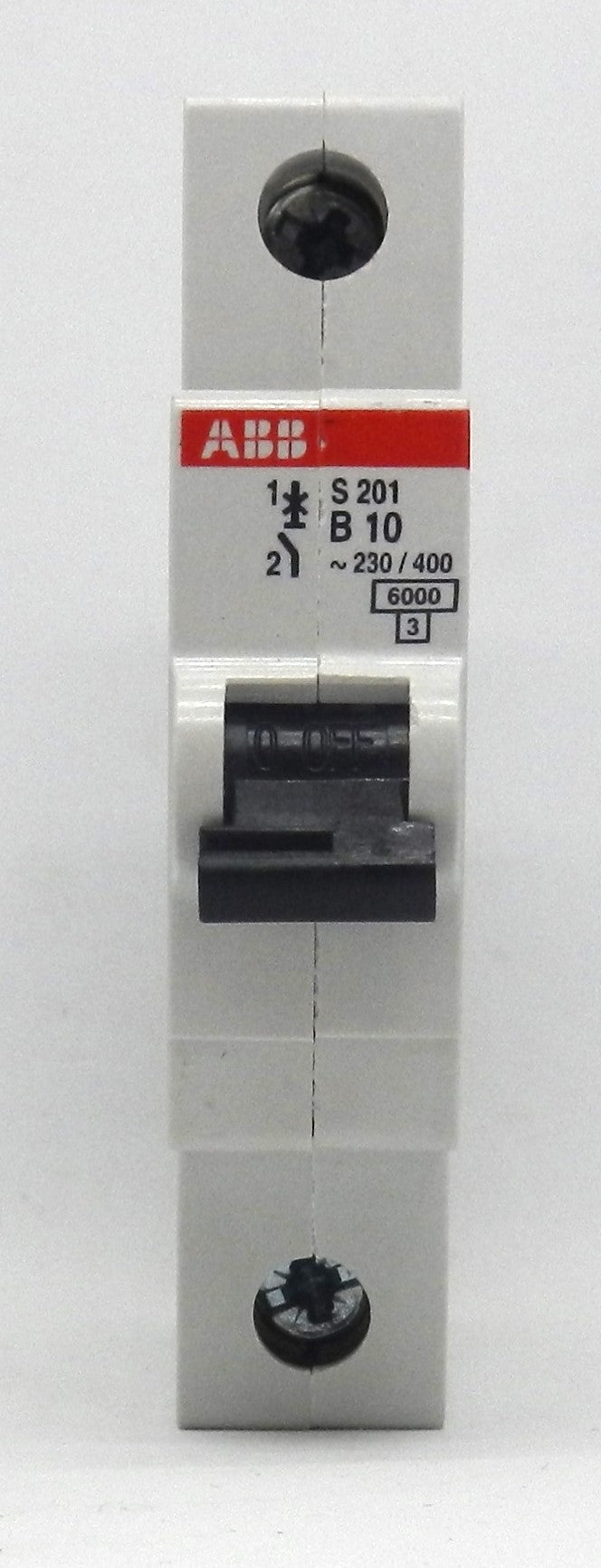

S201-B10A 2CDS251001R0105 ABB 10A 1-Pole Miniature Circuit Breaker B-Curve 6kA DIN Rail

Description:

• Genuine ABB System pro M Compact S200 miniature circuit breaker for residential, commercial, and industrial electrical protection
• Provides 1-pole, 10 Amp overcurrent protection against overloads and short circuits
• B-Curve trip characteristic ideal for resistive loads, lighting circuits, and general-purpose branch circuits
• Rated for 230/400 VAC operation with a 6 kA breaking capacity
• Thermal-magnetic tripping mechanism ensures reliable overload and short-circuit protection
• Compact 35 mm DIN rail mounting design for quick installation in distribution boards and control panels
• Compatible with ABB S200 Series accessories, including auxiliary contacts, signal contacts, shunt trips, and busbars
• Finger-safe terminals provide secure wiring and improved installation safety
• Suitable for electrical distribution panels, industrial automation, OEM equipment, commercial buildings, and residential installations
• Manufactured as part of ABB's System pro M Compact S200 product family, compliant with international safety standards.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): S201-B10A
• Product ID: 2CDS251001R0105
• Product Series: System pro M Compact S200
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 10 A
• Trip Curve: B
• Breaking Capacity: 6 kA @ 230/400 VAC
• Rated Operational Voltage: 230/400 VAC
• Maximum Operational Voltage:
  • 253 VAC
  • 72 VDC
• Rated Insulation Voltage: 440 VAC
• Frequency: 50/60 Hz
• Mounting Type: 35 mm DIN Rail
• Protection Type: Thermal-Magnetic
• Standards:
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
• Operating Temperature: -25°C to +55°C
• Applications:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Commercial Buildings
  • Residential Electrical Systems
  • OEM Equipment
  • Industrial Automation

Dimensions:

• Height: 85 mm (3.35 in)
• Width: 17.5 mm (0.69 in)
• Depth: 69 mm (2.72 in).

Weight:

• Approximate Weight: 0.11 kg (0.24 lb).
