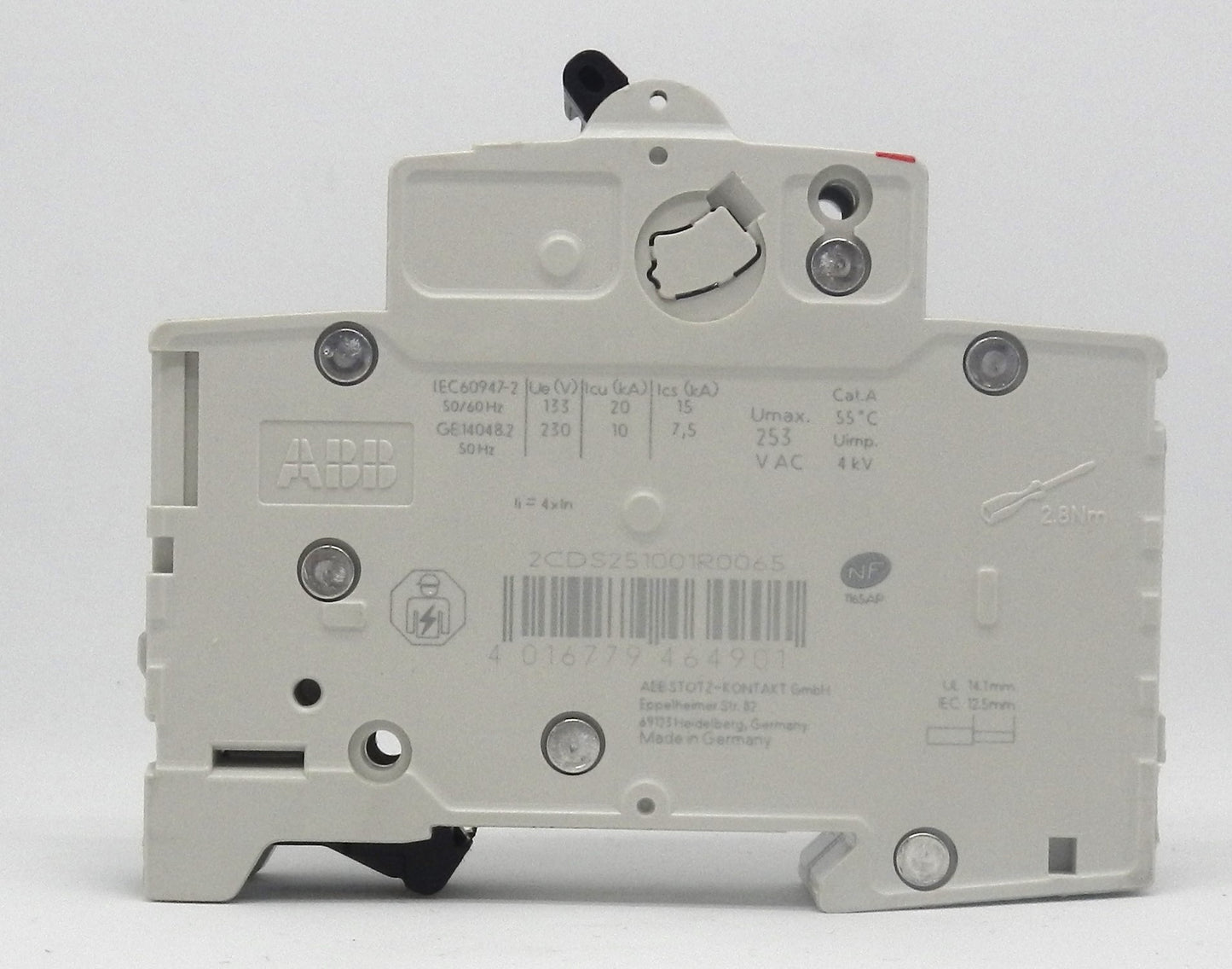

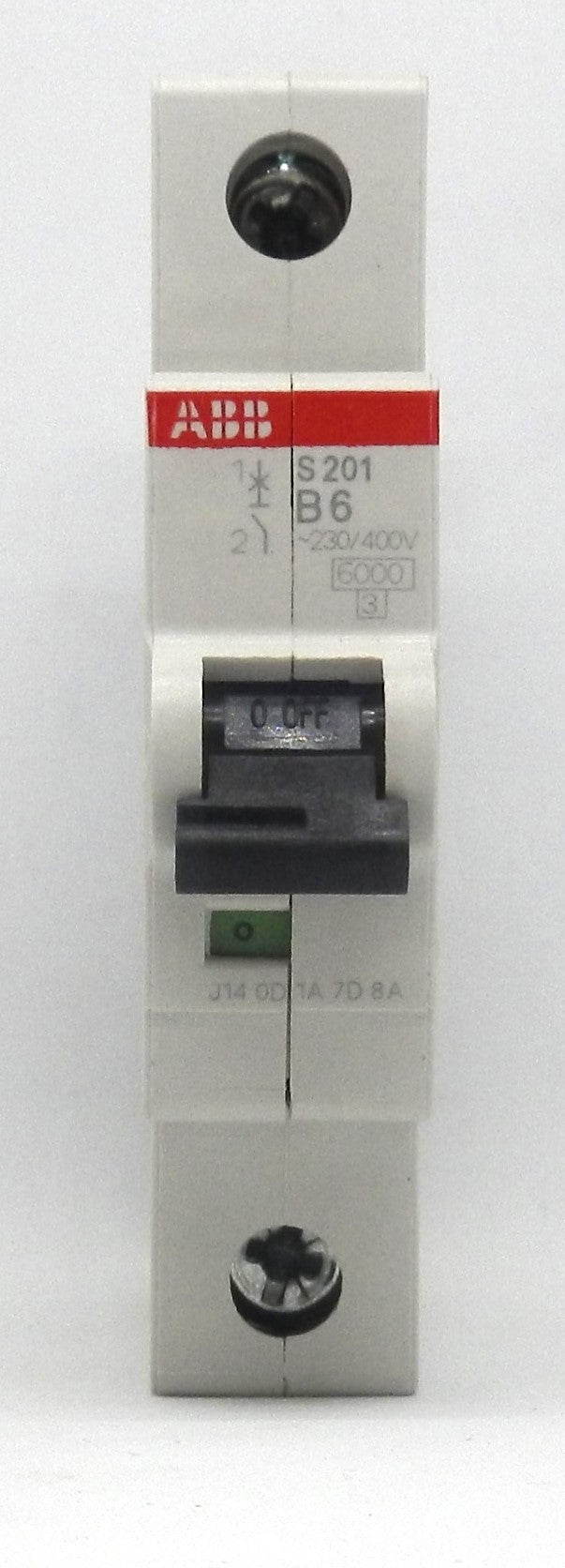

S201-B6 ABB 6A 1-Pole Miniature Circuit Breaker B-Curve DIN Rail 230/400VAC 6kA

Description:

• Genuine ABB miniature circuit breaker from the System pro M compact S200 series
• Provides 1-pole, 6 Amp overcurrent protection for residential, commercial, and industrial electrical systems
• B-Curve trip characteristic designed for resistive loads and circuits with low inrush current
• Rated for 230/400 VAC (IEC) and 277 VAC (UL 1077)
• 6 kA short-circuit breaking capacity for dependable fault protection
• Thermal-magnetic trip mechanism provides reliable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for easy installation in distribution boards and control panels
• Finger-safe terminals with captive screws for secure wiring and improved safety
• Compatible with ABB S200 series accessories including auxiliary contacts, shunt trips, and busbars
• Ideal for electrical distribution panels, industrial automation, OEM equipment, commercial buildings, and machine control applications.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): S201-B6
• Product Series: System pro M compact S200
• Product Type: Miniature Circuit Breaker (MCB)
• Product ID: 2CDS251001R0065
• Number of Poles: 1
• Rated Current: 6 A
• Trip Curve: B
• Protection Type: Thermal-Magnetic
• Rated Operational Voltage:
  • 230/400 VAC (IEC)
  • 277 VAC (UL 1077)
• Rated Frequency: 50/60 Hz
• Short-Circuit Breaking Capacity: 6 kA
• Rated Insulation Voltage (Ui): 440 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Energy Limiting Class: 3
• Mounting Type: 35 mm DIN Rail
• Mechanical Life: 20,000 Operations
• Electrical Life: 20,000 Operations
• Standards:
  • IEC/EN 60898-1
  • IEC/EN 60947-2
  • UL 1077
  • CSA 22.2 No. 235
• Applications:
  • Electrical Distribution
  • Industrial Control Panels
  • Commercial Buildings
  • OEM Equipment
  • Machine Automation
  • Residential Installations

Dimensions:

• Height: 88 mm (3.46 in)
• Width: 17.5 mm (0.69 in)
• Depth: 69 mm (2.72 in)

Weight:

• Approximate Weight: 0.125 kg (0.28 lb).
