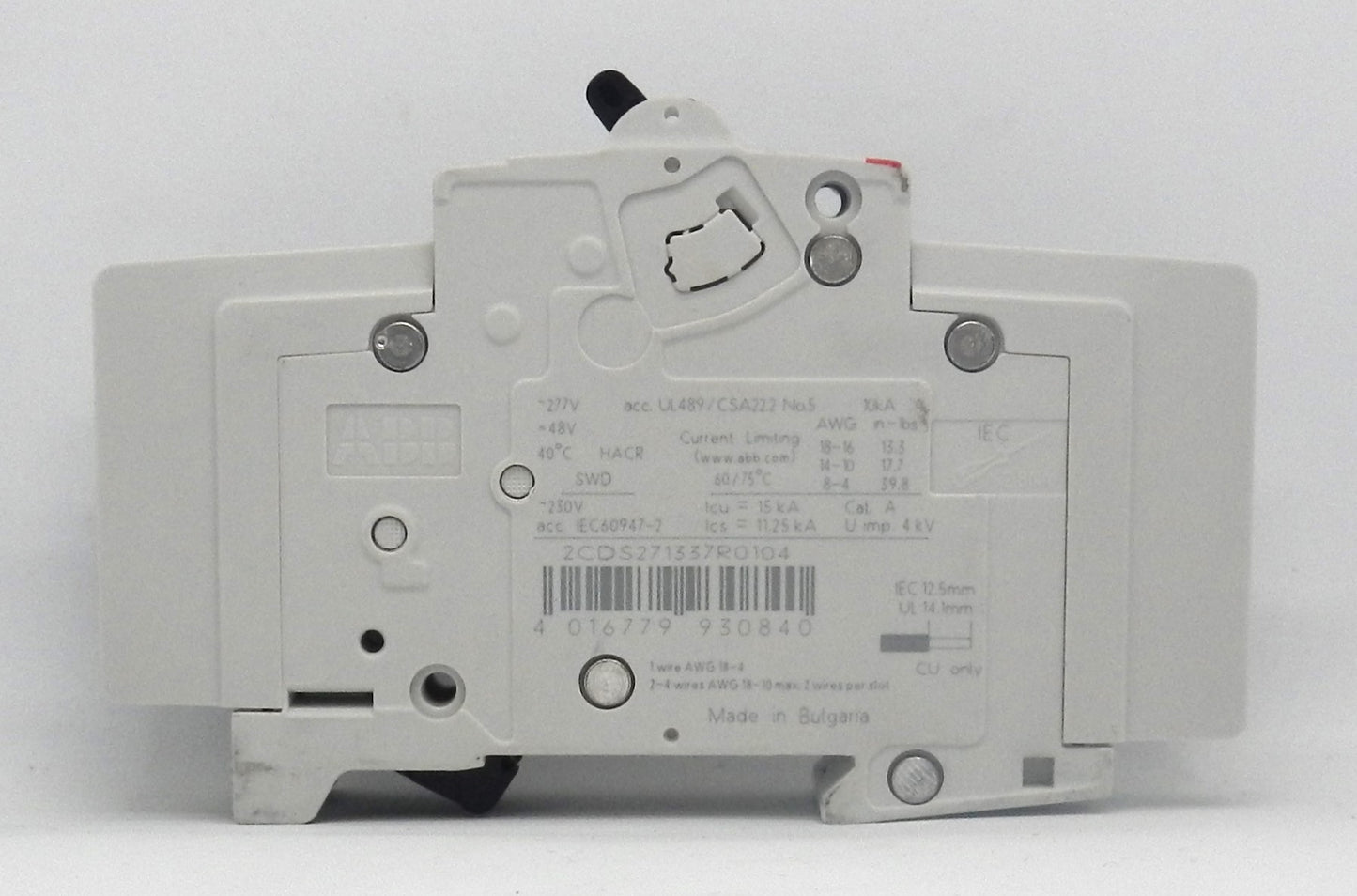

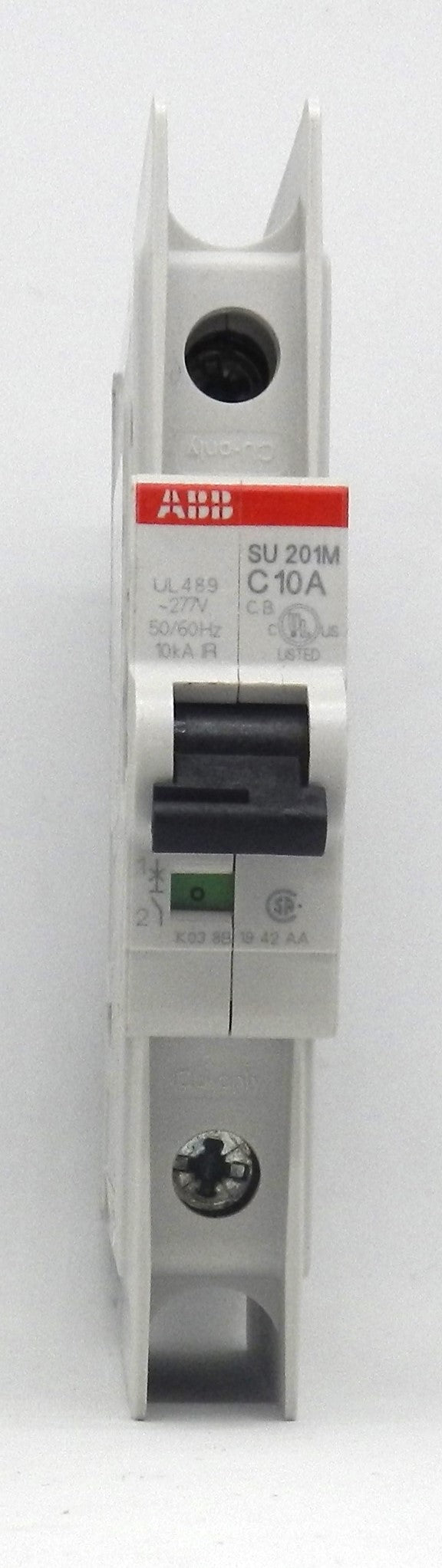

SU201M-C10 ABB 10A 1-Pole Miniature Circuit Breaker C-Curve 480Y/277VAC UL489 DIN Rail (2CDS271337R0104)

Description:

• Genuine ABB miniature circuit breaker designed for industrial branch circuit and control panel protection
• Provides 1-pole, 10 Amp overcurrent protection for AC and DC electrical systems
• C-Curve trip characteristic ideal for circuits with moderate inrush current, including control circuits, transformers, lighting, and small motors
• Rated for 480Y/277 VAC and 96 VDC applications
• UL 489 Listed branch circuit protector suitable for industrial and commercial electrical installations
• Thermal-magnetic trip mechanism delivers reliable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for fast installation in control panels
• Part of ABB's System pro M compact SU200M product family
• Ideal for industrial automation, OEM machinery, electrical distribution, motor control, HVAC systems, and machine building
• Fully compliant with UL 489, CSA 22.2 No. 5, and IEC/EN 60947-2 standards.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): SU201M-C10
• Product ID: 2CDS271337R0104
• Product Series: System pro M compact SU200M
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 10 A
• Trip Curve: C
• Rated AC Voltage: 480Y/277 VAC (UL 489)
• Rated DC Voltage: 96 VDC
• Interrupt Rating:
  • 10 kA @ 480Y/277 VAC (UL 489)
  • 10 kA @ 96 VDC
• Rated Frequency: 50/60 Hz
• Rated Insulation Voltage (Ui): 440 VAC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Clamp
• Standards:
  • UL 489
  • CSA 22.2 No. 5
  • IEC/EN 60947-2
• Applications:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Motor Control
  • Industrial Automation
  • OEM Equipment
  • Electrical Distribution
  • Machine Automation

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 17.5 mm (0.69 in)
• Depth: 69 mm (2.72 in)

Weight:

• Approximate Weight: 0.12 kg (0.27 lb).
