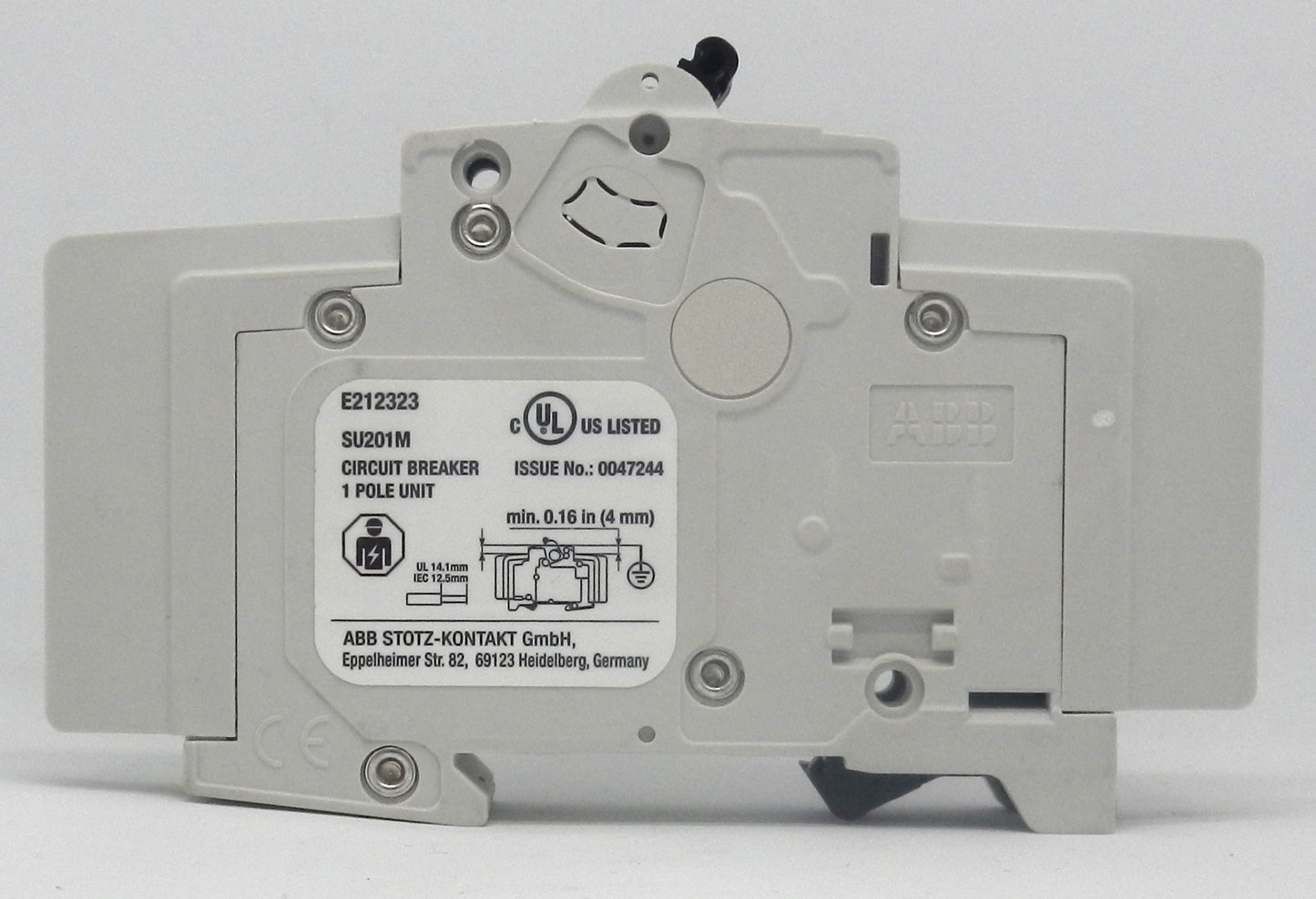

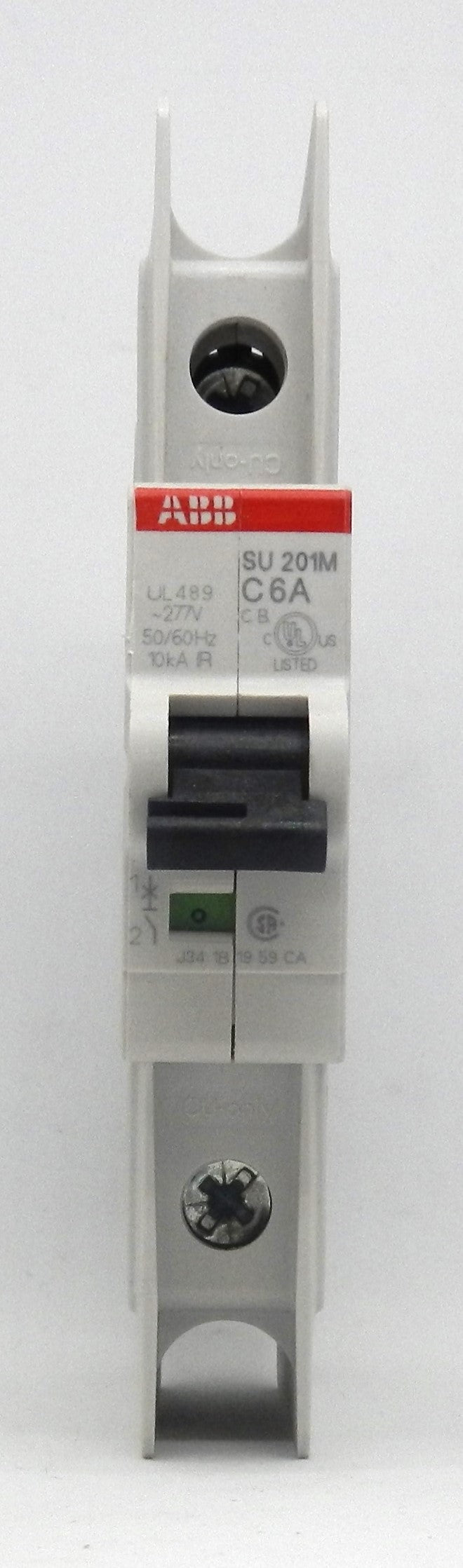

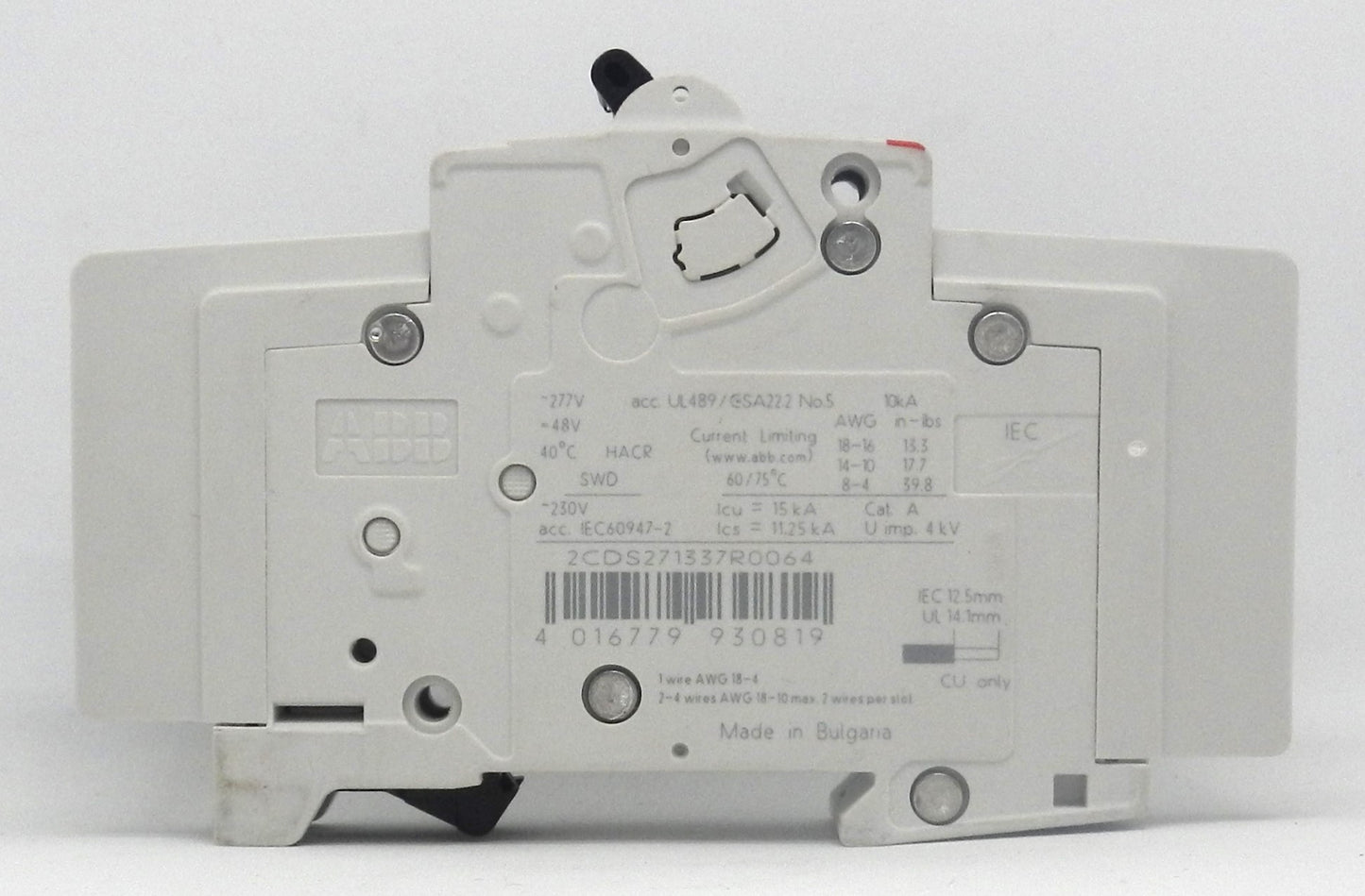

2CDS271337R0064 ABB SU201M-C6 6A 1-Pole Miniature Circuit Breaker C-Curve UL489 DIN Rail

Description:

• Genuine ABB miniature circuit breaker designed for industrial branch circuit and control panel protection
• Provides 1-pole, 6 Amp overcurrent protection for AC and DC electrical systems
• C-Curve trip characteristic ideal for circuits with moderate inrush currents, including motors, transformers, control circuits, and industrial equipment
• Rated for 277 VAC and 48 VDC applications
• UL 489 Listed branch circuit breaker suitable for industrial and commercial electrical installations
• Thermal-magnetic trip mechanism provides dependable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for quick installation in control panels
• Part of the ABB System pro M compact SU200M product family
• Fully compatible with ABB System pro M compact accessories, including auxiliary contacts, shunt trips, and busbars
• Ideal for industrial automation, OEM machinery, electrical distribution, machine control, and control panel applications.

Specifications:

• Manufacturer Name: ABB
• Part Number (MPN): 2CDS271337R0064
• Catalog Number: SU201M-C6
• Product Series: System pro M compact SU200M
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1
• Rated Current: 6 A
• Trip Curve: C
• Protection Type: Thermal-Magnetic
• Rated AC Voltage: 277 VAC
• Rated DC Voltage: 48 VDC
• Rated Frequency: 50/60 Hz
• Interrupt Rating:
  • 10 kA @ 277 VAC (UL 489)
  • 10 kA @ 48 VDC
• Ultimate Breaking Capacity:
  • 15 kA @ 230 VAC (IEC 60947-2)
• Mounting Type: 35 mm DIN Rail
• Power Loss: 2 W
• Standards:
  • UL 489
  • CSA 22.2 No. 5
  • IEC/EN 60947-2
• Applications:
  • Industrial Control Panels
  • Branch Circuit Protection
  • Machine Automation
  • OEM Equipment
  • Electrical Distribution
  • Motor Control Panels

Dimensions:

• Height: 111 mm (4.37 in)
• Width: 17.5 mm (0.69 in)
• Depth: 69 mm (2.72 in).

Weight:

• Approximate Weight: 0.125 kg (0.28 lb).
